Model |

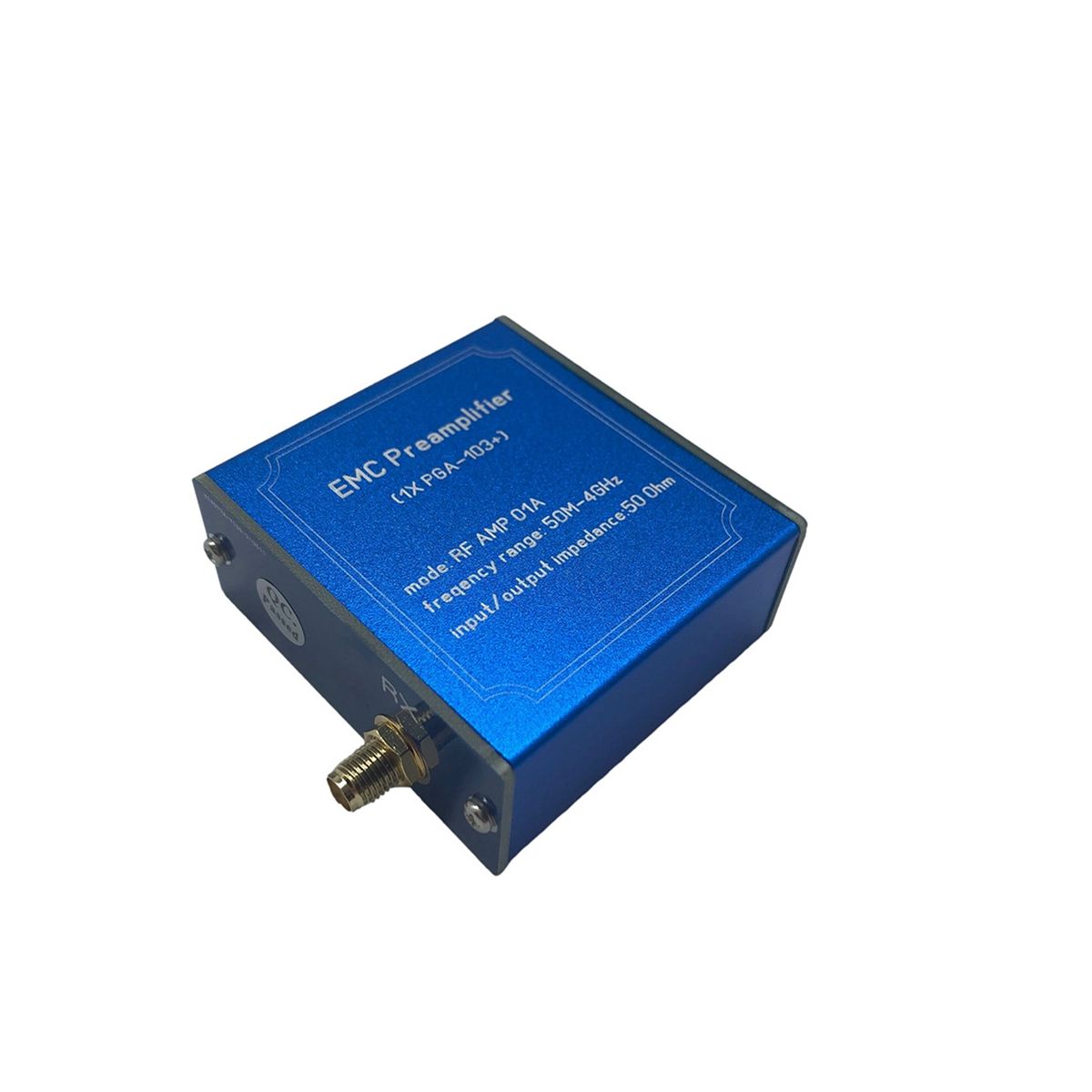

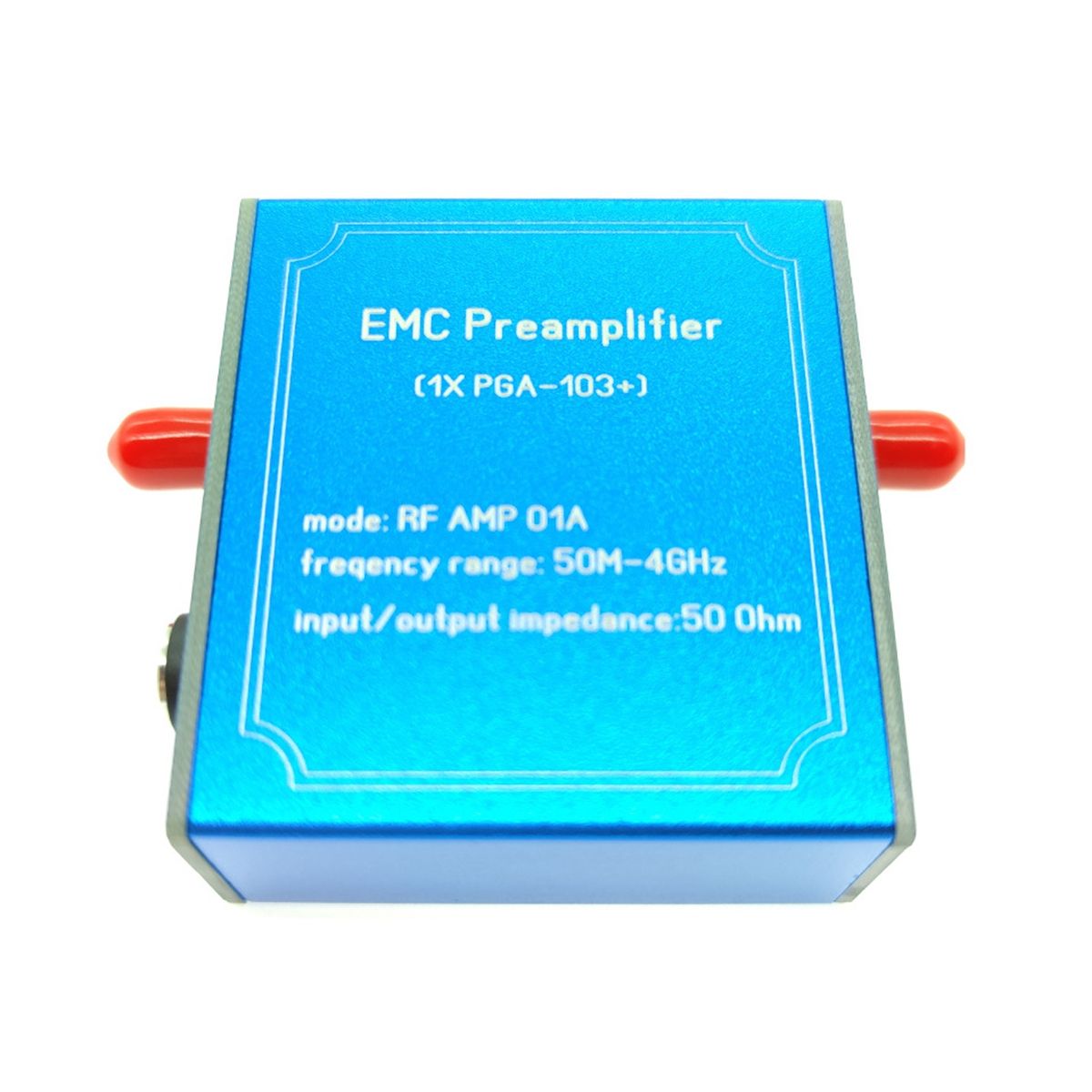

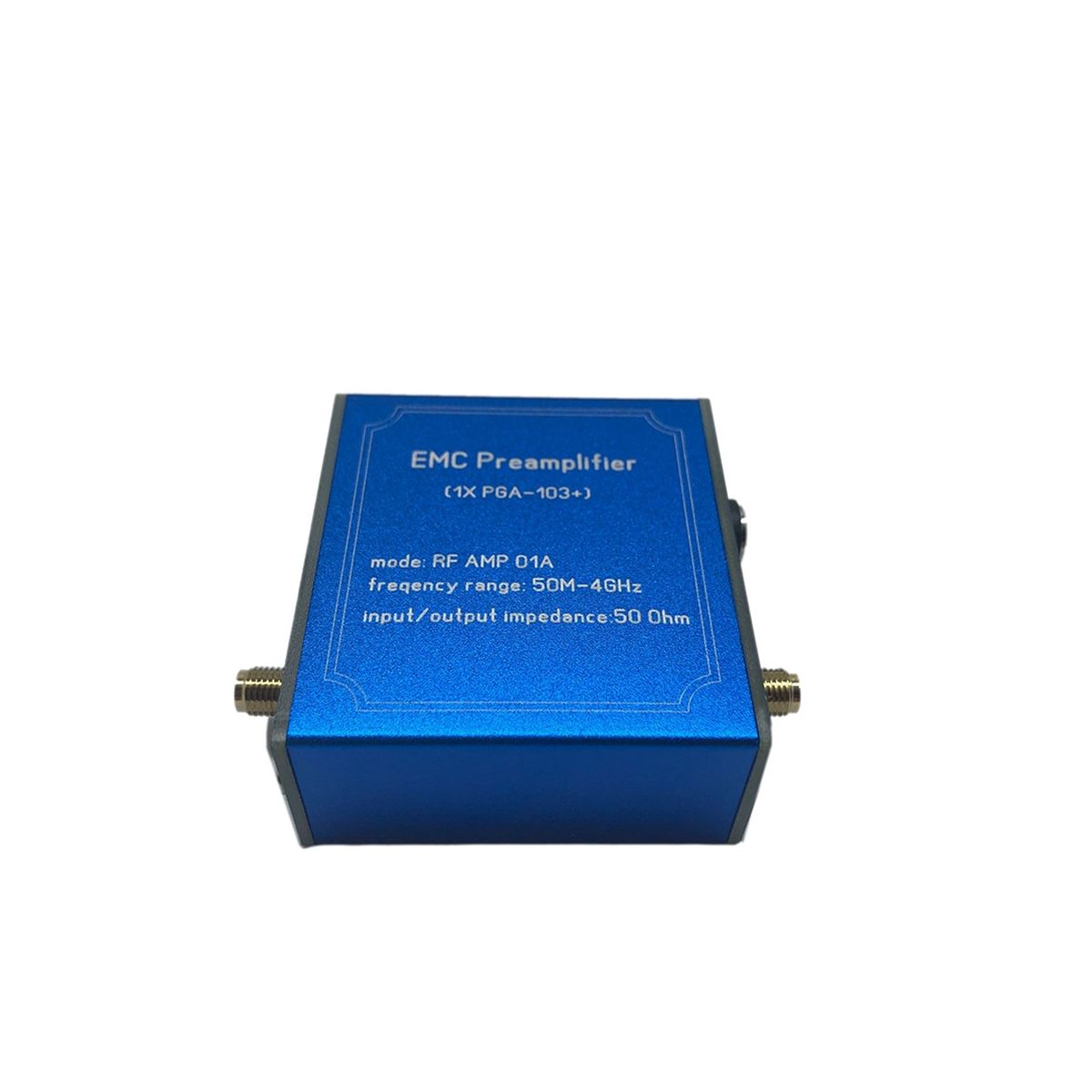

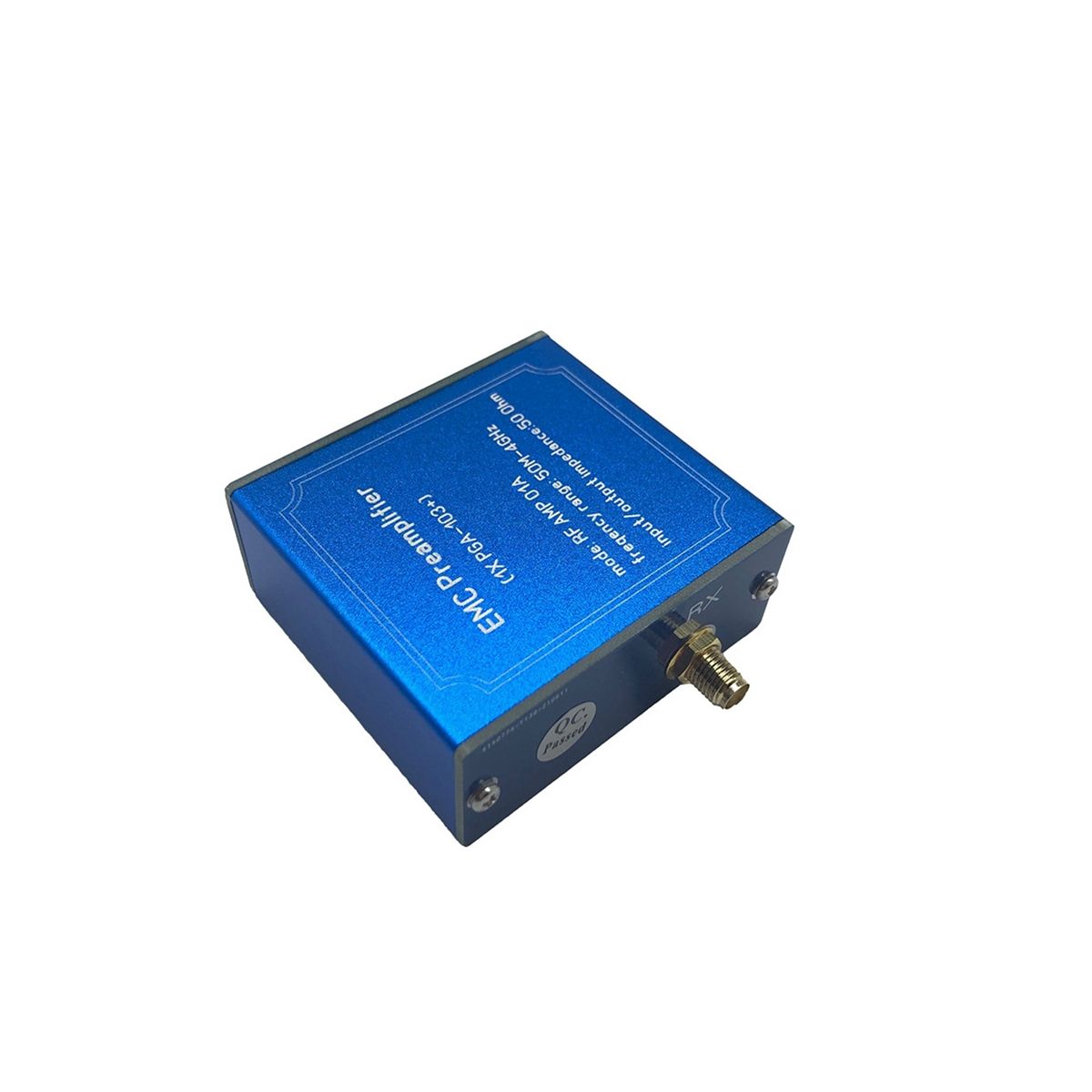

EMC preamplifier |
Production Country |
China |
Size (L x W x H cm) |
12x10x5 |
Weight (kg) |
0.115 |
Color |
multicolor |
This is a wideband LNA with an extremely low noise
The -103 chip is produced by mini-circuits
It is a new modern generation of low noise ultralinear monolithic amplifier with ultra high IP3 high dynamic range and output and extremely low noise
To maximum dynamic range and linearity with the lowest possible noise
28 MHz = G 22 dB - = 070 dB
50 MHz = G 257 dB - = 055 dB
145 MHz = G 25 dB - = 050 dB
435 MHz = G 204 dB - = 062 dB
1090 MHz = G 14 dB - = 080 dB
1296 MHz = G 132 dB - = 085 dB
2320 MHz = G 75 dB - = 17 dB
Operating frequency 50M-4GHz
Power supply DC9-15V
DC DC-022B inner core 20 round
Connector 2 x SMA female

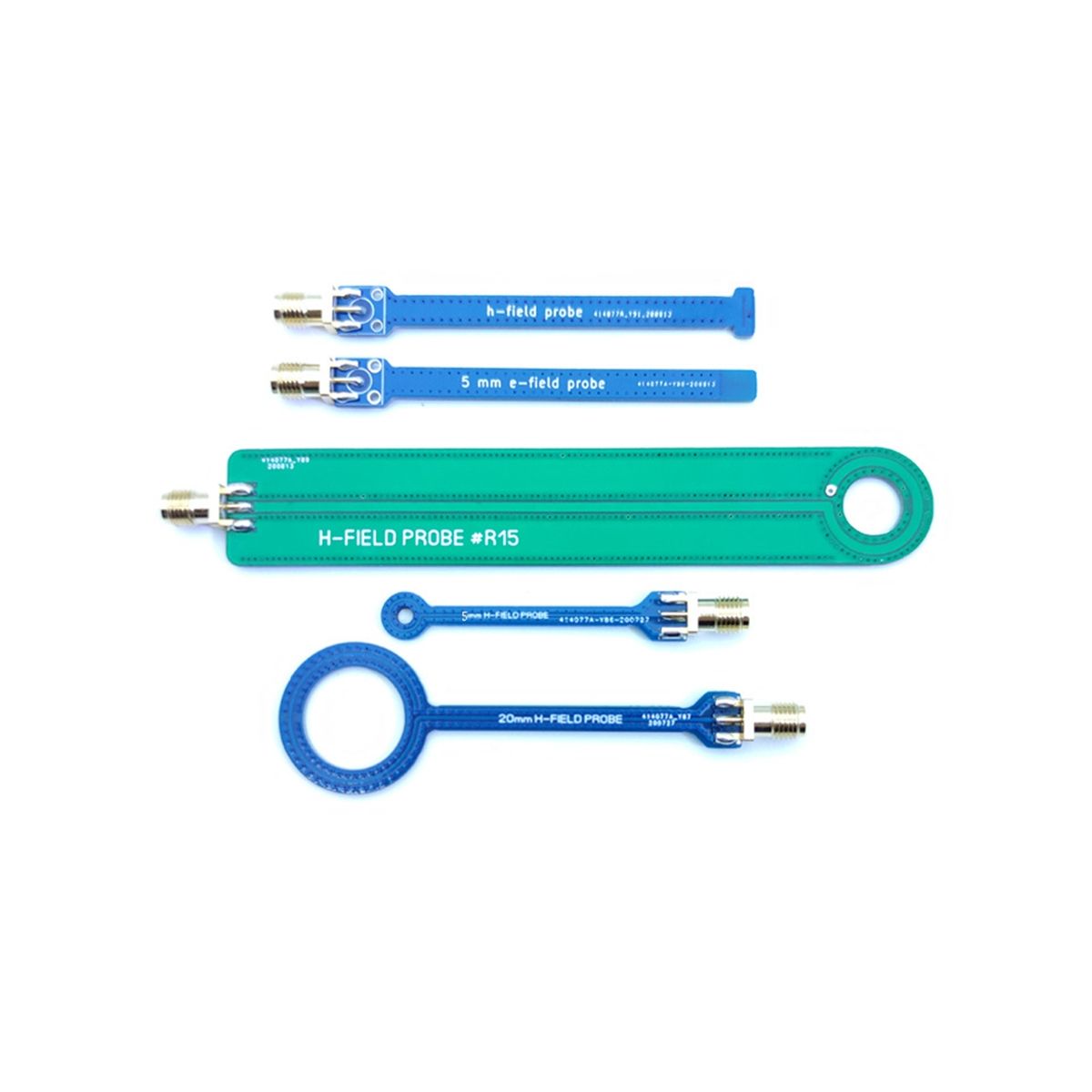

PROBE EMC EMI Near Field Probe
1 Working frequency 9K-3G
When in use keep your hands from the PCB board
2 Weight 21 grams
3 Connector SMA female head outer teeth and inner hole
Colourbluegreenblack
MaterialPCBmetal

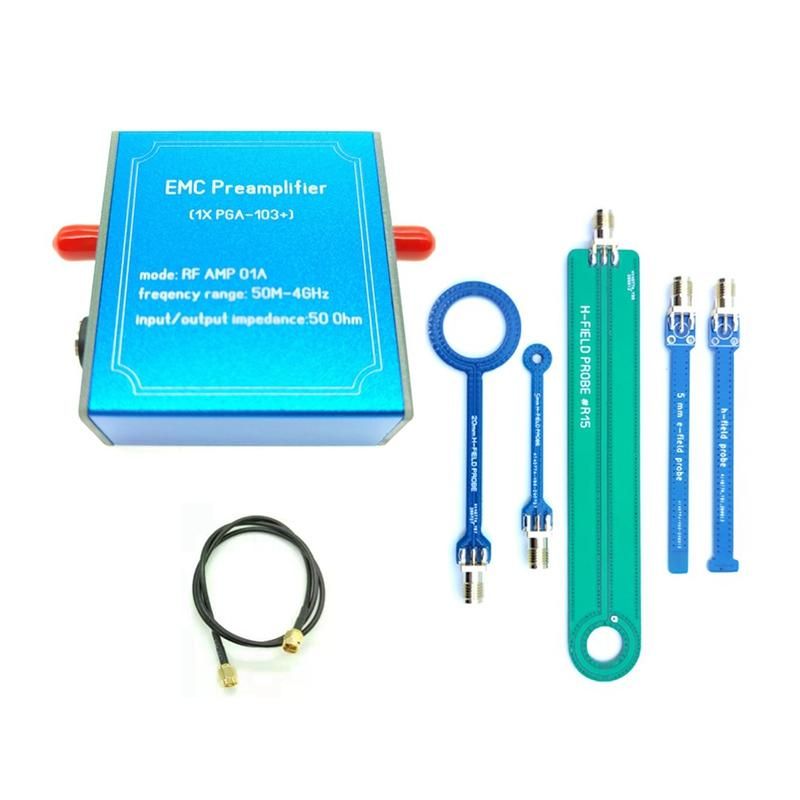

Package Contents
5 x probes
1 x cable
1 x amplifier
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
5 x probes
1 x cable
1 x amplifier
