| Size (L x W x H cm) |
5.11x2.11x0.305 |
| Weight (kg) |
0.032 |
↑ ↑
| Brand | waveshare |
|---|
| Item Weight | 1.13 ounces |
|---|
| Product Dimensions | 2.01 x 0.83 x 0.12 inches |
|---|
| Item Dimensions LxWxH | 2.01 x 0.83 x 0.12 inches |
|---|
| Color | Pico W with pre-soldered header |
|---|
| Processor Brand | ARM |
|---|
| Processor Count | 2 |
|---|
| Manufacturer | Waveshare |
|---|
| Date First Available | October 24, 2022 |
|---|
| Brand | waveshare |
| Color | Pico W with pre-soldered header |
| Connectivity Technology | Wi-Fi, USB, I2C |
| CPU Manufacturer | ARM |
| Processor Count | 2 |
About this item
- Raspberry Pi Pico W comes with a wireless communication module. The wireless module hardware uses Infineon's CYW43439 wireless which supports Wi-Fi 4 wireless networks in the 2.4 / 5 GHz band, making it the perfect solution for wireless network control and communication.
- 26 x multi-function GPIO pins: configurable pin function, allows flexible development and integration
- Built-in Wi-Fi: Onboard Infineon CYW43439 wireless supports 2.4/5 GHZ Wi-Fi 4
- Dual-core Arm processor: Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- C/C++, MicroPython support: Comprehensive SDK, dev resources, tutorials to help you easily get started
Product Description

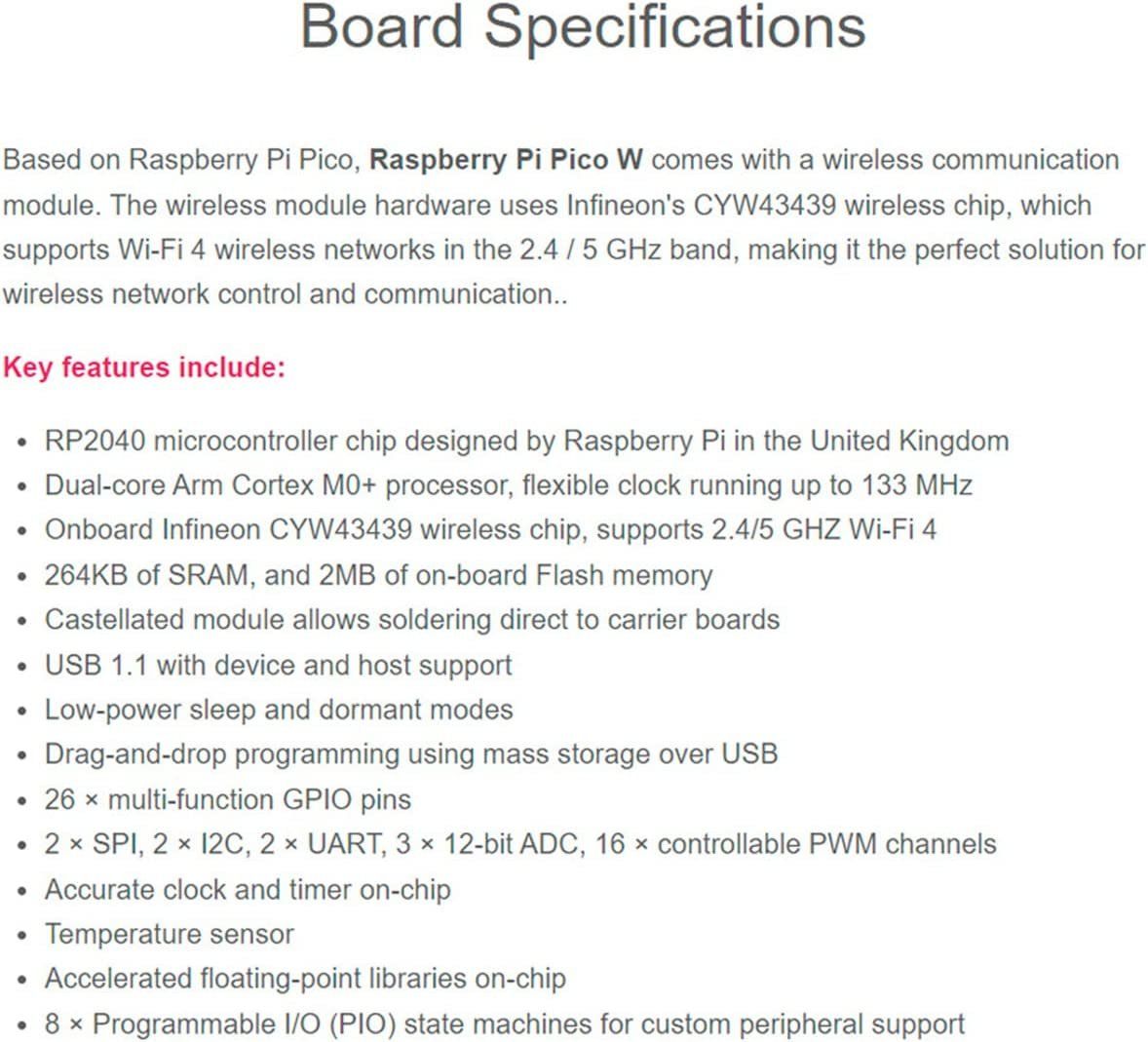

Board specifications

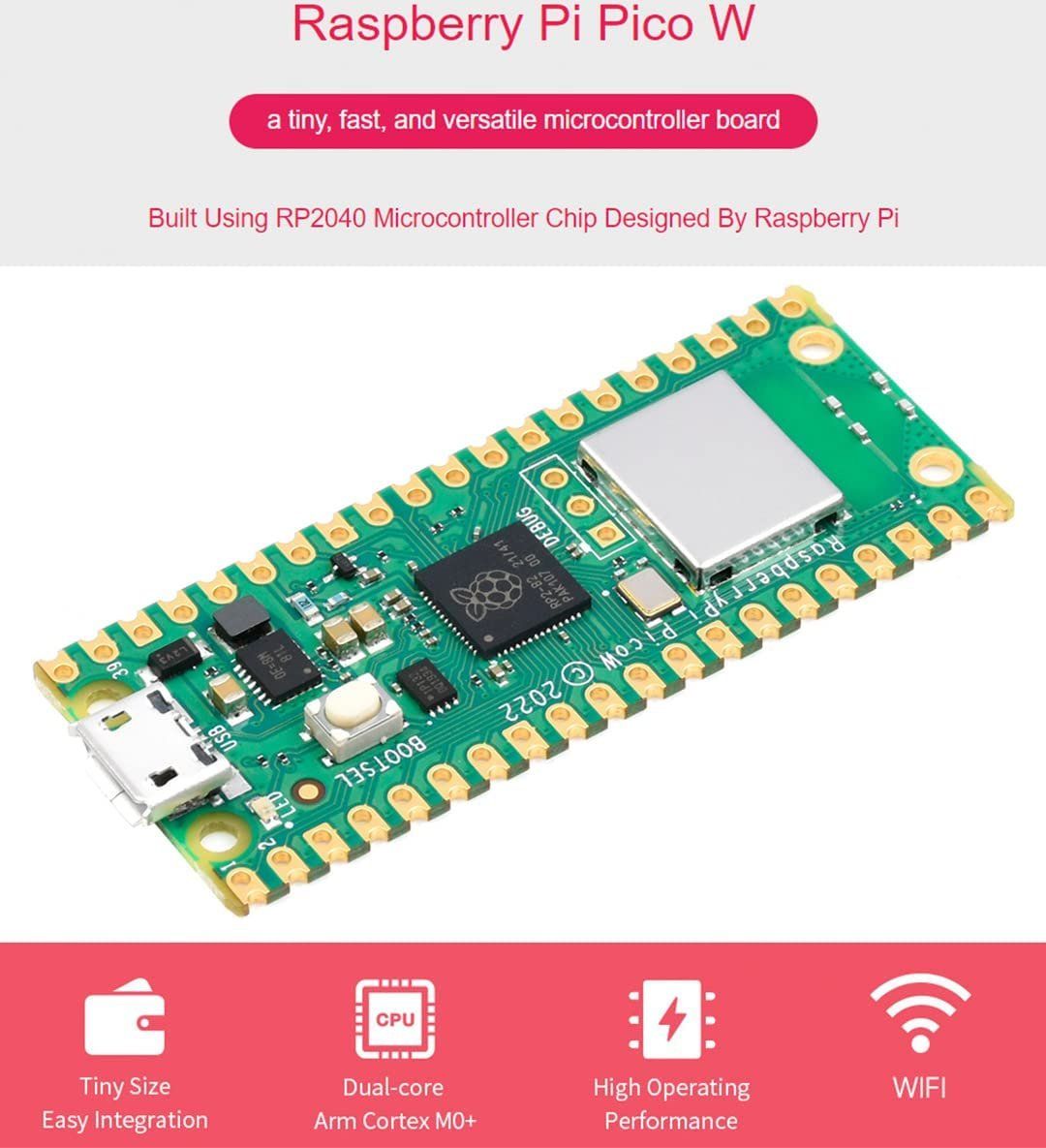

Based on Raspberry Pi Pico, Raspberry Pi Pico W board with pre-soldered header comes with a wireless communication module. The wireless module hardware uses Infineon's CYW43439 wireless which supports Wi-Fi 4 wireless networks in the 2.4 / 5 GHz band, making it the perfect solution for wireless network control and communication.
RP2040 microcontroller designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
Onboard Infineon CYW43439 wireless supports 2.4/5 GHZ Wi-Fi 4
264KB of SRAM, and 2MB of on-board Flash memory
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB

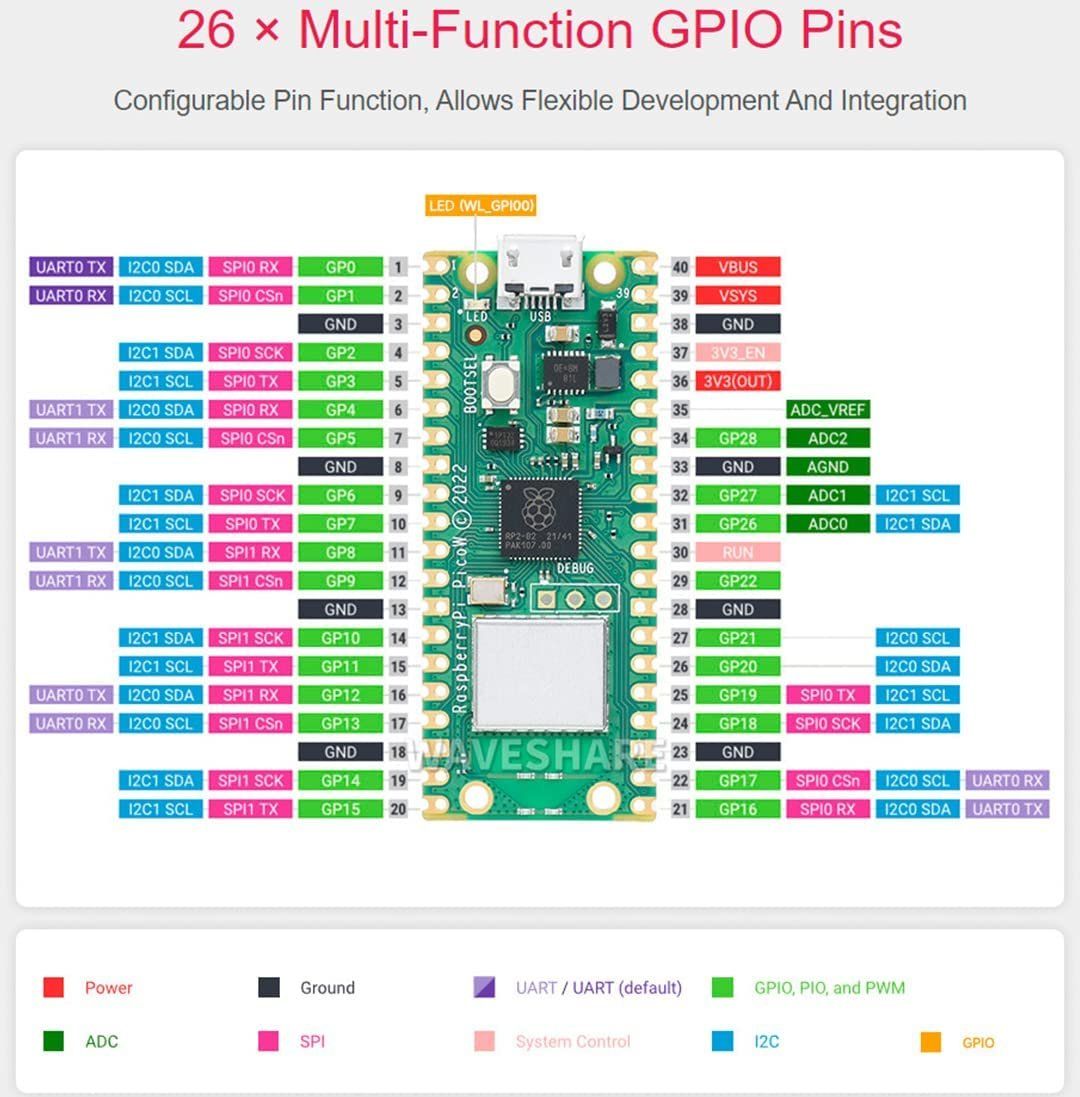

26 x multi-function GPIO pins
2 x 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels
Accurate clock and on
Temperature sensor
Accelerated floating-point libraries on
8 x Programmable I/O (PIO) state machines for custom peripheral support
Package Content
Raspberry Pi Pico W board with pre-soldered header x1
3PIN yellow pin header x1
USB Type A to micro cable x1
Key Features
Brand : waveshare
Item Weight : 1.13 ounces
Product Dimensions : 2.01 x 0.83 x 0.12 inches
Item Dimensions LxWxH : 2.01 x 0.83 x 0.12 inches
Color : Pico W with pre-soldered header
Processor Brand : ARM
Processor Count : 2
Manufacturer : Waveshare
Date First Available : October 24, 2022
What's In the Box
- 1 x X301 V1.0 Expansion Board
- 4 x M2.5x12 mm F/F Spacers
- 4 x M2.5x5mm Screws
- 2 x M2.5x10mm Screws
- 2 x M3x5mm Screws (to fix HDD)
