Model |
pm-a |
Weight (kg) |
0.3 |
Color |
white |
Main Material |
ABS |
NAFDAC Reg. Number |
pm-a |

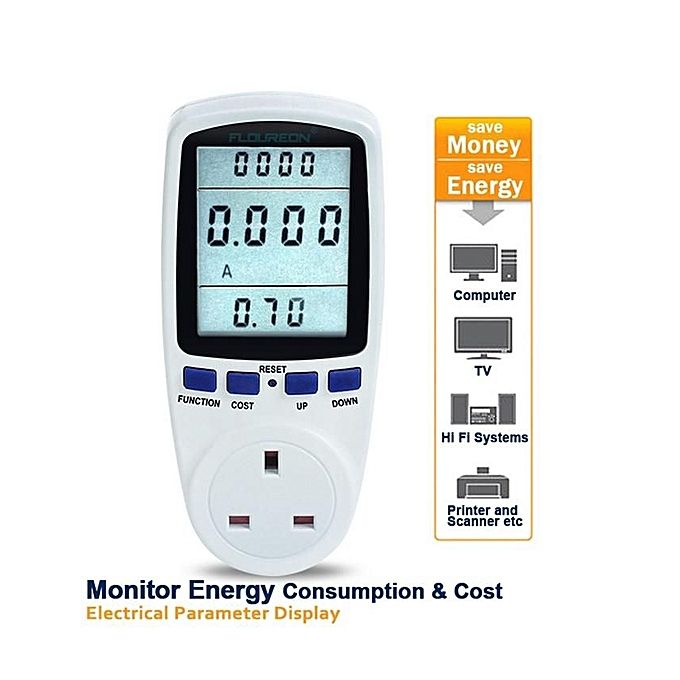

Power Meter is a monitoring and testing equipment which determines the power consumption of a connected appliance and the cost of electricity consumed.
Easily measure the power consumption and cost of individual or multiple electrical appliances. It is an excellent energy audit tool which can be used to get an accurate domestic power consumption before installation of a solar system.
Simply plug the meter into the wall and then plug your appliance into the meter.
With the help of this Power Meter Monitor, you can ascertain how much electricity is consumed by your standby appliances.

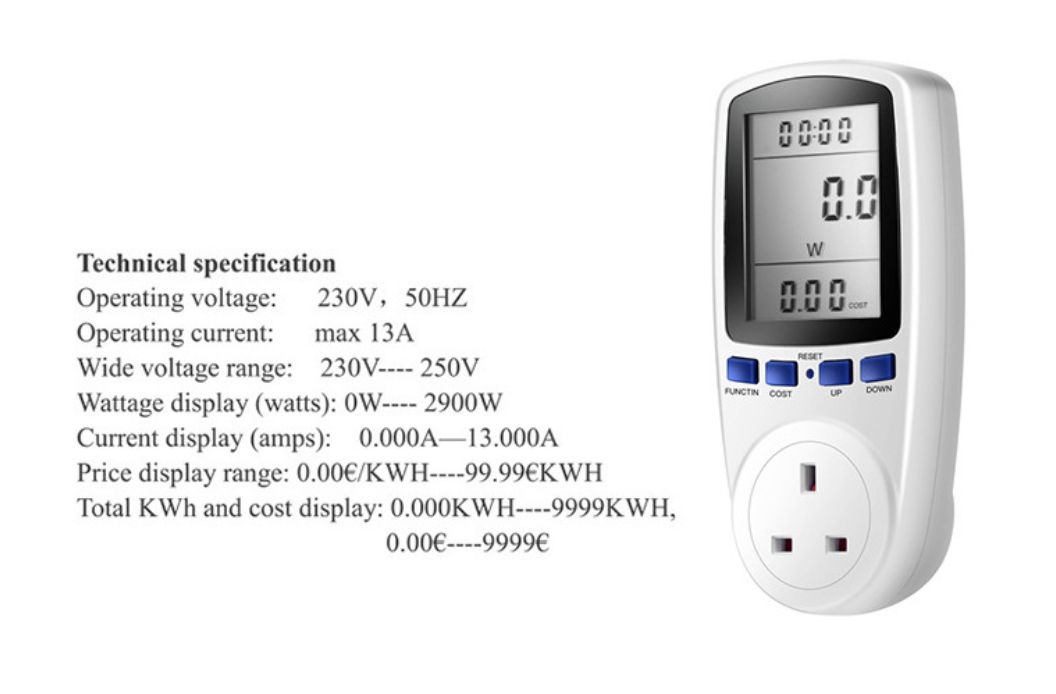

Specifications
Power consumption of the device: 0.5W
Max. watt of connected appliances: 2990W
Operating voltage: 230VAC
Frequency display: 50HZ
Operating current: max 13A
Wide voltage range: 230V-250V
Timing display range: 0 second~9999 days
Wattage display: 0W~9999W
Voltage display range: 0V~9999V
Current display (amps): 0.000A~13.000A
Price display range: 0.00COST/KWH?99.99COST/KWH
Total KWh and cost display: 0.000KWh-9999KWh, 0.00COST----9999COST
3-pin UK plug
Dimensions: Length = 155mm; Width = 70mm; Height = 45mm
Functioning indicator
It enjoys 8 display modes as below:
Time/Watt/Cost Display;
Time/Cumulative electrical quantity Display;
Time/Voltage/Frequency Display;
Time/Current/Power Factor Display;
Time/Minimum Power Display;
Time/Maximal Power Display;
Time/Price Display;
Overload Display.
NOTE
If an abnormal display appears or the buttons produce no response, the instrument must be reset. To do this, please press the RESET button.
Key Features
Power consumption of the device: 0.5W
Max. watt of connected appliances: 2990W
Operating voltage: 230VAC
Frequency display: 50HZ
Operating current: max 13A
Wide voltage range: 230V-250V
Timing display range: 0 second~9999 days
Wattage display: 0W~9999W
Voltage display range: 0V~9999V
Current display (amps): 0.000A~13.000A
Price display range: 0.00COST/KWH?99.99COST/KWH
Total KWh and cost display: 0.000KWh-9999KWh, 0.00COST----9999COST
3-pin UK plug
Dimensions: Length = 155mm; Width = 70mm; Height = 45mm
Functioning indicator
It enjoys 8 display modes as below:
