Timer operation instructions:
24-hour system/7-day system electronic timer (provide random function mode/daylight saving time mode)

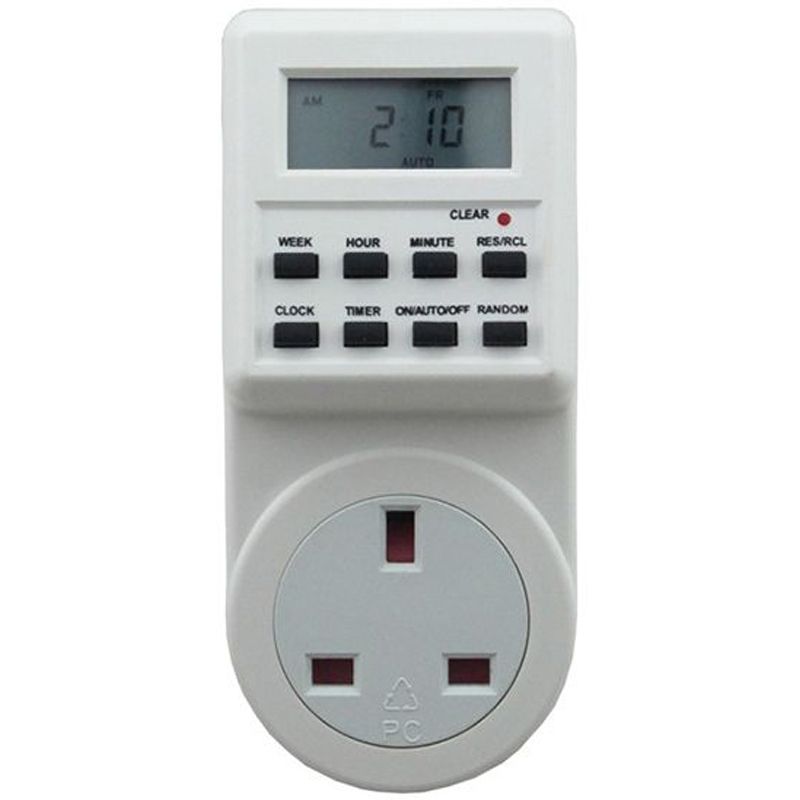

Plug-in timer can control the power consumption of connected appliances
Basic characteristics:
---8 function keys
---The hour, minute and day of the week can be set
---Can be converted to daylight saving time
---Random function mode
---12/24 hour conversion system
1. start up
1.1 Press the "MASTERCLEAR" button to check all systems within 6 seconds
1.2 Use a pointed object (such as a pencil tip) to press "MASTERCLEAR" firmly to erase all the information set last time
2. "Week" button on and off
After pressing the "Timer" key, enter the setting state
2.1 Press the "WEEK" button to select the week combination you want to turn on the connected device. The combination will be presented in the following order: MO—TU—WE—TH—FR—SA—SU—MO TU WE TH FR SA SU—MO TU WE TH FR—SA SU—MO TU WE TH FR SA—MO WE FR—TU TH SA—MO TU WE—TH RF SA—MO WE RF SU.
2.2 Press the "HOUR" key to set, select "0~23" or "1~12"
2.3 Press the "MINUTE" key to set, select "00~59"
2.4 In the setting state, if no key is pressed within 20 seconds, it will return to the current time
2.5 Make sure to press "RESET/RECALL" to cancel or reset the previous settings
Note: Press HOUR, MINUTE or TIMER for more than 3 seconds, the setting summary page will pop up 4 times every second
3. System clock function
When the timer is set
3.1 The LCD screen displays the week, hour and minute. 12-hour system will have AM and PM display
3.2 Press the "CLOCK" and "WEEK" keys at the same time to set the day of the week
3.3 Press the "CLOCK" and "HOUR" keys at the same time to set the hour
3.4 Press the "CLOCK" and "MINUTE" keys at the same time to set the minutes
3.5 Press the "CLOCK" and "TIMER" keys at the same time to switch between 12/24 hour format.
4. Switch to daylight saving time
Follow the steps below to easily switch to daylight saving time
4.1 Press "CLOCK" and "ON/AUTO/OFF" at the same time
The LCD screen will display the word SUMMER and the time will switch to daylight saving time
5. Random function mode
5.1 Press the "RANDOM" button, the LCD screen will display "RANDOM" to remind the user that the random function mode has been activated. The valid time is from 6:00PM to 6:00AM. If you end this mode, it will automatically switch to automatic mode.
5.2 As in 5.1, press the "RANDOM" key again to end the random function mode and the word RANDOM will disappear
5.3 The random function time is 1~2 hours, that is, the ON or OFF time is 60~120 minutes each time.
6. Manual operation
The LCD screen displays the output status as follows
AUTO: When setting, it is ON or OFF
ON: The device is always on
OFF: The device is always off
ON—AUTO—OF
Key Features
8 function keys
The hour, minute and day of the week can be set
Can be converted to daylight saving time
Random function mode
12/24 hour conversion system
What's In the Box
1 x Timer Switch Socket
