| Model |
N/A |
| Production Country |
China |
| Weight (kg) |
1.2 |
| Color |
N/A |
| From the Manufacturer |
N/A |
| Care Label |
N/A |
gt; gt;Please click here to download the English manual and software lt; lt;
Specifications:

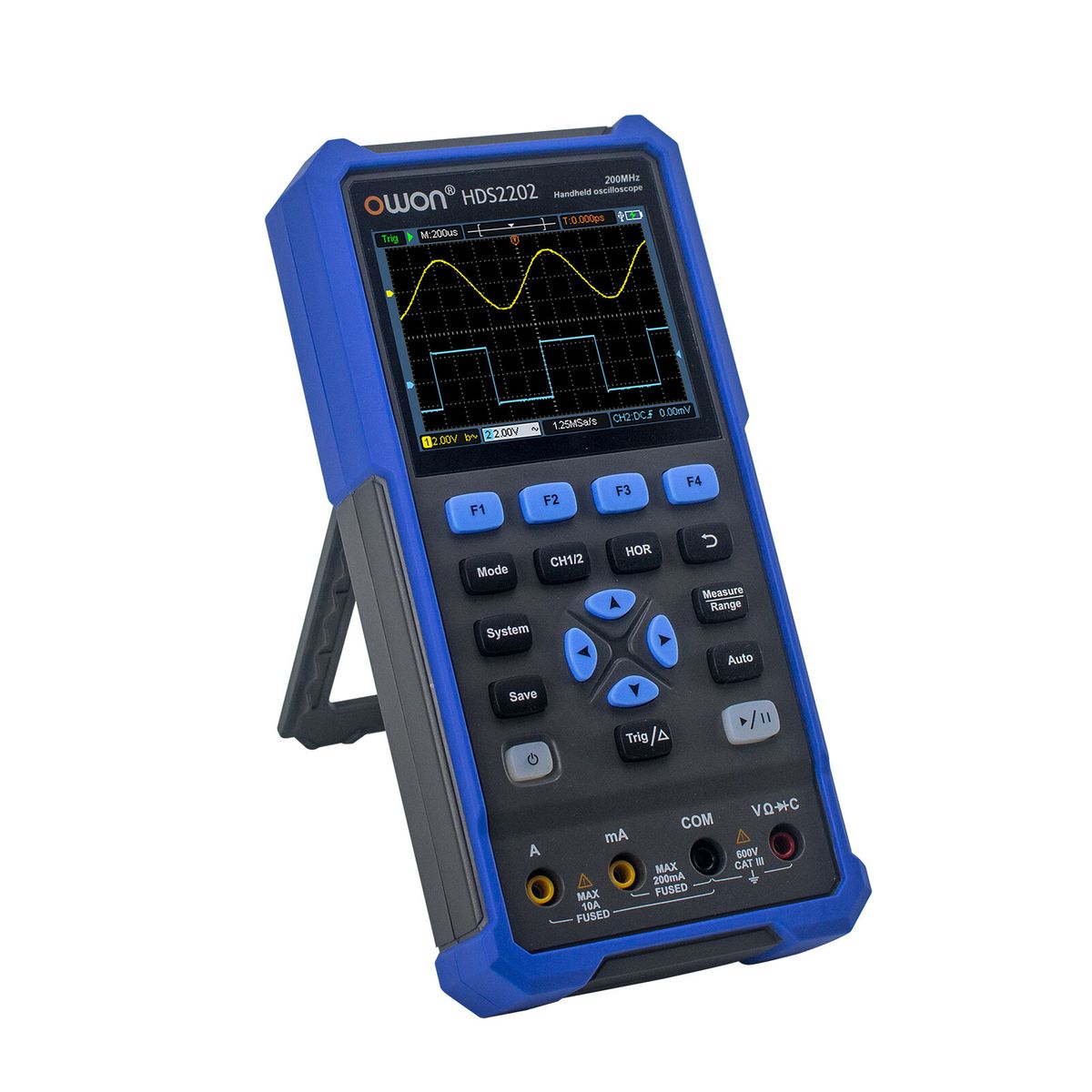

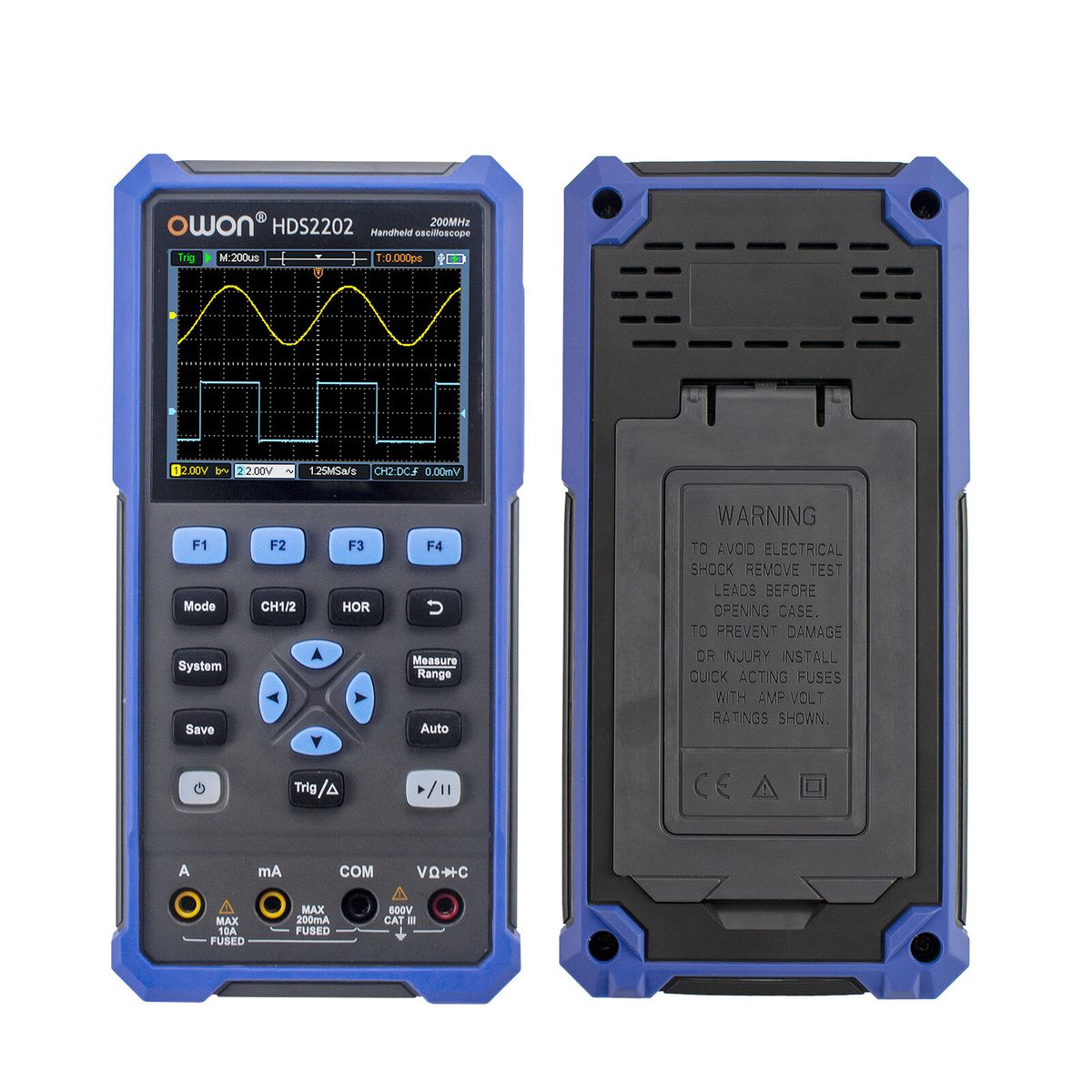

「Oscilloscope」
Model
HDS2202
HDS2202S
Bandwidth
200MHz
200MHz
Channels
2- CH Oscilloscope
2-CH Oscilloscope
+1-CH Generator
Sample Rate
1GSa/s
Acquisition Model
Normal, Peak detect
Record Length
8K
Display
3.5 -inch LCD
Waveform Refresh Rate
10,000 wfrms/s
Input Coupling
DC, AC, and Ground
Input Impedance
1 M Omega;+2%, in parallel with 1 6pF+10pF
Probe Attenuation Factors
1X,10X,100X,1000X,10000X
Max. input Voltage
400V (DC+AC, PK PK, 1M Omega; input impedance)
(10:1 probe attenuation)
Bandwidth Limit (typical)
20MHz / Full bandwidth
Horizontal Scale
2ns/div - 1000s/div, step by 1-2- 5
Vertical Sensitivity
10mV/div - 10V/div
Vertical Resolution
8 bits
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
gt; gt;Please click here to download the English manual and software lt; lt;
2- CH Oscilloscope
Normal, Peak detect
3.5 -inch LCD
Waveform Refresh Rate
