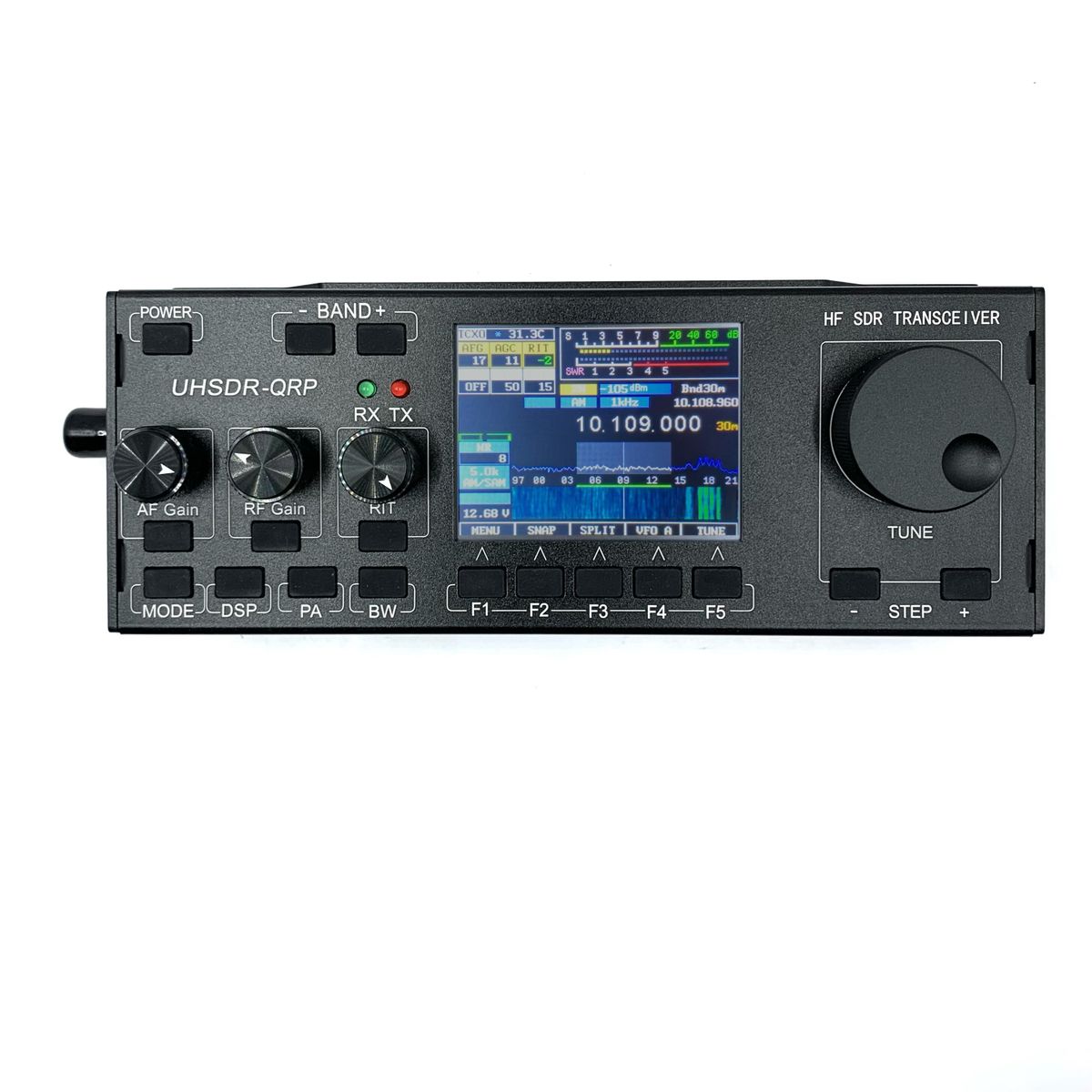

Description:
This is an SDR HF QRP transceiver that has been popular all over the world since its launch and has at least 30,000 users so far. Its advantages are: small and portable, cost-effective, full-featured, and direct selection of software radio circuit models. For electronics enthusiasts who like DIY and hardware, this is a very good hands-on tool. It can be used to familiarize yourself with the working principle of amateur radio transceivers; for software enthusiasts who write code programming and code farmers, you can also use this hardware to modify the source code by yourself, add or reduce some functions, and give full play to your code farmers. With technical ability, you can modify and upgrade the software of this machine at will. For college students studying electronic technology, it can be used to test their own learning level. And QRP communication enthusiasts can use the assembled kit for various outdoor QRP communication, especially digital communication using PSK31, RTTY and JT65. For emergency communication, it is a small and portable emergency communication equipment.
Features:
- Spectrum Dynamic Waterfall Display
- Multiple Working Modes: Receive Mode, Transmit Mode, TUNE Mode, VFO Mode, SPLIT Mode
- DSP Digital Signal Processing Noise Reduction
- Automatic Notch Filter
- Humanized Interface Color Display
- Receive Fine Tuning Function, Changeable MIC Gain Value
- VCC Power Supply Voltage Indication Table
- Transmit Signal Strength Display Table
- Multifunctional Instrument: SWR Standing Wave Ratio Meter, AVD Audio Frequency Meter, ALC - Signal Modulation Meter
- Build in USB Sound Card support WSJT-X use FT-817 Rig
- Acc Jack Port Support 70-100W HF Pa Amp T/R
- V0.6 pcb redesign upgrade many hardware mod*
- Inside MIC and PTT (Press TUNE)
Basic Parameters:
- Weight: 0.9KG/2LB
- Overall size: 190 x 69 x 45mm/7.5 x 2.7 x 1.8\\\' (WxHxT)
- Frequency range: Receive: 2.5-30MHz; Transmit: All HAM HF bands
- Operating Mode: SSB (J3E), CW (A1A), and AM (A3E)
- Minimum frequency step: 1Hz
- Antenna impedance: 50 Omega;
- Operating temperature range: -10℃ to +60℃
- Frequency Stability: plusmn;1.5ppm (5 minutes on), -10 deg;C to +60 deg;C (standard); plusmn;0.5ppm (5 minutes on), -10 deg;C to +60 deg;C (TCXO-M)
- Working voltage: 9~15V DC
- Working current: Receiving: 410MA-440MA (maximum display brightness). Minimum LCD brightness can be reduced by 40-60MA. After hardware improvement, it will drop by 50%-80%; about 60MA after shutdown, and 3-5MA after power amplifier driver level improvement. Transmit: 3A (FULL); 1.5A (5W)
- Transmitting frequency band: 3.5Mhz～3.9MHz, 5351.5-5366.5 kHz, 7MHz～7.3MHz, 10.1 MHz～10.150 MHz, 14MHz～14.350MHz, 18.068 MHz～18.168MHz, 21MHz～21.450MHz, 24.890MHz～24.990 MHz, and 28MHz～ 29.700MHz
- Transmitting power: Nominal 10W, 15W (at 13.8V FULL)
- Modulation method: SSB software balanced modulation, AM software low-level modulation
- Spurious suppression: ge;40dBc
- Carrier suppression: ge;45dBc
- Selectivity: SSB 2.3KHz (-6db), CW 500Hz (-6db)
- Receive sensitivity: 0.11uV-0.89uV (RFC 50-20); better than -108 dBm (0.89uV) in 2.3 kHz bandwidth; better than -120 dBm (0.22uV) in 300 Hz bandwidth
- Receiving frequency band: 3.5-30 MHz (nominal); the widest continuous coverage is 1.8-32 MHz
- Dynamic Range: Better than 95dB
- RIT frequency fine-tuning range: plusmn;1kHz
- Audio output: 0.5W at 8 Omega;
- FM sensitivity for 12 dB SINAD, CCITT filtering: 7.2 kHz BW filter: -103.7 dBm (1.46uV) with 1 kHz tone at plusmn;1.5 kHz; 10 kHz bandwidth filter: -102.1 dBm (1.75uV) with 1 kHz tone at plusmn;1.5 kHz; 10 kHz bandwidth filter: -104.0 dBm (1.41uV) with 1 kHz tone at plusmn;3kHz; 12 kHz bandwidth filter: -102.7 dBm (1.63uV) with 1 kHz tone at plusmn;3kHz; 15 kHz BW filter: -99dBm dBm (2.50uV) with 1 kHz tone at plusmn;3 kHz
Package Included:
1 x HF SDR Transceiver
1 x Power Adapter
1 x Handheld Microphone
Note:
Battery is not included.
