Features:

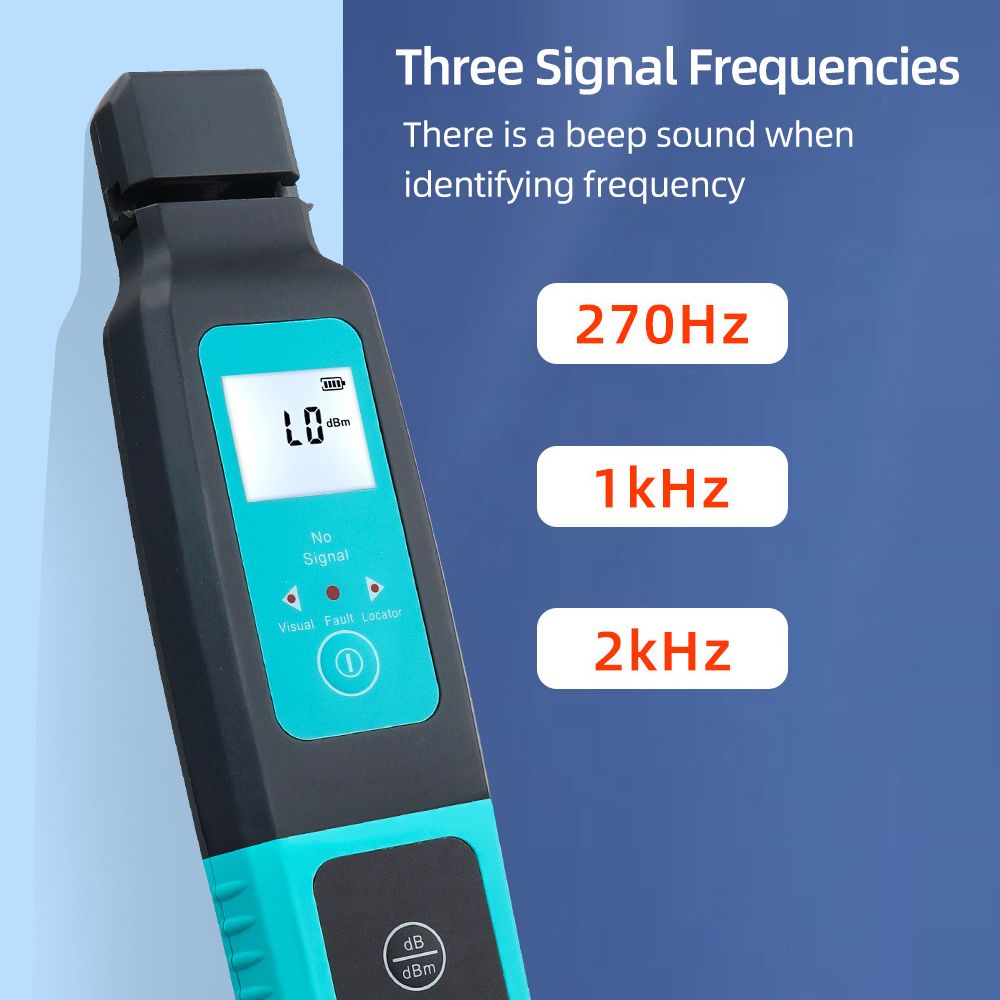

It can identify 3 kinds of signal frequencies.

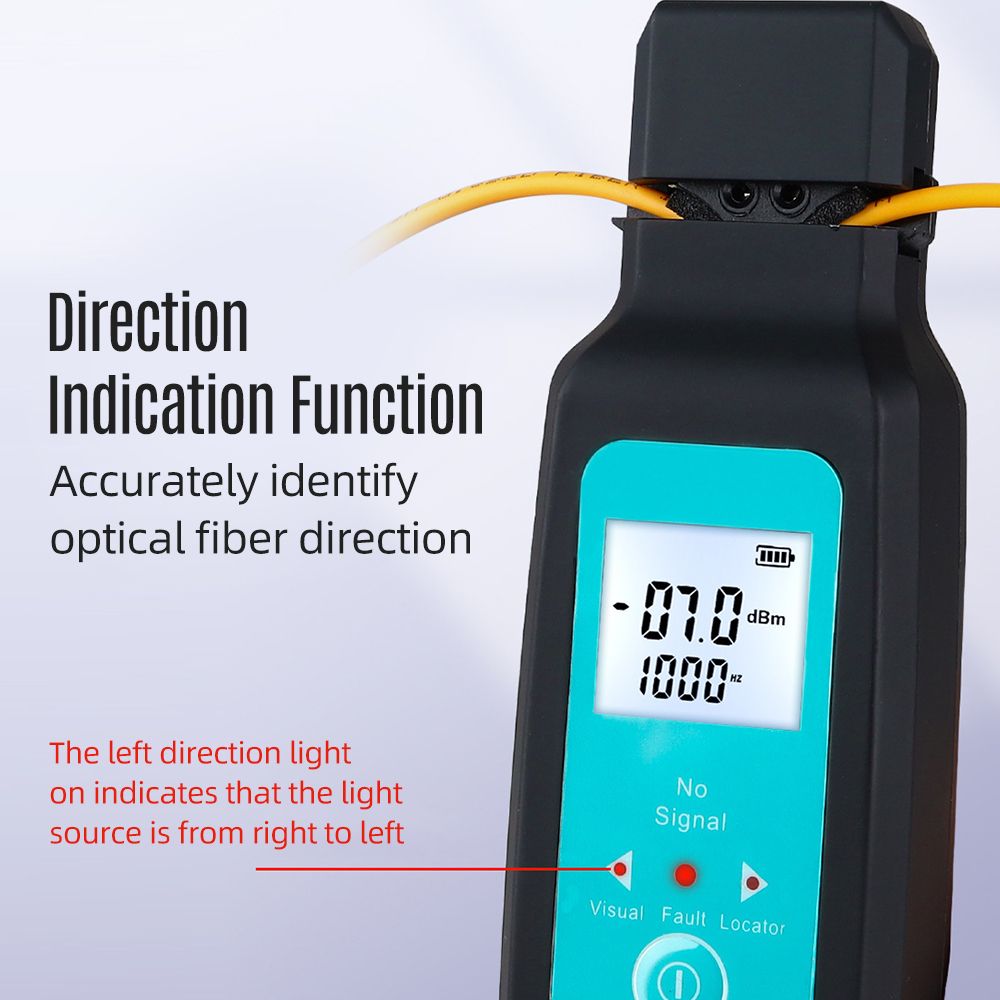

Direction indication function, accurately identify optical fiber direction.
It comes with red light source and LED light, stable and u beam focus, effectively cooperate with cable detection.
Ergonomic design, when holding the machine, press the back trigger switch to clamp the optical fiber cable, it will start test automatically.
Compatible with 3.0/2.0/0.9/0.25mm fiber cable.

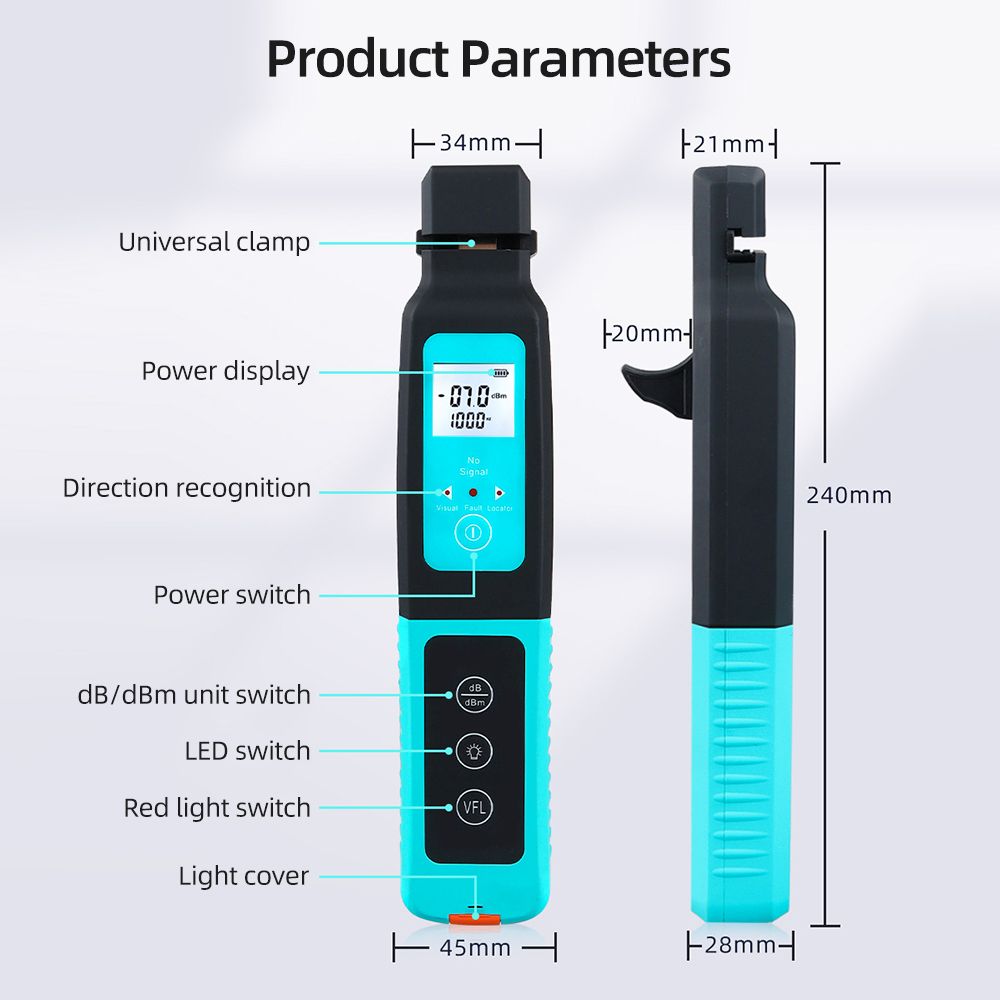

Specification:
Wavelength range: 800-1700nm
Optical fiber cable type: 3.0/2.0/0.9/0.25mm
Recognition signal frequency: 270Hz/1kHz/2kHz
Sensitivity range: +10~-50dBm
Output wavelength: 650±10nm
Output : >10mw
Battery requirement: 2*AA batteries(not included)
Item size: 24 * 4.5 * 2.8cm /9.45 * 1.77 * 1.1in

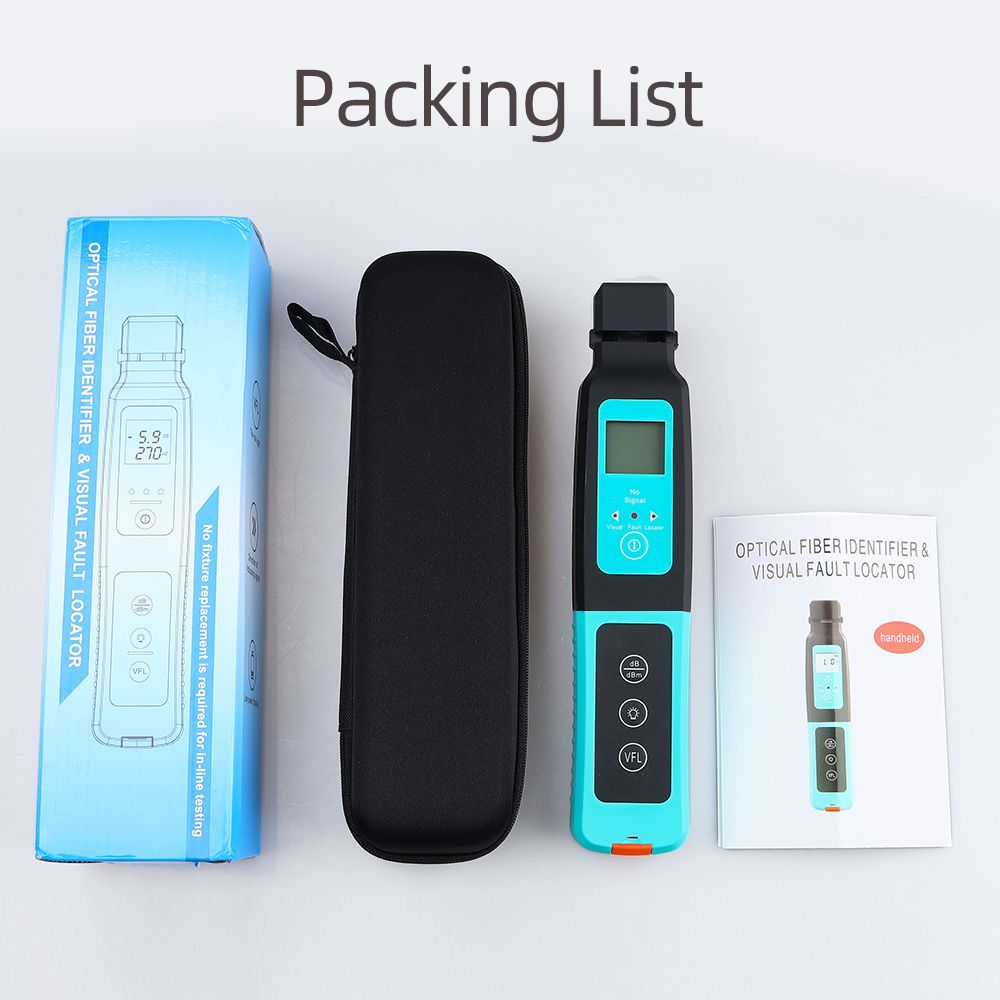

Packing list:
1 * Identification device
1 * Storage bag
1 * User manual
Key Features
It can identify 3 kinds of signal frequencies.
Direction indication function, accurately identify optical fiber direction.
It comes with red light source and LED light, stable and strong beam focus, effectively cooperate with cable detection.
Ergonomic design, when holding the machine, press the back trigger switch to clamp the optical fiber cable, it will start test automatically.
Compatible with 3.0/2.0/0.9/0.25mm fiber cable.
It can identify 3 kinds of signal frequencies.
What's In the Box
1 x Identification device,1 x Storage bag,1 x User manual
