This PON optical meter is designed for the installation, operation and maintenance of fiber optic networks. Color LCD screen design, support measure and display of voice, data and video signals on the PON architecture at the same time, while testing the 1310nm uplink signal 1490nm and 1550nm downlink signal in the PON system. Support ten data storage, in the test interface, long press V/LOAD to save the current value, short press V/LOAD to enter the saved value view mode.
Features:PON optical meter, suitable for the installation, operation and maintenance of fiber optic networks.
LCD screen design, supports simultaneous measurement and display of voice, data and video signals on PON architecture.

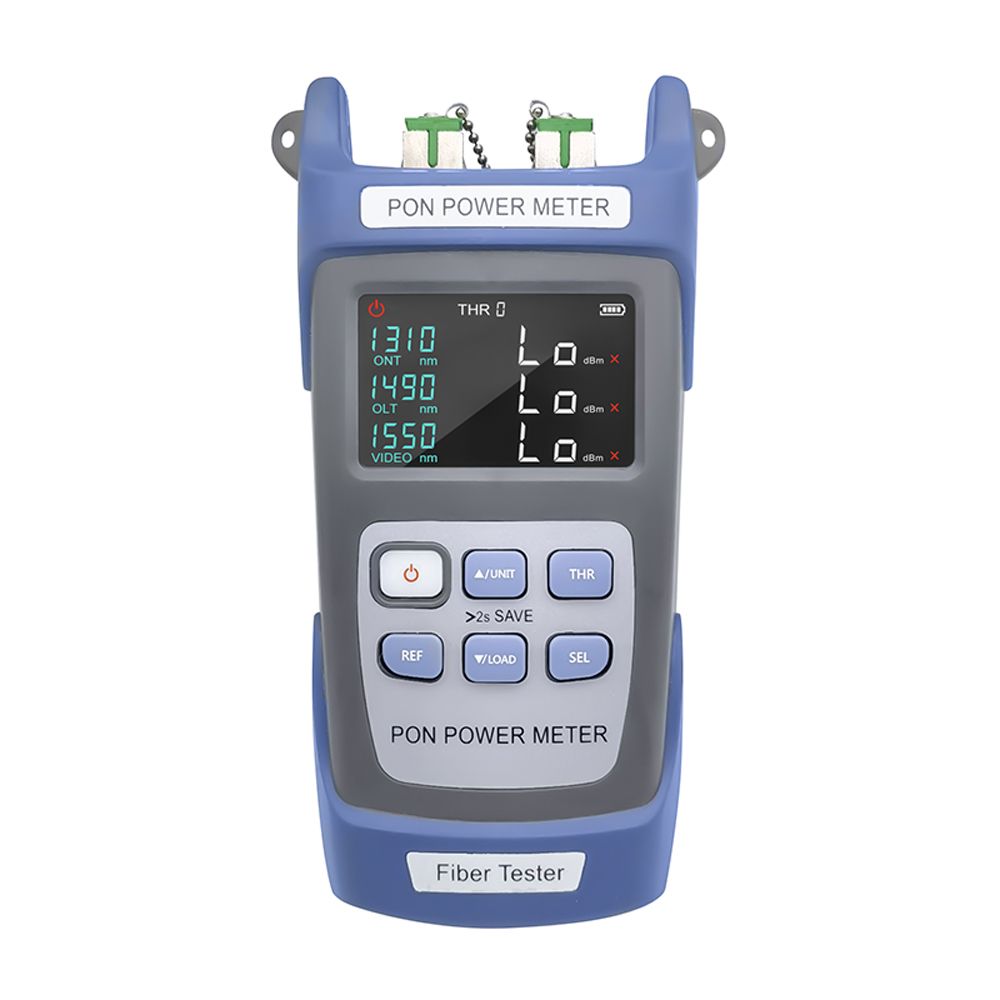

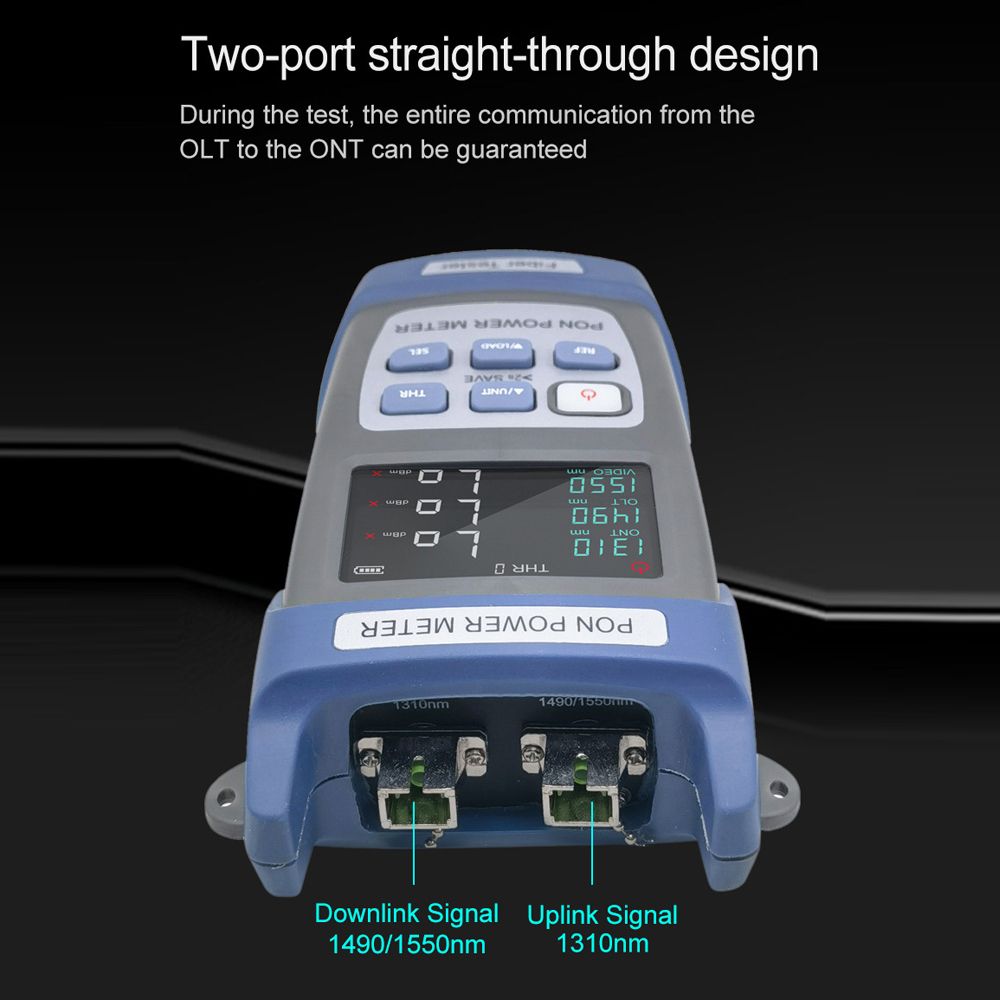

Simultaneous testing of 1310nm uplink signal 1490nm and 1550nm downlink signal in PON system.

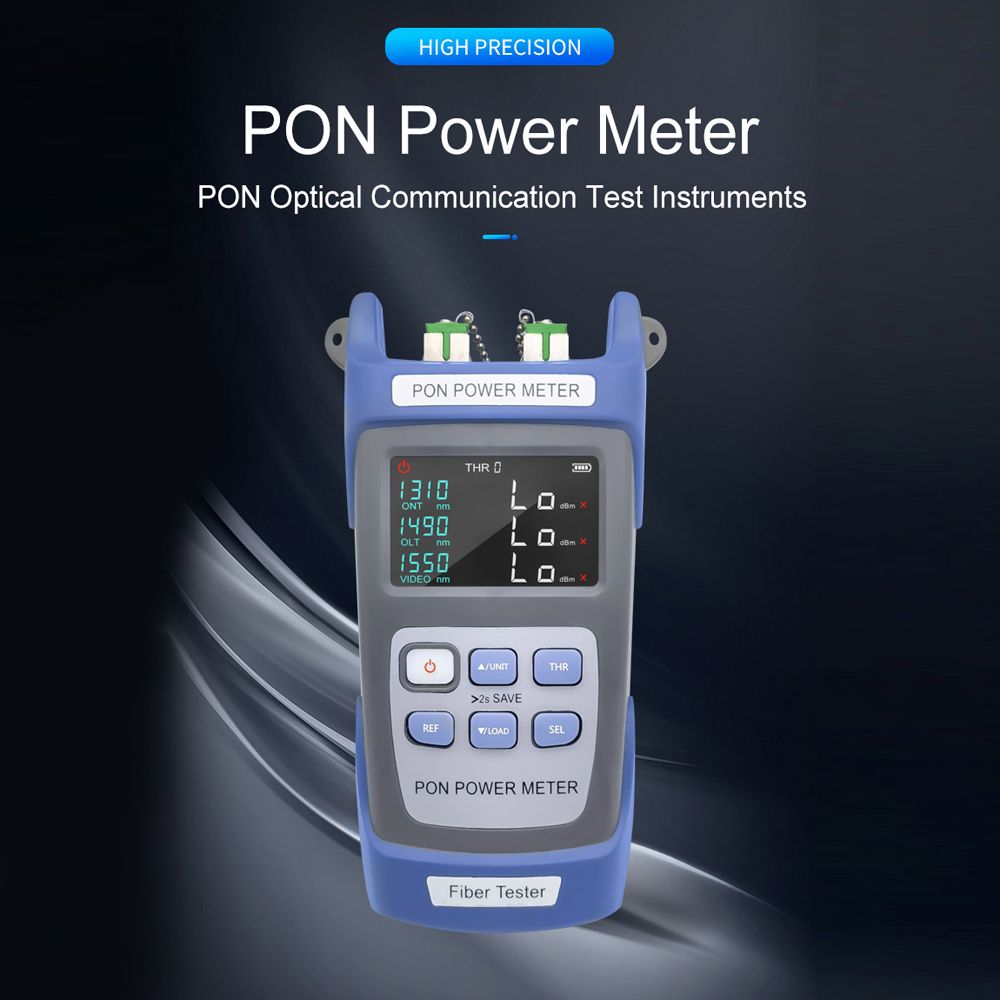

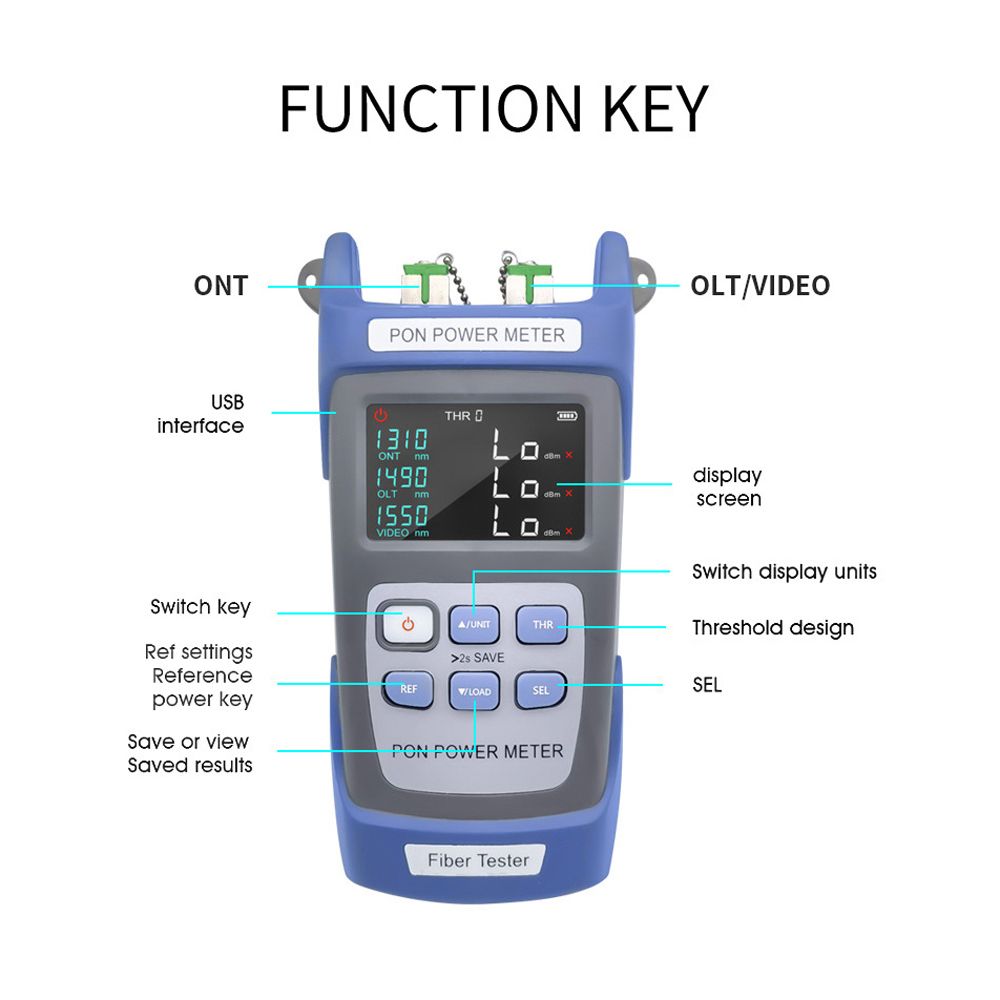

The removal port is designed for weak light remediation, and the release port is designed to check whether the optical modem is online.

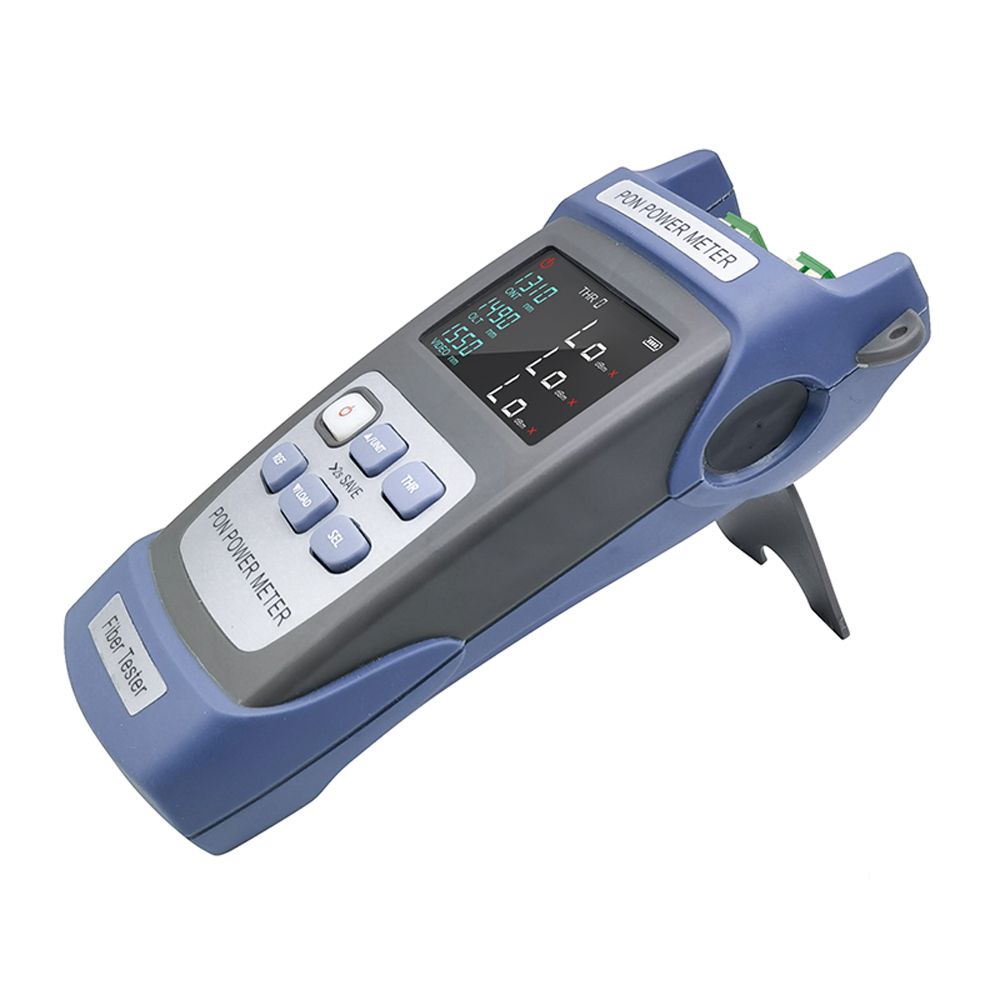

The USB supplying port only supports , with a rear bracket to facilitate the placement of desktop work.
Support ten data storage, in the test interface, long press V/LOAD to save the current value, short press V/LOAD to enter the saved value view mode.
Self-calibration function, press EEF+SEL at the same time to enter manual calibration mode.
Equipped with the timer shutdown function, in the shutdown state, long press the button for 2s after the device is turned on. The icon in the upper left corner of the interface indicates that the device will automatically shut down after 10 minutes. Short press and the icon disappears, and the automatic shutdown function is canceled..Long press the button for 2s and the device will shut down.

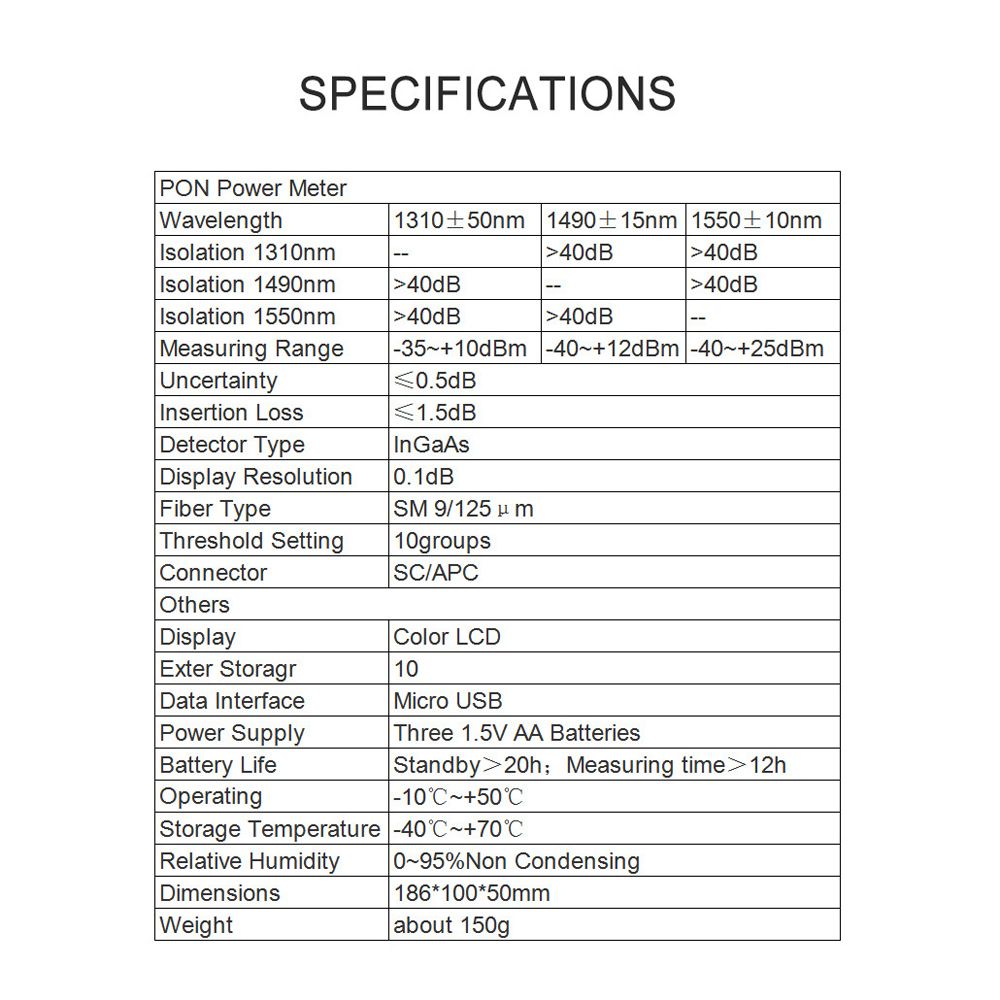

Specifications:Name: PON Meter
Material: plastics
Optical interface: AngledPhysical Contacts
Test wavelength: 1310±50nm / 1490±15nm / 1550±10nm
Isolation 1310nm: -- / >40dB / >40dB
Isolation 1490nm: >40dB / -- / >40dB
Isolation 1550nm: >40dB / >40dB / --
Measurement ranges: -35 to +10dBm / -40 to +12dBm / -40 to +25dBm
Measurement uncertainty: ≤0.5dB
Insertion loss: ≤1.5dB
Detector Type: InGaAs
Display resolution: 0.1dB
Fiber Type: SM 9/125μm
Reading value setting: 10 groups
Optical Connector: SCIAPC
Display: color LCD screen
Data storage: 10
Data interface: Micro USB
supplys: 3 * 1.5V AA batteries
(included)Battery Lifespan: Standby > 20 hours; Measurement > 12 hours
Operating temperature: -10℃ to +50℃
Storage temperature: -40℃ to +70℃
Relative humidity: 0-90% without condensation
Item size: 180 * 100 * 50mm / 7.09 * 3.94 * 1.97in
Item weight: 150g / 5.29ounce
Package size: 210 * 122 * 70mm / 8.27 * 4.80 * 2.76in
Package weight: 581g / 20.49ounce
Packing List:1 * PON Meter
1 * Storage Bag
1 * Guideline
Key Features
PON optical meter, suitable for the installation, operation and maintenance of fiber optic networks.
LCD screen design, supports simultaneous measurement and display of voice, data and video signals on PON architecture.
Simultaneous testing of 1310nm uplink signal 1490nm and 1550nm downlink signal in PON system.
The removal port is designed for weak light remediation, and the release port is designed to check whether the optical modem is online.
The USB supplying port only supports , with a rear bracket to facilitate the placement of desktop work.
Support ten data storage, in the test interface, long press V/LOAD to save the current value, short press V/LOAD to enter the saved value view mode.
What's In the Box
1 x PON Meter,1 x Storage Bag,1 x Guideline
