Onv 8 Port Poe Switch 10/100mbps -black

₦ 108,900.00 ₦ 110,000.00 -1%

0 No Reviews

Product SKU: RENG531682

Quantity

In Stock

Product Highlights

Onv 8 ports poe switch

Unmanaged Poe switch with 8 ports 10/100Mbps

Adjust function switch

Built in 120W power supply

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

Colour	Black
USB	YesYes

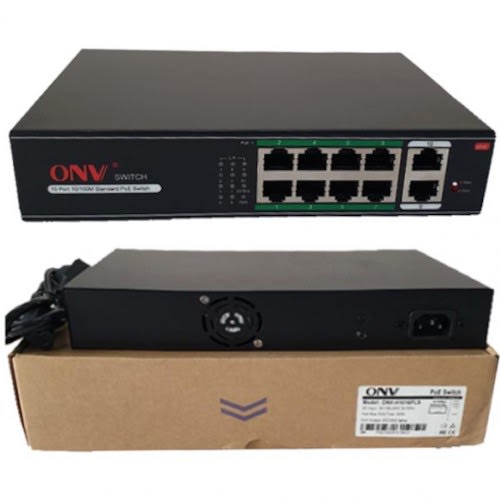

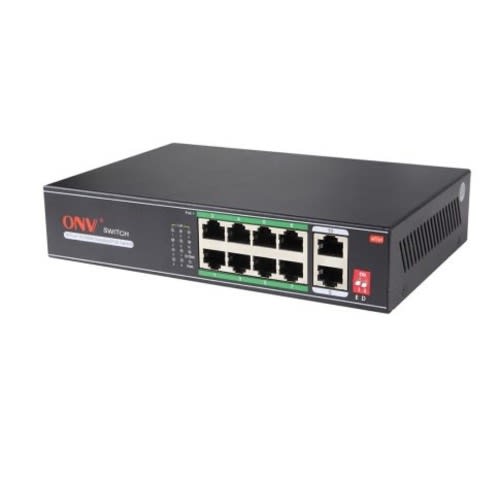

ONV-H1108PLS is an unmanaged PoE network switch with 8 10 / 100Mbps PoE ports and 2 10 / 100Mbps uplink RJ45 ports. It supports IEEE802.3af /at PoE standard and has a built-in 120W power supply. This switch provides 8 RJ45 ports and 2 uplink RJ45 ports for flexible networking and meets the networking requirements of various scenarios. It is suitable for security monitoring, teleconferencing systems, wireless coverage, and other scenarios. This switch is in a compact size that can be installed on a desktop or wall-mounted.

Fixed Port
- 8 x 10 / 100Base-TX PoE ports (Data / Power)
- 2 x 10 / 100Base-TX uplink RJ45 ports (Data)
Ethernet Port
- Port 1-6 / 1-10 can support 10 / 100Base-TX auto-detection
- Full/half-duplex MDI / MDI-X auto-sensing
- Functional Switch: 1 x (Extend + VLAN)
Twisted Pair Transmission
- 10BASE-TX: Cat5 or later UTP (≤250 meter)
- 100BASE-TX: Cat5 or later UTP (≤100 meter)
Network Protocol
- IEEE802.3 10BASE-T
- IEEE802.3i 10Base-T
- IEEE802.3u 100Base-TX
- IEEE802.3x
Forwarding Mode: Store and Forward (Full Wire Speed)
Switching Capacity: 2Gbps (Non-blocking)
Forwarding Rate: 64byte 1.488Mpps
MAC: 1K
Buffer Memory: 768K
Jumbo Frame: 9.6K
LED Indicator
- Power: PWR (Green)
- Network: L / A ( Yellow )
- PoE: PoE (Green)
- Functional switch: EXTEND ( Green )
PoE & Power Supply
- PoE Port: Port 1 to 8
- Power Supply Pin: Default 1 / 2 (+), 3 / 6(-)
- Max Power Per Port: 30W, IEEE802.3af / at
- Total PWR / Input Voltage: 120W / (AC100-240V)
Power Consumption:
- Up to 5W
- Full load up to 120W
Power Supply
- Built-in power supply
- AC100 to 240V
- Frequency: 50-60Hz 2.2A
Physical Parameter:
- Operation TEMP / Humidity: -20 to +55 Degree, 5 to 90 Percent RH Non-condensing
- Storage TEMP / Humidity: -40 to +75 Degree, 5 to 95 Percent RH Non condensing
Installation: Desktop, Wall-mounted
Lightning Protection / Protection Level
- Lightning protection: 4KV 8 / 20us
- Protection level: IP30
Certification
- CCC, CE mark, commercial, CE / LVD EN60950
- FCC Part 15 Class B, RoHS
Unmanaged PoE switch with 8 x 10 / 100M PoE ports, 2 x 10 / 100M uplink RJ45 ports Port 1-8 can support IEEE802.3af / at PoE standard
Adjust function switch, Port 1-8 can support 10M / 250m transmission
Built-in 120W power supply
10 / 100Mbps access, Dual RJ45 port uplink
Provides 8 x 10 / 100Base-TX RJ45 ports and 2 x 10 / 100Base-TX RJ45 ports for flexible networking and meets the networking requirements of various scenarios
All ports support non-blocking wire-speed forwarding for smoother transmission.
Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.
Intelligent PoE power supply
8 x 10 / 100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
IEEE802.3af / at PoE standard, without damaging non-PoE devices.
Priority system for PoE port, will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Dimension: 195 x 130 x 40mm
Weight: 0.8Kg

Unmanaged PoE switch with 8* 10/100M PoE ports
2* 10/100M uplink RJ45 ports.
Port 1-8 can support IEEE 802.3af/at PoE Standard.
Adjust function switch, Port 1-8 can support 10M/250m long distance transmission .
Built-in 120W power supply .
