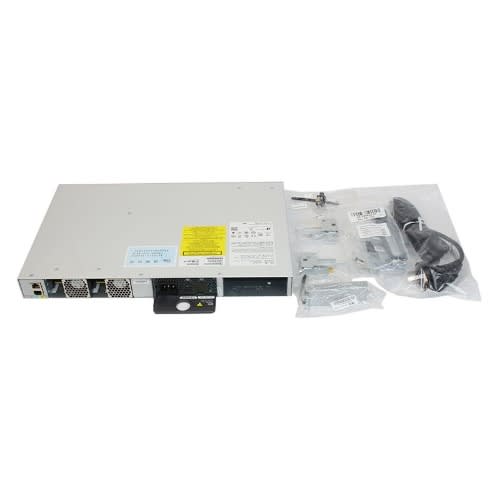

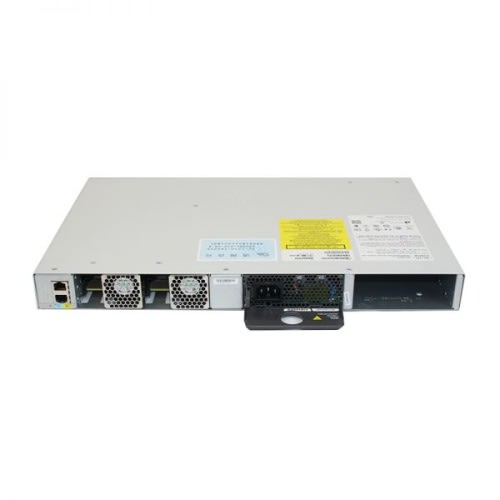

C9200L-24P-4X-E is the Catalyst 9200L 24 ports full PoE+ 4x10G uplink Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to broader deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT-simplified.
Model
C9200L-24P-4X-E
Downlinks total 10/100/1000 or PoE+ copper ports
24 ports full PoE+
Uplink configuration
4x 10G fixed uplinks
Default primary AC power supply
PWR-C5-600WAC
Fans
Fixed redundant
Software
Network Advantage
Stacking bandwidth
80 Gbps
DRAM
2 GB
Flash
4 GB
Switching capacity
128 Gbps
Forwarding rate
190.4 Mpps
Chassis Dimensions
1.73 x 17.5 x 11.3 in
4.4 x 44.5 x 28.8 cm
Catalyst 9200 series provides these highlights:
Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
Flexible downlink options with data or PoE+
Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
Advanced network monitoring using Full Flexible NetFlow
Cisco Software-Defined Access (SD-Access):
Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
Network assurance and improved resolution time through Cisco DNA Center
Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
ASIC with programmable pipeline and micro-engine capabilities, along with a template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
