Feature:
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing Wave,strong anti-interference ability.

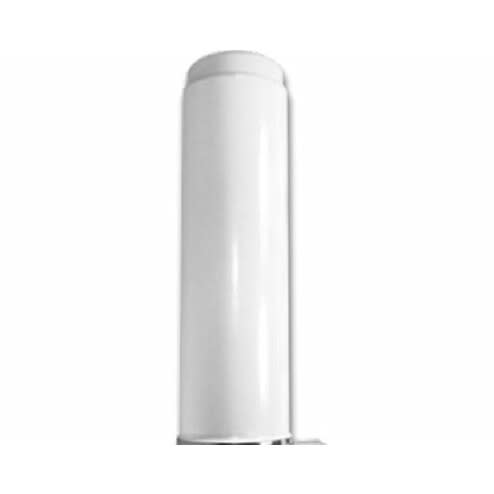

This is an outdoor antenna with wide band frequency designed to work 3G/4G routers for Spectranet, Smile - Network,
Glo,MTN, 9Mobile, Airtel, Swift, NTEL, etc to help increase signal reception in routers and booster Amplifiers.
Frequency range :
698MHz - 2700MHz
NB: This device is not a stand alone, it need to be connected to either a Router or Booste
Application:
GSM/CDMA/PCS/3G/4G/WLAN system
Point-to-multipoint system
SH-MBF-A10
Electrical Specifications
|
Frequency range(MHz)
|
698-960/1710-2700
|
Bandwidth(MHz)
|
170/990
|
Gain(dBi)
|
9/10
|
Half-power beam width(°)
|
H:360 V:60/45
|
VSWR
|
≤1.5
|
Input Impedance(Ω)
|
50
|
Polarization
|
Vertical
|
Maximum input power(W)
|
100
|
Lightning protection
|
DC Ground
|
Input connector type
|
N Female or Requested
|
Mechanical Specifications
|
Dimensions (mm)
|
Φ50*180
|
Antenna weight(kg)
|
0.45
|
Operating temperature(°c)
|
-40-60
|
Rated Wind Velocity(m/s)
|
60
|
Radome color
|
White
|

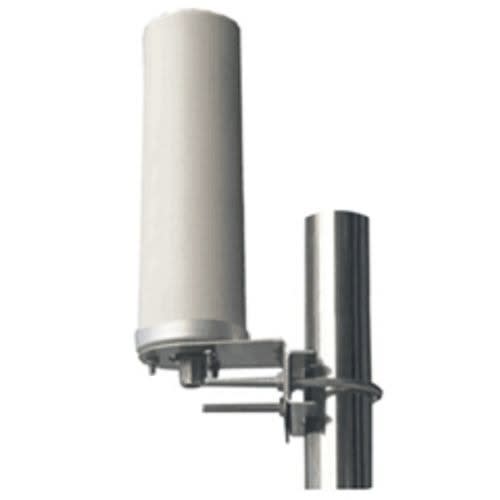

Mounting way
|
Pole-holding
|
Mounting hardware(mm)
|
35-50
|
