Model |
VS890 |
Production Country |
China |
Weight (kg) |
0.75 |
Certifications |
Eco Friendly |
Color |
Black and White |
Main Material |
n/a |
From the Manufacturer |
Shenzen Thinmi Tech Co Ltd |
Care Label |
Avoid exposure to moisture |
Maxiscan VS890 Advanced Diagnostic OBD2 - 2022 Model
Application layer fully complies with ISO 15031 and is compliant with SAE J1979.Fully functional Mode$01~Mode$09 operation.

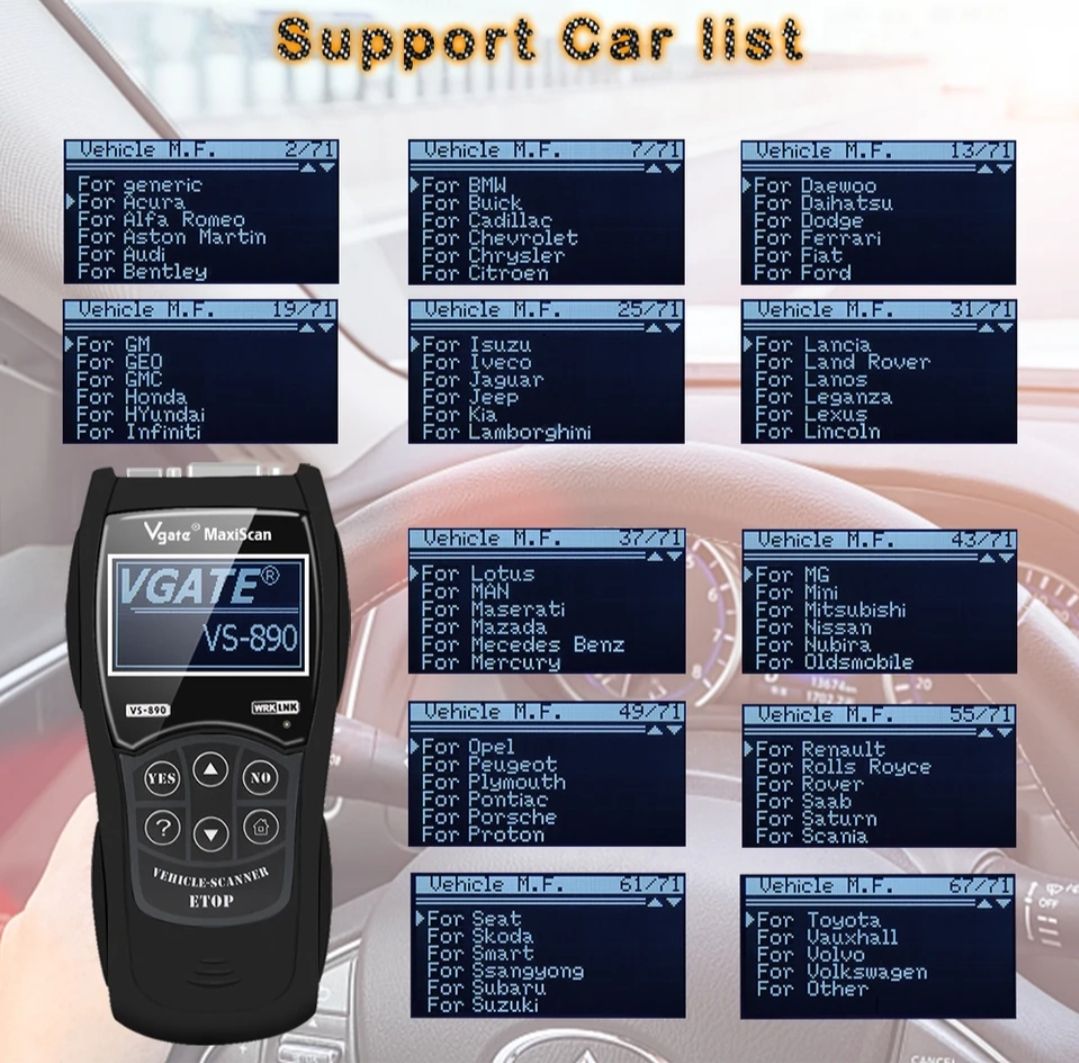

Supports a large number of vehicles made by 70 manufacturers.DTC includes generic (P0, P2, P3, B0, U0 and C0) & manufacturer specific (P1, P3, B1,B2 ,U1 and C1,C2,) codes.Detailed DTC library: DTCs are explained in easy to understand words rather than obscure jargons. Online help information is available for 80% of all the DTCs,which shows the probable cause of the code.Supported Protocol:SAE J1850 PWM SAE J1850 VPWISO9141KWP FAST INIT KWP 5BAUD INIT CAN 11BIT 500K CAN 29BIT 500K CAN 11BIT 250K CAN 29BIT 250K CAN_USER1 11B 125K CAN_USER1 29B 125K CAN_USER2 11B 50K CAN_USER2 29B 50K Full CAN BUS support for new cars11 Bit and 29Bit CANCapable of communicating with multi-ECU System
Feature:1. Color: Black2. LCD:3 inch black mask LCD, wide visible area, high contrast .The contents is readable even in strong sun shine.3. ABS+PC Engineer Plastic Housing4. Harmless fade-resistant paint.5. Rubber oil sprayed housing; slide, dirty, and vibration proof.6. Passed EMI/EMC test.7. High quality PET 6-key film keypad.(3M harmless glue)8. CE,FCC,RoHs Certified9. Support manually input DTC Look-up10. Read DTCs 11. Clear DTCs 12. Data stream 13. Freeze Frame 14. I/M Readiness 15. O2 Monitor Test 16. On-Board Mon Test17. Component Test 18. Vehicle Info. 19. Modules Present 20. Unit of Measure 21. State Emission22. Read All DTCs 23. Read Stored DTCs 24. Read Pending DTCs25. Detailed help information26. Capable of showing probable cause of a DTCs.27. Up to 161 data items,each of them is with online help information.28. Reset engine MIL29. This operation will erase all DTCs , freeze frame Data , oxygen sensor data, and reset IM Monitors and MIL.Main Unit -LCDVisible view:67mm×40mmCable:J1962 120cmPackage: Paper board box

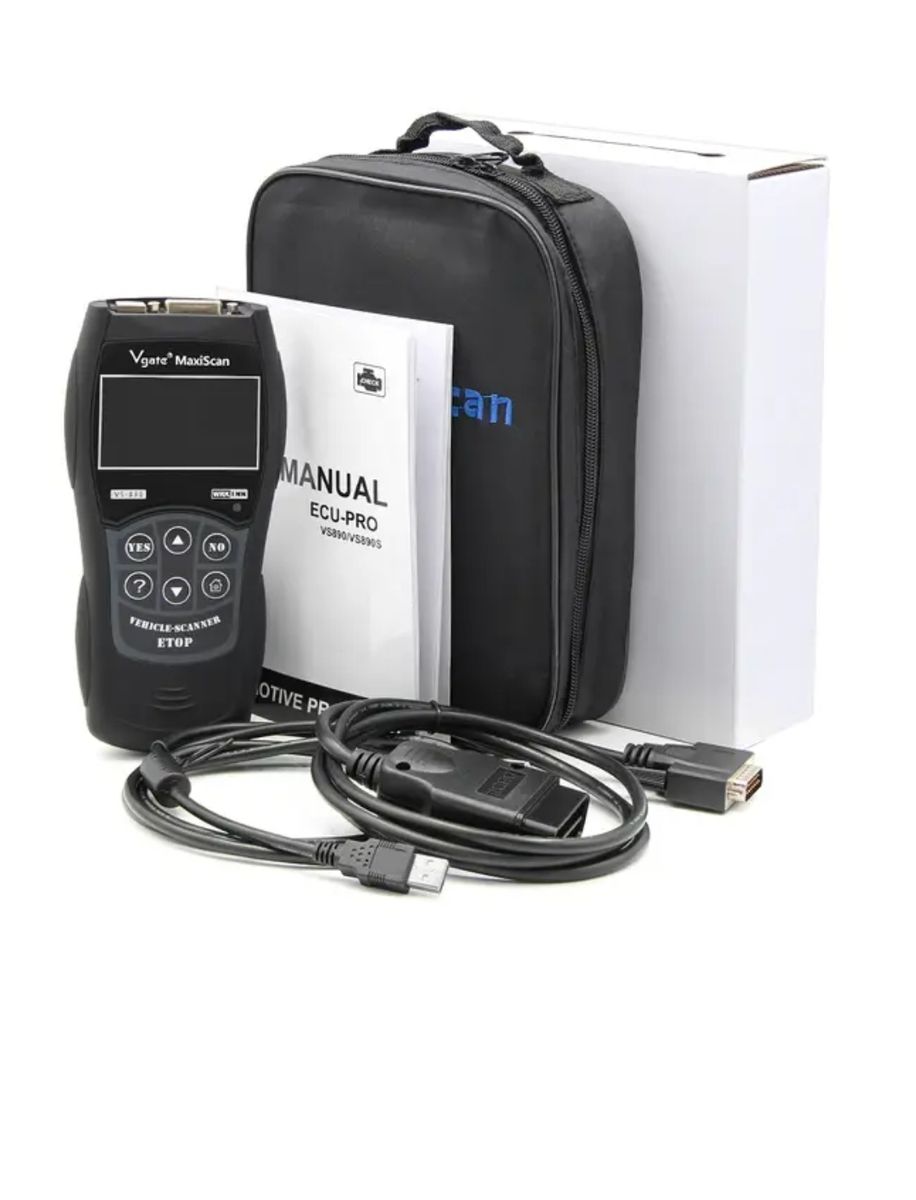

What's In the Box
Main UnitVisible view:67mm×40mmCable:J1962 120cmPackage: Paper board box
