Package Included
1 X OBDⅡ Scanner Bluetooth KW902
1 X CD Driver
1 X User Manual
Features
Model: KW902
1.Supply voltage(VDD):12V
2.Work temperature range: -20 ~ +70℃
3.Storage temperature range:-40 ~ +125℃
4. sensitivity(Basic Rate): -85db
5.Modulation Mode:GFSK
6.Frequency Range:2402 ~ 2480MHZ
7.Transmission Range:10M
8.Bluetooth Profile:SPP
9.UART Params:38400,8,n,1
10.Small size, compact structure. Plug and never unplug
11.Stable Bluetooth connection
12.No wires or batteries (adapter is powered by the diagnosis size sockets)
13.Stop communication, wait half an hour, auto sleep
14.Supports all OBDII protocols
15.The adapter uses the fastest and most reliable ARM chips
16. correct minor faults without resorting to service stations

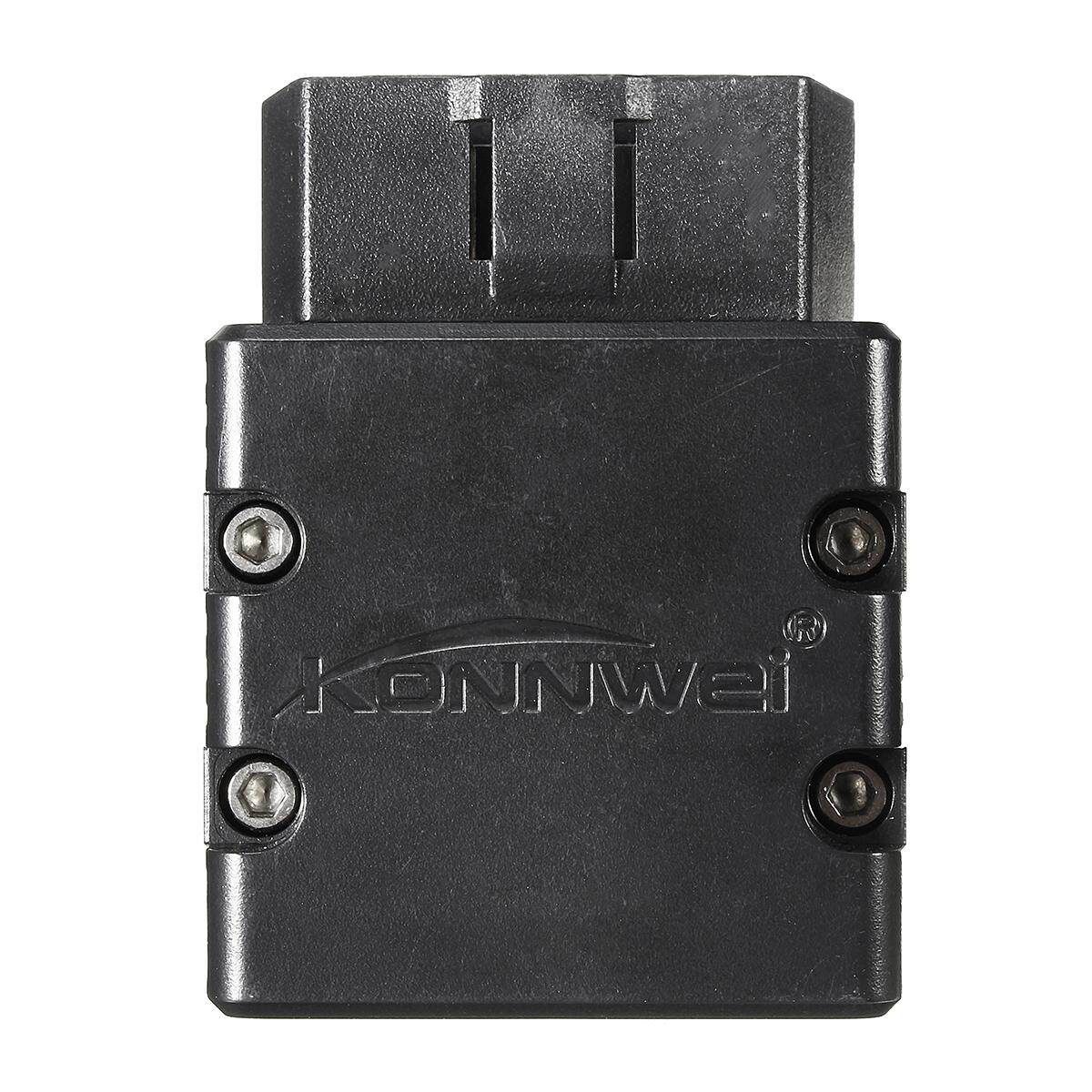

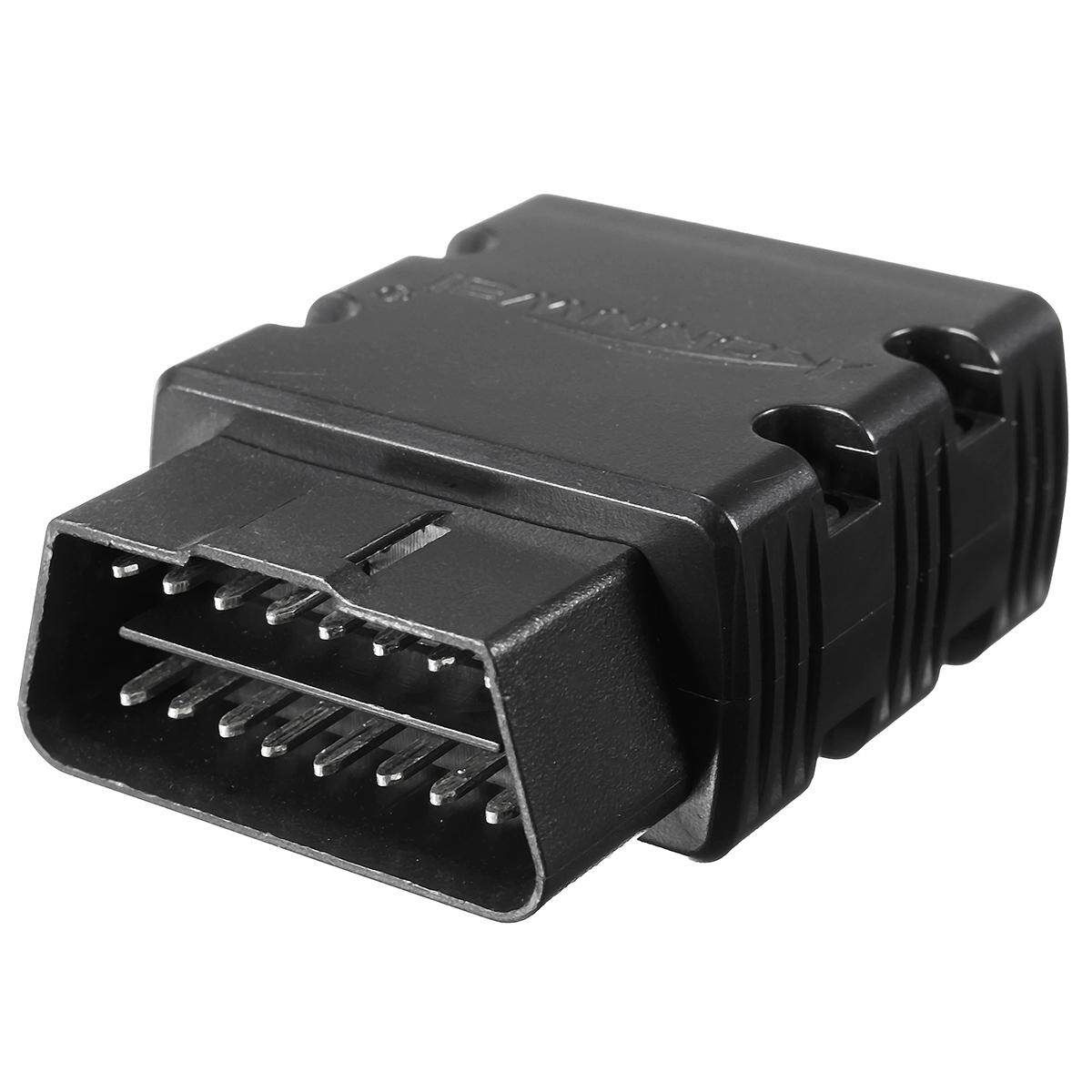

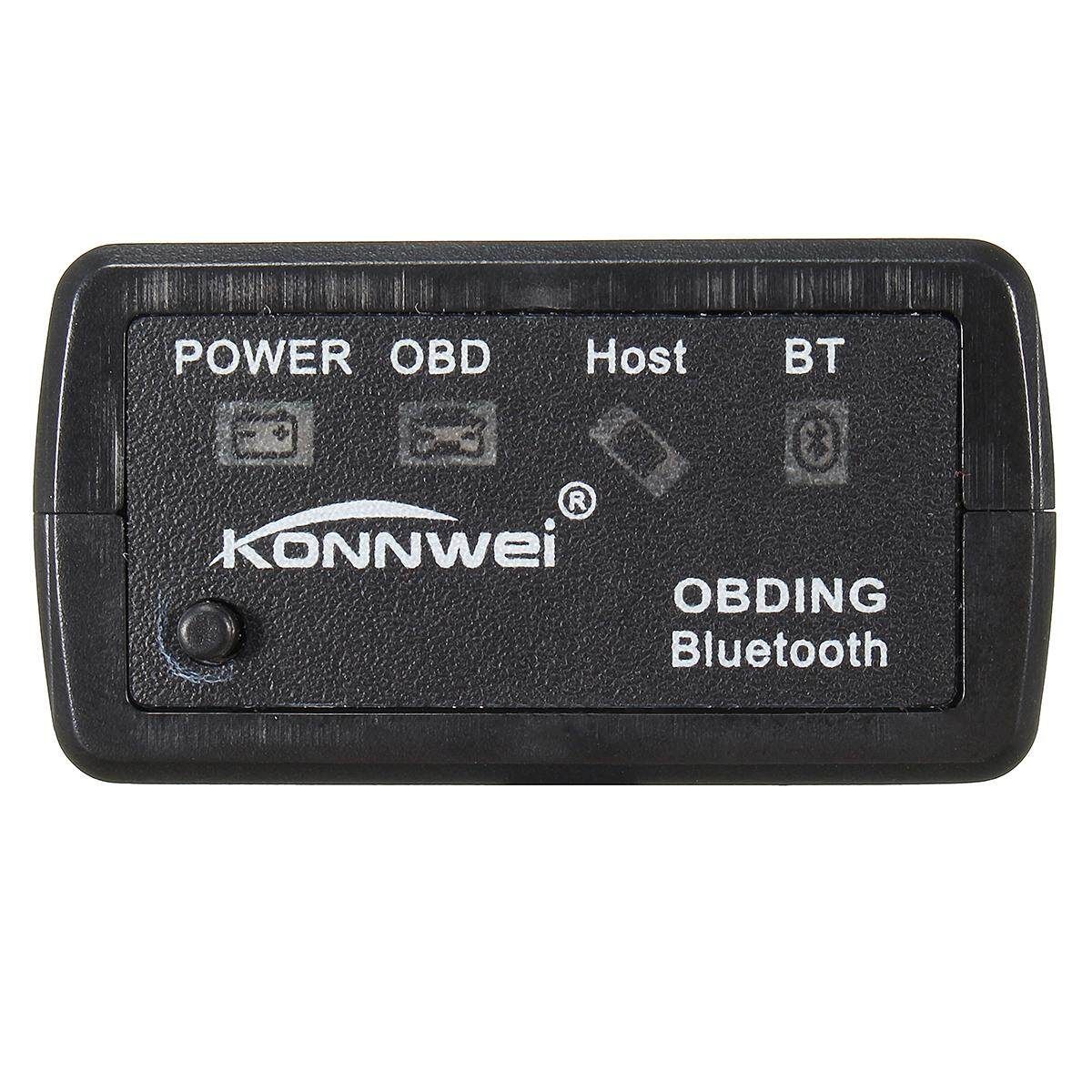

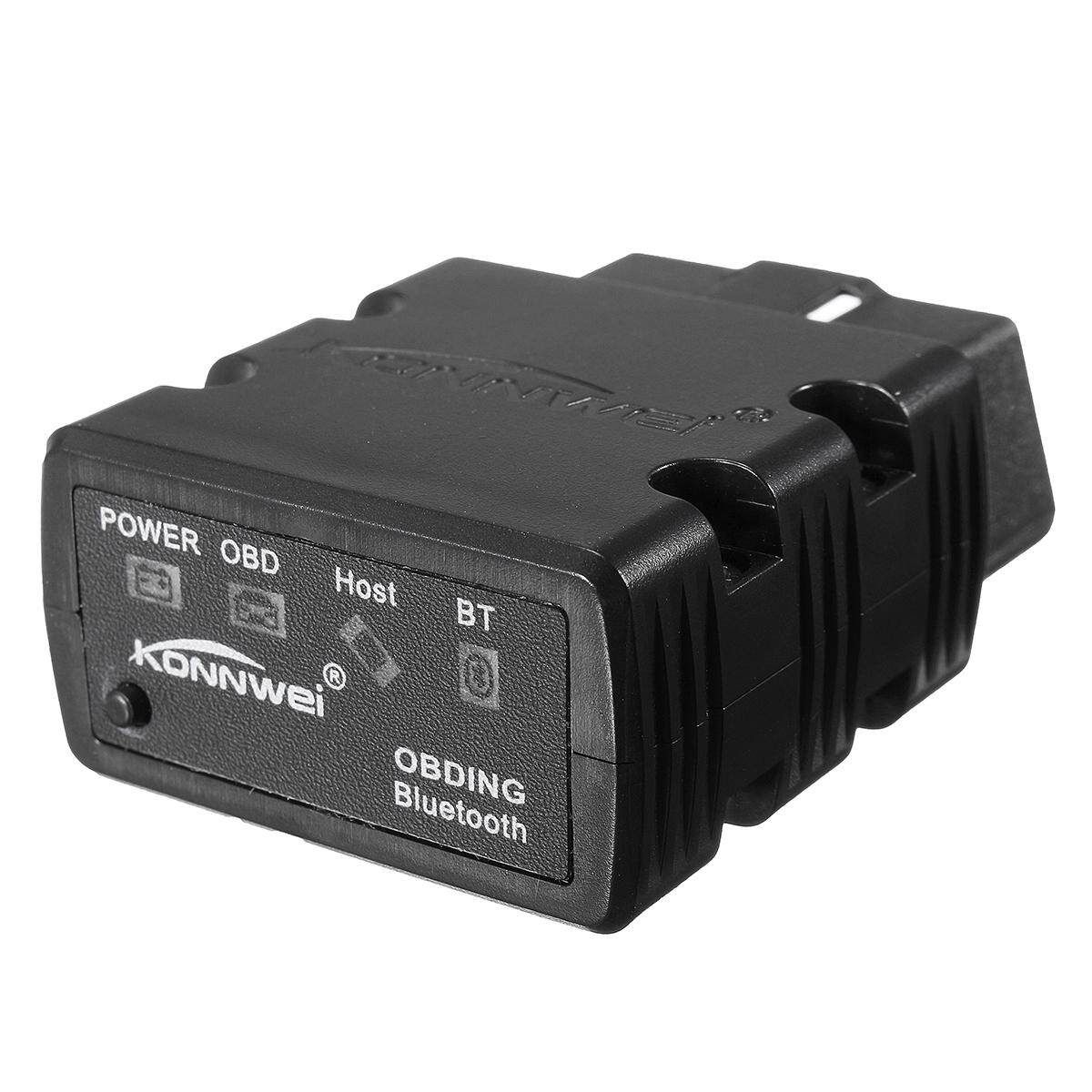

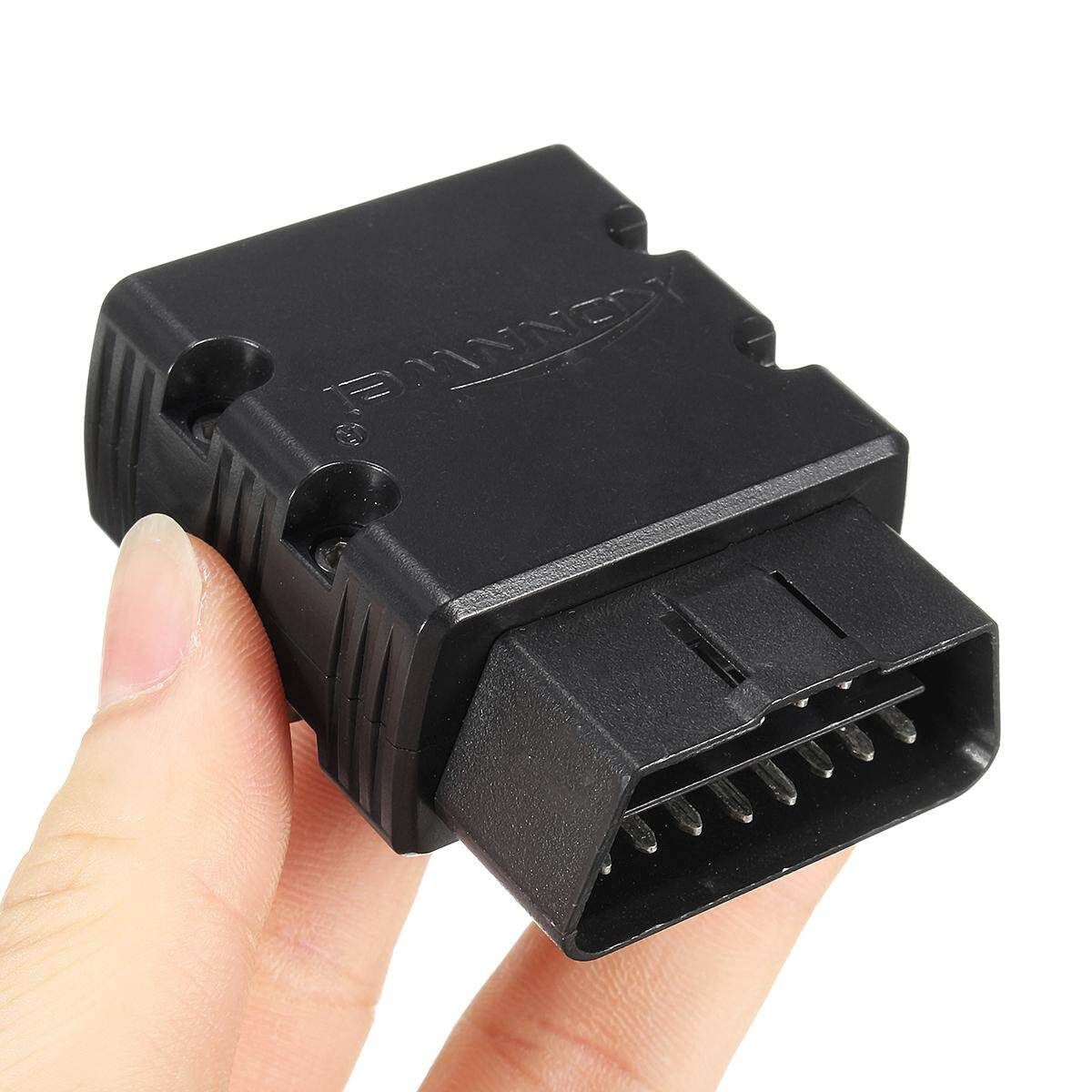

The device is a small adapter that plugged into the vehicle OBD-connector.
On Bluetooth, it connects to any computer, tablet or smartphone, With
associated diagnostic procedures .
Functions:
1.Measure the fuel consumption.
2.Display real-time operating performance of the car, such as momentum,
vehicle speed, oil , coolant temperature, engine load, intake manifold
, throttle position, the values of oxygen sensors, air intake
temperature, and more.
3.Turn off the MIL (signal Check Engine).
4.Download data to external media in a variety of formats for later printing.
5.Record various , display graphics in real time, and more.
KW902 scantool is a high-quality automotive scanning tool, supports all OBD-II
protocols:
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
.USER2 CAN(11*bit ID,50*kbaud)
*Default settings(user adjustable)
a a a a a
Key Features
: Black
Supply voltage(VDD):12V
Work temperature range: -20 ~ +70℃
Storage temperature range:-40 ~ +125℃
sensitivity(Basic Rate): -85db
Modulation Mode:GFSK
Transmission Range:10M
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
- 1 X OBDⅡ Scanner Bluetooth KW902
- 1 X CD Driver
- 1 X User Manual
