| Size (L x W x H cm) |
21.50×14.70×5.50 |
| Weight (kg) |
0.35 |
| Color |
Black |
| Main Material |
N/A |
This 3 in 2 out Toslink Switch allows to connect 3 digital oprical tosLink signal source to switch to 2 optical tosLink (SPDIF) input on your sound bar, optical BT transmitter at the same time.
Features:
- Offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

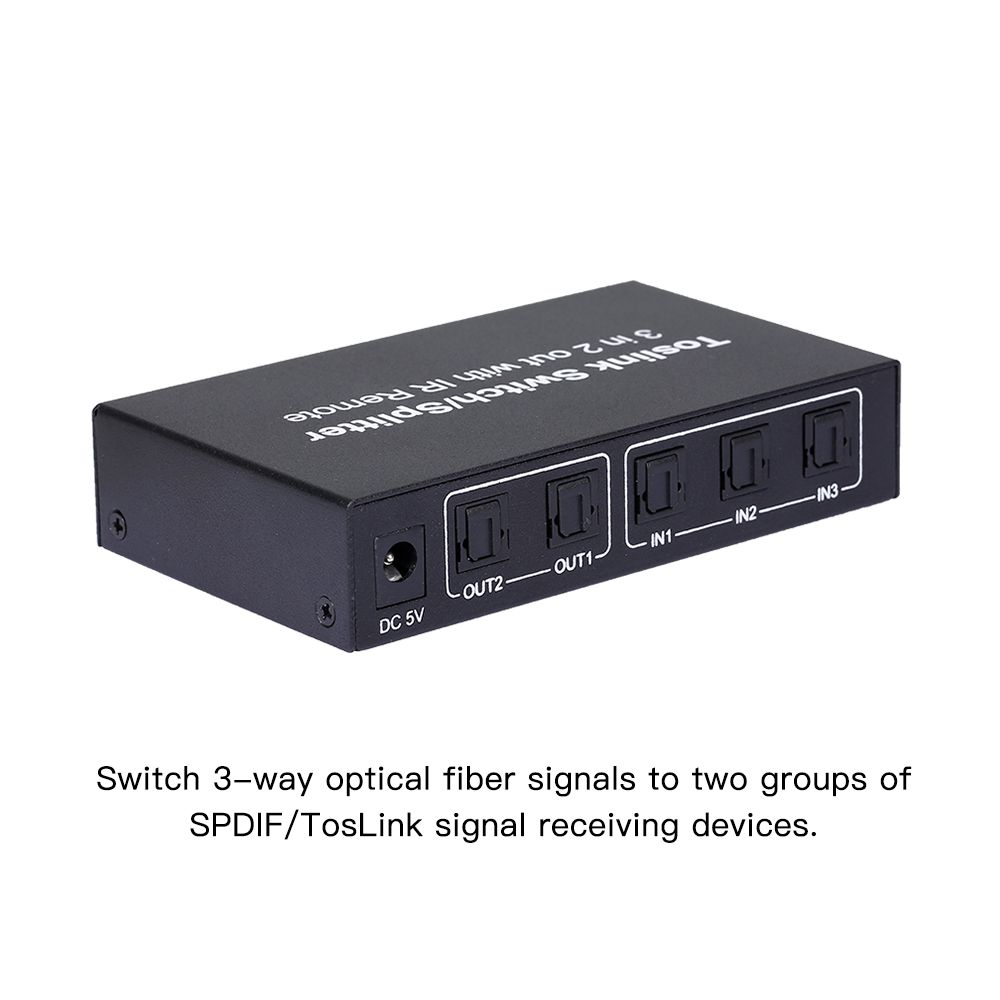

- Switch 3-way optical fiber signals to two groups of SPDIF/TosLink signal receiving devices.
- Supports for LPCM 2.0 /DTS/Dolby-AC3 audio format.
- Used optical fiber cable loss is less than 0.2Db/m, with output distance up to 25m.

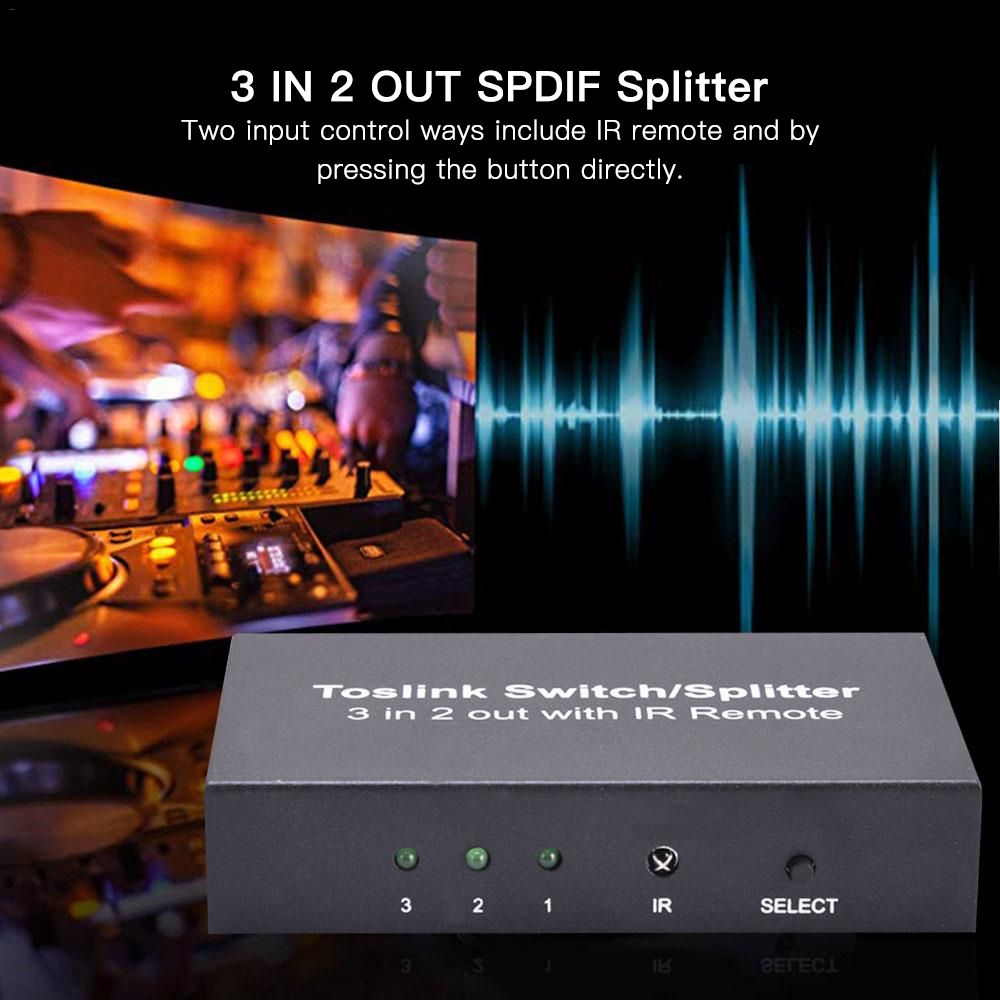

- Two input control ways include IR remote and by pressing the button directly.
- Supports last time working status memory when failure.
- Features the over-voltage protection to prevent the devices from damages caused by connecting unmatched adapter.
- Equips with LED status indicator, with no quality loss, and supports plug and play.
Specifications:
Type: 3 in 2 out Toslink Switch
Model: NK-T32
Support Audio Format: LPCM2.0/DTS/Dolby-AC3
Peak Wavelength: 650nm
Max Baud Rate: 16Mbps
Output Cable Distance: ≤25m(Use the optical fiber cable loss less the 0.2Db/m )
Max Working Current: 100mA
Operating Temperature: (0 to +40℃)
Operating Humidity: 5 to 90%RH (No Condensation)
Item Size: 10.8 * 6.4 * 2.3cm / 4.3 * 2.5 * 0.9inches
Item Weight: 171g / 6.03oz
Package Size: 21.5 * 14.7 * 5.5cm / 8.5 * 5.8 * 2.2inches
Package Weight: 354g / 12.5oz

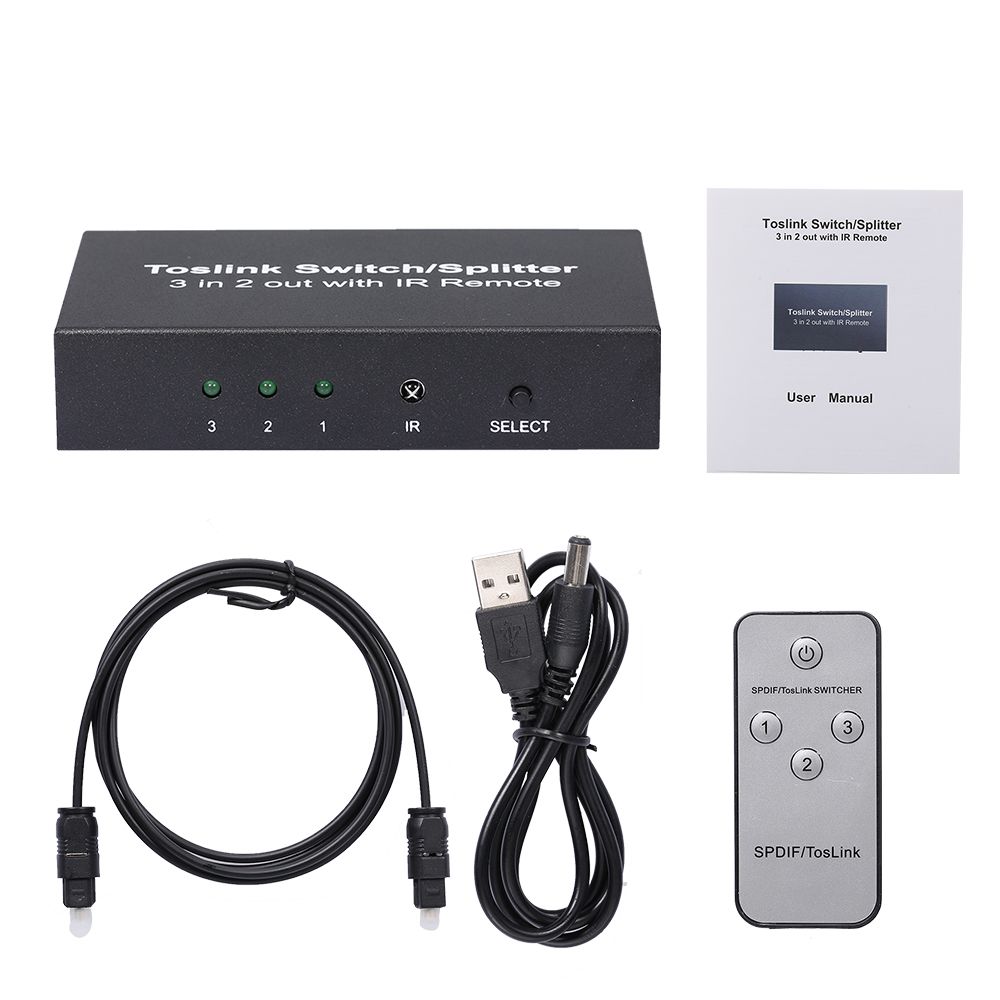

Package Included:
1 * 3 In 2 Out Optical Switcher
1 * USB Cable
1 * Remote Controller
1 * Optical Cable
1 * Manual
Key Features
Offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Switch 3-way optical fiber signals to two groups of SPDIF/TosLink signal receiving devices.
Supports for LPCM 2.0 /DTS/Dolby-AC3 audio format.
Used optical fiber cable loss is less than 0.2Db/m, with output distance up to 25m.
Two input control ways include IR remote and by pressing the button directly.
Supports last time working status memory when failure.
