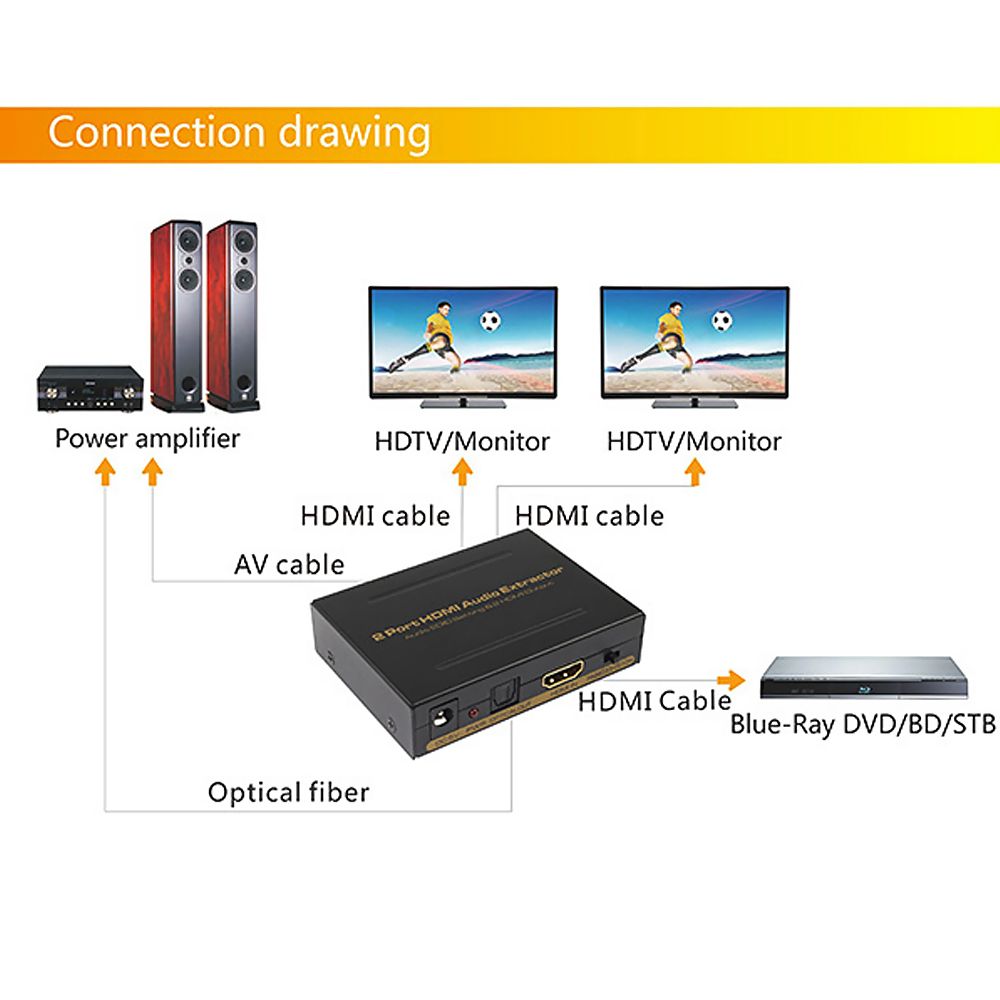

Designed to make your A/V devices use more conveniently, comfortably, efficiently, etc., the 2 port HDMI audio extractor allows two HD monitors or TV to connect to one HDMI source to display the same HD screen, while extract audio signals from your HDMI source. You can take your HDMI audio signal and convert it into digital optical or 2 channel analog audio output. Supports Dolby digital AC-3, DTS, LPCM and other digital audio format output, and it is a perfect a audio extractor for DVD, Blue-Ray DVD, PS2, PS3, Xbox360, HD Player, PC, etc.
Features:
- Offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

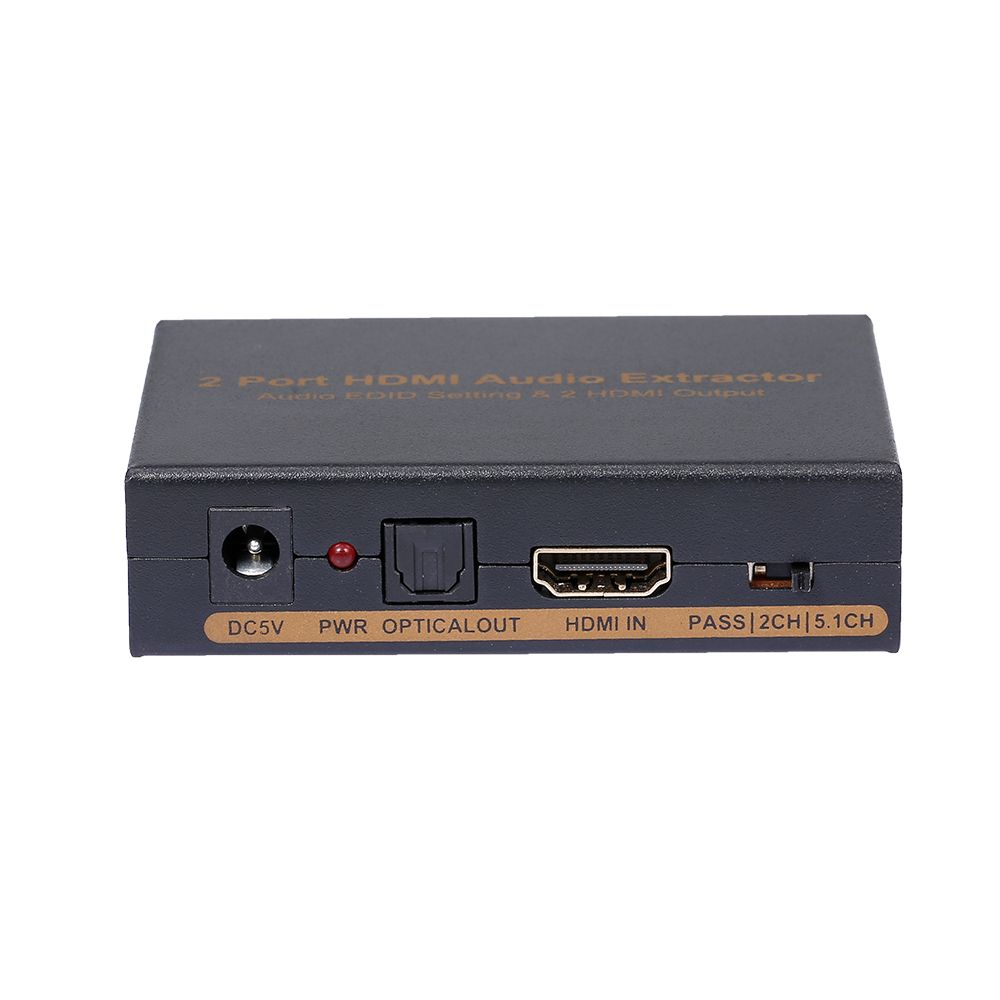

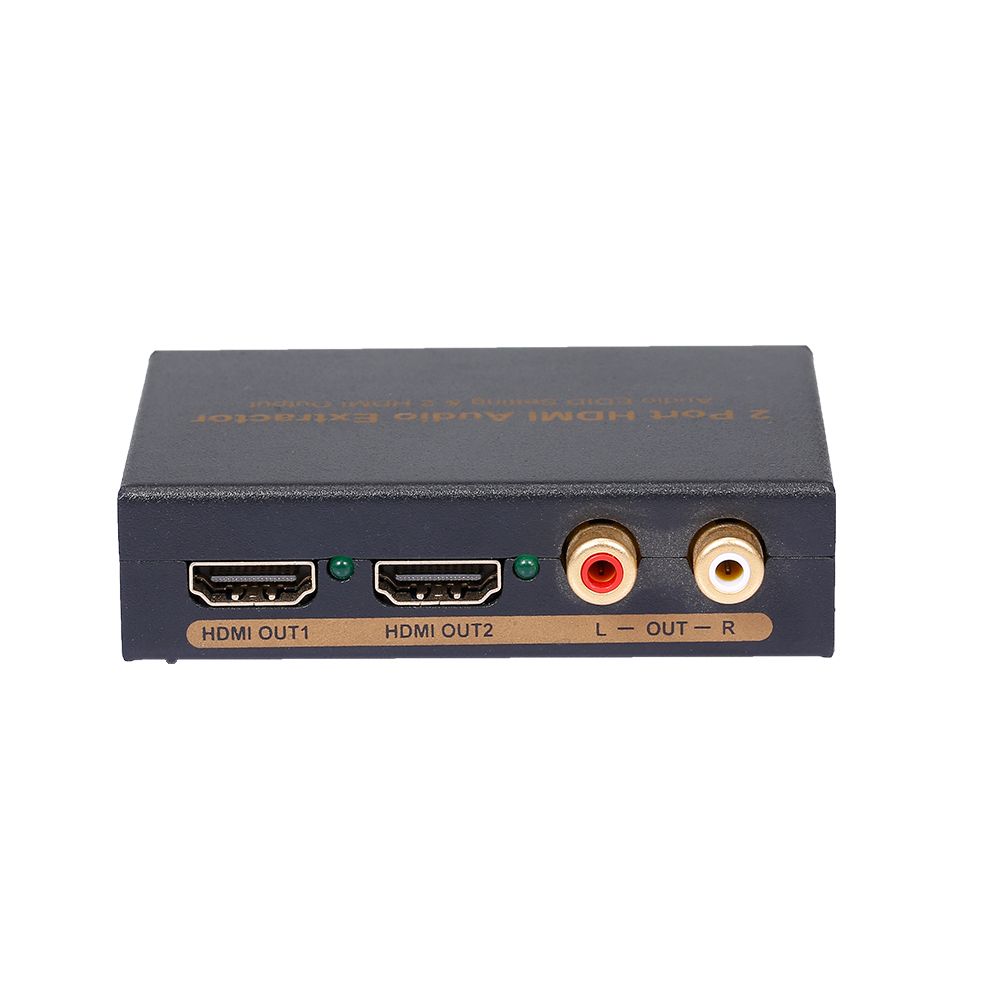

- One HDMI input and two HDMI output, with sync separation of HDMI audio signal, supports 1x SPIDF optical digital audio output and 1x L/R stereo analog audio output.
- Supports HDMI input resolution up to 1080P/60Hz, and supports 3D (24/30fs).
- Supports SPDIF digital audio format, for Dolby digital (AC3), DTS, LPCM, and support 5.1CH output.
- Supports 3 modes of EDID management for audio formats, and allows to switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
- Equips with LED indicator, which lights up correspondingly when the output port is working.
- 24bit /192KHz DAC chip is adopted to ensure the high quality sound, with no signal loss, easy installation.
Specifications:
HDMI Resolution: up to 1080P/50/60fs（3D 24/30fs）
Support Video Color Format: 24bit/deep color, 30bit,36bit
HDMI Audio Format: DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
SPDIF Digital Audio Format: For Dolby Digital (AC3)/DTS/LPCM 2CH
HDMI Max Bandwidth: 225MHz
HDMI Max Baud Rate: 6.75Gbps
Input/Output TMDS Signal: 0.5-1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
DAC Sample Frequency Range: 32-192KHz
DACBit Rate Range: 16-24 Bit
Analog Output Level 1kHz@0dB): 1V RMS
SNR@ 0dB(CCIR/ARM): ≥90dB
Distortion: ≤0.1%
Frequency Response: 20Hz-20KHz
HDMI Input Cable Distance: ≤15m AWG26 HDMI Standard Cable
HDMI Output Cable Distance: ≤20m AWG26 HDMI Standard Cable
Max Working Current: 600mA
Adapter Inpu: AC 100V～240V 50HZ/60Hz, DC5V/1A
Operating Temperature: -10 to +55℃
Storage Temperature:-20 to +60℃
Operating Humidity: 10 to 90%RH (No Condensation)
Storage Humidity: 5 to 95%RH (No Condensation)
Item Size: 8.5 * 6.2 * 2.1cm / 3.3 * 2.4 * 0.8inches
Item Weight: 144.4g / 5.1oz
Package Size: 11.5 * 10.7 * 6.3cm / 4.5 * 4.2 * 2.5inches
Package Weight: 256g / 9.03oz
Package Included:
1 * HDMI Splitter
1 * Adapter
1 * Cable
1 * Manual
Key Features
Offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
One HDMI input and two HDMI output, with sync separation of HDMI audio signal, supports 1x SPIDF optical digital audio output and 1x L/R stereo analog audio output.
Supports HDMI input resolution up to 1080P/60Hz, and supports 3D (24/30fs).
Supports SPDIF digital audio format, for Dolby digital (AC3), DTS, LPCM, and support 5.1CH output.
Supports 3 modes of EDID management for audio formats, and allows to switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
Equips with LED indicator, which lights up correspondingly when the output port is working.
