Package include
1 x Occupancy Sensor 360 Degree PIR Motion Light Switch[Buy 1 Get 1 Free]
Specifications:
1 Source: 220 -240V AC
2 Frequency: 50Hz
3 Range: 360°
4 Working Temperature: -20 - 40 deg , Working Humidity: 93%RH
5 Ambient Light: 3-2000LUX (adjustable)
6 Time-Delay: min: 10sec±3sec - : 7min±2min
7 Installation Height: 2.2-4m
8 Consumption: 0.45W (work), 0.1W (static)
9 Rated Load: 1200W ( lamp)/ 300W (energy-saving lamp)
10 Motion Speed: 0.6 ~1.5m/s, distance: 6m (24 deg )
11 Dimensions: 11.1*11.1*5.2cm
Features: 1 Commonly used to control lighting and extract ventilation.
2 -saving by ensuring lights and fans are not left on.
3 They will save energy by ensuring lights and fans not to be left on.
4 1200W halogen load
5 300W fluorescent/energy saving load
6 Adjustable lighting time
7 The energy savings will be high with a short energy saving investment payback time if connected to average energy level lighting such as fluorescent tubes, or compact fluorescent lamps. Higher savings if controlling tungsten or halogen lighting.
8 Well suited to circulation areas, integral garages, store rooms, toilets, kitchens, common stairs wells or corridors where there are frequently people passing in an out of an area and the lighting often gets left on accidentally.

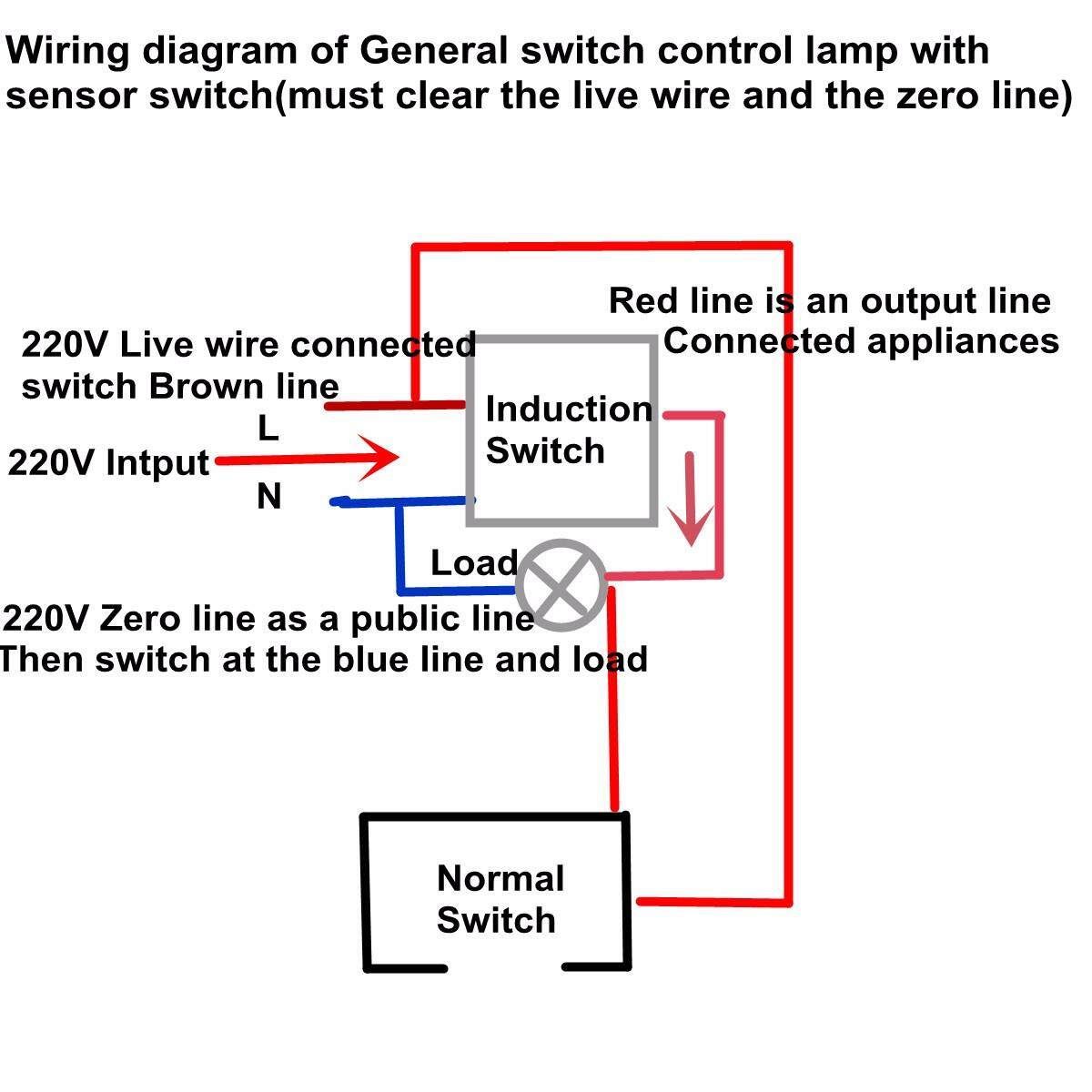

Note:

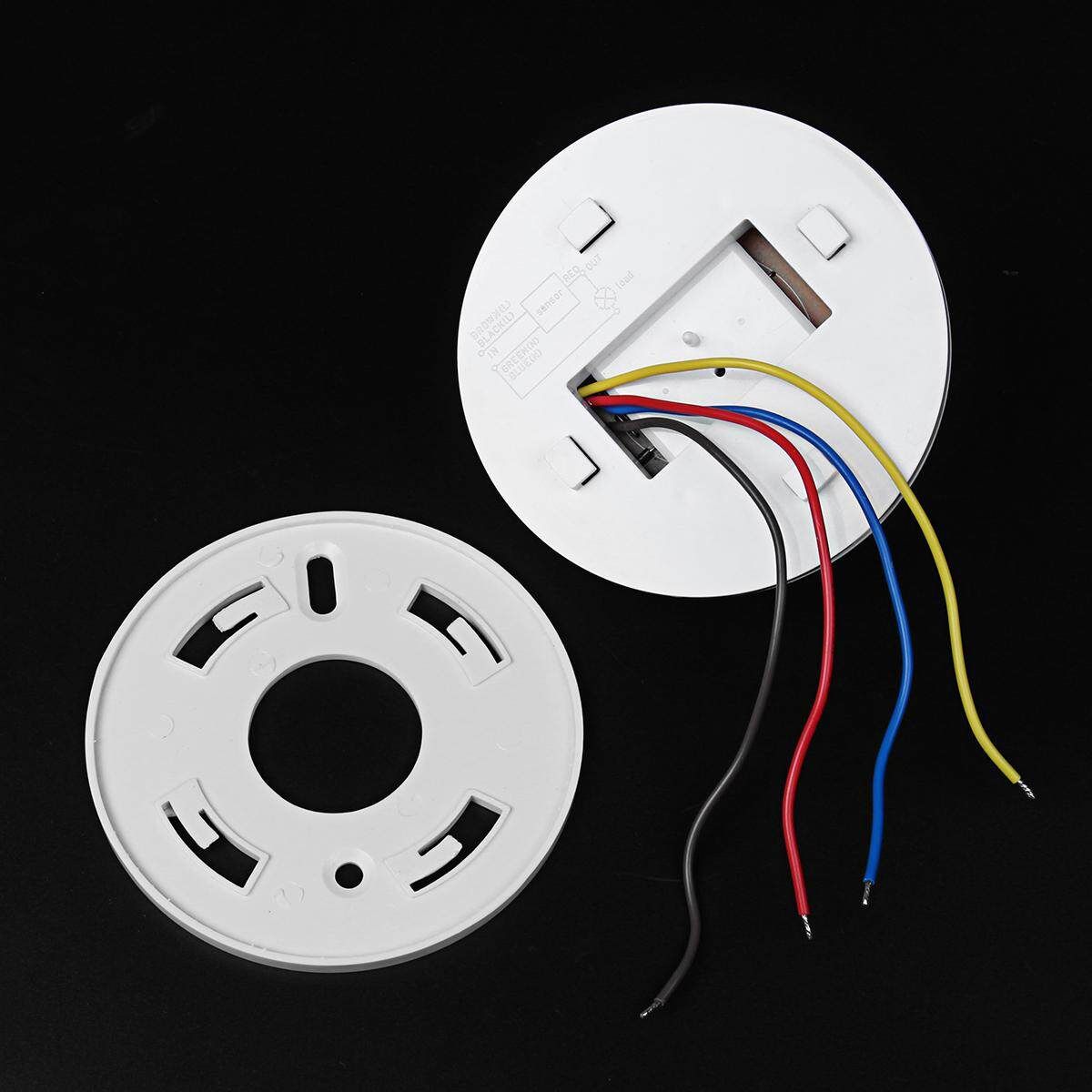

1 The red line should be connected with the line of the lamp.
2 The brown line should be connected with the 220V line.
3 The blue line should be connected with the 220V zero line.
4 The yellow line is control line ,if have connected it ,if not don't connected.
a a a a a
Key Features
Source: 220 -240V AC
Frequency: 50Hz
Range: 360°
Ambient Light: 3-2000LUX (adjustable)
Time-Delay: min: 10sec±3sec - : 7min±2min
Installation Height: 2.2-4m
Consumption: 0.45W (work), 0.1W (static)
Dimensions: 11.1*11.1*5.2cm
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 x Occupancy Sensor 360 Degree PIR Motion Light Switch[Buy 1 Get 1 Free]
