Package Included:

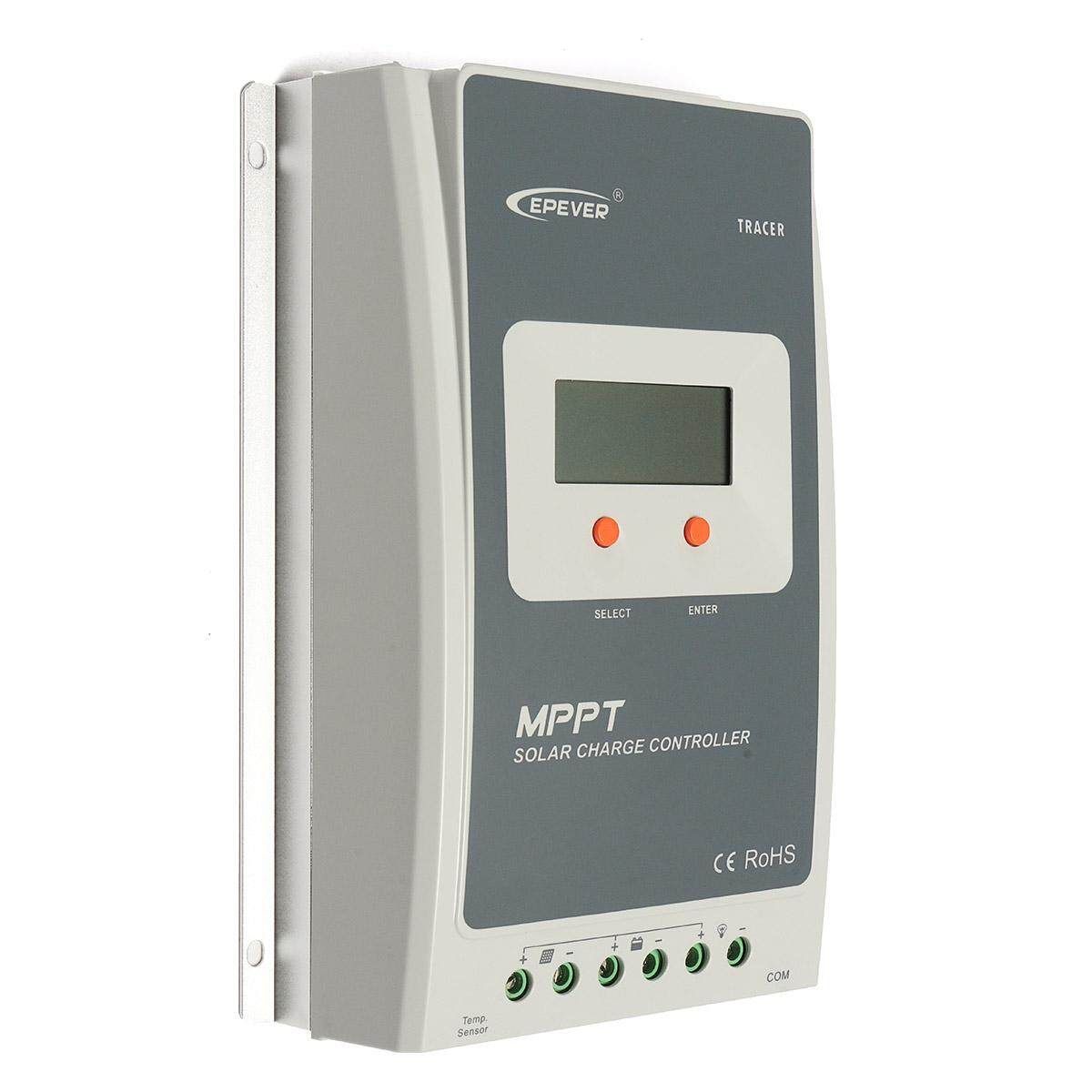

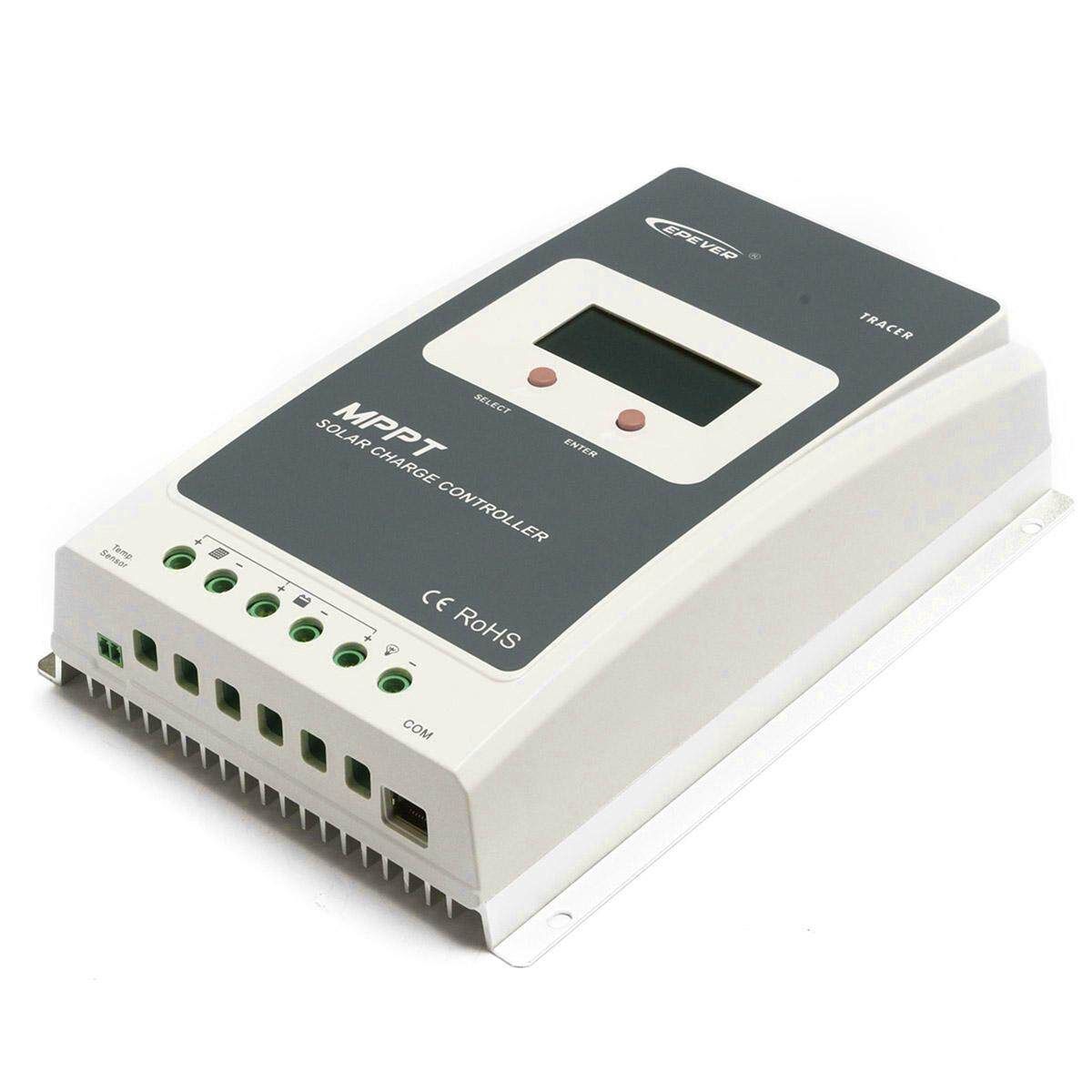

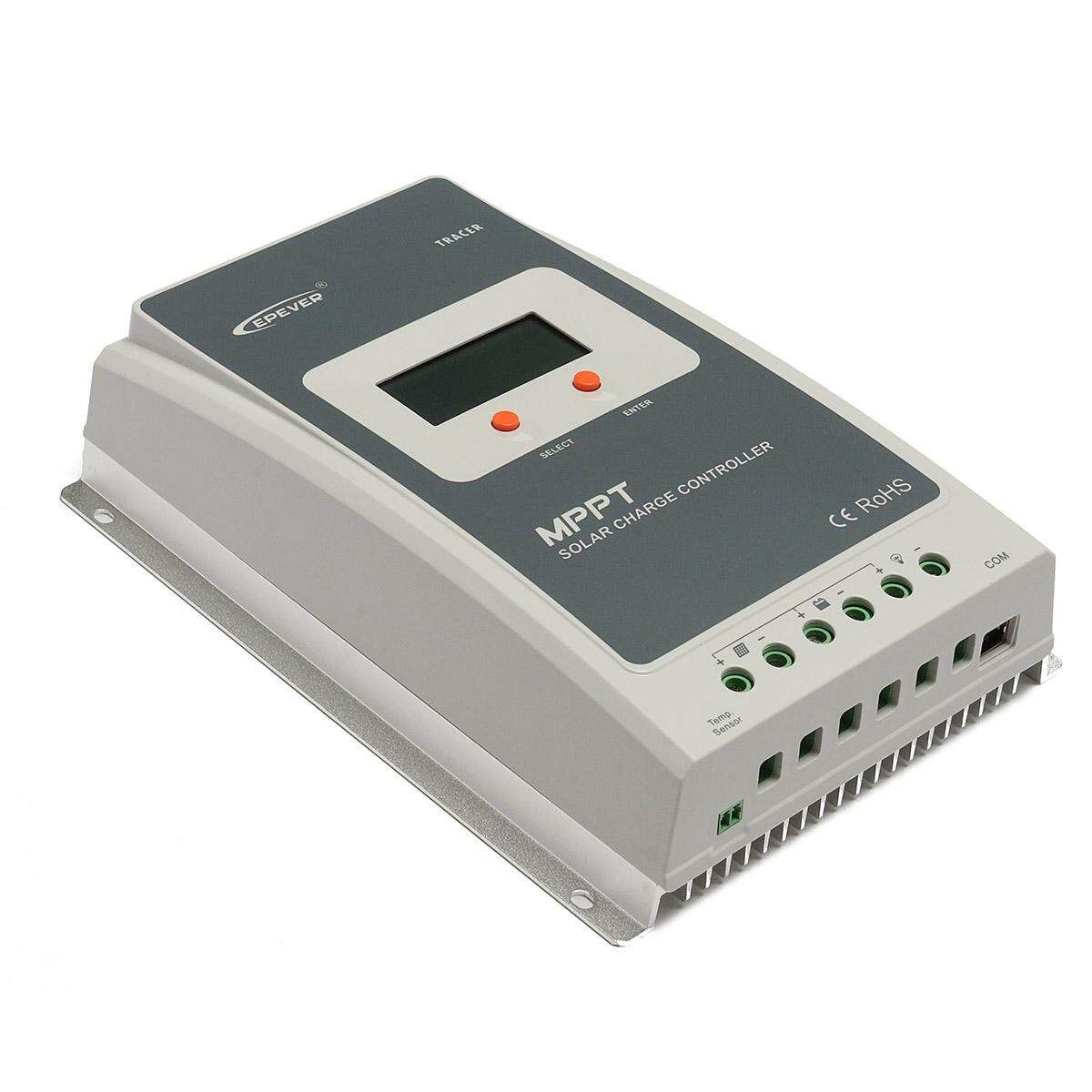

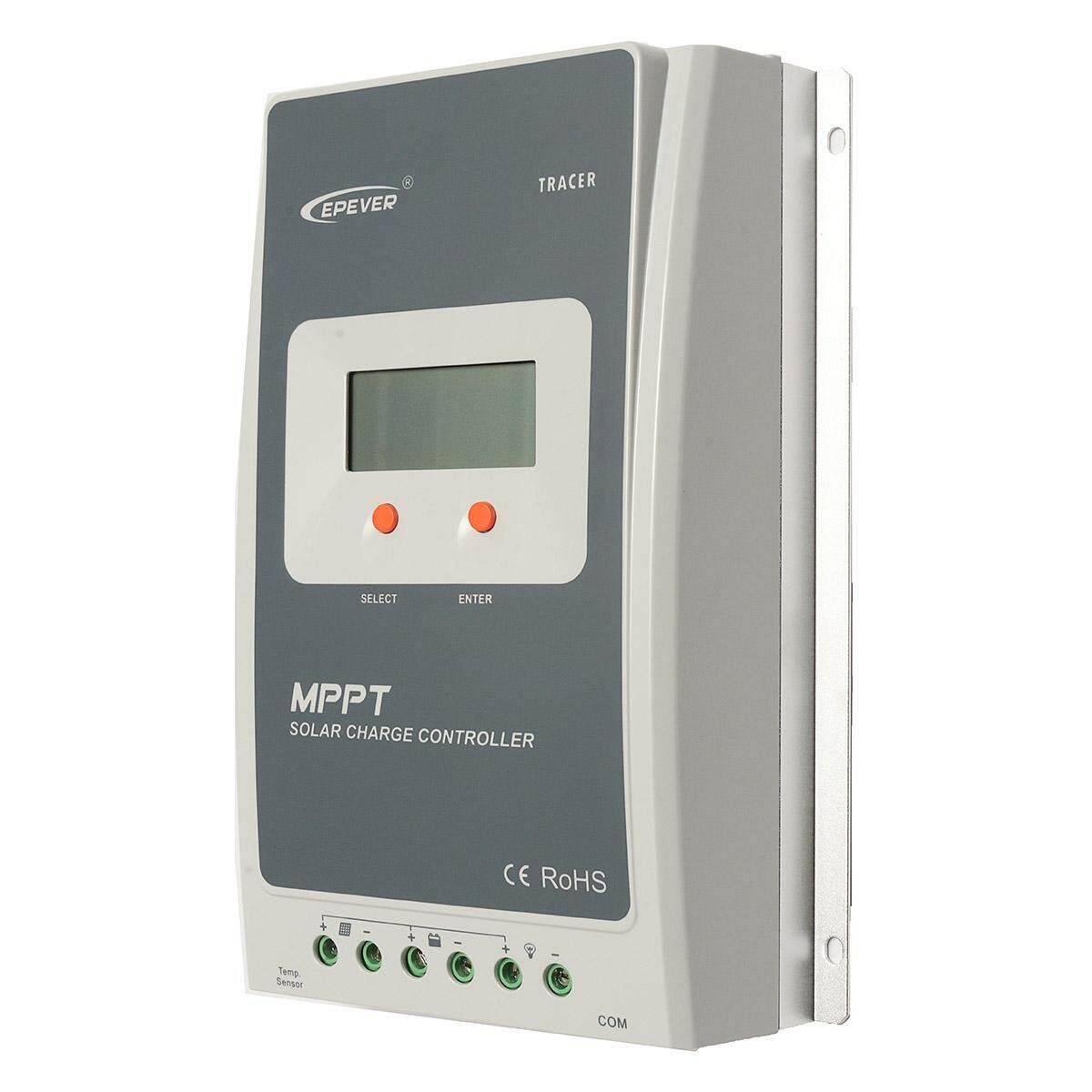

1 x MPPT Solar Charge Controller Regulator
1 x English Use's Manual
Specifications
: 40A
Size: Approx. 24.9x17.9x15.6cm/ 9.80x7.05x6.14"
Nominal system voltage: 12/24V auto work
Rated charge current: 40A
Rated discharge current: 40A
input voltage range: 8V~32V
. PV input : 520W(12V); 1040W(24V)
Self-consumption: ≤20mA (12V); ≤16mA (24V)
Discharge circuit voltage drop: ≤0.18V
Temperature compensation coefficient: -3mV/ oC/2V(Default)
Grounding: Common positive
Environmental:
LCD temperature range: -20℃~+70℃
Working environment temperature range: -25℃~+45℃
Storage temperature range: -35℃~+80℃
Humidity range: ≤95% (N.)
Enclosure: IP30
Features:
Advanced maximum point tracking (MPPT) technology, with efficiency no less than 99.5%
High quality components, perfecting system performance, with maximum conversion efficiency of 98%
Ultra-fast tracking speed and guaranteed tracking efficiency
Accurately recognizing and tracking of multiple points
Reliable automatic limit function of maximum PV input , ensuring no overload under any circumstance
Wide MPP operating voltage range
12/24VDC automatically identifying system voltage
LCD panel display design, dynamically displaying tool's operating data and working condition
Multiple load control modes: manual control, light ON/OFF, light on + and mode
3 charging preprogram options: Sealed, , Flooded
temperature compensation function
Real-time energy statistics function
With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations
Available for PC monitoring and external display unit connecting like MT50 and so on, realizing real-time data checking and setting
software upgrade
a a a a a
Key Features
Size: Approx. 24.9x17.9x15.6cm/ 9.80x7.05x6.14"
Nominal system voltage: 12/24V auto work
Rated charge current: 40A
Rated discharge current: 40A
input voltage range: 8V~32V
. PV input : 520W(12V); 1040W(24V)
Self-consumption: ≤20mA (12V); ≤16mA (24V)
Discharge circuit voltage drop: ≤0.18V
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 x MPPT Solar Charge Controller Regulator 1 x English Use's Manual
