Model |
motion sensor switch |
Production Country |
China |
Size (L x W x H cm) |
12x10x3 |
Weight (kg) |
0.0335 |
Color |
multicolor |

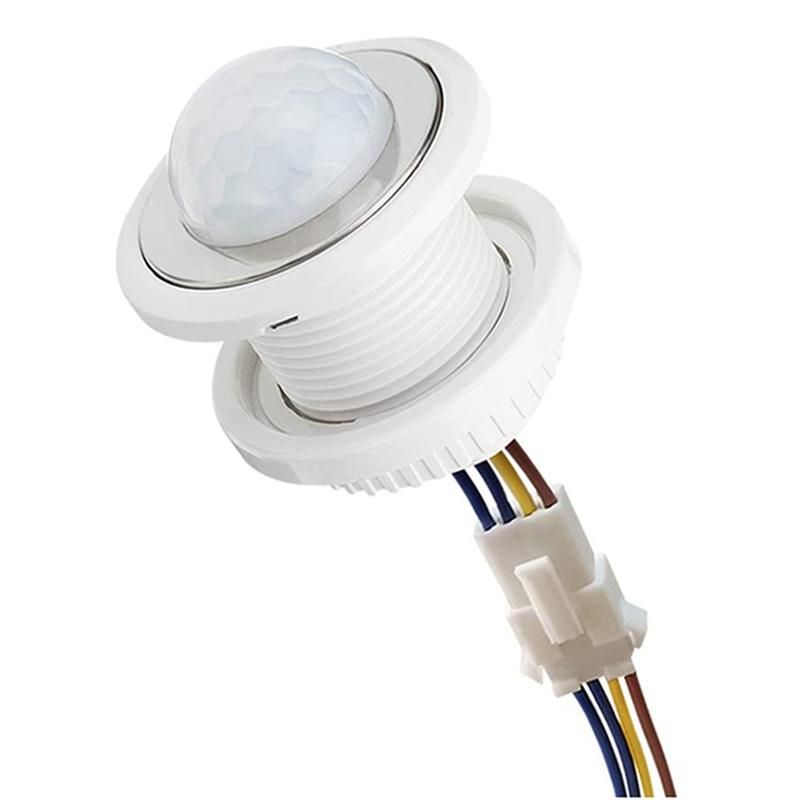

Infrared Sensor Switch working voltage 100-240V Best sensing distance3-5M Mounting Hole Diameter25mm098inch

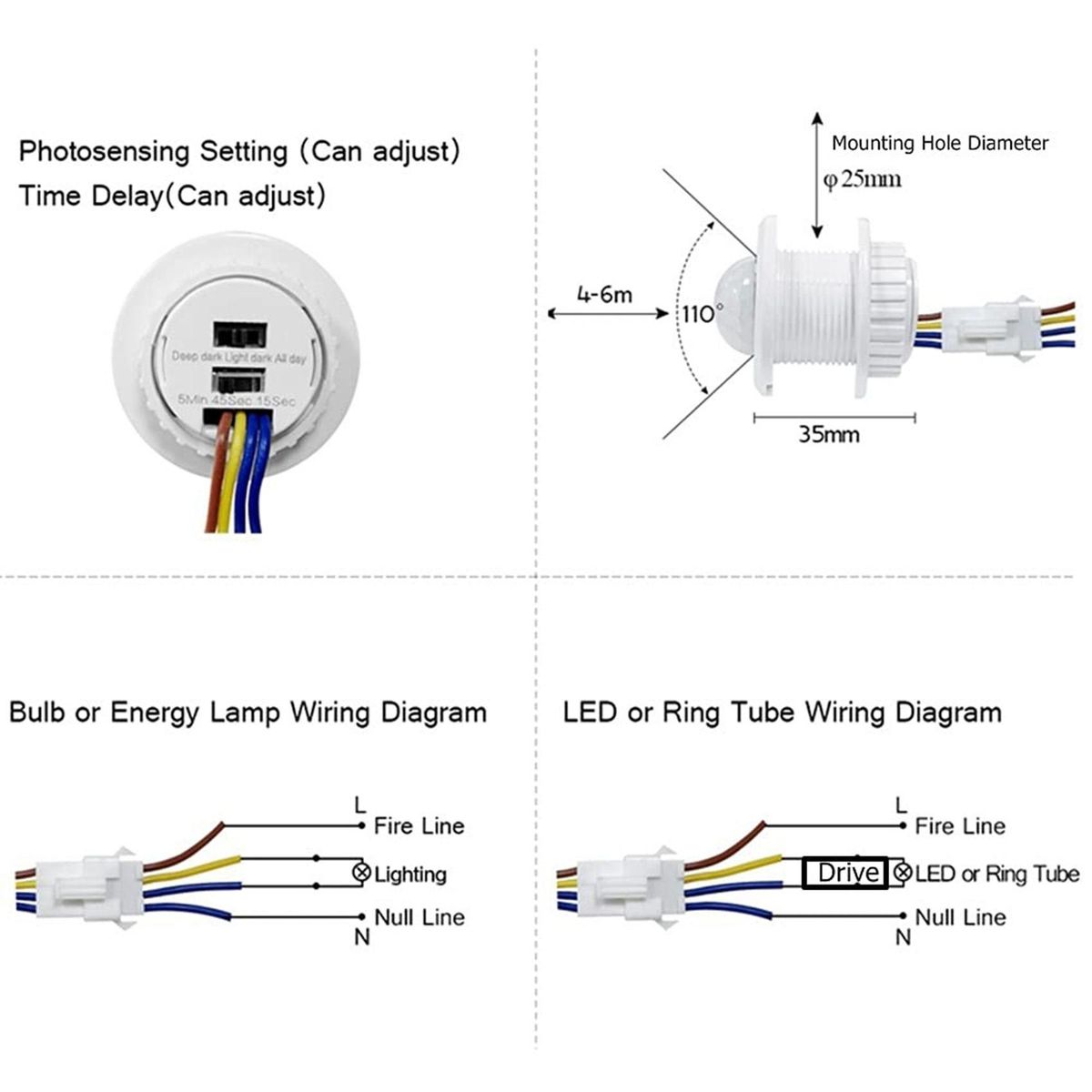

There are 4 wires is Live wire L the outermost blue line is Neutral wire NYellow line and inside blue line connect to light or energy-saving lamp

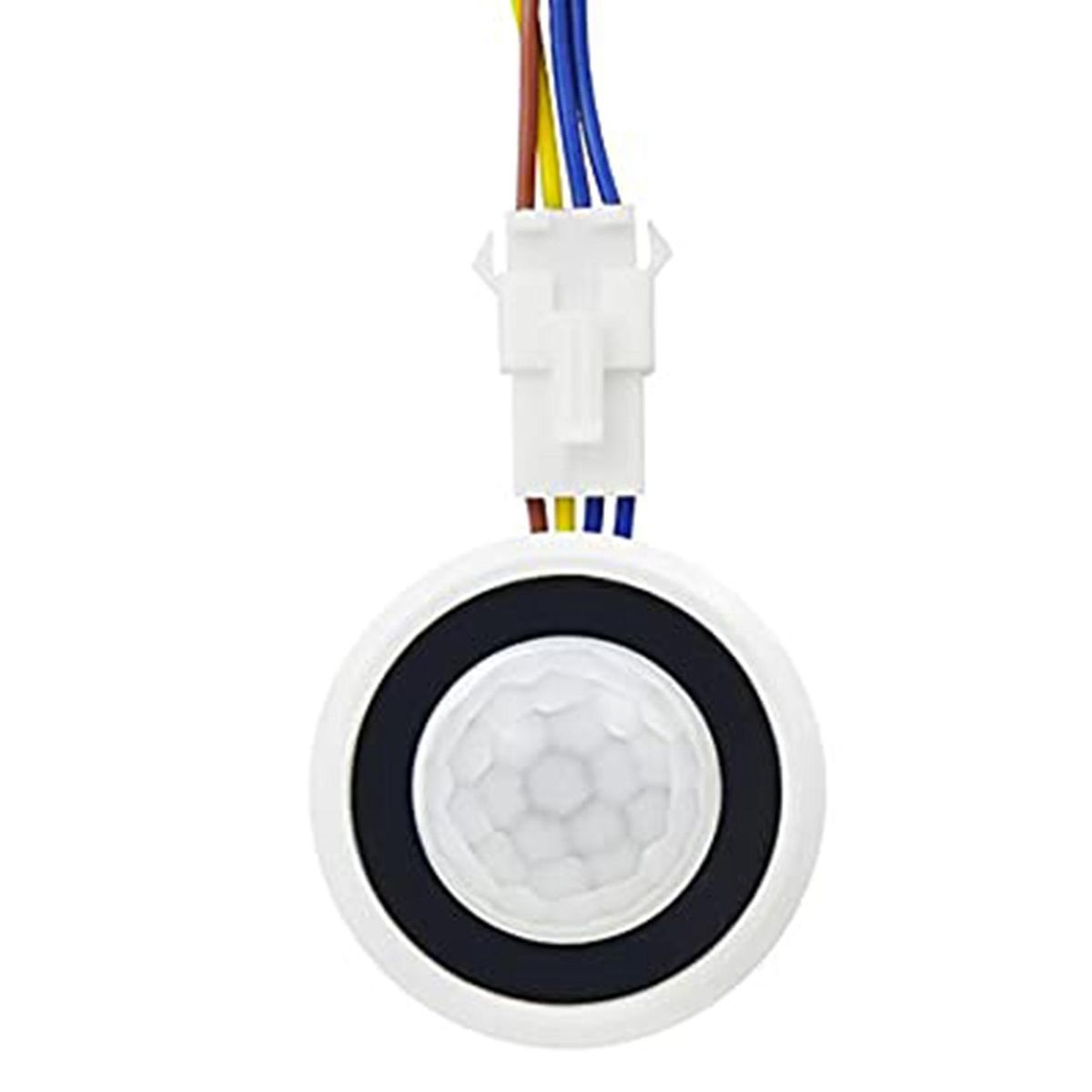

PIR motion sensor switch has feature of small size and lightweight easy to install and operate in room or cabinet plug and play

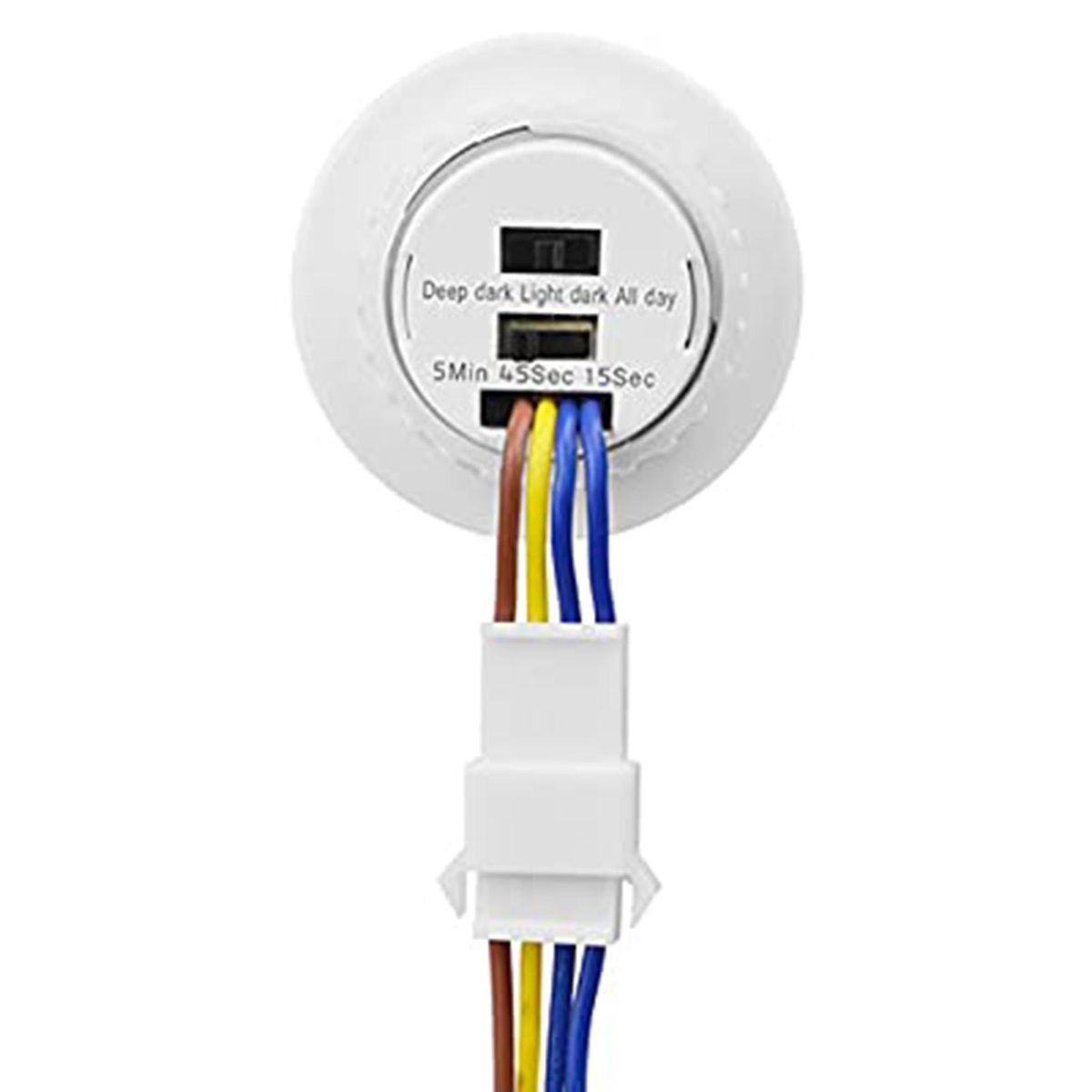

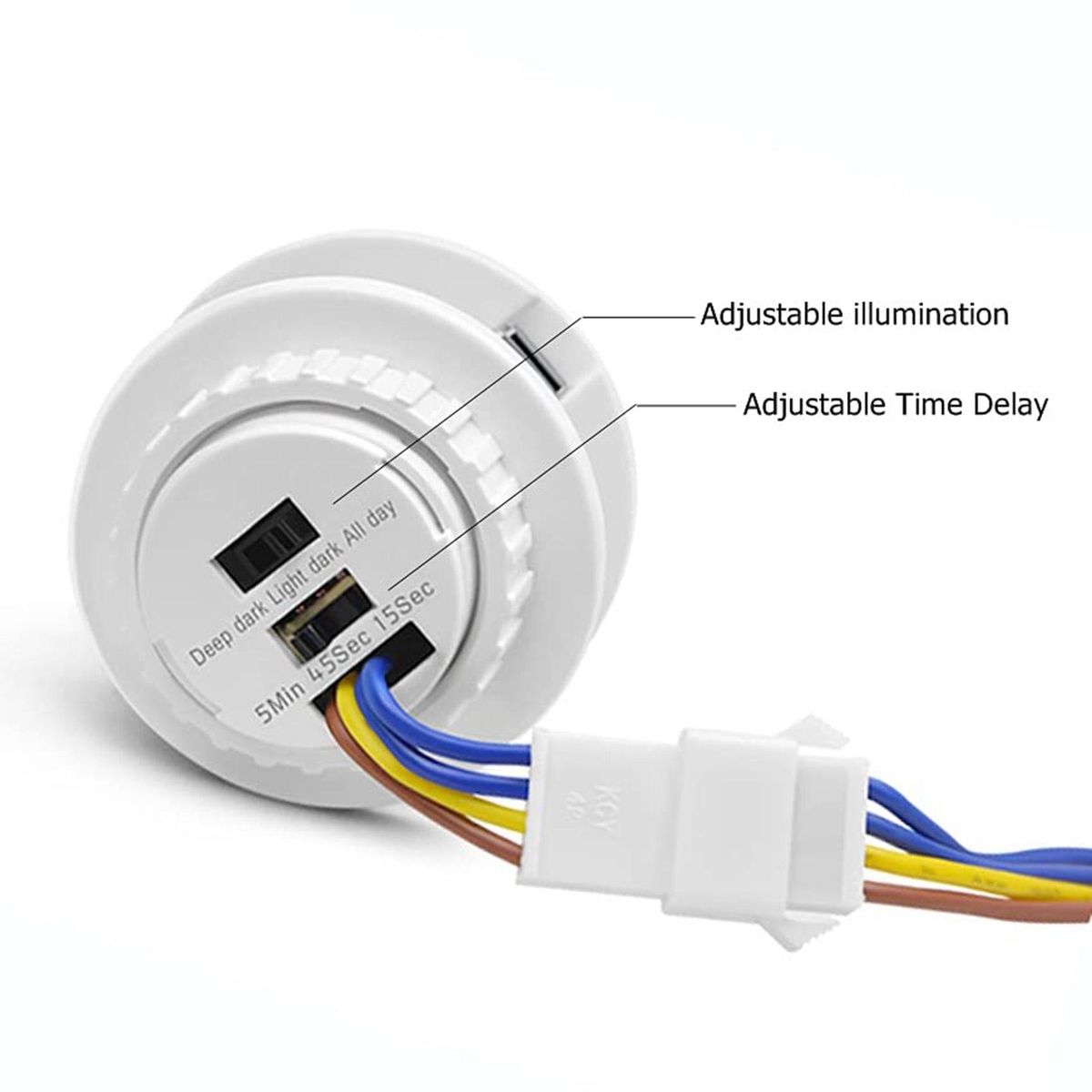

Function Auto switch onoff in the dark when you enter into the induction range and the time delay has 3 way of 15 seconds 45 seconds 5 minutes adjustableIn addition to the automatic control of LED lights it can also be used to control exhaust fans doorbells or other devices
Widely Suitable for auto lighting corridors stairs bathrooms basements warehouses garagescloset advertisement light and other
Induction angle110degree
Waterproof ratingIP22
Working temp -20 Celsius -40 Celsius
Application LED lighting ceiling panel lightsfloodlights etc
ColourAs shown
Materialplastic
Package Contents
1 x Mini Motion Sensor Light Switch
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Mini Motion Sensor Light Switch
