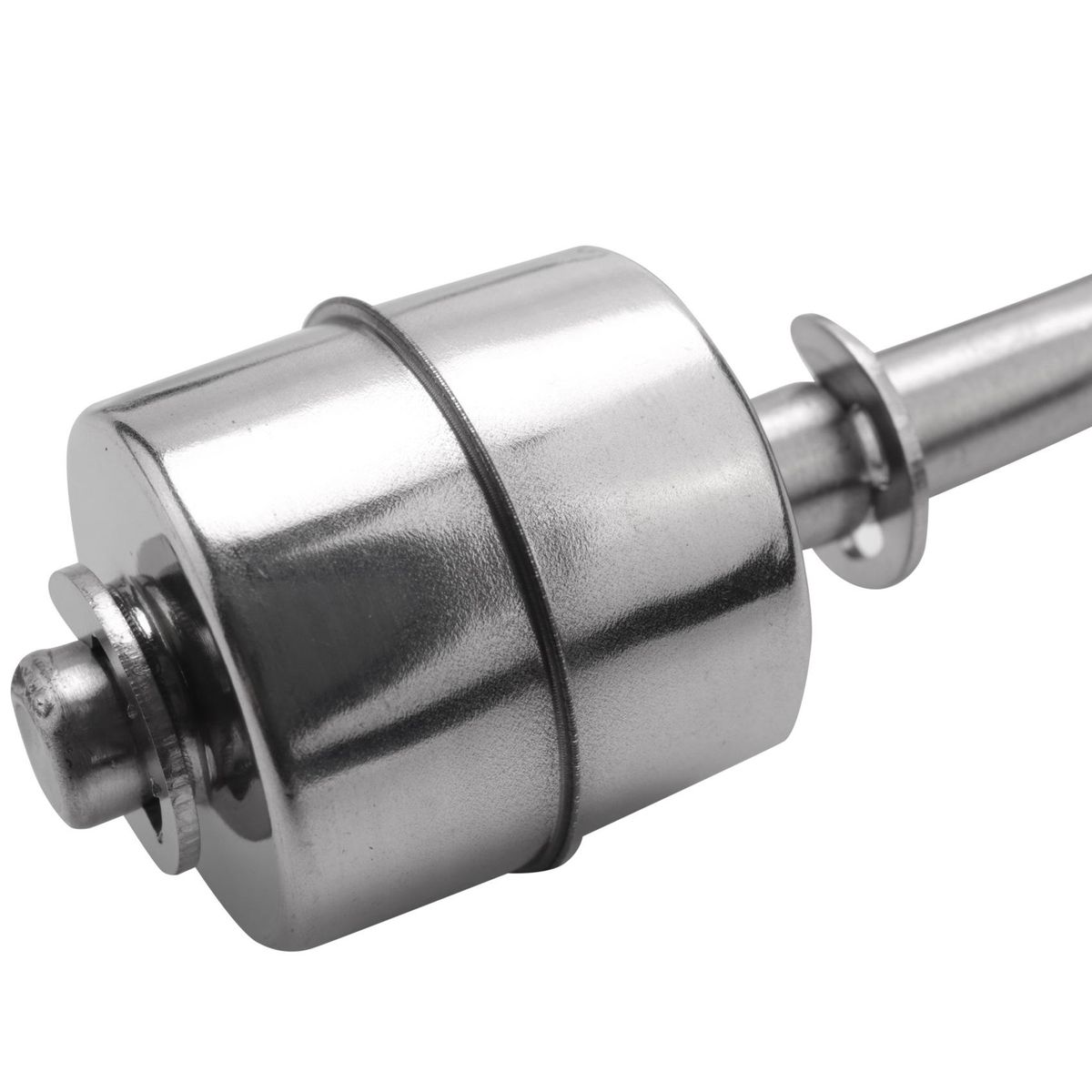

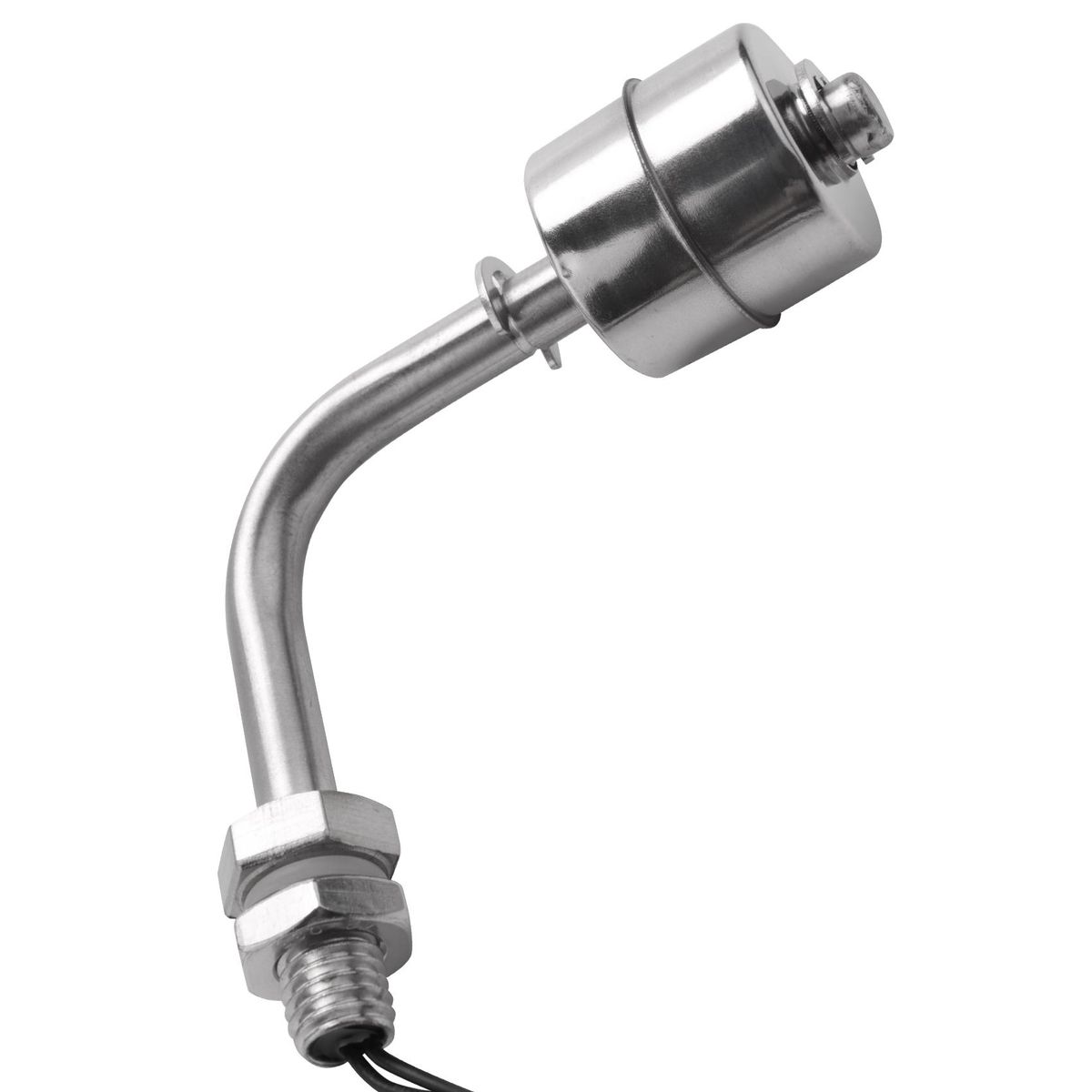

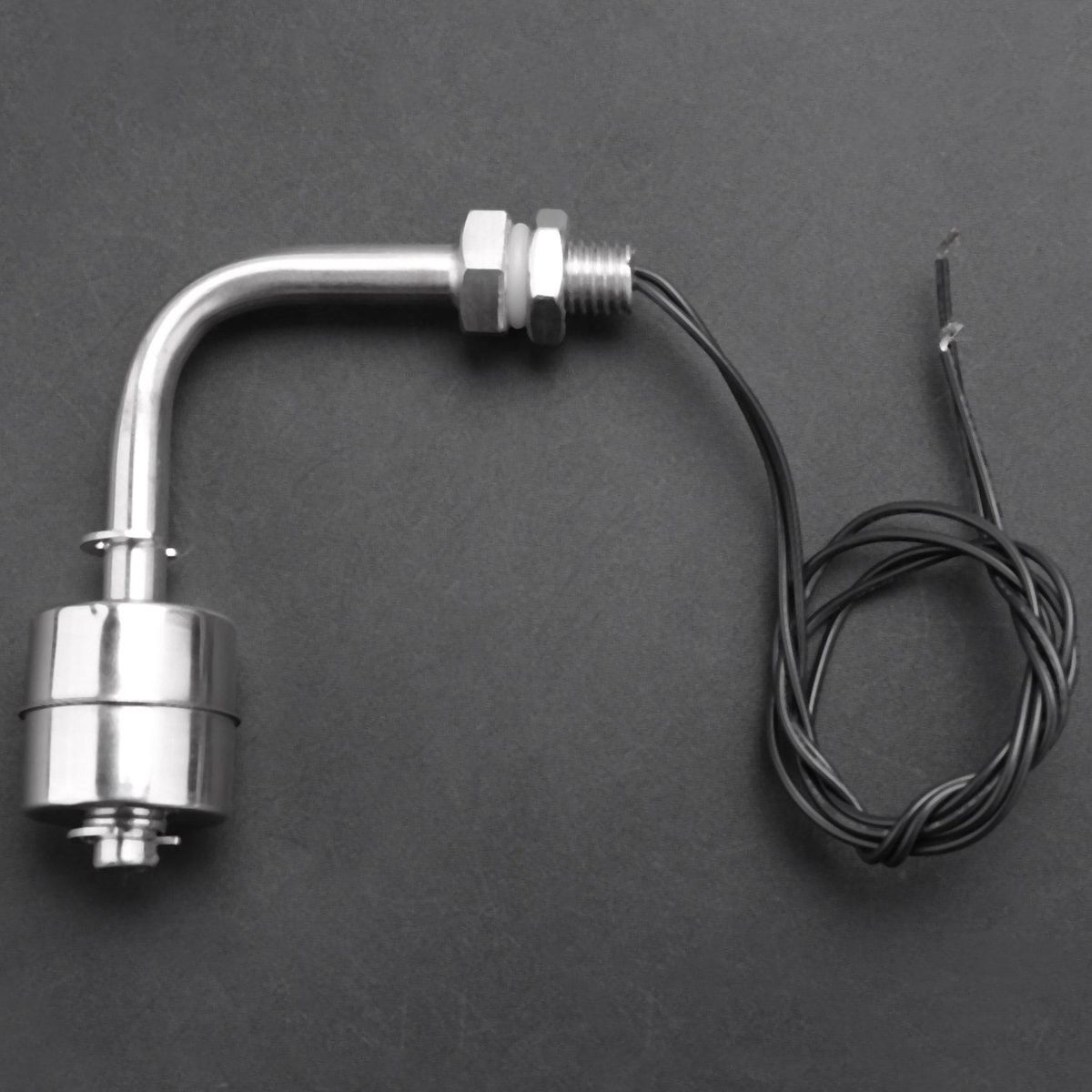

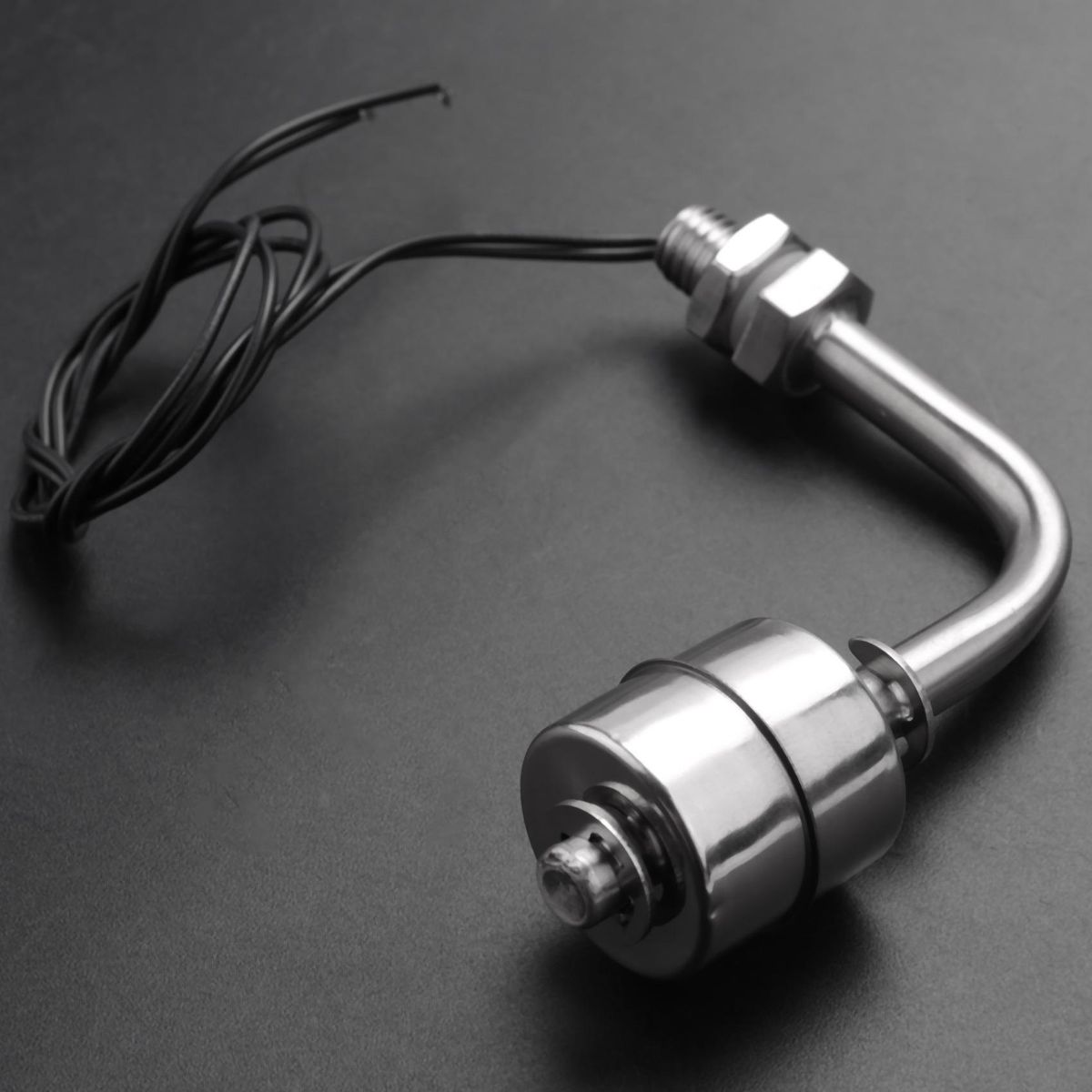

A float switch is a device used to sense the level of liquid within a tank.
The switch may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally by inverting the float.
Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here. Product Name : Water Level Sensor;
Contacts : NO+NC;
Max Contact Rating : 10W
Max Switching Voltage : 100V DC;
Max Switching Current : 0.5A;
Max Breakdown Voltage : 220V DC;
Max Carry Current : 1.0A
Max Contact Resistance : 100mI©;
Temperature Rating : -30 - +125 A°C;

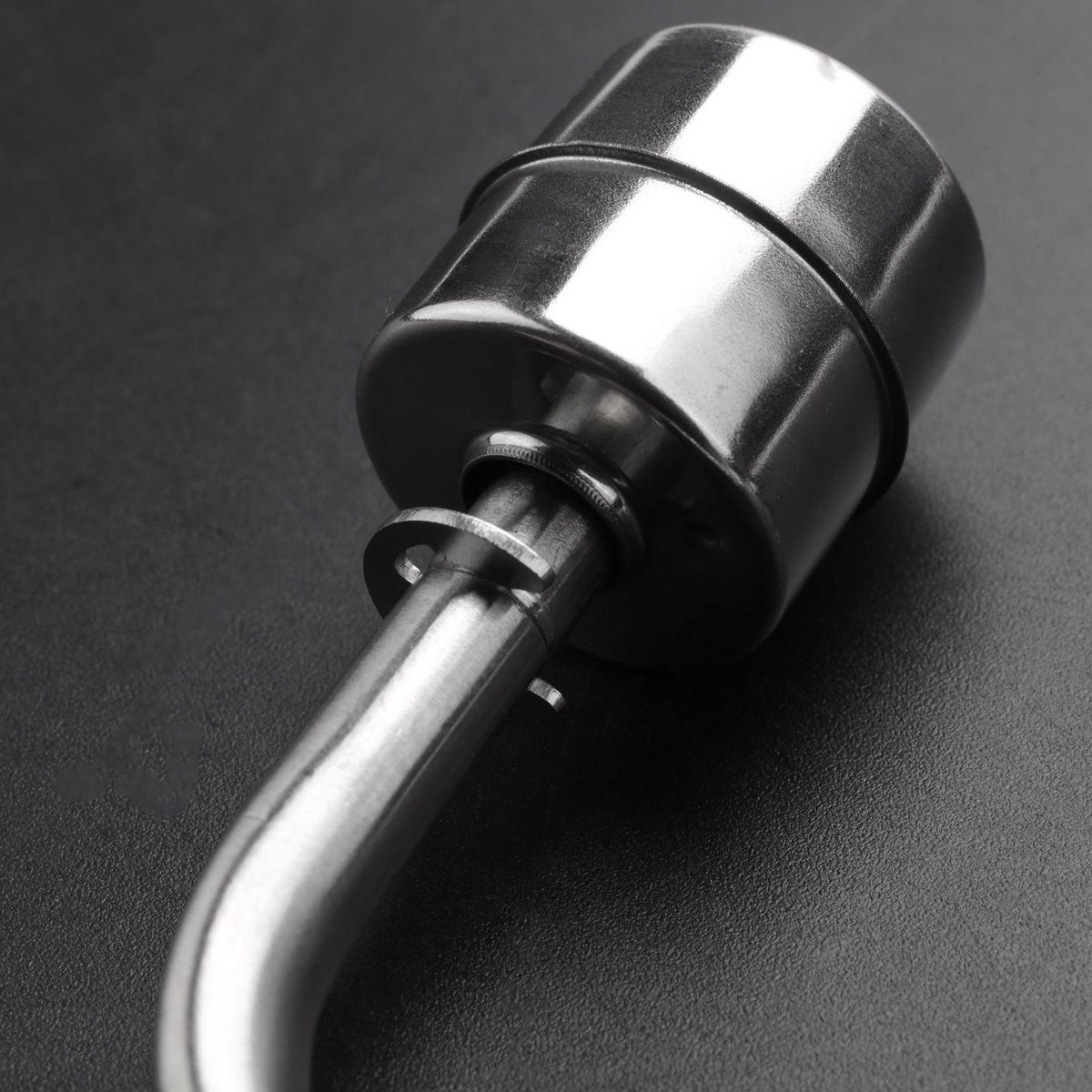

Float Ball Size() : 25 x 27mm / 1" x 1.1"(L*D);

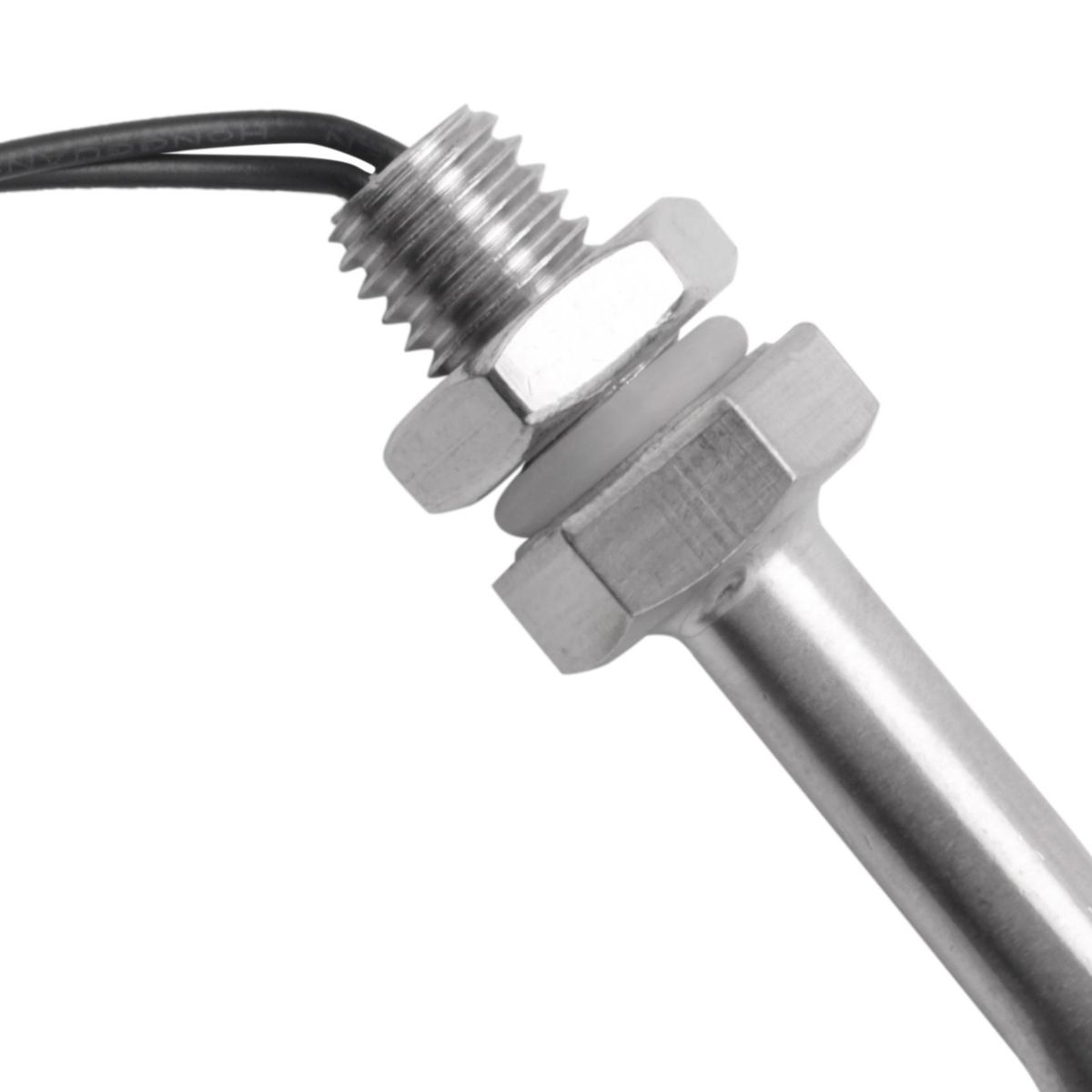

Thread Dia() : 9.8mm / 0.386"
Hex Nut Size() : 19mm / 0.75";
Bottom Clip Dia() : 15mm / 0.6";
Body Length() : 81mm / 3.2";
Body Width() : 70mm / 2.8"

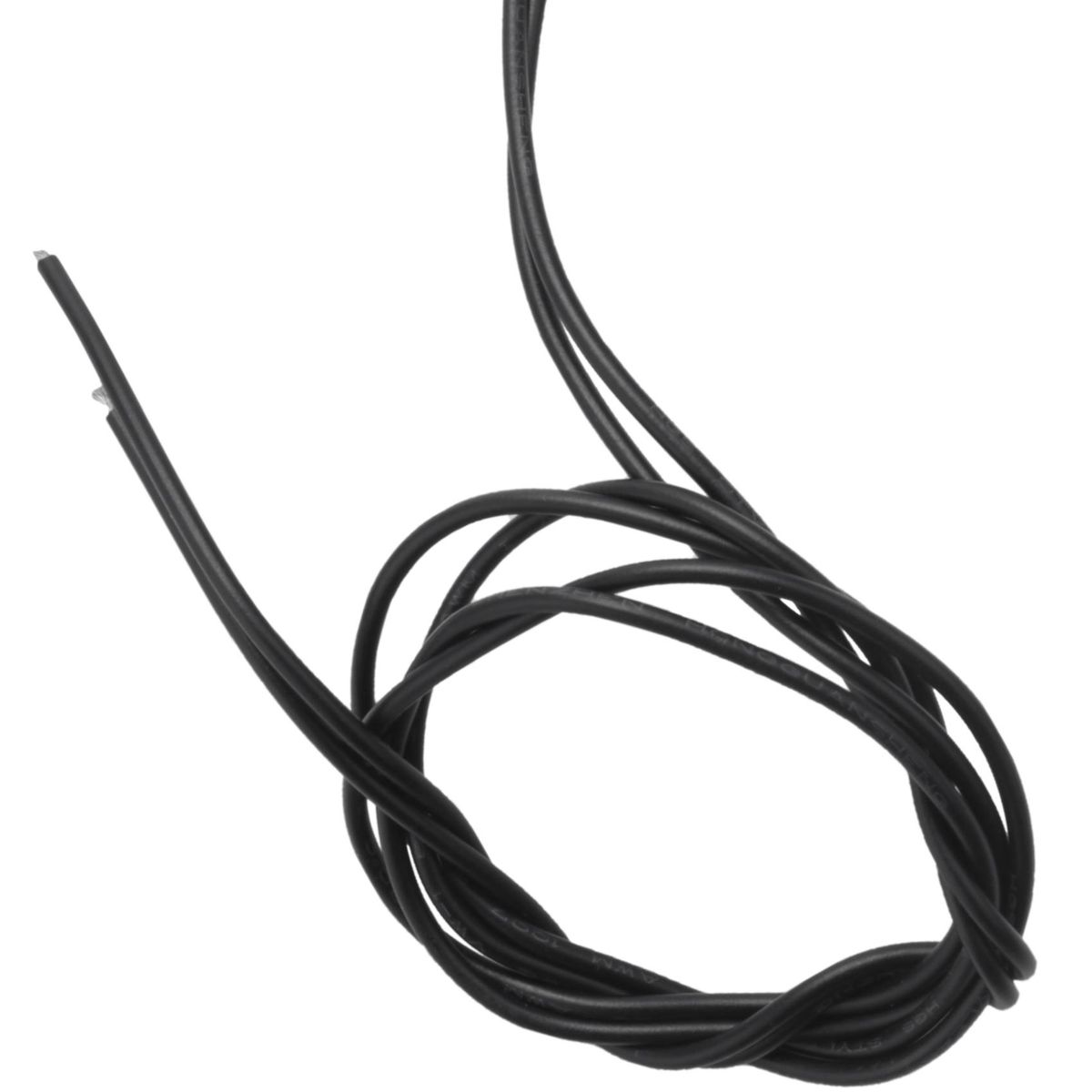

Cable Length : 31cm / 12.2";
Color : Silver Tone;
Material: Stainless steel
Net Weight : 47g;
Package Content : 1 x Water Level Sensor
Note:Light and different displays may cause the color of the item in the a little different from the real .The measurement allowed error is +/-1-3 cm.
Key Features
Durable and good quality
Liquid Water Level Controller
Water Level Controller
Stainless Steel Water Level Controller
Right Angle Water Level Controller
Floating Switch
The details are as described above
What's In the Box
1 x Water Level Sensor
