Features:
explanation and hardware analysis for basic lessons,these are VERY IMPORTANT for beginner.
Bulk of modules,components.
, schematics and PDF guide has fritzing illustration wiring.
(All files given by a download link via message. Please after you receive the kit.)
UNO R3 board tested before shipment,not factory tested, we did.
Technical
About the UNO
This UNO is manufactured using the Creative Commons files provided on the Arduino website, therefore it is not manufactured by Arduino but is full compatible with Arduino software(IDE) in every way and COST MUCH LESS!
We tested before shipment.
Add A6 and A7 analog I/O.
Add two rows of the pass-thru holes for connecting normal dupont line.
Come with SHIELD 50CM LONG USB cable for stable data transit
The main :

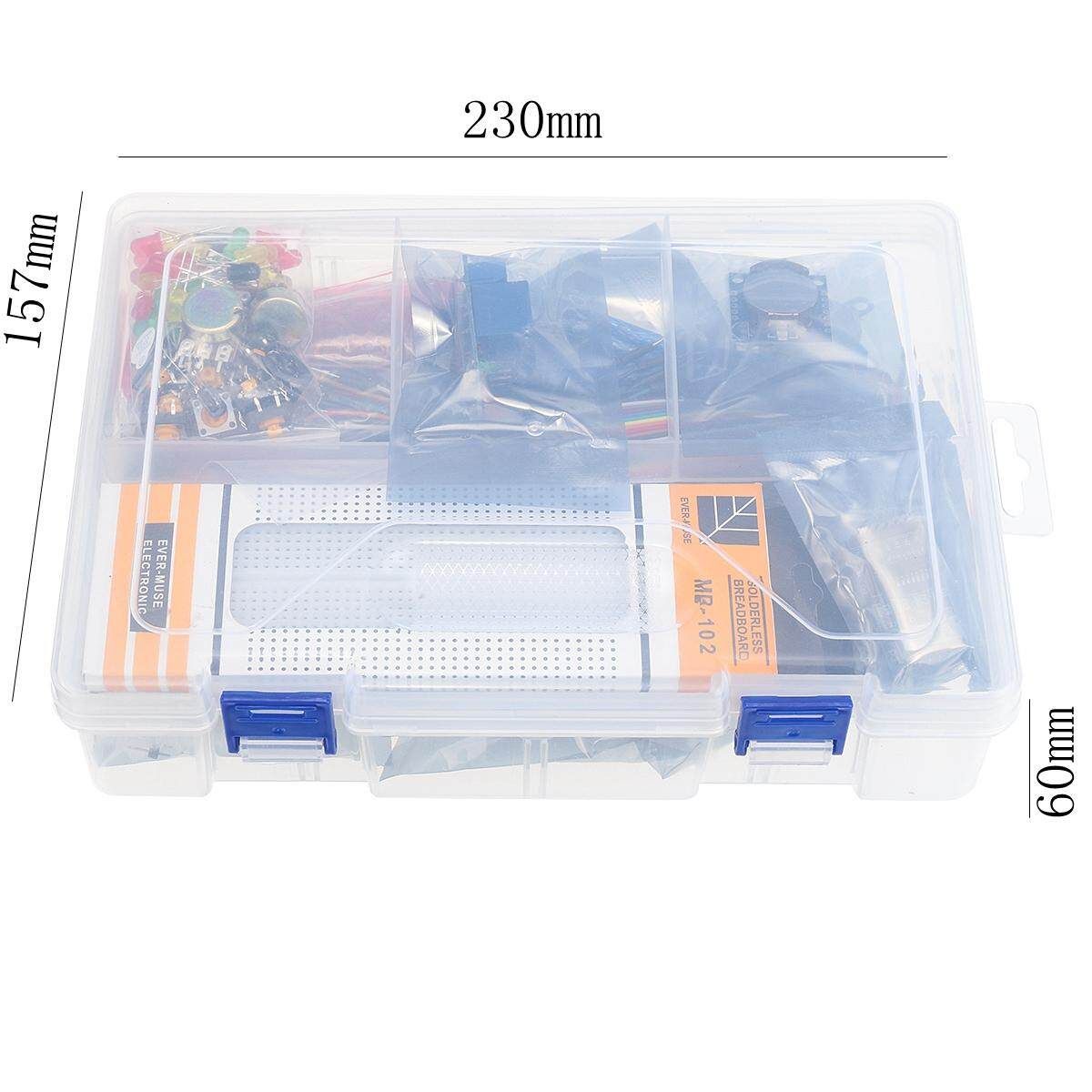

Size of the case:230x157x60mm.
Weight:656g

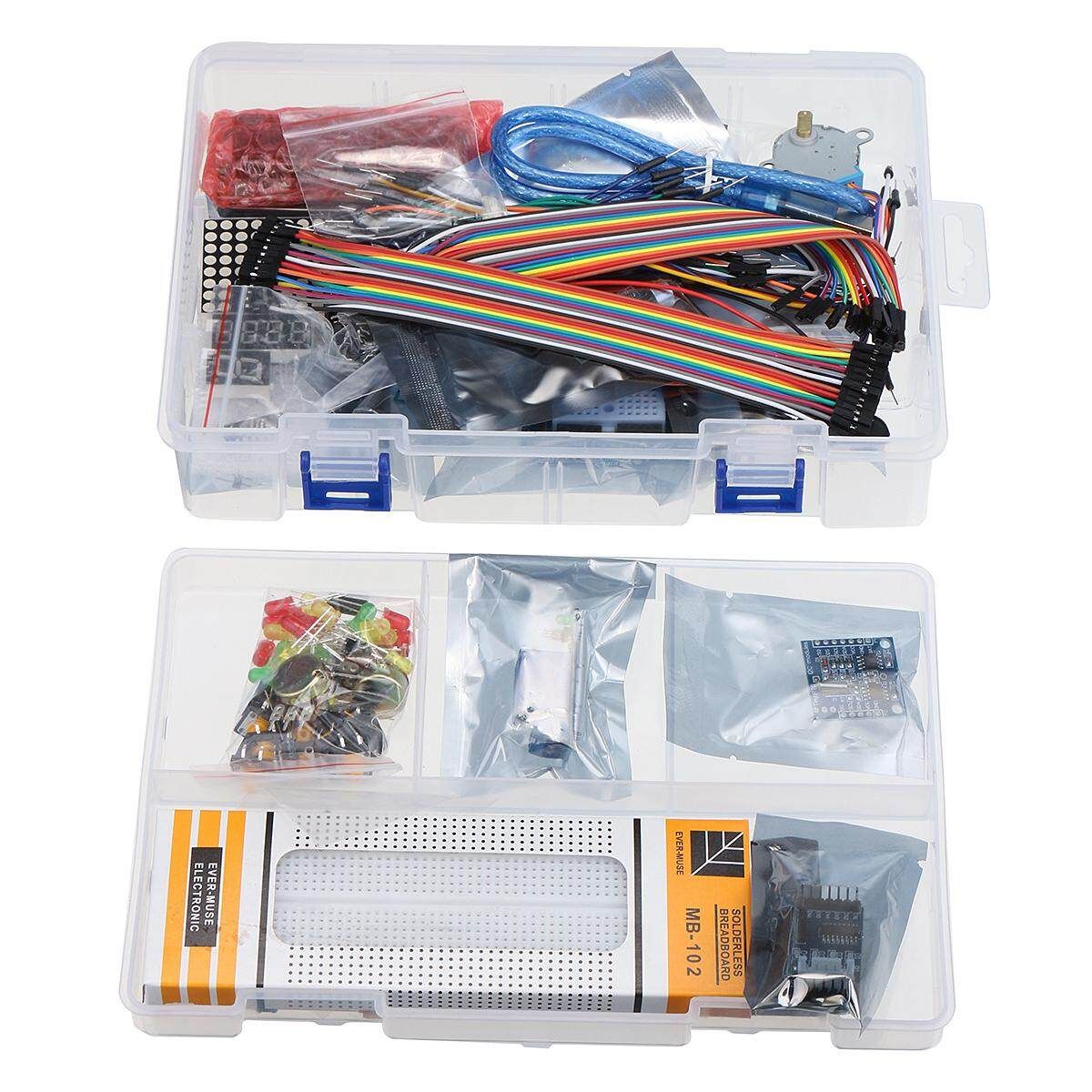

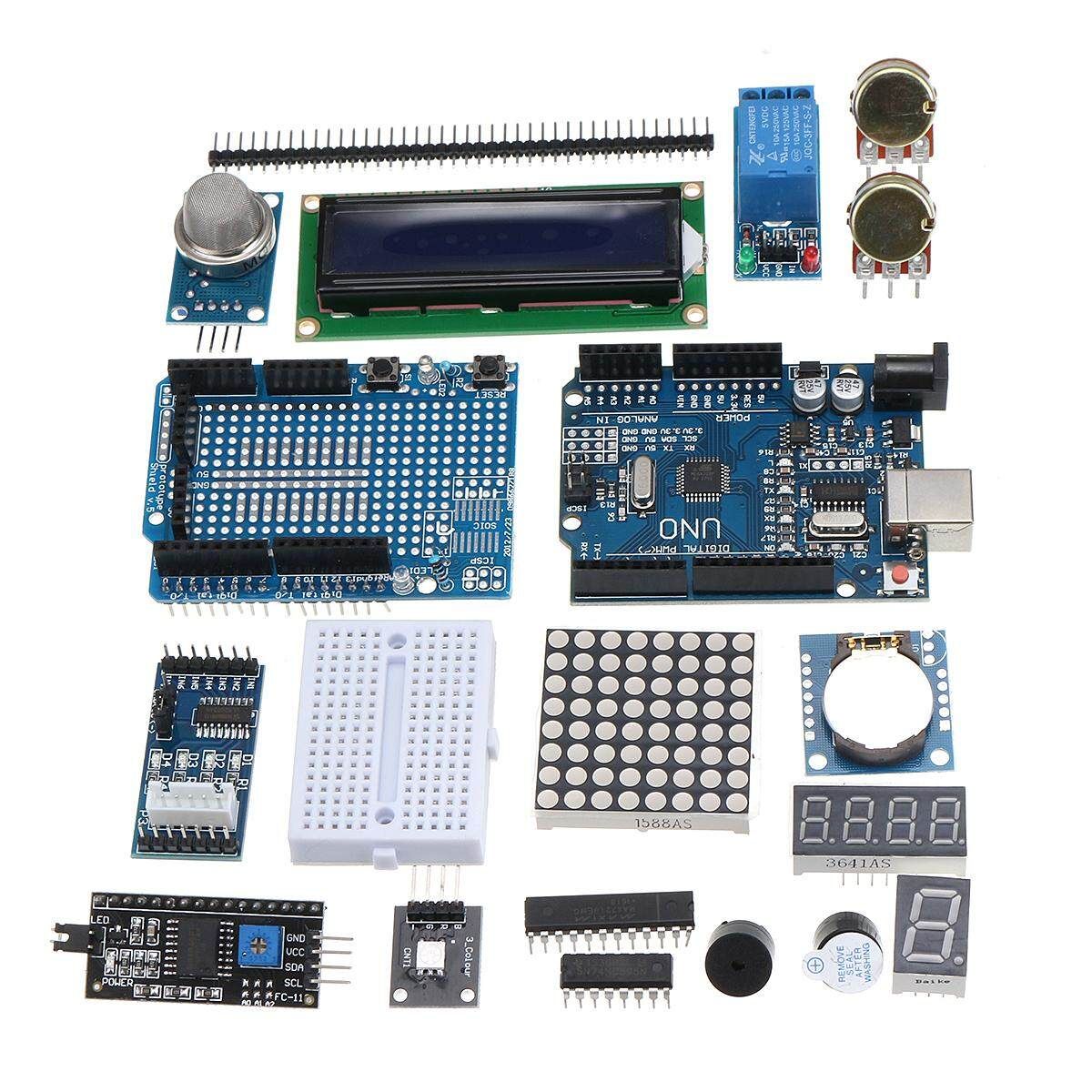

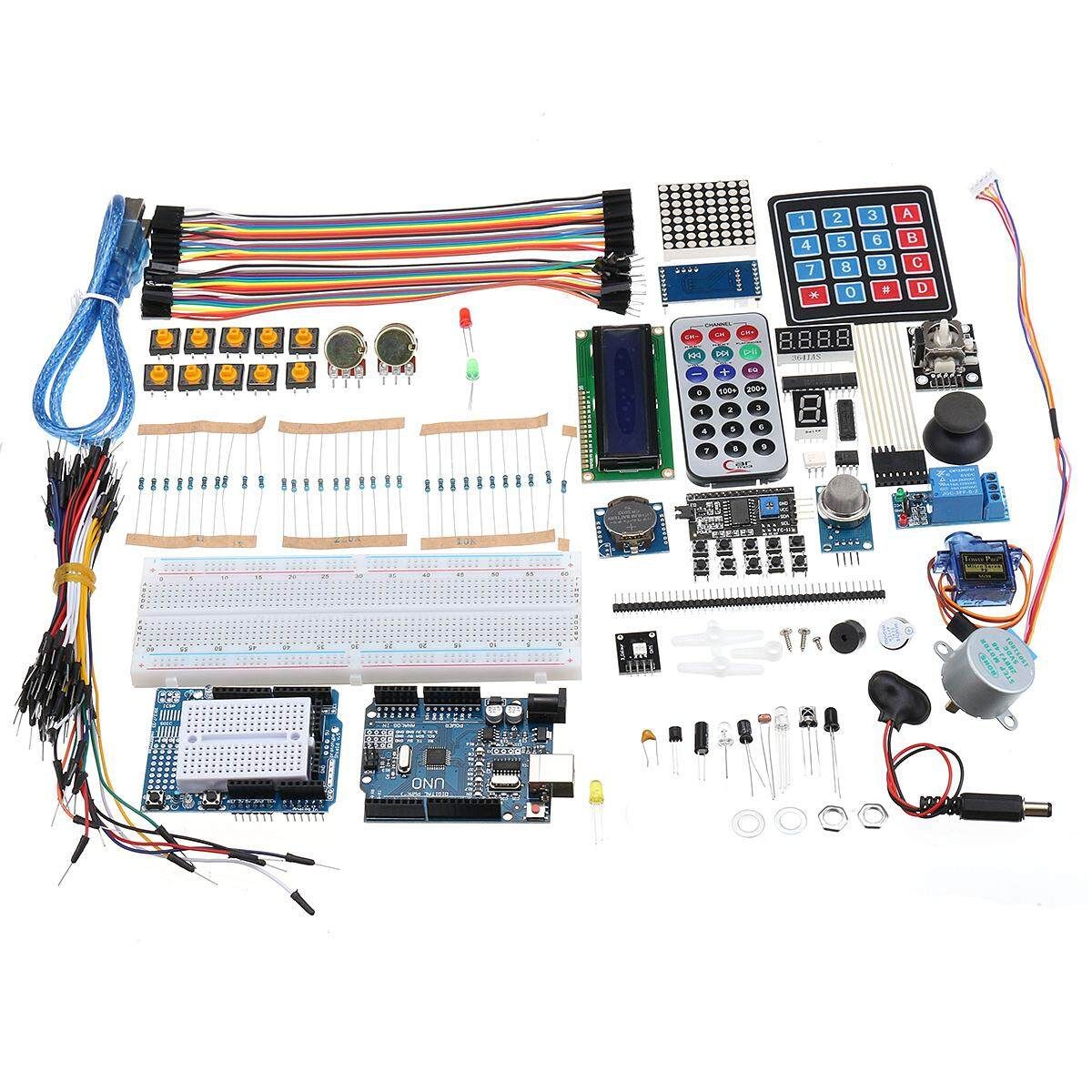

Package Included:
1 x UNO R3 Board (Fully ARDUINO-Compatible,manufactured using the Creative Commons files)
1 x V3 Prototype Shield for Arduino UNO ( with solderless breadboard, just plug in to your idea)
1 x Shield USB Cable for stable data transit
1 x 830 Contact Points Breadboard
1 x 5mm LED Assorted Kit (Red/Green/Yellow 10pcs each + RGB Trip- 1Piece)
1 x 8bit Shift Register 74hc595
1 x MAX7219
2 x Buzzer 5v (1 active and 1 passive)
1 x Eight-segment Display (1-digit Common Anode)
1 x Eight-segment Display (4-digit Common Anode) with clock
10 x Push Button Switch 6*6mm
1 x Light Dependent Resistor (photocell)
20 x 10KΩ Resistor
20 x 220Ω Resistor
5 x 1kΩ Resistor
1 x 4K7Ω Resistor
1 x 10uf Electrical Capacitor
1 x 0.1uf Ceramic Capacitor
2 x 10k Trimpot Adjustable Resistor Potentionmeter
1 x LM35 Temperature Sensor
1 x 1602 LCD Display
1 x LCD IIC Serial Module

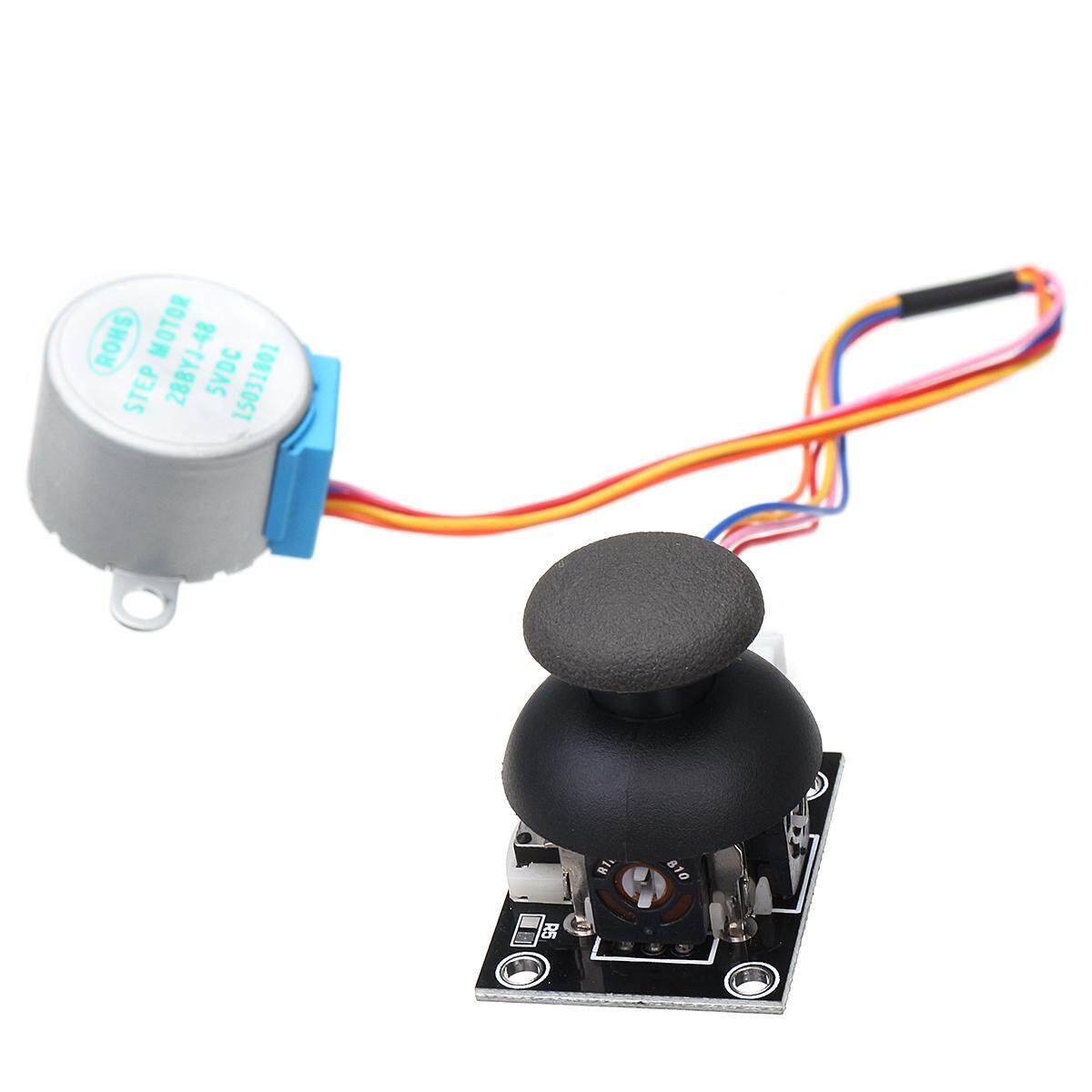

1 x PS2 Joystick Module
1 x Stepping Motor 5v
1 x New Blue Stepping Motor Driver Board
1 x SG90 Servo Motor
1 x SMD RGB Module
65 x Wires
20 x Dupont Lines(Female to Female)
20 x DuPont Lines(Male to Female)
1 x 2.54mm Straight 40 Pin Header
1 x Tilt/shock Switches
1 x Flame Sensor
1 x Infrared Sender
1 x Infrared Receiver
1 x Remote (- CR2025 Not Included)
1 x NE555
1 x Optocoupler 4N35
1 x RTC Clock Module
1 x MQ-2 Gas Sensor Module
1 x Sound Sensor Module
1 x 8*8 Dot Matrix Display
1 x 5v 10A Relay Module with optocouple
1 x 4*4 16keys membrane keypad
1 x 9v Case with switchTutorials
