Description Package Includes:
1 x Solar Charge Controller
1 x User Manual
2 x Cable
Specifications:
Model: CMG-2420
Rated Discharge Current: 20A
USB Output Voltage: 5V
Total USB Output Current: 3A
Output Voltage: 12V
Total Output Current: 2A
Over Load, Short Circuit Protection: 1.5 times by rated current
Short Circuit Recovery Time: 10s
Open Circuit Voltage of Solar Panel: 40V
No load loss: 0.05W
Over Voltage Protection: 15V;×2/24V
Float Chager Voltage: 14V;×2/24V
Discharge Recovery Voltage: 12V;×2/24V
Over Discharge Voltage: 10.5V;×2/24V
Control Mode: Software Intelligent Control
Working Temperature: -35℃~+55℃
Dimension(L×W×H): 135 X 100 X 30 mm
Protection:
1. Over-load protection
2. Short circuit protection
3. Lightning protection
4. Under-voltage protection
5. Over-charging protection
6. Polarity protection

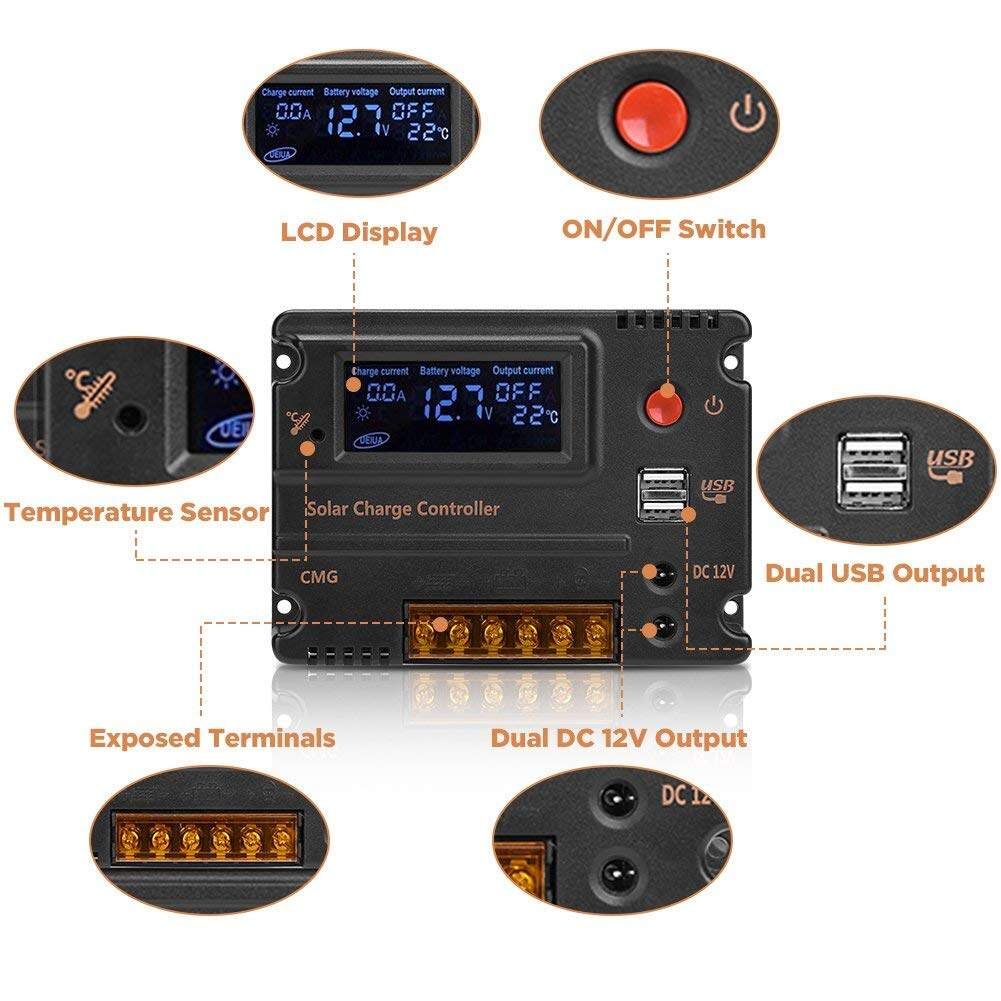

Feature:
Wide LCD screen display
With output switch, intelligent control, easy to operate.
-efficient,Microcontroller digital accuracy
PWM charging mode(SOC)
Available for lamp and phone charging
Use PWMWPC mode, improve system efficiency and prolong the life span of the .
Detail Image
a a a a a
Key Features
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 x Solar Charge Controller 1 x User Manual 2 x Cable
