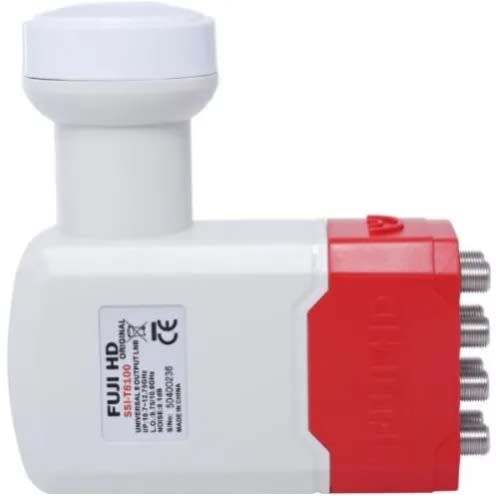

The Low Noise Block Down-Converter Is Used In Combinatioth An Antenna For Ku Band,
And This Converter Can Receive Both Horizontally And Vertically Polarized Signals.
GENERAL SPECIFICATIONS
Input Frequency 10.7-12.75ghz
l.O.Frequency 9.75/10.6ghz±1mhz
stability ±1.0mhz
l.O.Phase Noise -55dbc/Hz@1khz
-80dbc/Hz@10khz
-100dbc/Hz@100khz
out Put Frequency 950-2150mhz
conversion Gain 65db (Typ)
Gain Flatness ±0.5db/6mhz; ±2.5db/In Band
noise Figure 0.1db (Typ)
Dc Supply Voltage 11-14.5v (V),15.5-22v (H)
Supply Current 95ma (Max)
Out Put Connecter 75ω, F-Type Female
relative Humidity 0%-95%
Special Note: Because There Is No Quad Lnbf Conventional Packaging Color Box, Now With Alternative Packaging Foldingcarton Lnbf. This Box Quality Good. The Other A For Ordinary Packaging Box Quad Lnbf. If No Specific Requirement For Packaging Box. I Will Send The Default Color Box Packagin
