| Production Country |
China |
| Size (L x W x H cm) |
14.00×12.50×3.00 |
| Weight (kg) |
0.10 |
| Color |
Green |

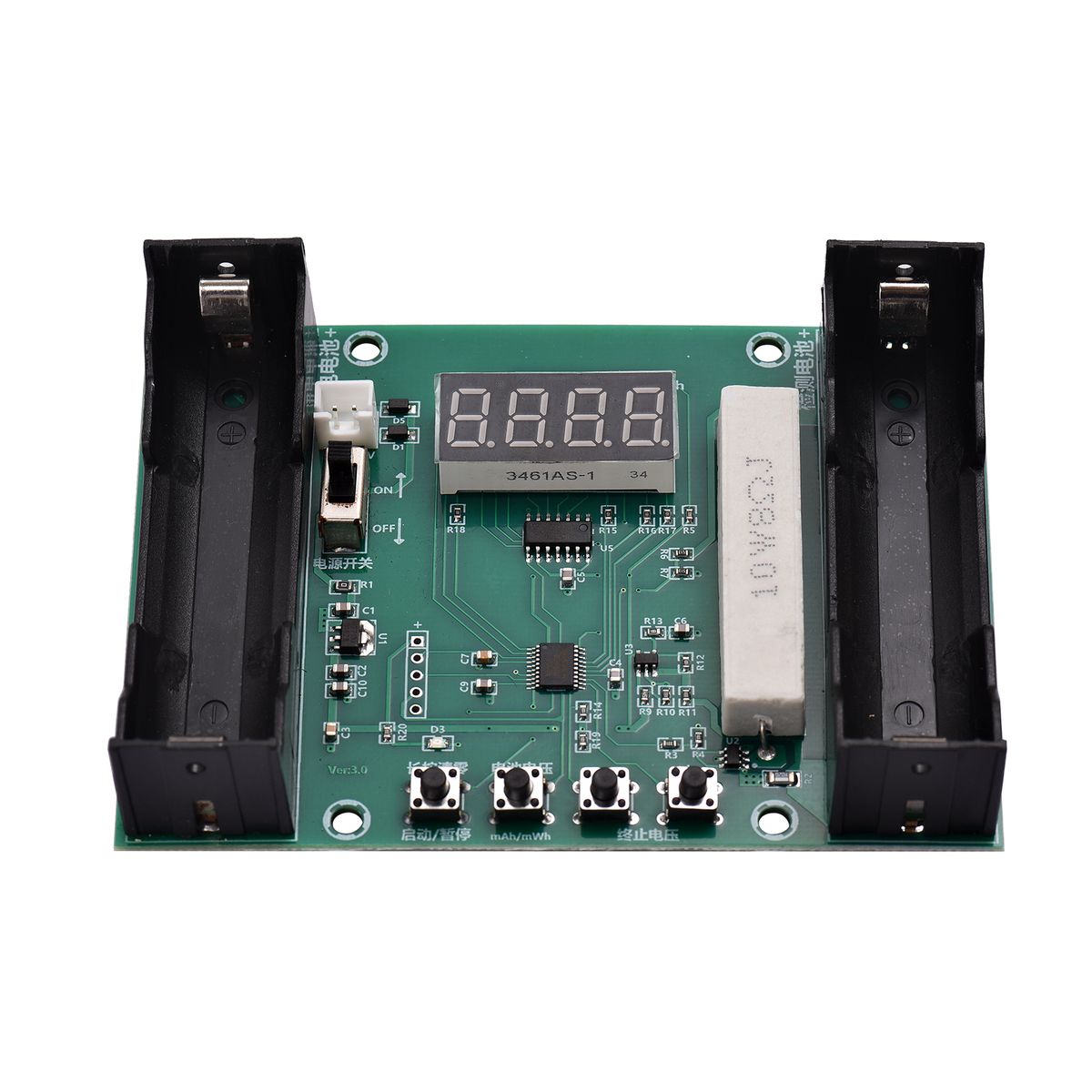

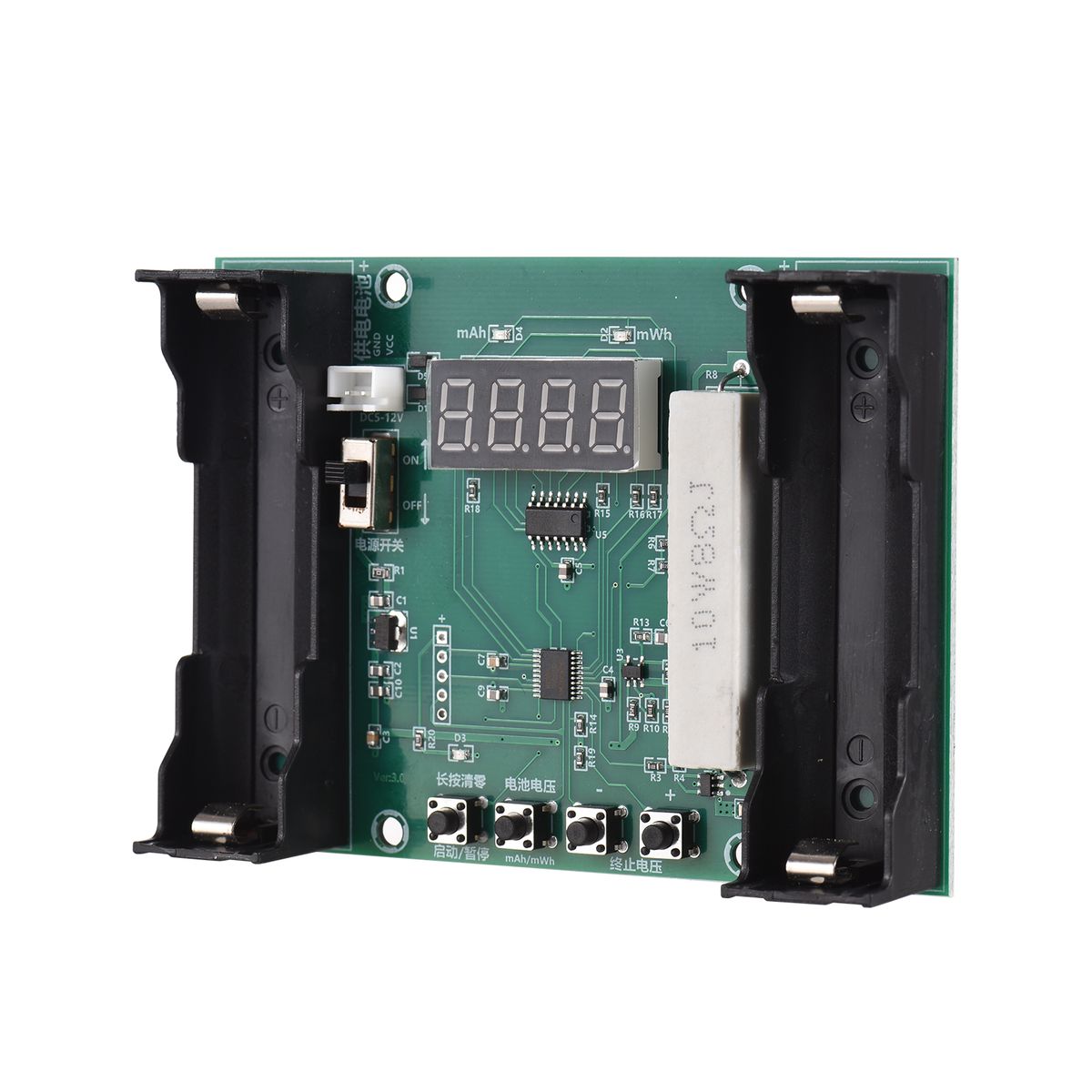

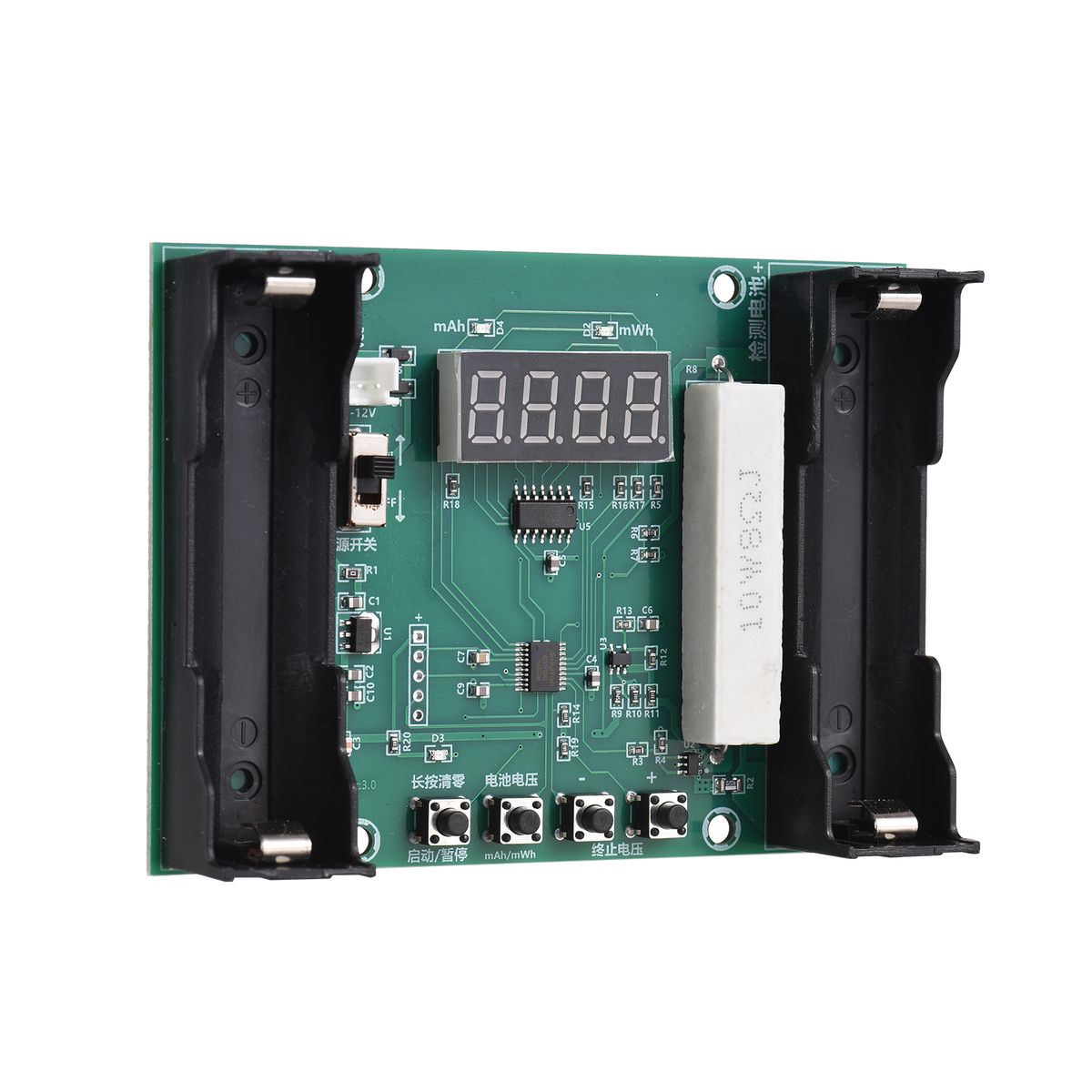

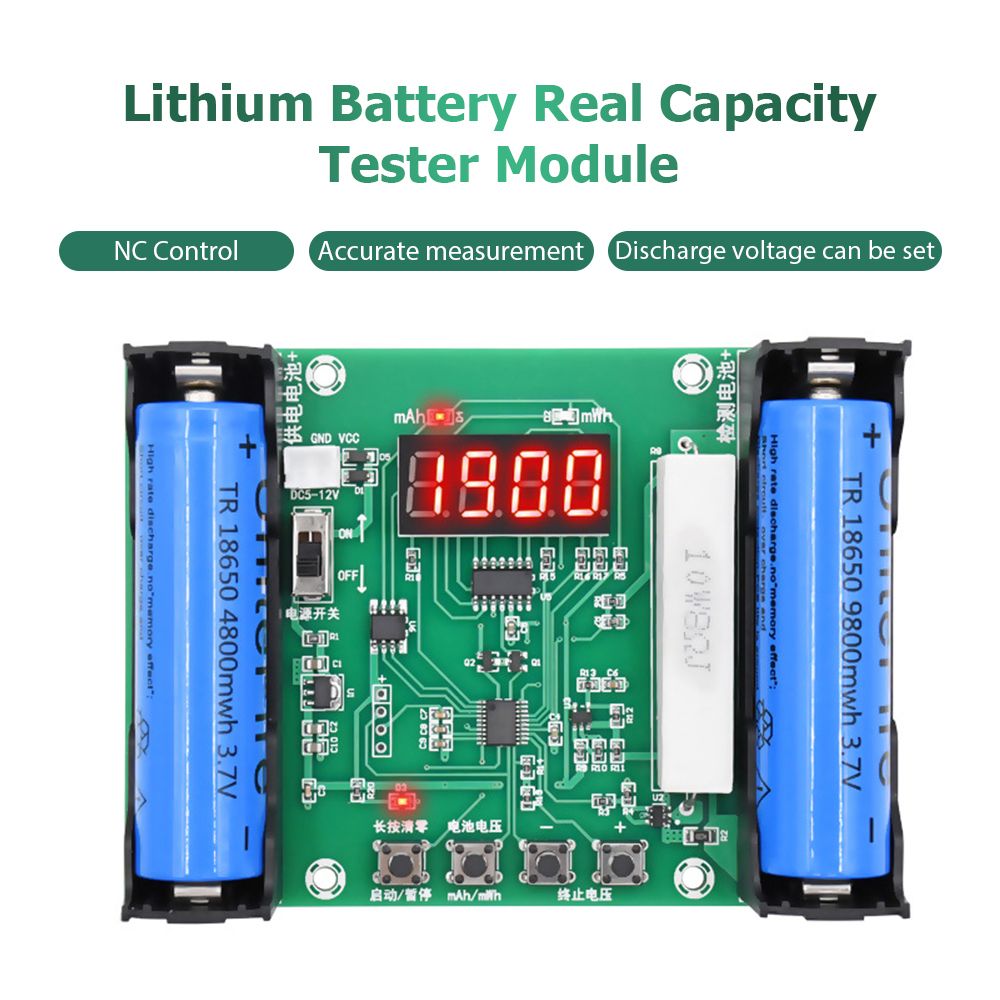

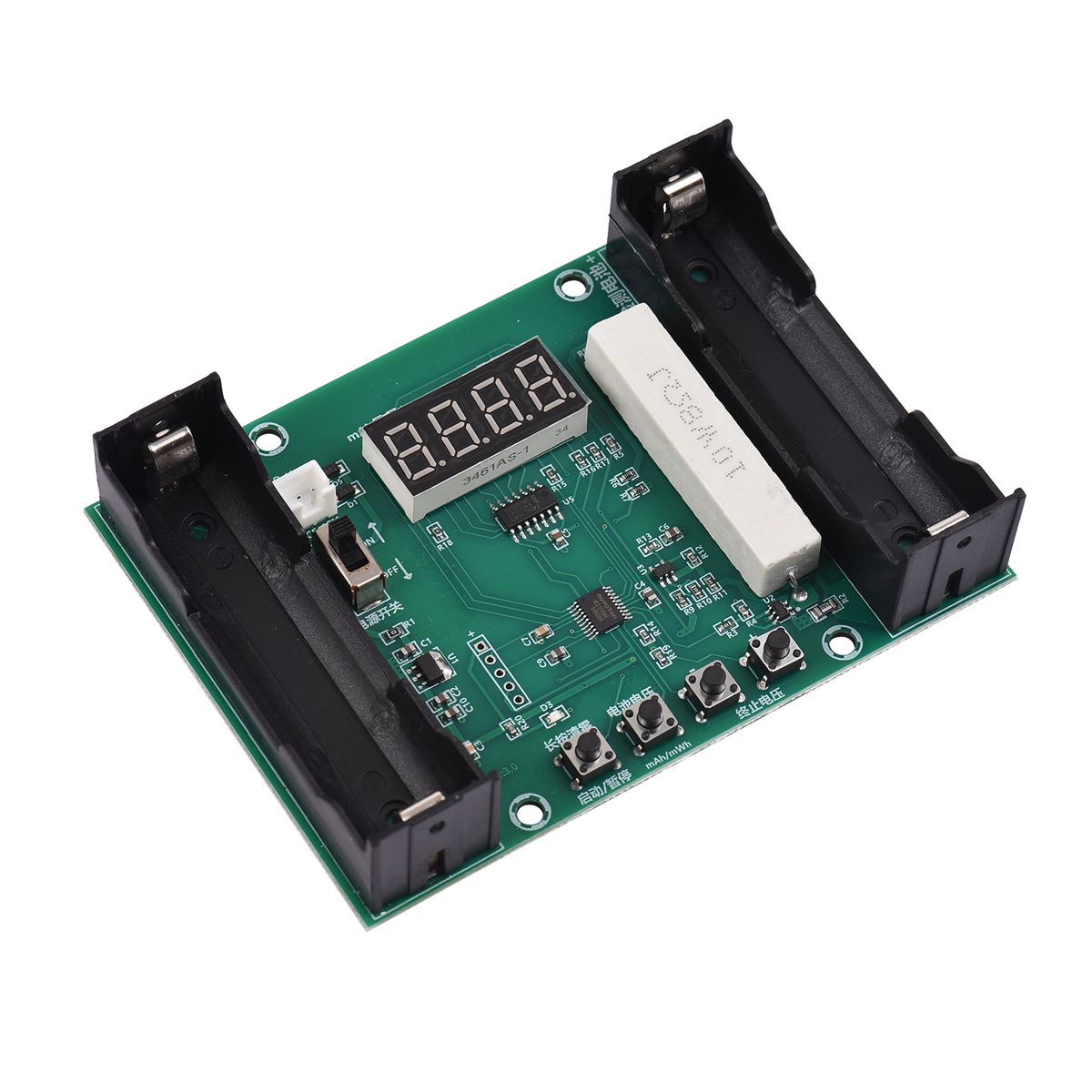

Features:It is a module for DIY to make lithium battery detection capacitor, which needs external supply DC5-12V.
The module has its own discharge load 10W 8Ω resistance.
The minimum discharge stop voltage of lithium battery is generally 2.75V. When the voltage drops to 0.875 times the rated voltage (3.24V), it should be charged
voltage is generally 4.2V-4.35V.
Microcomputer control, the measurement is accurate, and the discharge voltage can be set.
Specifications:Material:
Display Accuracy: 0.1
Measurement Accuracy: 1mAh

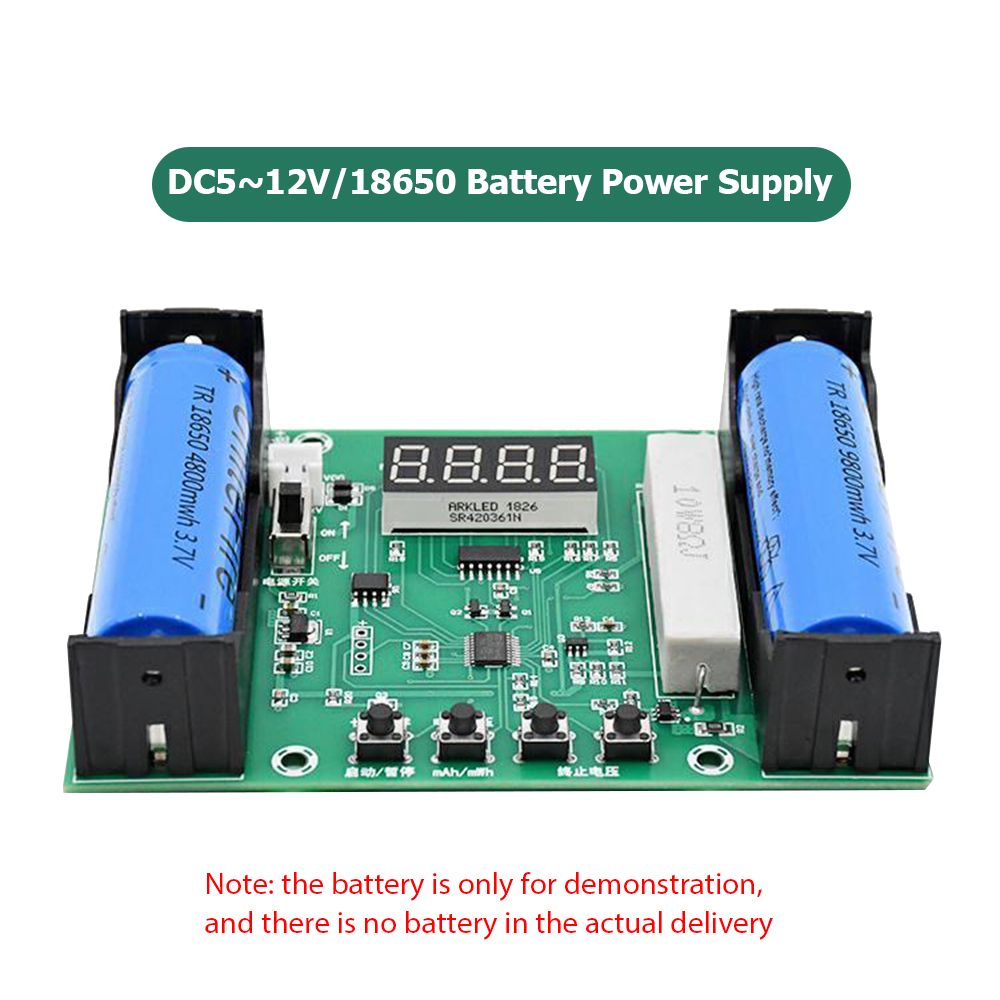

Supply Voltage: DC5-12V/18650 battery supply
Standby Current: 5-7mA
Discharge Current: 500mA
Load : 10W, 8Ω
Installation Dimension: 72*53
Installation Hole Diameter: 3mm
Item Size: 110 * 80 * 25mm / 4.33 * 3.15 * 0.98in
Item Weight: 59g / 2.11oz
Package Weight: 63g / 2.24oz
Package Size: 14 * 12.5 * 3cm / 5.51 * 4.92 * 1.18in
Packing List:1 * Module
Key Features
It is a module for DIY to make lithium battery detection capacitor, which needs external supply DC5-12V.
The module has its own discharge load 10W 8Ω resistance.
The minimum discharge stop voltage of lithium battery is generally 2.75V. When the voltage drops to 0.875 times the rated voltage (3.24V), it should be charged
voltage is generally 4.2V-4.35V.
Microcomputer control, the measurement is accurate, and the discharge voltage can be set.
It is a module for DIY to make lithium battery detection capacitor, which needs external supply DC5-12V.
What's In the Box
1 x Module
