Before printing:
1. 1. This Laser Dark No-Cut is (A film + B paper), if you have not used similar products before, we invite you to start with Laser no-cut (A paper + B paper), which are available in our store.
2.If there is white in the design, be sure to cover it with white when printing. Currently, only OKI C711WT or OKI941 printers are supported for cover. If the pattern does not contain white, you can use another brand of color laser printer.
3.Prepare pattern: the pattern must be a hollowed-out vector image in the format of CDR, EPS, AI. The supported formats are JPE, GIF, PNG, Otherwise, there will be no hollowed-out effect.
4.Tip: Start with a small diagram to avoid wasting fabric.
SETTING: B paper to A film, hot press parameter setting : 160℃-175℃
5.A film to cloth, hot pressing 15-30 seconds. Temperature invariable appropriate increase pressure in order to increase the color and firmness of the pattern the pattern is covered with isolation paper and hot pressed for 5-10 seconds.
Heat press machine parameter setting:
160-175℃(320-347℉),60s-90s, medium or light pressure. It is recommended that the heat press machine preheat for 5-10 minutes. When the temperature reaches the preset temperature, press the air pressure of the hot press for 5 seconds, so that the temperature of the hot pressing plate on the hot press and the silicone pad tend to be consistent, so that the next transfer is successful.

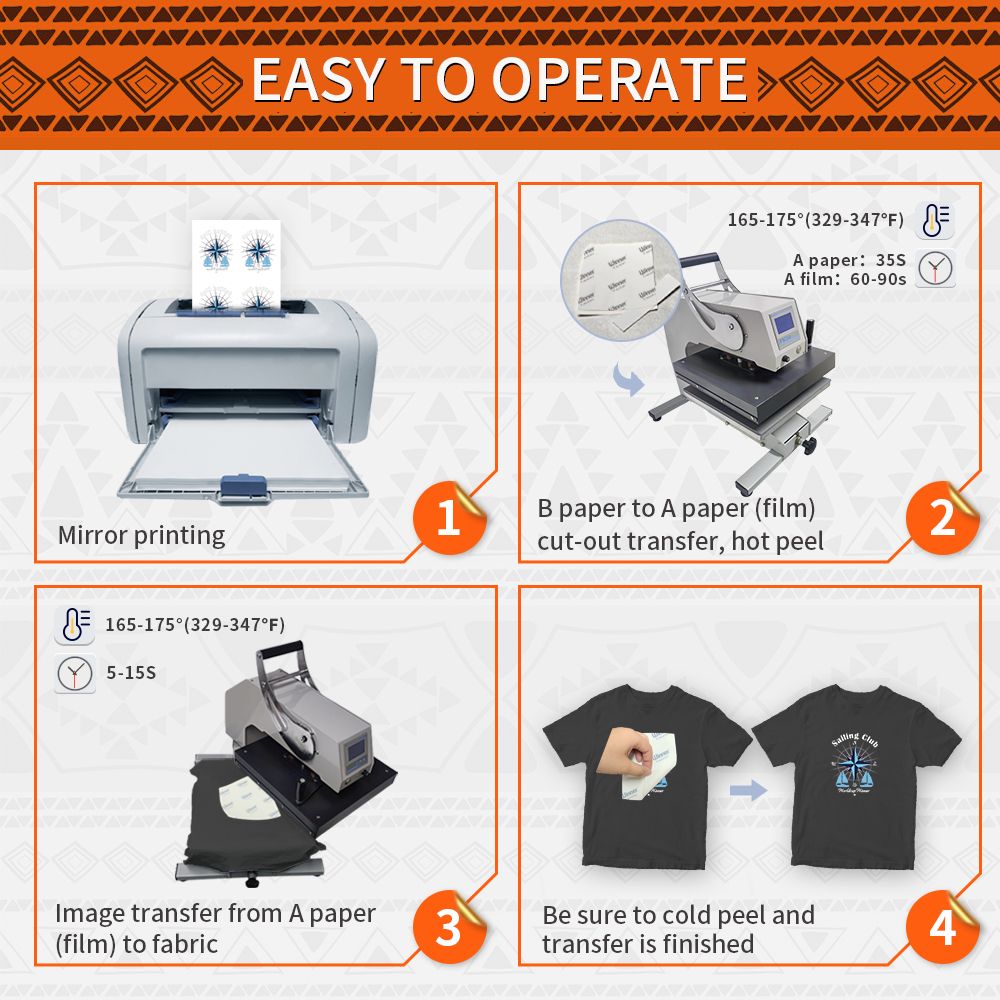

How to use:
1 PRINT
OKI printer Settings:
Select multi-function paper inlet, mirror print, then select PCS transfer mode and white CMYS mode to print (only for OKI C711WT or OKI 941 printers).
A film: transparent film, heavy/thickness: 120~180g.
Other color laser printer settings: use the default printing settings.
Note: When printing the pattern, if the hole on the A film is in the upper left or lower right corner corner, it is correct to print.
2 B Paper to A Film transfer
A Film with the image facing upwards, B paper with the blank side facing downwards, with a strip of separator paper between A Film and B paper to keep the image out of the way. Heat presses machine with medium or medium light pressure.
Note : A film and B paper up and down alignment, temperature, time and pressure parameters: 160-175℃(320-347℉)60-90 seconds.
3 Peel
Hot peel (The transfer paper must not leave the ironing board to peel off the B paper. Even and horizonal hot peeling 5-10s for A4 size, and remember not to pause) Throw away B paper, keep A Film.
4 Cut
Cut off any excess glue marks on the edges before transferring.
5.Transfer
Transfer A Film image side down. Covered with barrier paper, Heat press for heavy pressing.
Note: 160-175°(320-347℉)15-30S,ordinary patterns do not need to adjust the pressure and temperature, just hot pressing 15-30 seconds, if there is a small part of the pattern, to increase the pressure of the hot press.
6 Peel Ensure cold peeling.
Note: Peel off Film A at a constant speed.
7Reveal
Place silicone paper and press to fix the colour.
Note: 160℃(320℉)5 seconds, put the fabric on silicone plate of the heat press, cover the image with silicon paper, and heat press for 5-10 seconds.
8: DONE
Congratulations! Your DIY image transfer has been done.
Don't wash within 48 hours after transfer.
WASHING INSTRUTIONS :
1.Don't wash within 48 hours after transfer.2.Wash the garment before wearing.3.Don't use bleach or alkaline detergent.4.Turn the garment inside out when washing.5.Don't soak to wash.6.Full spin cycle, cold water washing.7.No delicate washing.8.No tumble dry.9.Remove garment promptly after washing, colors may bleed if left wet too long.10.Unfold the transferred image, hang to dry naturally.
STORAGE INSTRUCTIONS:
1.Keep the image facing outside when fold the garment.2.Store the garment in a dry and cool place.3.Keep the unused transfer paper sealed and preserved.
Key Features
This Self-Weeding 2-Paper-System gives amazing and consistent results: Transfer white and light colors onto black, dark, and light-colored garments, including cotton, polyester, and blends, as well as paper/carton and book covers, with an Oki 711 White Toner Printer. This paper also works extremely well for transferring solid dark-color designs from an Oki 800 series CMYK printer.
Benefits: Transparent print media for exact positioning Low processing temperature 160-175℃(320-347℉). Extremely high wash fastness due to a special top-coating Higher white cover and stronger full-tone colors High processing tolerance, especially when separating A&B papers Suitable for OKI White Toner and CMYK Printers How it Works: The B sheet has a coating which adheres to toner on the A sheet. Because CMYWT printers produce white toner, the B Sheet now has something to adhere to for coverage of white and light-colored areas allowing them to be transferred.
You just print on the transparent A-Foil, press it together with the dark opaque B-Paper LowTemp and separate both sheets from each other while hot. Now, you have white coverage on the image through the B-Paper LowTemp, which does not only increase the opacity of the transfer on dark garments, but also contributes to its washability.
The application tolerances are extremely high, reducing handling errors and allowing the user high flexibility. A - FOIL This is the transfer media on which you print your image. It holds the toner extremely well, but does not leave any residues in the copier or any background on the garment.
The transparent film gives precise placement on your garment. Now you can place transfer onto your textile.
What's In the Box
5 sets ( A film + B paper)
