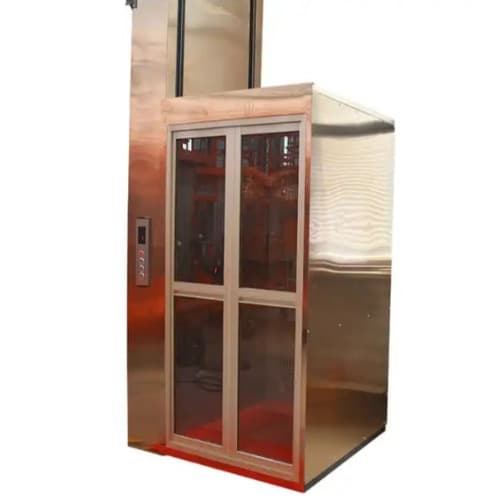

3 Floors 400kg Hydraulic Drive Home Elevator Residential Villa House Private Lift
Residential Home Shaftless Elevator Lift System offer an easy access to different floors of a building for people especially those with limited mobility.
It helps eliminate the barrier that stairs may present for people with limited mobility. It come in all shapes and sizes to cater for a wide range of mobility issues and accommodate all sorts of equipment, from wheelchairs to mobility scooter.
Product highlights
Usage Home/Residential
Material Steel, Aluminum Alloy, Stainless Steel, Tempered Glass
No. of Floors/Stops: 2/2/2
Capacity 2 to 3 persons
Max Load 400 Kg
Max Lifting Height: 3,500mm
Type: Standard Home Elevator
Platform Total Size: 1,000mm(W)*1,000mm(D)
Door: 800mm*2,100mm Center Open
Machine Dimension: 1,000mm*1,000mm*5,800mm (L*W*H)
Motor Power: 220V AC, Single Phase
Speed: 5-6m/min
Cabin Light = Yes
Longer life High performance
Installation: Non Pit Installation
After Sales Service Provided
Drive: Hydraulic Drive
Warranty 12 months
Hydraulic Cylinder: Diameter 60mm x1pc
Safety: Emergency Stop and Safety Pan
Core Components: Motor, Pump, Gearbox, Engine, Cabin, Door
Condition New
Brand Name FUJI
Lift Mechanism Lift Chain
Lift Drive Actuation Hydraulic
Power 0.75 KW
Certification CE ISO
Working Temperature 10 to 60 Degrees
Fixing devices With shelf brackets and expansion bolts
Entry and Exit Mode 3-5m per min180Degree or 90Degree
SAFETY:
1. Overload protection: Hydraulic unit with overload protection device. If overload, the hydraulic station automatically relief pressure and stop running.
2. Emergency Stop: The lift can be stopped immediately in case of any emergency.
3. Emergency Lowering: The platform can be lowered down manually in case of power failure.
4. Explosion-proof valve: The hydraulic system is equipped with explosion-proof valves, which can prevent the sudden drop of the platform if the oil pipe breaks.
5. Safety sensor: When the platform declines, if it touches anything, it will be stopped, so it can protect goods or operators
Installation
No pit installation, directly fixed to concrete floor
(the concrete floor below the platform shall not be lower than the ground)
NOTE:
Price Excludes Installation
Installation can be arranged with our Technicians if and when needed
