Buy Hdmi Extender in Nigeria

Hdmi Extender

₦ 47,530.00 ₦ 49,000.00 -3%

0 No Reviews

Product SKU: RENG539915

Quantity

In Stock

Product Highlights

High Definition Multimedia Interface Maintains 480p, 576p, 720p,1080i and resolutions.

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

Warranty Period	3 Months

Operating and Connecting:
1. Connect one HDMI cable between source device and TX Extender, the max cable distance is 15 meters
2. Connect one HDMI cable between display device and RX Extender, the max cable distance is 20 meters
3. Connect single cat-5 or cat-(recommended) cables instead of HDMI cables between
TX and RX Extender, the max cable distance is 60 meters
4. Connect 5V power supply to the TX and RX.
5. LED indicater light
TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.
RX LED indicator light:When there is no signal input, it turns blue; When there is signal input, it turns red.
6. EDID button:The button can support the switch of DID between 2D and 3D. (3D is the default EDID when the power is on).

Specifications:

Length of CAT-6/CAT-5E cable between RX and TX___ Up to 60 meters
HDMI Input___ 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio input___DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI Output___ 24/50/60fs/1080p/1080/720p/576p/576i/480p/480i
Support audio output___DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth___165MHz
Max baud rate___1.65Gbps
Input video signal___0.5~1.5Volts p-p
Output DDC signal___5Volts p-p (TT1L)
Input HDMI cable distance___<15m AWG26 HDMI standard cable
Output HDMI cable distance___<20m AWG26 HDMI standard cable
TX Max working current___510mA
RX Max working current___100 mA
Power adapter format___Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range___(-15 to +55°C)
Operating Humidity range___5 to 90%RH (No Condensation)
Dimensiog (Lx W × H)___81×43×22 (mm)
TX Weight___100g
RX Weight___120g

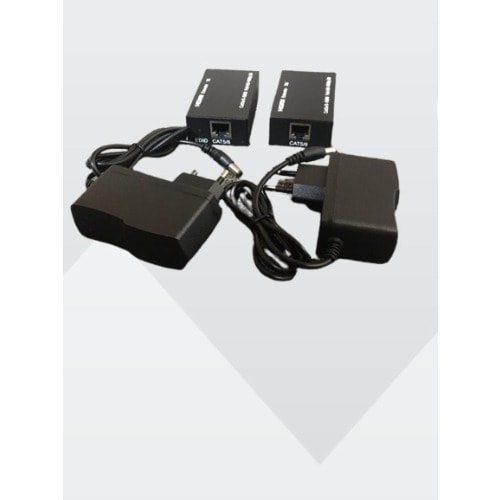

The Package includes:
1. TX Extender: 1 pc
RX Extender: 1 pc
2. 5V DC Power adapter x 2pcs
3. User Manual

Betore power on, pls check the connection line carefully And make sure that all interfaces are normally connected.

Notes:
Pis use the machine as the instruction listed to keep the long use lifetime of the
machine.
The machine should be placed at the spot far from the Damp, High- Temperature, Dusty, Erosive, and oxidative environment.
All parts will be free from the strong shake; hit, fall.
Touching the power adaptor with the wet hands is prohibited.
Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
Pis turn the power off when the machine is not used for long time.
PIs do not open the cover and do not touch the inside parts.
PIs use the original factory power adaptor.
