Buy Fiber Optics Hd Video Extender-4 Channels in Nigeria

Fiber Optics Hd Video Extender-4 Channels

₦ 202,950.00 ₦ 205,000.00 -1%

0 No Reviews

Product SKU: RENG539862

Quantity

In Stock

Product Highlights

APPLICATIONS

Security Systems

Radio and television transmission

HD Video monitoring

Building control systems

Train/High speed road monitoring

Intelligent Traffic Monitoring SysTEMS

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

APPLICATIONS

Security Systems
Radio and television transmission
HD Video monitoring
Building control systems
Train/High speed road monitoring
Intelligent Traffic Monitoring System (ITS)
Remote multimedia teaching / campus monitoring
Long-distance radio and television transmission system

TVI: 1080P (1920×1080), 960P (1280×960), 720P (1280×720)
CVI :1080P (1920×1080), 960P (1280×960), 720P (1280×720)
AHD :1080P (1920×1080), 960P (1280×960), 720P (1280×720)

Optical index:

Optical Interface : FC
Fiber optic: Single-mode (9/125µm), Multimode 50/125um ,62.5/125µm
Wavelength: 1310/1550µm
Applicable fiber optic: singlemode, and compatiable with multimode fiber.
Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~300meters

Video Index:

Video : 4 channels
Video Interface: BNC
Support 1280H and 1920H HD video format
Support 1280×720, 1280×960,1920×1080 @25Hz, @30Hz,@50Hz,@60HZ
Support 1280H/25f,1280H/30f,1280H/50f,1280H/60f,1920H/25f, 1920H/30f HD format
Coaxial cable transmission length: 1080p up to 300meters.720p up to 500meters
Video Input / Output Impedance : 75ohm ( unbalanced ) ;
Video Bandwidth 100MHz;
Video format compatible PAL, NTSC, SECAM;
The sender input level: > 500mVp-p
The receiver output level: 1Vp-p
Input and output impedance: 75 ohm
The receiver rise and fall times:<0.8ns
The receiver maximum jitter:<0.2 UI

Data index:

RS-485 reverse direction data, for remote control camera.
Connector: terminal block, 2 wires.

General index

1. Power Adapter: AC100~240V DC 5V2A

2. Working temperature: -40 ~ + 85 degree

3. Storage temperature: -40 ~ + 85 degree

4. Humidity: 0 ~ 95% non-condensing

5. Mean Time between failures: =100,000 hours

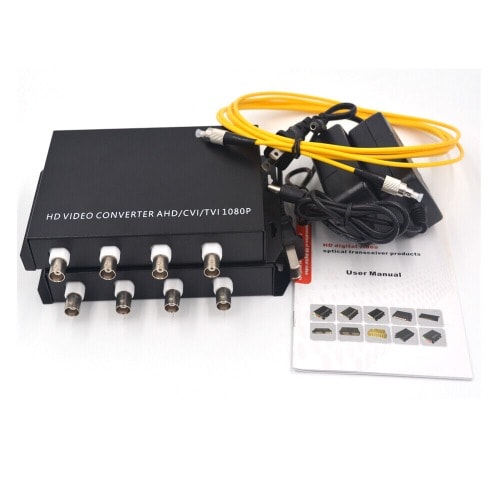

Package Include:

1 x 4 channels Video Transmitter

1 x 4 channels Video Receiver

2 x Power supply (default US, EU/UK/AU available)

1 x User manual
