Convert HDMI-compatible high-definition signals through SCALE DOWN video processing to convert 576I, 480I (PAL/NTSC) video signal output; Automatically identify HDCP, and forcefully release the KEY (HDCP) that is carried by the front-end HDMI-compatible
Convert HDMI-compatible digital audio into AUDIO analog stereo after DAC digital-analog chip processing; Adopt advanced video processing technology to enhance the brightness, contrast and color of the image; The converted CVBS effect has good transparency

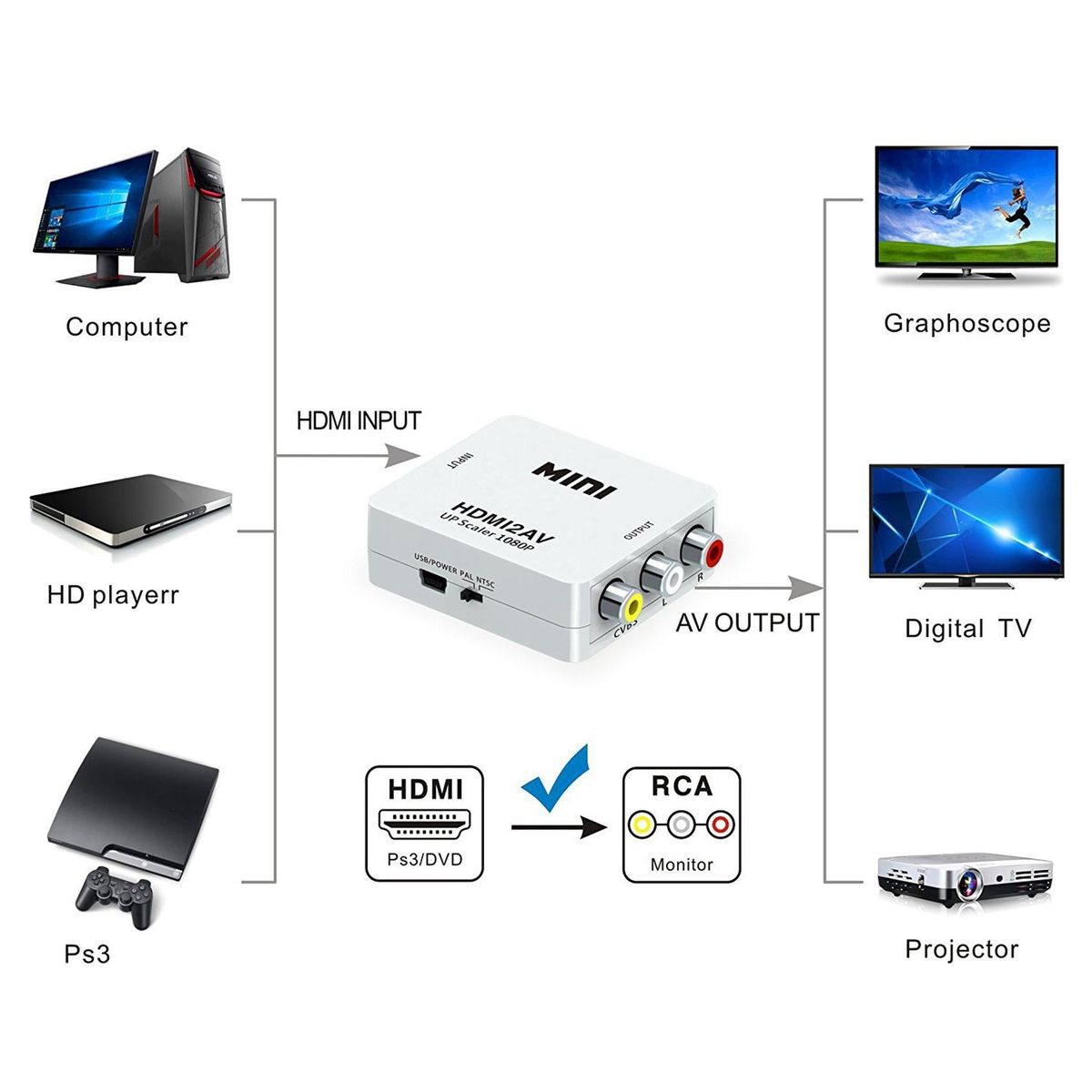

Application platform: The factory connects the high-definition HDMI-compatible signal to the song ordering system, and converts it to obtain an ordinary AV signal, which is convenient for transmission and connection to various small TVs
The important conference system can be used as a display platform to convert the high-definition HDMI-compatible signal from the high-definition camera to the computer system after conversion by the converter, and then collect it to the computer system through the capture card, which is convenient for remote conference transmission in different places.
Civil-level industry: connect high-definition players, DVDs, set-top boxes, PS3, XBOX360 Blu-ray players, etc., and connect to the AV interface of ordinary TV after conversion for viewing
Introduction to the technical characteristics of the product: 1. No power supply, MINI size (small): Using a new generation of low-power digital chip processing, 24 hours of uninterrupted work, low heat generation, stable work; 2. Adopt 3D compensation technology; effectively eliminate the jitter and trailing phenomenon of fast moving pictures; 3. Adopt Scaler video processing technology: convert high-definition HDMI-compatible signals to CVBS output through Scaler Down; 4. Adopt DAC technology; convert the input HDMI-compatible digital audio signal into analog audio through the DAC digital-to-analog chip

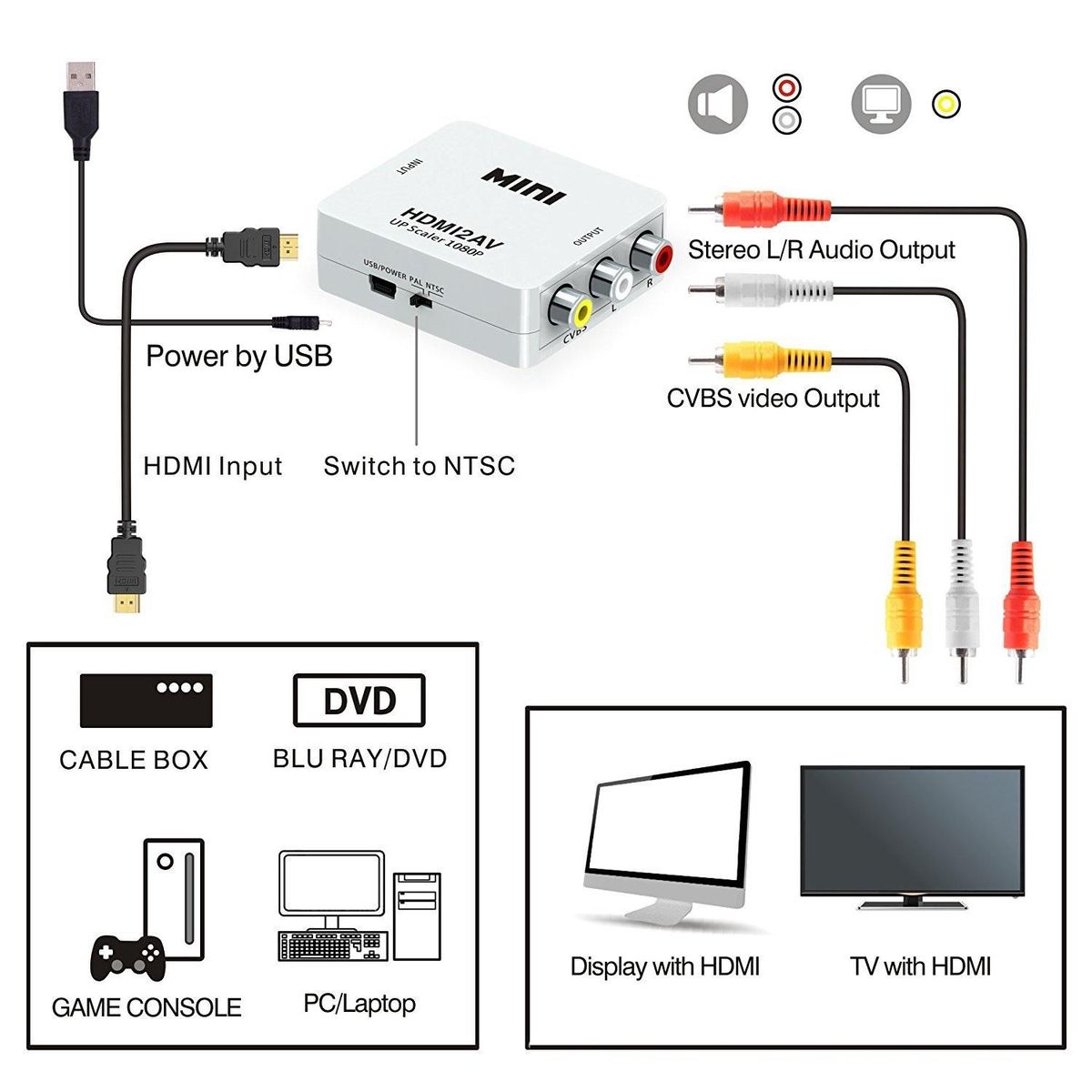

Product Specifications: (1) Hardware conversion, plug and play, without any software driver; (2) Compatible with HDMI - Compatible with 1.3; (3) Support both NTSC and PAL output; (4) One set of HDMI-compatible input; one AV output; left and right stereo output; A. Input terminal: HDMI-compatible x 1 input; B. Video output terminal: VIDEO x 1 output; C. Analog audio output terminal: L/R x 1 output; (5) HDMI-compatible input format: 480P, 576P, 720P, 1080I, 1080P@60Hz
AV video output format: 480I, 576I (optional)
Audio output: left and right channels (L/R)
Dimensions: 66x55x20mm(D x W x H)
colour: white
Material: metal + plastic
Size: 66x55x20mm

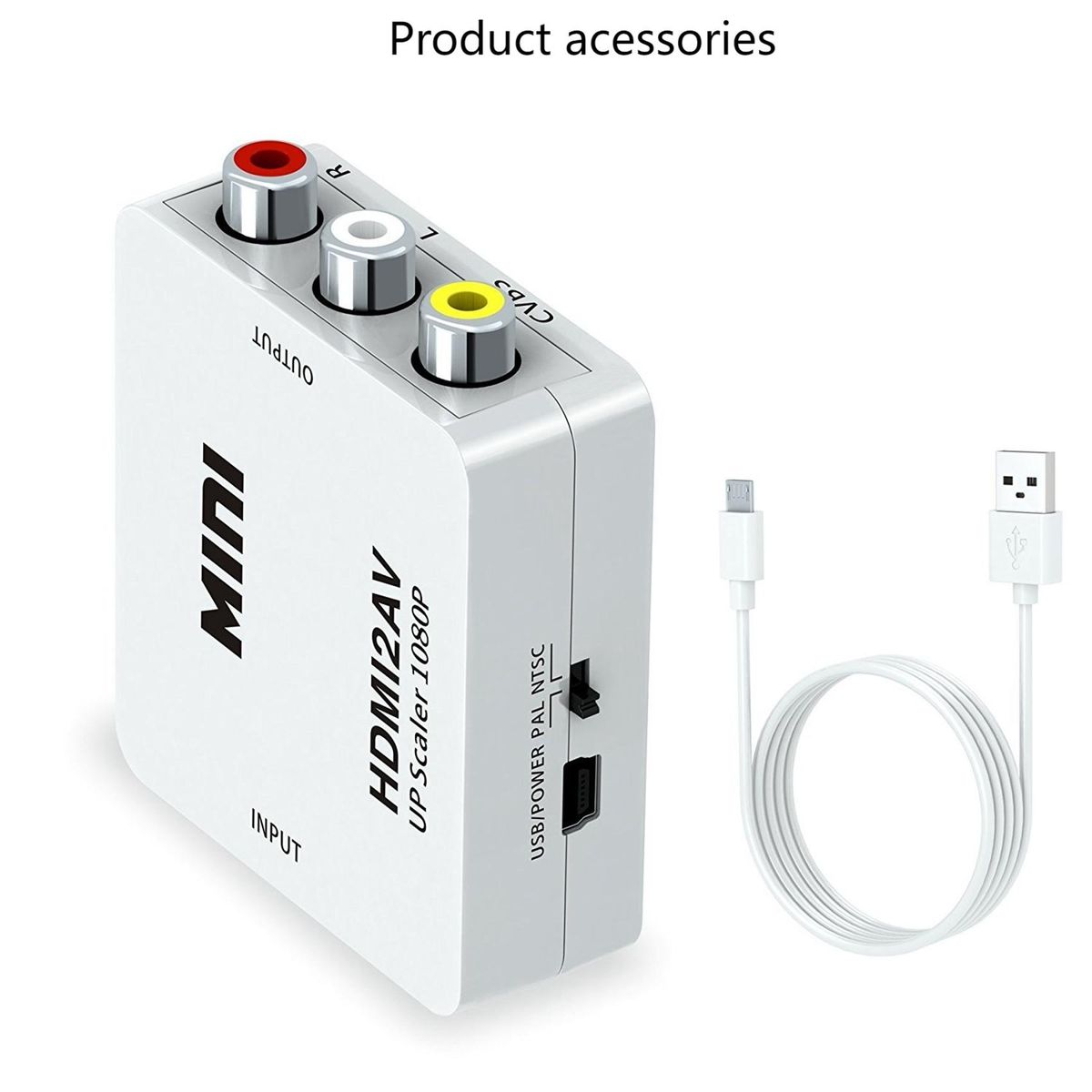

Package Contents:
1 x Audio video converter
1 x USB power cable (80cm/2.6ft, random colors, don't accept the specified color)
1 x English manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
