Size (L x W x H cm) |
24x24x5 |
Weight (kg) |
0.7 |
Color |
Black |
1, and high quality.
2,8-Layer PCB , Stable and Cost-Effective .
3,Support 2*DDR3 PC Memory Dual Channels up to 16GB.
4,Support NVMe M.2 port .
5,Support M.2 /E WIFI port (support WIFI+Bluetooth) .
6,Onboard VGA , video output ports.
7,High compatibility for a higher experience.
8,All solid capacitors, fine workmanship, professional stability.

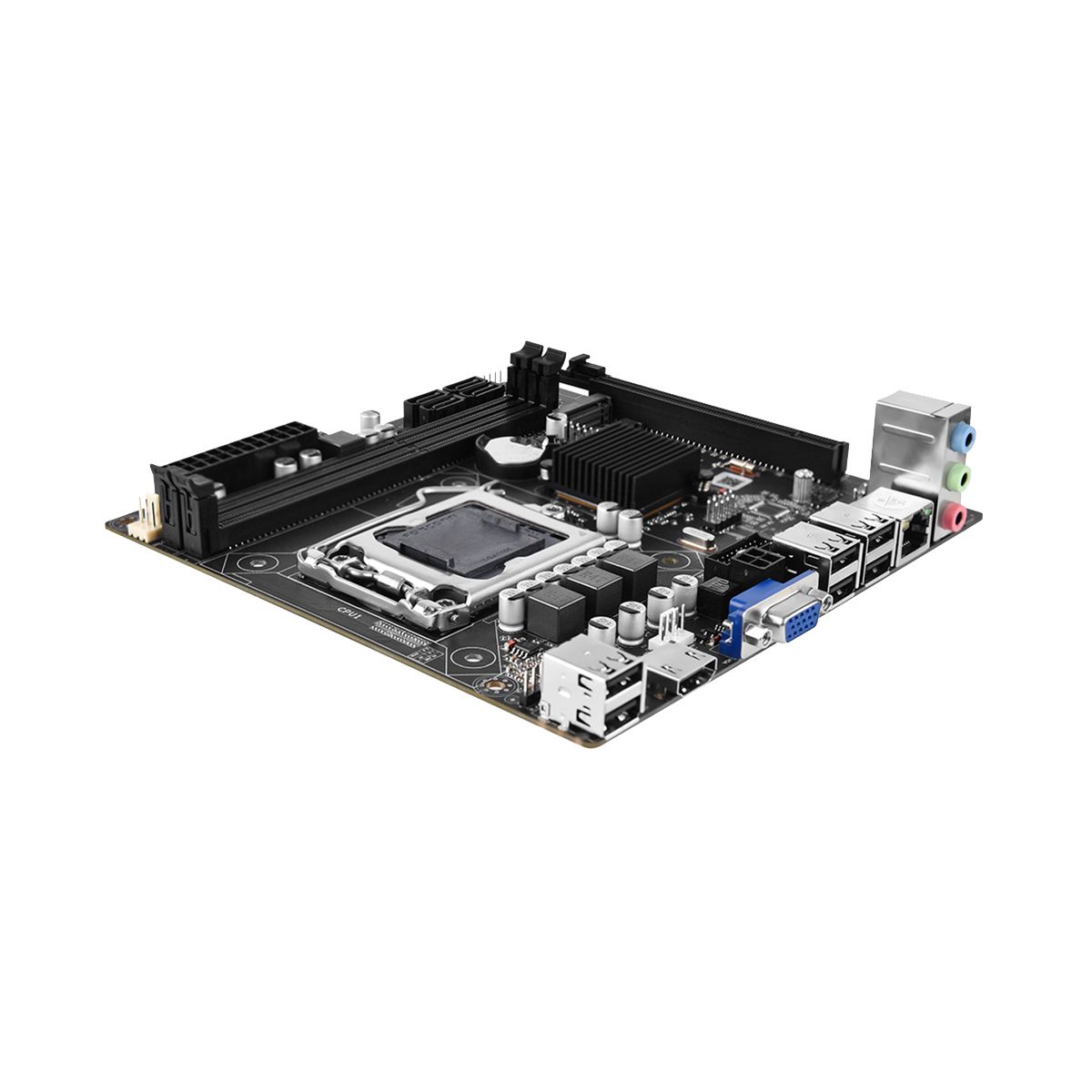

: H61S
Chipset : for 6 Series Chipsets
CPU socket : LGA 1155
CPU supported : support Pentium / Celeron / Core i3 i5 , 2nd generation and 3rd generation processors with socket type LGA1155
Memory socket : 2* DDR3 PC RAM 1066/1333/1600MHz
Max memory : Support Dual Channel Architecture up to 16GB
Graphic card slot : PCI-E x16
Storage : 4* SATA2.0
USB Ports : 9* USB2.0
Expansion slots :
1 * -Compatible Interface
1 * VGA
1 * NVME M.2 Interface
1 * WIFI M.2 Interface (support WIFI+Bluetooth)
LAN : 100M Fast Ethernet
Audio : Realtek ALC662, 5.1 HD Audio
PSU Solution : ATX 4Pin + ATX 24Pin
Form Factor : M-ITX, 170mm x 170mm
Colour:black
Material:PCB
Different production batches, the appearance or interface will be slightly different, which will not affect the use
Package Contents:
1 x H61S Motherboard
Only the above package content, other products are not included.
Note: Light reflection and different displays may the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
