Weight
0.20 kg
Product Description
Overwhelming statistics clearly indicate that single-factor authentication & mdash; especially the use of systems that rely largely on passwords and ID cards & mdash; no longer work. It & rsquo;s simply too easy for one person to pretend to be another by compromising passwords or stealing, borrowing or forging ID cards.
Fingerprints are by far the most popular biometric choice for a number of reasons. They are the oldest and most accepted biometric modality and tend to be one of the easiest characteristics to capture and verify. DigitalPersona offers a wide range of optical and silicon readers that allow you to choose the solution that best aligns with your security needs and your budget requirements.

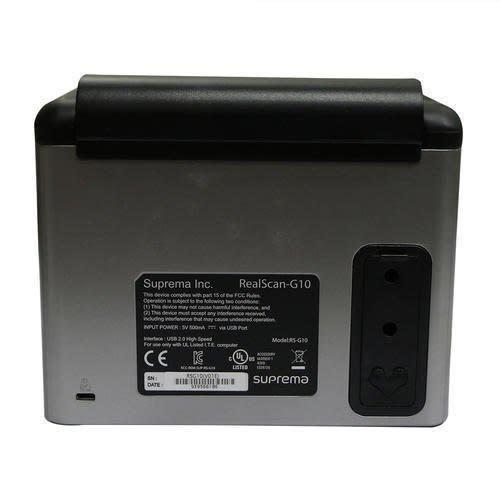

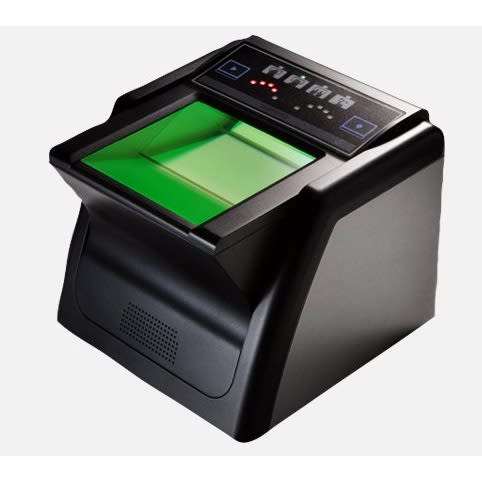

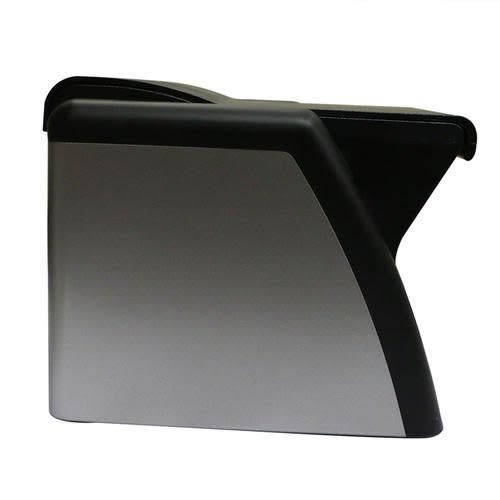

RealScan G10 Finger Print Scanner (4G)
Media Type
Fingerprint
Brand
RealScan
Resolution
600
Sheet Size
A4
Minimum System Requirements
Windows 7
About this item
Fbi iafis appendix f certification
Advanced rolled image construction technology
Extra wide platen for easier capturing
Rugged ip54 dust and waterproof structure
Powerful internal dsp
RealScan g10 is designed to capture single and 10 fingerprints (4+4+2 and rolled prints) with leading-edge optical technology and precise image construction technique. reaching incredible frame rate over 20fps, the device features extra high-speed processing with image. With its proven reliability with fbi iafis appendix f certification, RealScan-g10 is the perfect ten-print capture enrolment scanner for various forensic and civil applications. Applications civil identification driver & rsquo;s license, voter registration social welfare, banking national population register (NPR) criminal identification iafis / eurodac law enforcement, national police agencies crime and criminal tracking network and systems (CCTNS) background check employment background checks pre-employment screening airport and check ident (USA, Japan) enrolment and matching for foreign traveller & rsquo;s e-passport and visa e-passport issuance e-visa program national id cards smart id cards enrolment 1:1, 1:n matching.
Advanced Rolled Image
Construction Technology
RealScan-G10 features Advanced Rolled Image Construction technology using Suprema & rsquo;s unique slip detection algorithm for constructing rolled fingerprint images. With ARIC technology, RealScan-G10 performs over 20 fps frame rate in roll capturing which ensures highest image quality and lower error rate in capturing sequences.
Machine-learning based
Live Finger Detection(LFD) Technology
RealScan-G10 provides advanced machine-learning based Live Finger Detection technology that distinguishes fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and more.

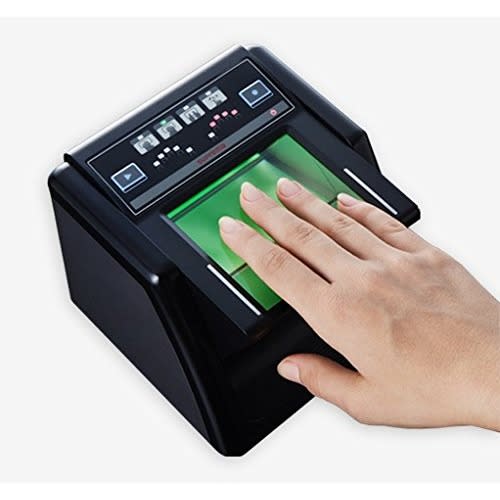

Extra Wide Platen for Easier Capturing
Wide & solid, the RealScan-G10 & rsquo;s 3.5 inch platen is the largest size in its class and ensures easier capturing when placing hands. The solid & scratch-free surface makes it durable for many kinds of stains & damages.

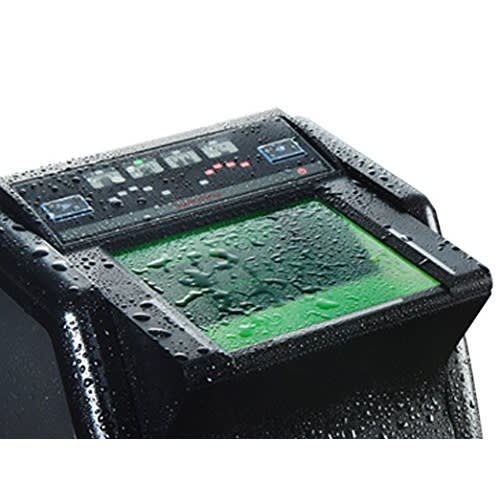

Rugged IP54 Dust & Waterproof Structure
RealScan-G10 & rsquo;s body structure has been comprehensively sealed against invasive moisture, dust and liquid. Featuring superb IP54 rated protection through meticulous sealing, combined with extra protective engineering, ensures faultless operation even under harsh conditions.
Powerful Internal DSP
RealScan-G10 is equipped with powerful 400MHz CPU which enables high-speed image processing in capturing, storing, processing and transferring fingerprint data. With the CPU, Suprema & rsquo;s unique Image Pre-Processing technique results more frame rates in capturing and richer pixel throughput hence produces better image quality. It also minimizes device & rsquo;s initialization time to incredible 0.57 second.
ZKT Fingerprint T & A Device - ZKTECO Logo D1S
Weight
1.00 kg
Brand
D1S is a time attendance device on a desk or counter. Fingerprints can be easily read at the top of the terminal, making the process of attendance record more convenient. With the high sensitivity sensor, BioID, speed and accuracy of verification will be enhanced, which helps deliver new user experiences. The stand-by time of the built-in removable battery is around 12 days; the number of times of punching the battery can support on a charge is 8,000.FeaturesCountertop placed without installationBuild in time attendance reportBuild in battery up to 12 days standbyUSB Microport for DC power bank charge available
Specification
Part number: (P/N: D1)
Capacity
Max User(1:N): 1,000
Max Fingerprint (1:N): 1,000
Max Record: 50,000
Interface
Wi-Fi: WLAN / Hot Spot
USB: USB 2.0 (Host)
Hardware
LCD: 2.8 & rdquo; Color LCD
Sound: 24-bit
Operating Temp.: 0 & deg;C- 45 & deg;C
Operating Humidity: 20% ~ 80%
Power: DC 5V 2A
Battery: 4,000 mAh
Dimensions: 180.0 x 84.5 x 81(W x H x D mm)
Standard Function: Automatic Status Switch, Self-Service Query, SSR DST, T9 Input, 9 Digit User ID, Scheduled Bell
Compatibility: ZKTime.net 3.0, TA Assistant(Optional)
The AS608 Fingerprint Reader Sensor Module is capable of storing up to 128 individual fingerprints This module makes fingerprint recognition more accessible and easy to add to your projects. This means that it is super easy to make fingerprint collection, registration, comparison and search.
This module comes with FLASH memory to store the fingerprints and work with any microcontroller or system with TTL serial. This module can be added to security systems, door locks, time attendance systems, and much more.
The AS608 Fingerprint Reader Sensor Module take low-resolution snapshots of the tip of a finger and create arrays of identifiers that are then used to uniquely identify a given fingerprint.
Futronic is a recognized leader in retail fingerprint technology. Futronic is a fast, reliable and durable fingerprint scanner.Quickly take fingerprints of customer during registrationGood for deterring customers presenting fraud checksProven, accurate fingerprint matching technology
Futronic's FS80H USB2.0 Fingerprint Scanner uses advanced CMOS sensor technology and precise optical system to deliver high quality fingerprint image. It can capture an almost un-distorted raw fingerprint image into PC in 100ms. So it is good for any fingerprint recognition application.
Its finger scanning window is a crown glass with a thickness of 14mm. So it is much more reliable and robust compared to any semiconductor type fingerprint sensor.
The finger is illuminated by 4 infra-red LEDs during scanning and the light intensity is automatically adjusted according to scanning fingerprint's characteristics (wet, dry, blurred, etc) to optimize the quality of the captured fingerprint image.Special electronic circuit is built into FS80H to do . With appropriate software in PC, user can select this LFD feature so that only live finger's fingerprint will be scanned into PC. Fake fingers made from silicone rubber, play-doh, etc, will be rejected. And the LFD feature is included in all Futronic's standard software.
Futronic provides USB drivers and API for FS80H to capture a raw fingerprint image on the following platforms:
& gt; Windows XP/2003, 32 bit and 64 bit.
& gt; Windows Vista/2008/2012, 32 bit and 64 bit.
& gt; Windows 7/8, 32 bit and 64 bit.
& gt; Linux with kernel 2.4 or higher (for both x86 and ARM9)
& gt; Windows CE 5.0 and 6.0 (for both x86 and ARM9)
& gt; MAC OS(version 10.5, 10.6 and 10.7, Intel CPU)
& gt; Android 3.1 and higher with USB Host port
Please download demo programs to try and contact for more details.
Specification
& gt; Fingerprint scanning window size is 16x24mm
& gt; Image resolution is 320x480 pixels, 500 DPI
& gt; Image format is 8 bit 256 grayscale
& gt; Raw fingerprint image file size is 150K byte
& gt; With Live Finger Detection (LFD) feature
& gt; USB 2.0 compatible interface, plug and play device.
& gt; With a 2M standard USB cable
& gt; Small size, 64 x 48 x 27 mm
& gt; Light weight, 120 gram
& gt; Operation temperature: -10 to +55 Degree Celsius
Electrical characteristics
& gt; Light source: Infrared LED
& gt; Supply voltage: DC 4.5-5.5V via USB port
& gt; Power consumption:
& gt; active & lt;700mW(during scanning)
& gt; standby & lt;200mW(when scanner is connected PC but no scanning)
& gt; sleep mode & lt;2.5mW(activated by standard USB bus event only)
& gt; ESD contact - 8KV and air discharge - 16KV, no permanent damage
FS81H OEM Module
FS81H is OEM module of FS80H for customers who want to integrate FS80H into their own products, such as handheld POS machine and portable voter registration station. It is same as FS80H but without plastic shell and USB cable so that it can be embedded into any target system. It does not support Live Finger Detection(LFD). FS81H size is 56(L) x 45(W) x 19(H) mm and weight is 80g. Please contact for detail mechanical drawing.
Download
USB Driver
Software
CONTACT US
The R307S Optical Fingerprint Sensor Module is a fingerprint sensor module with TTL UART interface. The user can store the fingerprint data in the module and can configure it in 1:1 or 1:N mode for identifying the person. The fingerprint module can directly interface with 3.3V Microcontroller. A level converter (like MAX232) is required for interfacing with PC. The R307S Optical Fingerprint Sensor Module is an updated Improved Compatible version for the R305 Fingerprint Sensor Module
The R307S Fingerprint Module consists of optical fingerprint sensor, high-speed DSP processor, high-performance fingerprint alignment algorithm, high-capacity FLASH chips and other hardware and software composition, stable performance, simple structure, with fingerprint entry, image processing, fingerprint matching, search and template storage and other functions.
The R307S fingerprint module has two interface TTL UART and USB2.0. USB2.0 interface can be connected to the computer; RS232 interface is a TTL level, the default baud rate is 57600, can be changed, refer to a communication protocol and microcontrollers, such as ARM, DSP and other serial devices with a connection, 3.3V 5V microcontroller can be connected directly. Needs to connect the computer level conversion, level conversion note, embodiments such as a MAX232 circuit.
Difference Between R305 and R307S Finger print module:-
R307S Optical Fingerprint Sensor Module have the same software protocol as R305 with many improvements
R307 Optical Fingerprint Sensor Module:
Storage Capacity (Fingerprints): 1000
3.3V Operation: Yes
USB Operation: Yes
Finger Detect Output: Yes
R305 Optical Fingerprint Sensor Module:
Storage Capacity (Fingerprints): 250
3.3V Operation: No
USB Operation: No
Finger Detect Output: No
Features:-
Supply voltage: DC 4.2 ~ 6.0V
Supply current: Working current: 50mA (typical) Peak current: 80mA
Fingerprint image input time: & lt;0.3 seconds
Window area: 14x18 mm
Matching method: Comparison method (1: 1)
Search method (1: N)
Characteristic file: 256 bytes
Template file: 512 bytes
Storage capacity: 1000 pieces
Security Level: Five (from low to high: 1,2,3,4,5)
Fake rate (FAR): & lt;0.001%
Refusal rate (FRR): & lt;1.0%
Search time: & lt;1.0 seconds (1: 1000 hours, mean value)
Host interface: UART \ USB1.1
Communication baud rate (UART): (9600xN) bps Where N = 1 ~ 12 (default N = 6, ie 57600bps)
Working environment: Temperature: -20 C - +40 C
Relative humidity: 40% RH-85% RH (no condensation)
Storage environment: Temperature: -40 C - +85 C
Relative humidity: & lt;85% H (no condensation)
U.are.U 4500 for NYSC,Civil ID, Public safety, healthcare, finance, WAEC, NECO Registration
The U.are.U 4500 Reader is a USB fingerprint reader featuring an elegant, sleek design with a soft, cool blue glow and, of course, the unsurpassed performance DigitalPersona is known for. Made for power-users and shared environments, the 4500 is the natural choice for those who want and need the very best. It can be used in the following fields: POS, Civil ID, Public safety, healthcare, finance, WAEC, NECO and JAMB registration
U.are.U 4500 for NYSC,Civil ID, Public safety, healthcare, finance, WAEC, NECO Registration
The DigitalPersona 4500 Reader is an elegant, powerful fingerprint identity machine. With an executive-class look and feel, the DigitalPersona 4500 Reader is perfect for power users and shared environments. Its design is sleek and compact to conserve valuable desk space but it stays right where you put it because of its nice heft and special undercoating. The DigitalPersona 4500 radiates an attractive blue glow that provides an unobtrusive presence in low light environments and also ensures that it does not compete with alarm colours in settings such as healthcare.
To use, you simply place your finger on the glowing window, and the reader quickly and automatically scans your fingerprint. For superior user feedback, a red "flash" indicates that a fingerprint image has been captured. On-board electronics calibrate the reader and encrypt the scanned data before sending it over the USB interface. DigitalPersona readers utilise optical fingerprint scanning technology to achieve excellent image quality, a large capture area and superior reliability.
d DigitalPersona & reg; Fingerprint Recognition Engine have an unmatched ability to authenticate even the most difficult fingerprints accurately and rapidly regardless of placement angle. The U.are.U 4500 Reader can be purchased for use with DigitalPersona Pro Workstation, DigitalPersona Pro Kiosk, DigitalPersona Online, DigitalPersona Personal or any of the DigitalPersona SDK packages. Whether you are an enterprise customer, a system integrator or a home user, DigitalPersona's fingerprint authentication solutions provide a natural extension to your security system and applications.
Product Description
Overwhelming statistics clearly indicate that single-factor authentication & mdash; especially the use of systems that rely largely on passwords and ID cards & mdash; no longer work. It & rsquo;s simply too easy for one person to pretend to be another by compromising passwords or stealing, borrowing or forging ID cards.
Fingerprints are by far the most popular biometric choice for a number of reasons. They are the oldest and most accepted biometric modality and tend to be one of the easiest characteristics to capture and verify. DigitalPersona offers a wide range of optical and silicon readers that allow you to choose the solution that best aligns with your security needs and your budget requirements.
