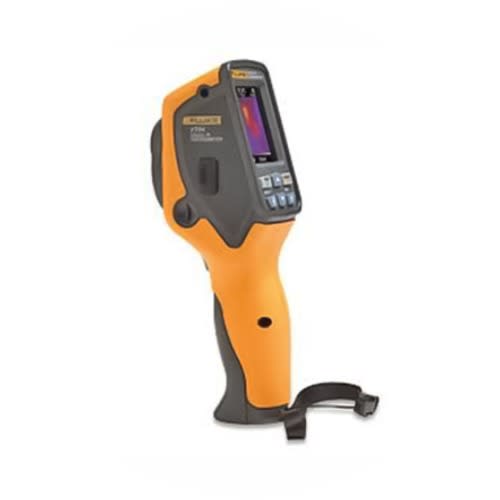

Detect issues instantly with the Fluke VT04 Visual IR Thermometer
The Fluke VT04 Visual IR Thermometer is designed to help you see it all. You can see issues in context by blending the infrared heat map with a visual image. You can easily identify the exact location of the potential issue by blending the two at 0%, 25%, 50%, 75%, and 100% infrared with one button. View aligned images from as close as 15 cm (6 in) in NEAR mode or from a distance in FAR mode.
The VT04 also helps you take accurate temperature readings without taking your eyes off the screen. Fill the center box with your target and rest assured you’re measuring the target and not the background.
Other useful features:
Features PyroBlend® Plus optics to provide excellent field of view for tight spaces and sharp images
Provides temperature alarms and automated monitoring to identify intermittent problems over time or get alerts of a temperature outside the expected range
Presents hot and cold markers to instantly identify the hottest and coldest spots within the field of view
Saves results in .bmp format when you only want an image, or in .is2 format that you can use with Fluke SmartView® software
Features a pocket-size design that easily fits in your tool bag or pocket
Offers a highly intuitive interface so you can get to work immediately
Related Products
See more. Blend visual and infrared.
See issues in context by blending the infrared heat map with the visual image, and get the detail you need by choosing one of five on screen blending modes.
Quickly identify the location of the issue - NEAR or FAR mode automatically aligns the visual and thermal lenses – even from as close as 15 cm (6 in).
Capture accurate temperature readings without taking your eyes off the screen. The center measurement box shows the exact area of temperature measurement. Fill the center box with your target and rest assured you're not measuring the background.
Find more. Identify intermittent problems.
Identify intermittent problems by monitoring equipment overtime or get alerts when a temperature is outside the expected range with temperature alarms and automated monitoring features.
Instantly identify the hottest and coldest spots within the field of view with hot and cold markers.
Prove more. Optimize, analyze and report.
VT04 images can be taken in either .bmp or .is2 format. With a .is2 image, you can do the following in SmartView® software:
Optimize the visible and infrared heat map blending to any level
Add or remove the center marker and hot and cold markers
Change the emissivity and background temperature
Generate a professional report that can easily be edited
Product Highlights
Built-In Digital Camera – Only Fluke Visual IR Thermometers Offer This as a Standard Feature
Exclusive Thermal Heat Map Blending Overlay – with One Button, Blend Digital and Thermal Images to Instantly Show the Exact Location of the Issue
No Training Required - Fully Automatic with Built-In Intelligence
True Pocket-Size Design – 40 % Smaller than Entry Level Infrared Cameras
Smartview® Reporting Software – Store up to 10,000 Images Per GB on Included 4 GB SD Card and Make Professional Reports on
Included Professional Software
Powerful Resolution with Pyroblend™ Plus Optics
- Best-In-Class Field of View: 28° X 28° (40 % Wider for Tight Spaces) - 4 Times Sharper Images
Alarm and Time Lapse Features - Hi/Lo Temperature Alarm – Find Hot Spots in Seconds with The Alarm Feature - Time Lapse Image Capture – Automatically Monitor Equipment Over Time - Automated Monitoring Alarm – Automatically Capture Images After an Alarm has been Triggered
Automatic Hot and Cold Spot Trackers
Breakthrough Affordability – Fraction of the Cost of Infrared Cameras that Require Costly Training and Software
Applications
Industrial maintenance
Electrical
HVAC/R
Automotive

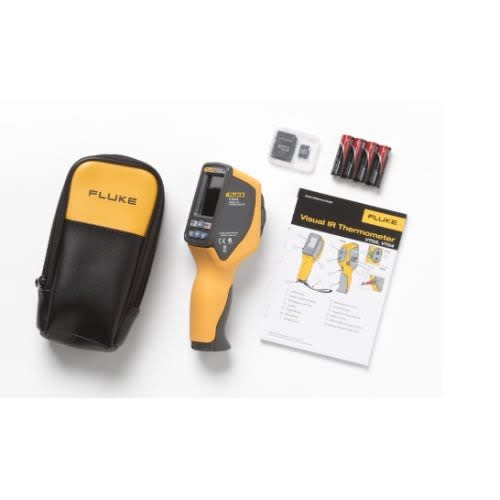

What's included with the Fluke VT04
Visual IR Thermometer
Hard Case
Micro-SD Card
Micro-SD Conversion Adapter to Standard
Li-Ion Rechargeable Battery
Micro USB Charger and Universal AC Adapters
Lanyard
Printed Quick Reference Guides (English, French, German, Spanish, Simplified Chinese)
SmartView Software
Users Manual
