The alcohol thermometer or spirit thermometer is an alternative to the mercury-in-glass thermometer and has similar functions. Unlike the mercury-in-glass thermometer, the contents of an alcohol thermometer are less toxic and will evaporate quickly. The ethanol version is the most widely used due to the low cost and relatively low hazard posed by the liquid in case of breakage.
An organic liquid is contained in a glass bulb which is connected to a capillary of the same glass and the end is sealed with an expansion bulb. The space above the liquid is a mixture of nitrogen and the vapor of the liquid. For the working temperature range, the meniscus or interface between the liquid is within the capillary. With increasing temperature, the volume of liquid expands and the meniscus moves up the capillary. The position of the meniscus shows the temperature against an inscribed scale.
The liquid used can be pure ethanol, toluene, kerosene or isoamyl acetate, depending on manufacturer and working temperature range.[1] Since these are transparent, the liquid is made more visible by the addition of a red or blue dye. One half of the glass containing the capillary is usually enamelled white or yellow to give a background for reading the scale.
The range of usefulness of the thermometer is set by the boiling point of the liquid used. In the case of the ethanol-filled thermometer, the upper limit for measurement is 78 °C (172.4 °F), which makes it useful for measuring daytime, nighttime and body temperatures, although not for anything much hotter than these.
Ethanol-filled thermometers are used in preference to mercury for meteorological measurements of minimum temperatures and can be used down to −70 °C (-94 °F).[2] The physical limitation of the ability of a thermometer to measure low temperature is the freezing point of the liquid used. Ethanol freezes at −114.9 °C (−174.82 °F). If an alcohol thermometer utilizes a combination of ethyl alcohol, toluene, and pentane, its lower temperature range may be extended to measure temperatures down to as low as −200 °C (-328 °F).[3] However, the measurement temperature range c. −200 °C to 78 °C, is highly dependent upon the type of alcohol used.

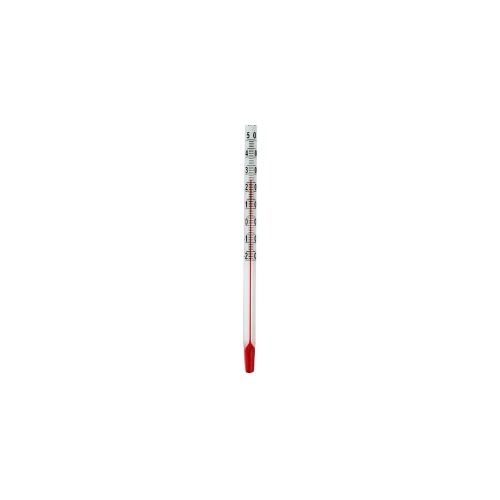

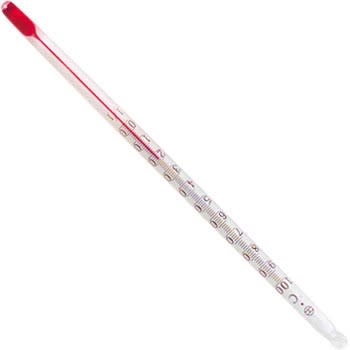

Red Alcohol Lab Thermometers
Product Features:
Economical Lab thermometers
Various models available :
Partial Immersion – 20 to 110° C
Partial Immersion – 20 to 150° C
Total Immersion – 20 to 110°C
Total Immersion – 20 to 150°C
Total Immersion – 20 to 150°C
Total Immersion – 10 to 200°C – NEW
Red alcohol thermometers offer the advantage of being safer than older thermometers (mercury)
Instructions:
Identify the immersion type of your thermometer:
For total immersion types, thermometer should be immersed to the level of the liquid in the capillary column in order to get an accurate temperature reading.
For partial immersion types, thermometers should be immersed to the specific depth indicated by the immersion line on the individual thermometer, and regardless of the of the liquid in the column.
Partial immersion thermometers are appropriate for any application where total immersion is impractical or impossible, such as in a shallow water bath.
