Electric Chain Hoist -5000kg

₦ 9,996,118.95 ₦ 10,522,230.47 -5%

0 No Reviews

Product SKU: RENG77592

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

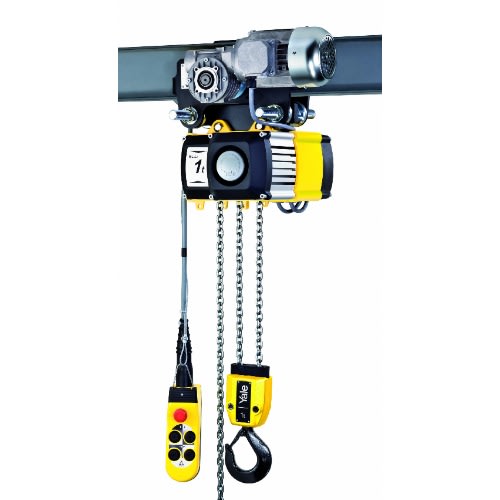

ELECTRIC CHAIN HOIST 5 TON (TROLLEY OR SUSPENSION LUG)

The electric hoist 5 Ton combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications.
The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, motor, and gearbox.

With a double chain fall & lifting speed at 4m/min (main lift), this electric hoist 5 ton is also available in 6 lifts from 3m to 18m. For any inquiries, please contact us via Chat.
Electric Chain Hoist Specification for CPV/F Model
FEATURES
Heavy Duty electric chain hoist
Manufactured for a more intense usage with higher duty ratings that are certified to perform at top capacity
The easily removable housing cover
Give direct access to all electrical connections
Electromagnetic spring pressure brake
Holds the load safely even in the event of power failure.
Motor
Protected to IP 55 (acc. to VDE 0530), against ingress of dust and water jets.
The easily adjustable slip clutch
- Designed to guarantee a permanent connection between the load and the brake.
- Brake holds the load securely without load dropping(red line), even when the slipping clutch is activated.
The standard, oil bath lubricated and case hardened gearbox
Has a helical gearing for particularly smooth running and enhanced lifetime.
Suspension lug
- For compact dimensions
- Easy integration in closed-eye constructions.
Steel chain guide
The main contactor
As standard, for increased safety.
Standard Operating Voltage
Euro-voltage 400 V, 3-phase, 50 Hz
Increased operating safety
Through 42 V control voltage (low voltage control), push-button pendant control, IP 65.
1-year warranty (excluding wear parts) and a lifetime lubricated gearbox.

OPTIONS
Stainless steel load chain (no reduction of working load limit)
Suspension hook
Flexible chain container
Other operating voltages
Counter for operating hours and number of starts
Radio remote control
Control for synchronized operation of several hoists
Manual and electric trolleys
Festooned cables systems and alternative power supplies
Suspension for light crane systems
