Buy EBC-A20 Battery Tester 30V 20A 85W Lithium Lead-acid in

EBC-A20 Battery Tester 30V 20A 85W Lithium Lead-acid

₦ 429,323.83 ₦ 451,919.82 -5%

0 No Reviews

Product SKU: RENG366338

Brand: Generic

Variants

Multicolor simple configuratio Multicolor standard configurat

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	N/A
Production Country	China
Weight (kg)	1.55
Color	N/A
From the Manufacturer	N/A
Care Label	N/A

Features:

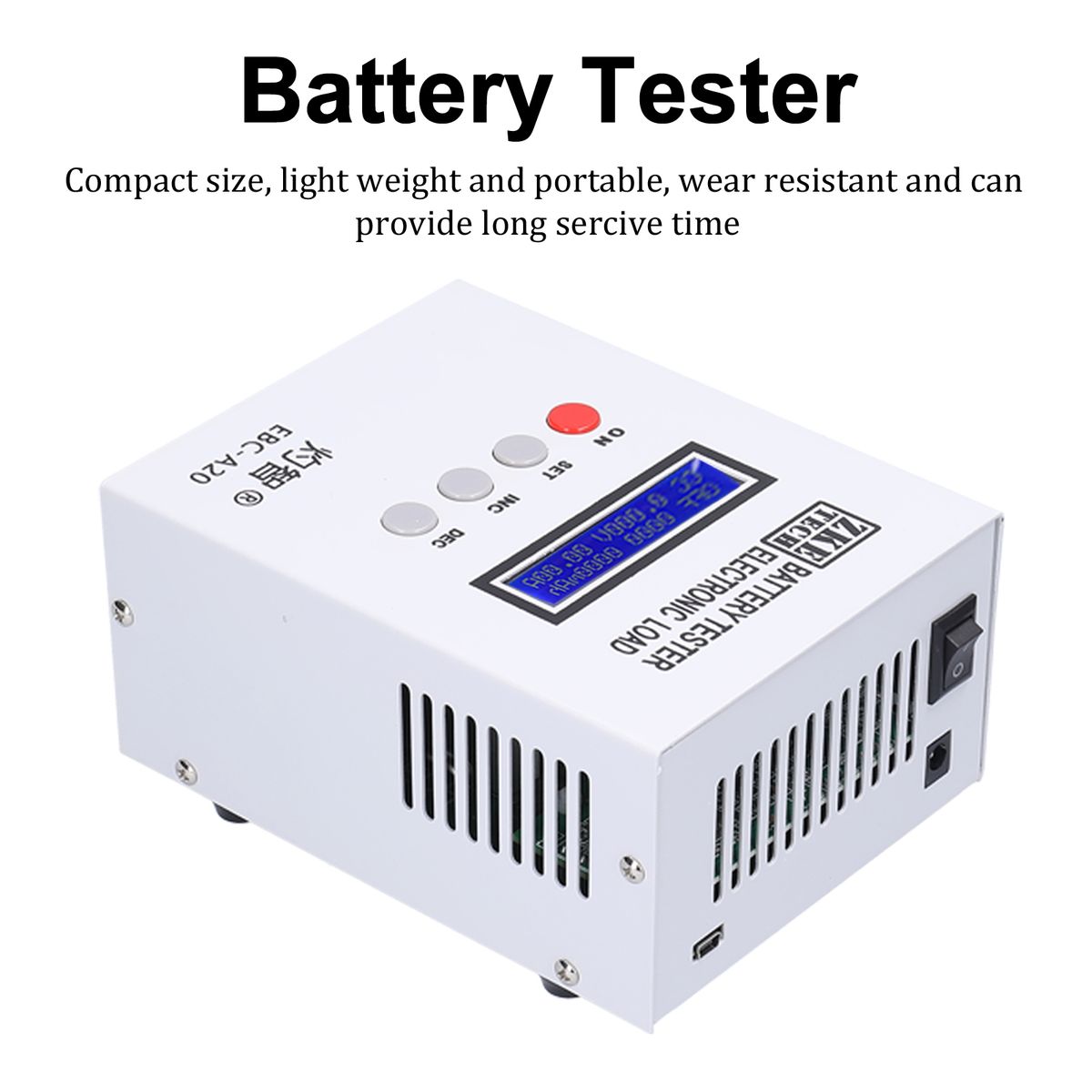

Compact size, light weight and portable, wear resistant and can provide long sercive time.

Large LCD display, you can see the voltage, current, capacity, time, power, energy and other test data clearly.

5A recharging, 20A discharge, the maximum power is 85W.

3 working modes settable design, you can set DSC-CC, DSC-CP, CHG-CV according to your demands.

Multifunctional, it can be used to test the battery capacity, simulate constant power equipment, and test lithium and leadacid battery.

Support separate recharge and discharge and recharge-discharge-recharge test.

Support c-omputer online control, curve plotting, calibration benchmarking, firmware upgrade, cycle recharge/discharge etc..

Two configurations optional, you can choose according to your demands.

Specifications:

Name: Battery Tester

Model: EBC-A20

Material: aluminum alloy

Configuration: simple configuration, standard configuration EU-Plug, standard configuration US-Plug (optional)

Voltage setting: Discaharge: 0.00-30.00V, the minimum step 0.01V

Recharge: 0.00-18.00V, the minimum step 0.01V

Current setting: Discharge: 0.10-20.00A Minimum step 0.01A (automatic limit current when power is overrun)

Recharge: 0.10-5.00A Minimum step 0.01A (the maximum current is less than the s-upply current when the voltage is above 10V )

Mode setting: DSC-CC: discharge current is constant, it can be used to test the battery capacity

DSC-CP discharge power is c onstant, used to simulate constant power equipment

CHG-CV: constant current constant voltage recharging, applicable to test lithium and leadacid battery

Automatic recharging and discharging: support quot;automatic recharging - discharge - recharging mode quot;, it can be used to test battery capacity

Voltage test: 0.000-4.500V (low pressure gear) accuracy to 0.003V, error plusmn;0.5%

4.50V-30.00V (high presure gear) accuracy to 0.01V, error plusmn; 0.5%

Current test: 0.10-20.00A, accuracy to 0.01A, error plusmn; 0.5%

Capacity test: 10Ah, the resolution is 0.001Ah

10Ah-100Ah, the resolution is 0.01Ah

above 100Ah, the resolution is 0.1Ah

Connection: four-wire detection, voltage test and current channel are separate wiring, to ensure measurement accuracy

LCD display: voltage, current, capacity, time, power, energy and other test data

C-omputer Online: dedicated USB to TTL serial port (Mini USB port, not an ordinary USB cable) c-omputer control, curve plotting, calibration benchmarking, firmware upgrade, cycle recharge/discharge etc

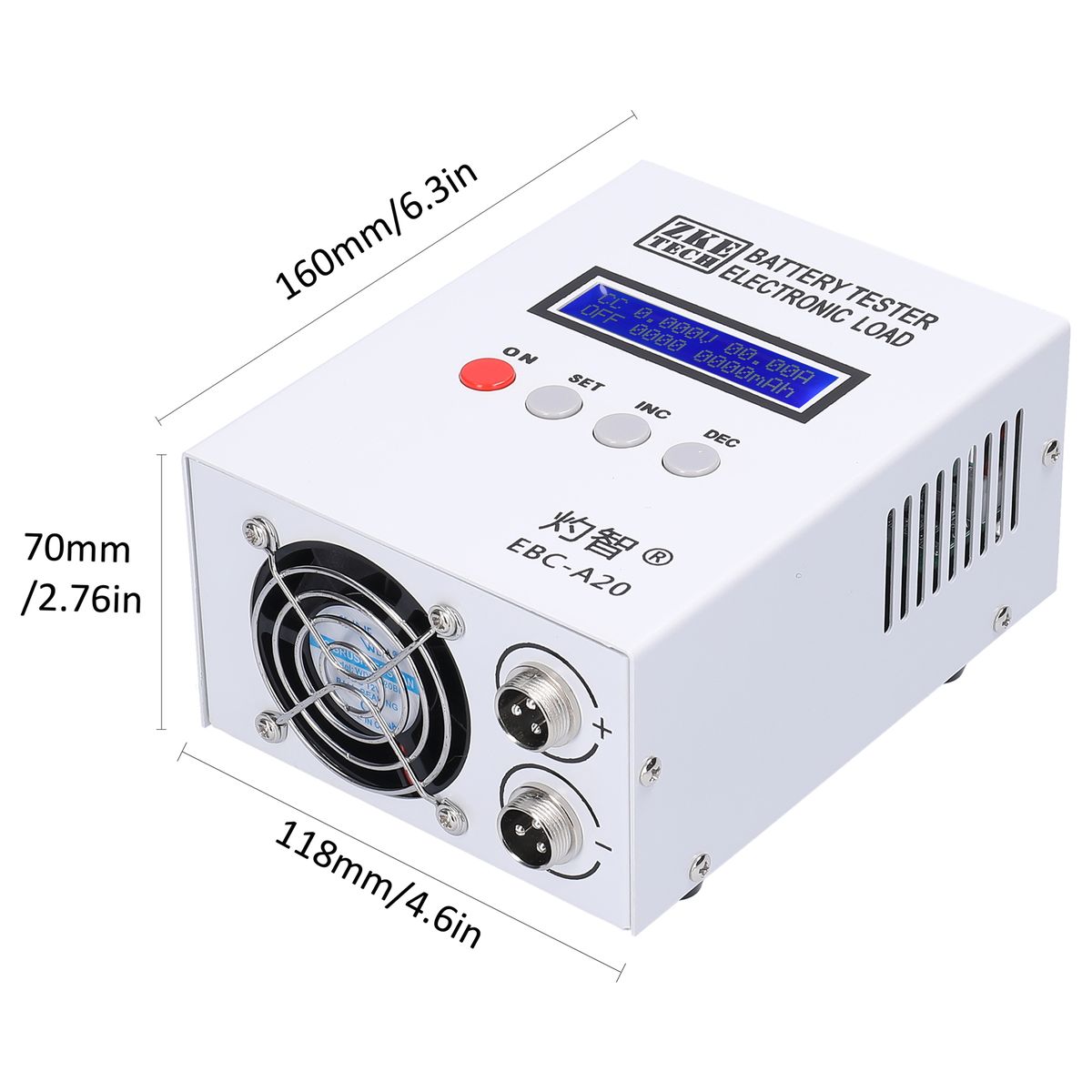

Package size: 280 * 240 * 150mm / 11.02 * 9.45 * 5.91in

Package weight:

Simple configuration: 1200g / 2.65lb

Standard configuration: 1800g / 3.97lb

We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.

*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.

*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.

Key Features

Compact size, light weight and portable, wear resistant and can provide long sercive time.
Large LCD display, you can see the voltage, current, capacity, time, power, energy and other test data clearly.
5A recharging, 20A discharge, the maximum power is 85W.
3 working modes settable design, you can set DSC-CC, DSC-CP, CHG-CV according to your demands.
Multifunctional, it can be used to test the battery capacity, simulate constant power equipment, and test lithium and leadacid battery.
