Buy Direct Current Regulated Supplies Maintenance Supplying

Direct Current Regulated Supplies Maintenance Supplying

₦ 507,311.52 ₦ 534,012.13 -5%

0 No Reviews

Product SKU: RENG283289

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	N/A
Production Country	China
Size (L x W x H cm)	20.00×11.50×5.70
Weight (kg)	1.31
Color	Multicolor
Main Material	N/A

This constant voltage and constant current maintenance experimental supplying device have 0-60.00V output voltage, 0-6.000A output current, 360.0W output , 1.54inch LCD digital displays, clearer display, and more accurate measurement. Supports USB + BT communication, and it supports mainstream models of mobilephone BT online control (automatic locking of keys during communication). Support mobilephone APP connection control. Support 10.0-16.0 iOS system and 5.0~12.0 Android system. Support firmware upgrades to ensure that the product is constantly updated and optimized to obtain new functions and enhance the usefulness of the product.

Features:

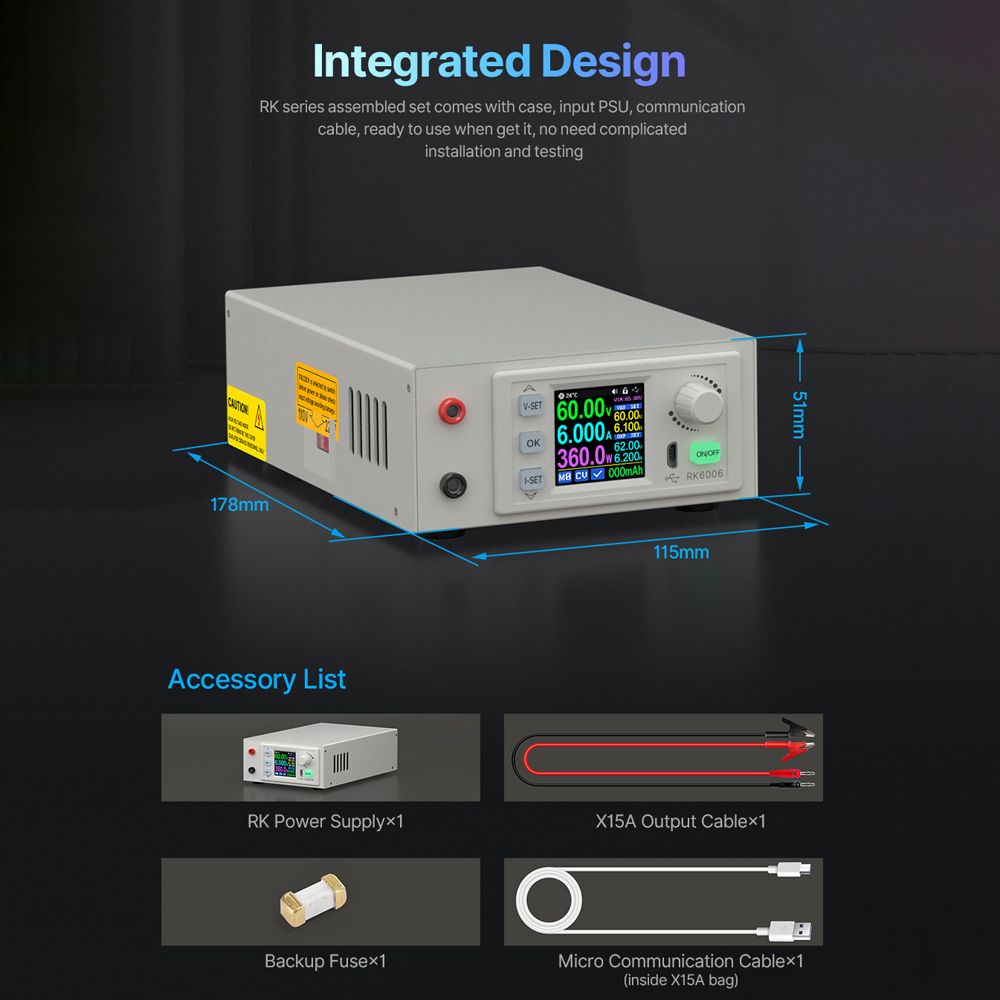

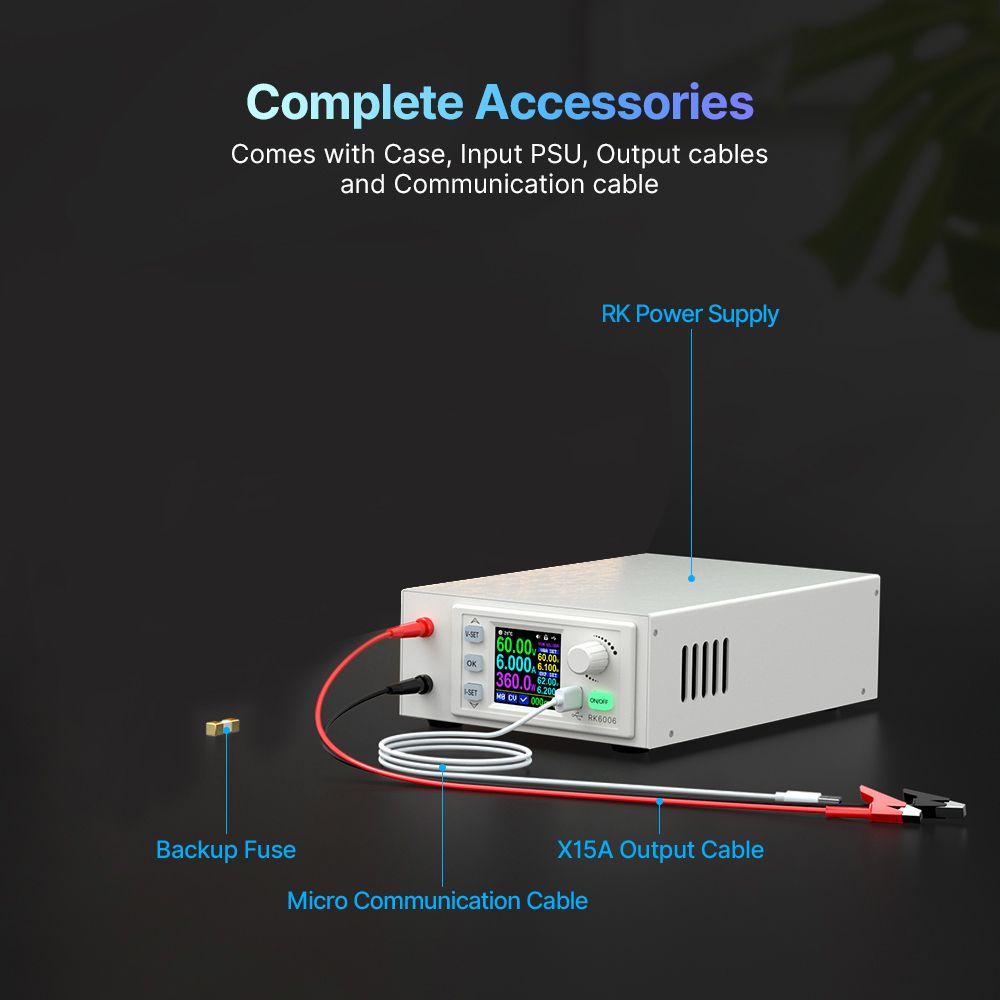

【Complete Accessory】: Comes with housing, pre-stage PSU, output cable and communication cable. Ready to use when you receive it, no complicated installation and testing required.

【LCD Display & Wide Measuremtn Ranges】: 1.54-inch LCD screen, clearer and more intuitive display. With wider voltage and current measuring ranges, 0-60.00V output voltage, 0-6.000A output current, 360.0W output , more accurate measurement.

【Display Style Switching】: The system defaults to display the classical style and rotates the encoding potentiometer to switch the display style.

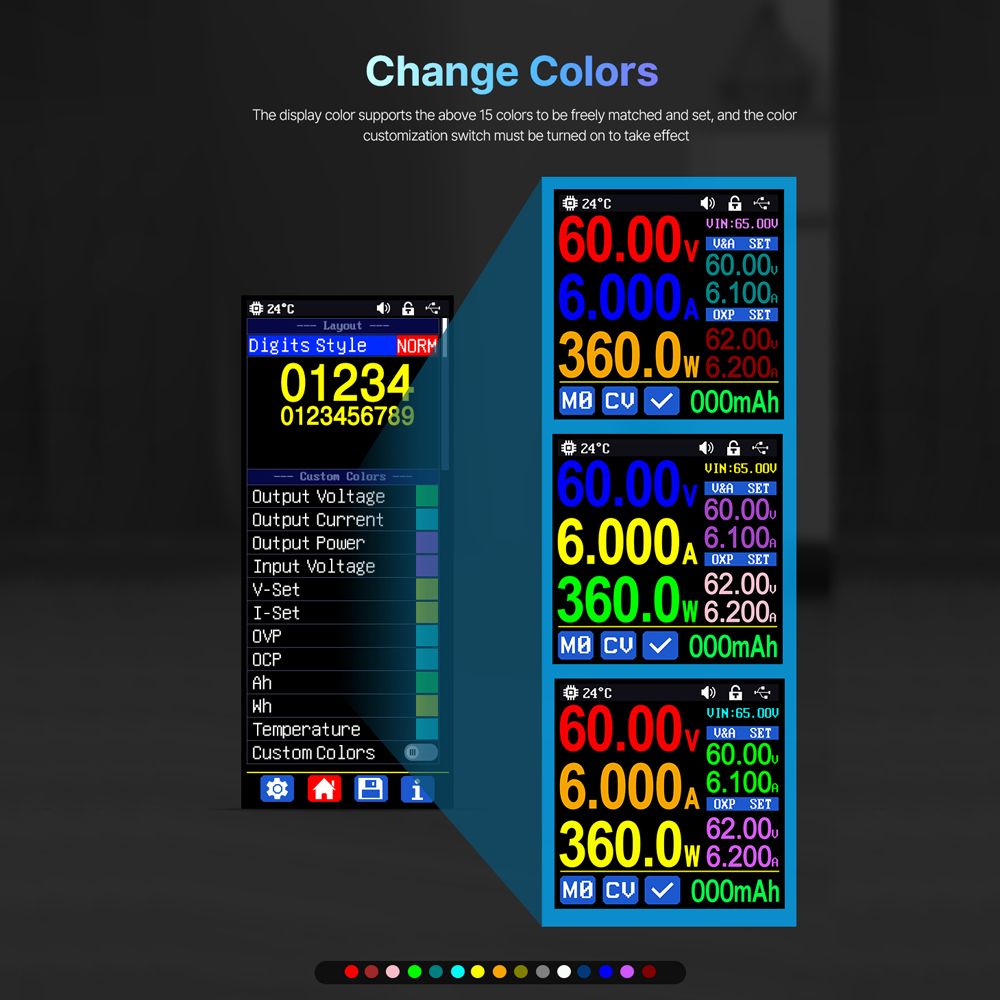

【Custom Color】: The display color supports 15 colors to be freely matched and set, after customizing the color, you can turn on the color customization switch to take effect.

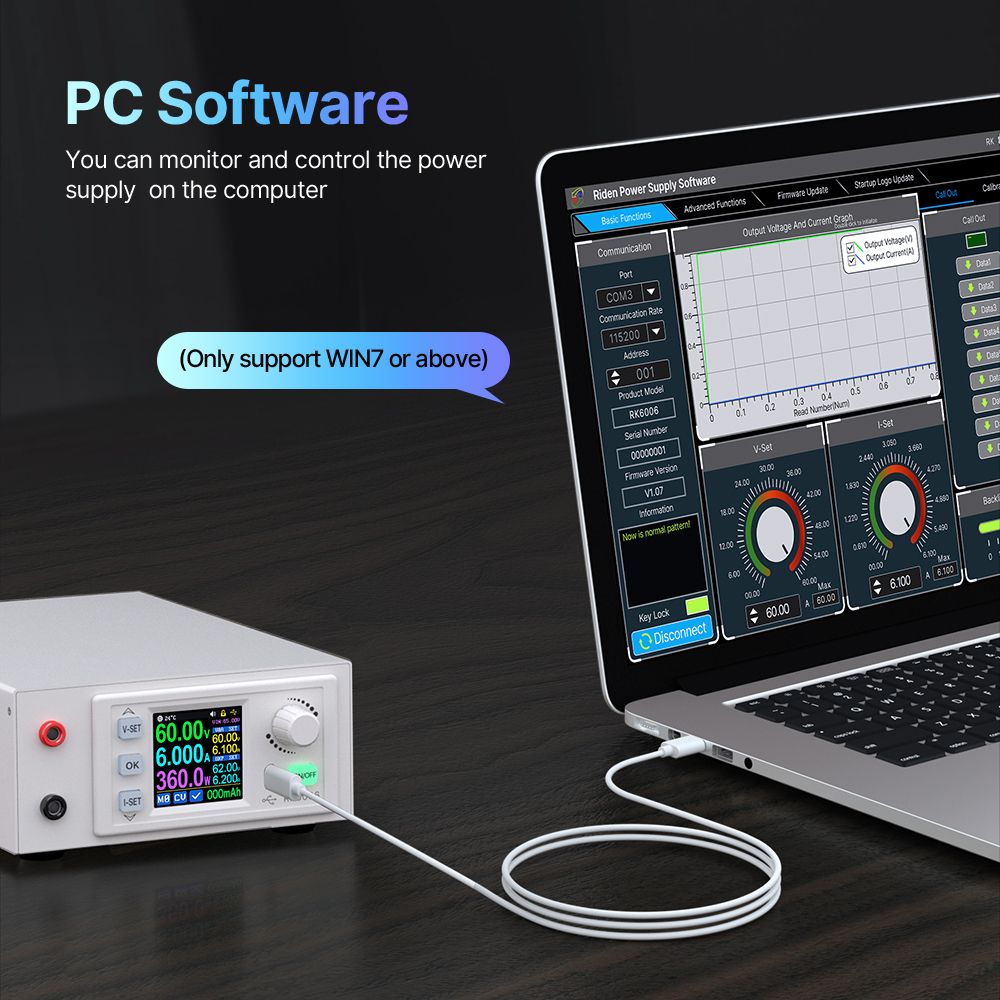

【USB PC Communication】: Support PC upper computers control, USB interface, you can monitor and set the powersupply on the computers, friendly interface, powerful, more convenient control (only support Win7-Win10 system).

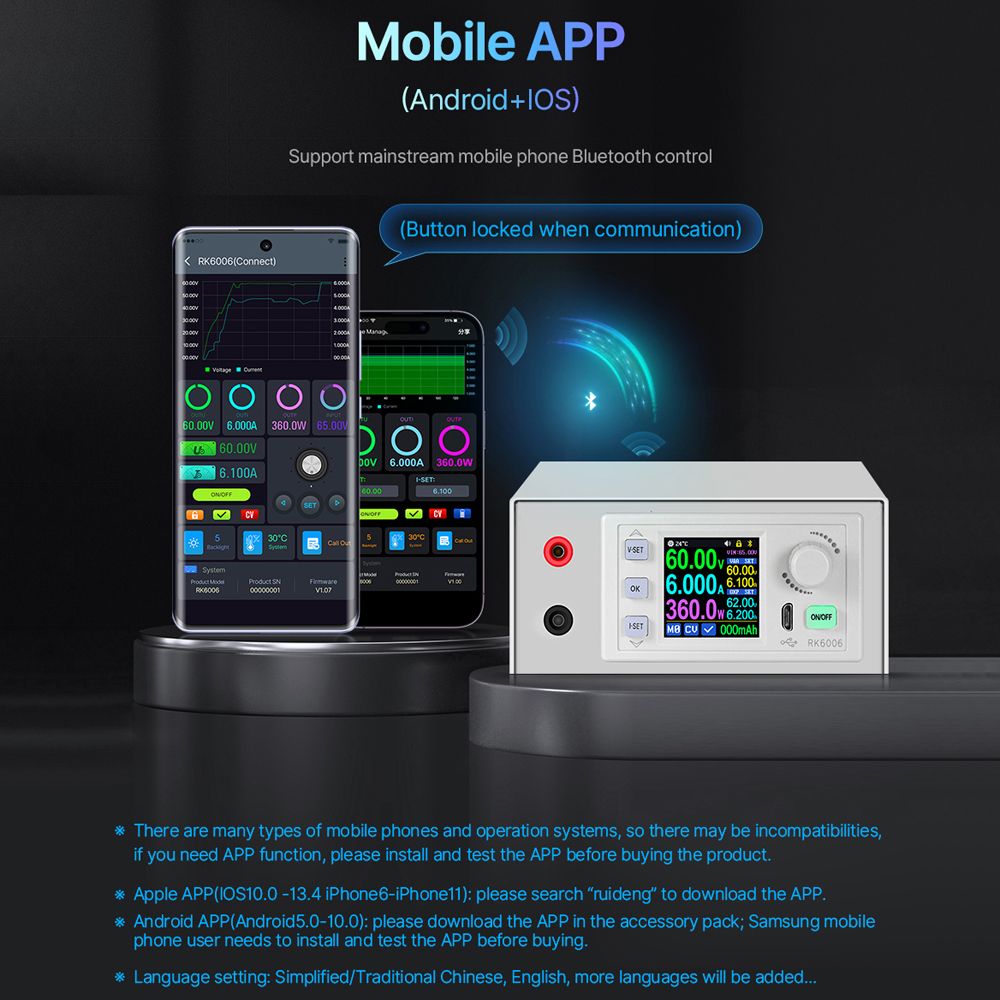

【Mobilephone APP BT Communication】: Supports USB + BT communication, and it supports mainstream models of mobilephone BT online control (automatic locking of buttons during communication). Support mobilephone APP connection control. Support 10.0-16.0 iOS system and 5.0~12.0 Android system.

【Multiple Protections】: More comprehensive protections, and safer use, with over-voltage, over-current, and over-temperature protections, and limitations. When the OCP value is less than the I-SET value, the output short circuit will automatically shut down protection, when the OCP value is greater than the I-SET value, the output short circuit will enter the constant current state, the device is suitable for constant current devices such as high- LED lamp beads use.

【Firmware Upgrade】: Support firmware upgrades to ensure that the product is constantly updated and optimized to obtain new functions and enhance the usefulness of the product. The firmware can be upgraded in normal mode, if it does not work normally, you should enter boot mode to upgrade the firmware.

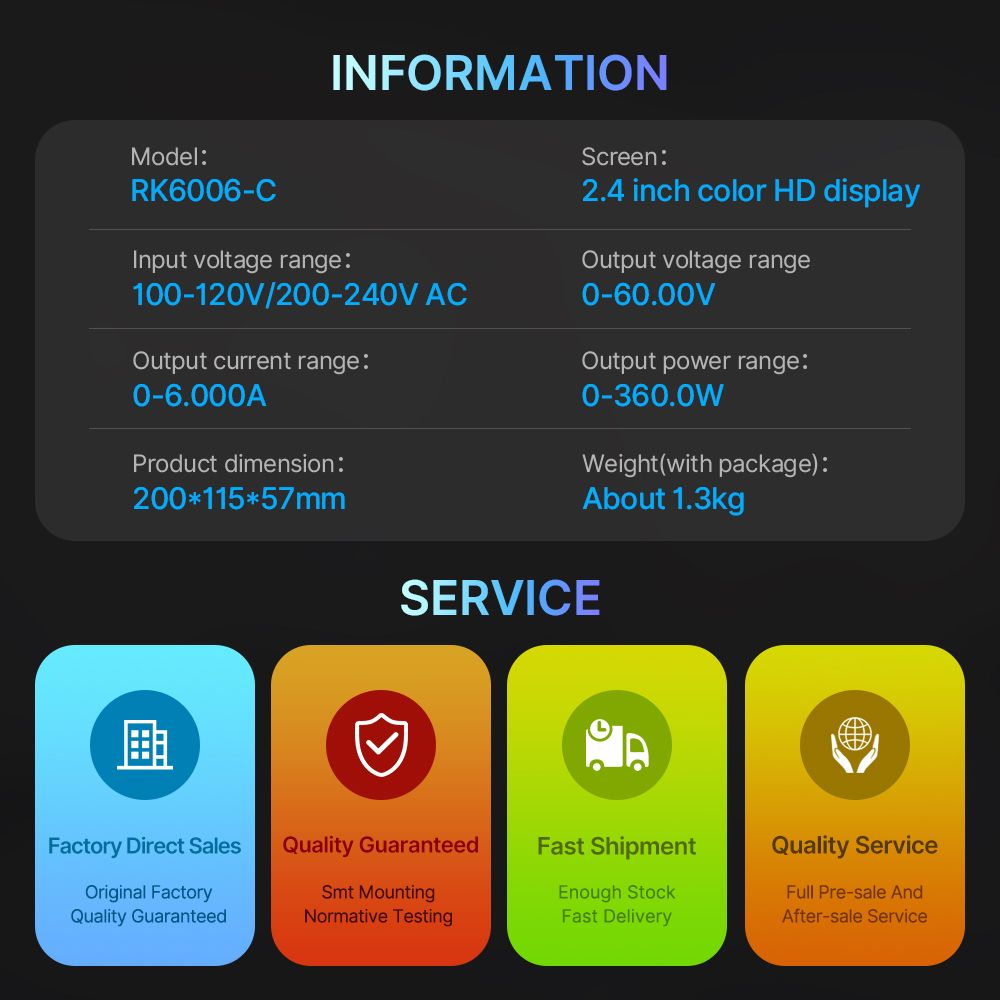

Specifications:

Name: Stabilized Source

Material: plastics

Display screen: 1.54 inch color LCD display

Input voltage ranges: 100-120V/200-240V

Output voltage ranges: 0-60.00V

Output current ranges: 0-6.000A

Output ranges: 0-360.0W

Output voltage setting and reading resolution: 0.01V

Output current setting and read-back resolution: 0.001A

Output voltage setting and read-back accuracy: ±(0.3%+3 words)

Output current setting and read-back accuracy: ± (0.5% + 5 words)

Typical output ripple: 100mV VPP

Constant voltage mode response time: 2ms (0.1A-5A load)

Constant voltage mode load adjustment rate: ±(0.1%+2 words)

Constant current mode load adjustment rate: ±(0.1%+3 words)

Capacity recording ranges: 0-9999.99Ah

Energy recording ranges: 0-9999.99Wh

Capacity and energy statistic error: ±2%

Operating temperature: -10°C-40°C

Over-temperature protections: System temperature >90°C

Item size: 115 * 178 * 51mm / 4.53 * 7.01 * 2.01in

Package size: 200 * 115 * 57mm / 7.87 * 4.53 * 2.24in

Package weight: 1300g / 2.87lb

Packing List:

1 * Stabilized Source

1 * Communication Cable

1 * X15A Output Cable

1 * Fuse

Key Features

【Complete Accessory】: Comes with housing, pre-stage PSU, output cable and communication cable. Ready to use when you receive it, no complicated installation and testing required.
【Complete Accessory】: Comes with housing, pre-stage PSU, output cable and communication cable. Ready to use when you receive it, no complicated installation and testing required.
【Complete Accessory】: Comes with housing, pre-stage PSU, output cable and communication cable. Ready to use when you receive it, no complicated installation and testing required.
【Complete Accessory】: Comes with housing, pre-stage PSU, output cable and communication cable. Ready to use when you receive it, no complicated installation and testing required.
【Complete Accessory】: Comes with housing, pre-stage PSU, output cable and communication cable. Ready to use when you receive it, no complicated installation and testing required.
【Complete Accessory】: Comes with housing, pre-stage PSU, output cable and communication cable. Ready to use when you receive it, no complicated installation and testing required.

What's In the Box

1 x Stabilized Source,1 x Communication Cable,1 x X15A Output Cable,1 x Fuse
