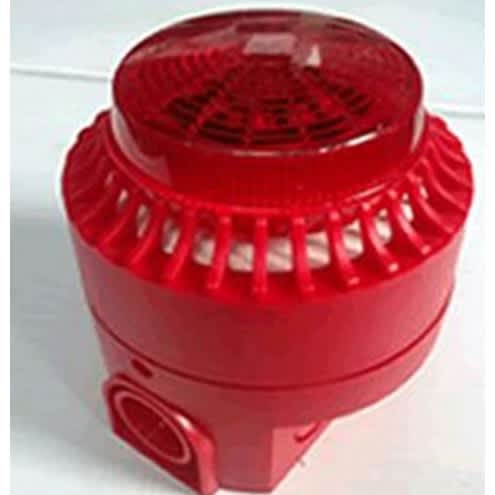

fire alarm sounder and strobe AH - 318-SF
Chloride uk electronic sounder is designed for use with fire alarm systems, security systems and industrial signaling systems.
Combined sounder and beacon provides an audio-visual warning which is suitable for places where high sound output and visual indication is required.
- 32 signal tones selectable by Dip switch.
- High sound output with low current consumption.
- High efficiency lens for maximum light output.
- Volume Control as standard.
- Two sets of IN and OUT terminals, easy for installation
Model
|
AH-312-S
|
AH-318-SF
|
Voltage Range
|
24V DC
|
Current Consumption 24V DC (tone 3)
|
14.5mA
|
Sound Output 24V DC dB (A) at 1 meter
|
Max. 114
|
Volume Control
|
0 to -20dB adjustment
|
Ingress Protection
|
IP44
|
Ambient Temperature
|
-25¡æ ~ +80¡æ
|
Material
|
ABS plastic
|
Dimensions
|
92.5mm(Dia.) x 94mm(H)
|
92.5mm(Dia.) x 110mm(H)
|
Weight
|
254g
|
278g
|
