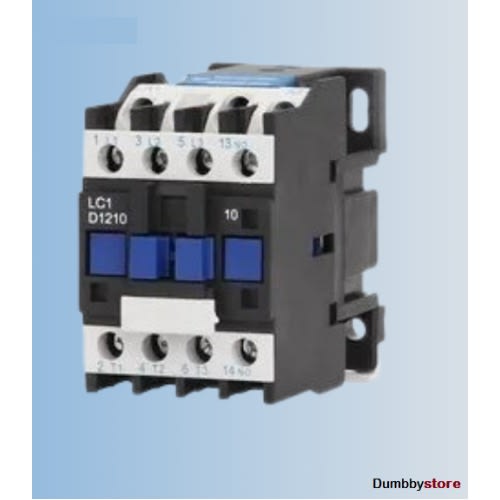

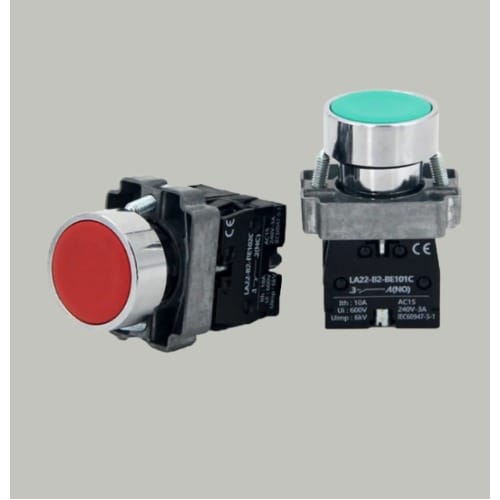

Buy Chint Mcb 100A - Telemecanique Contactor - 50A - Push Button And Led Indicators in Nigeria
You May Also Like
Himel Miniature Circuit Breaker - 18mm Ac - C - 2p - 6ka - 63A|| HDB3WHN2C63
₦ 6,260.00
₦ 6,323.00
-1%
Himel Miniature Circuit Breaker Hdb9 - 18mm Ac 10ka - 1p C Curve - 40 A|| HDB9H63A1C40
₦ 4,807.00
₦ 4,856.00
-1%
Himel Miniature circuit breaker, HDB3w-125, 27mm, AC, 10kA, 2P, C curve, 125 A|| HDB3W125H2C125
₦ 19,420.00
₦ 19,616.00
-1%
Himel Miniature Circuit Breaker - 18mm Ac - C - 4p - 6ka - 20 A - HDB3WHN4C20
₦ 9,409.00
₦ 9,504.00
-1%
Himel Miniature Circuit Breaker - 18 Mm Ac - C - 1p - 6 Ka - 6 A||HDB3WHN1C6
₦ 2,598.00
₦ 2,624.00
-1%
Himel Miniature Circuit Breaker - 18 Mm Ac - C - 1p - 6 Ka - 16a|| Hdb3whn1c16
₦ 2,598.00
₦ 2,624.00
-1%
Himel Miniature Circuit Breaker - 18 Mm Ac - C - 1p - 6 Ka - 25a|| HDB3WHN1C25
₦ 2,598.00
₦ 2,624.00
-1%
Himel Miniature Circuit Breaker - 18 Mm Ac - C - 1p - 6 Ka - 63a|| HDB3WHN1C63
₦ 2,901.00
₦ 2,930.00
-1%
Himel Miniature Circuit Breaker, Hdb3w-125, 27mm, Ac, 10ka, 3p, C Curve, 63 A|| HDB3W125H3C63
₦ 19,019.00
₦ 19,211.00
-1%
Himel Miniature Circuit Breaker, Hdb3w-125, 27mm, Ac, 10ka, 3p, C Curve, 80 A|| HDB3W125H3C80
₦ 19,420.00
₦ 19,616.00
-1%
Himel Miniature Circuit Breaker, Hdb3w-125, 27mm, Ac, 10ka, 4p, C Curve, 125 A|| HDB3W125H4C125
₦ 43,044.00
₦ 43,479.00
-1%
32a Contactor + 32a Abb Mcb + Ammeter Led + Nc/no Button + Led Indicator
₦ 39,600.00
₦ 45,000.00
-12%
Himel Miniature Circuit Breaker - 18mm Ac - C - 3p - 6ka - 6A|| HDB3WHN3C6
₦ 7,409.00
₦ 7,484.00
-1%
Himel Miniature Circuit Breaker - 18mm Ac - C - 2p - 6ka - 40A|| HDB3WHN2C40
₦ 5,333.00
₦ 5,387.00
-1%
Himel Miniature Circuit Breaker - 18mm Ac - C - 2p - 6ka - 32A|| HDB3WHN2C32
₦ 5,333.00
₦ 5,387.00
-1%
Himel Miniature Circuit Breaker - 18mm Ac - C - 2p - 6ka - 20A||HDB3WHN2C20
₦ 5,333.00
₦ 5,387.00
-1%
Himel Miniature Circuit Breaker Hdb9 - 18mm Ac 10ka - 1p C Curve - 20 A|| HDB9H63A1C20
₦ 4,807.00
₦ 4,856.00
-1%
Himel Miniature Circuit Breaker Hdb9 - 18mm Ac 10ka - 1p C Curve - 63 A|| HDB9H63A1C63
₦ 5,408.00
₦ 5,463.00
-1%
Himel Miniature Circuit Breaker - 18mm Ac - C - 4p - 6ka - 63 A - HDB3WHN4C63
₦ 10,612.00
₦ 10,719.00
-1%
Himel Miniature Circuit Breaker, Hdb3w-125, 27mm, Ac, 10ka, 3p, C Curve, 125 A|| HDB3W125H3C125
₦ 24,222.00
₦ 24,467.00
-1%
Featured Products
000RENG687737
Rehmie.com.ng
Schneider 2-pole 10a-250a Dc Circuit Breaker
Original Schneider 2-Pole 10A-250A DC Circuit Breaker delivered physically through rehmie.com.ng.
A circuit breaker MCB is an automatically operated electrical switch intended to prevent damage to an electrical circuit due to excess current. they are designed to trip during an overload or short circuit to protect against electrical faults and equipment failure.The circuit breaker here provides overload protection, short circuit protection, and isolation. It is widely used in building power distribution, industrial power distribution, as well as control and security for a variety of equipment
PROPERTIES:Rated current: 10A. 20A. 32A. 63A. 80A. 100A. 125A. 140A. 160A. 180A. 200A. 225A. 250A.Type: MCBCurrent Range 1-250ANumber of Pole: 1Warranty: 1-YearHigh-speed trippingFor any amperages lower than your order.
Example:
Name: Olivia WoodsOrder No: F74908477LAAmps: 125A
000RENG675934
Rehmie.com.ng
Modulated Case 10a-250a Dc Circuit Breaker - 1 Phase
Original Modulated Case Schneider 10A-250A DC Circuit Breaker 1Phase: Delivered through rehmie.com.ng.
A circuit breaker MCB is an automatically operated electrical switch intended to prevent damage to an electrical circuit due to excess current. they are designed to trip during an overload or short circuit to protect against electrical faults and equipment failure.The circuit breaker here provides overload protection, short circuit protection, and isolation. It is widely used in building power distribution, industrial power distribution, as well as control and security for a variety of equipment
PROPERTIES:Rated current: 10A. 20A. 32A. 63A. 80A. 100A. 125A. 140A. 160A. 180A. 200A. 225A. 250A.Type: MCBCurrent Range 1-250ANumber of Pole: 1Warranty: 1-YearHigh-speed trippingReliable Customer support: +2347035010090, +2348140695076 or visit //elitabtechnology.com
For any amperages lower than your order, please send us a message confirming your order number and the desired amperage.Example:
Name: Olivia WoodsOrder No: F74908477LAAmps: 125A
000RENG668921
Rehmie.com.ng
1-pole + N Mcb 160a Dc Circuit Breaker
1-pole+ N Mcb 160A Dc Circuit Breaker delivered physically through rehmie.com.ng.
A circuit breaker MCB is an automatically operated electrical switch intended to prevent damage to an electrical circuit due to excess current. they are designed to trip during an overload or short circuit to protect against electrical faults and equipment failure.The circuit breaker here provides overload protection, short circuit protection, and isolation. It is widely used in building power distribution, industrial power distribution, as well as control and security for a variety of equipment
PROPERTIES:Rated current: 10A. 20A. 32A. 63A. 80A. 100A. 125A. 140A. 160A.Type: MCBCurrent Range 1-160ANumber of Pole: 1Warranty: 1-YearHigh-speed trippingFor any amperages lower than your order,
Example:
Name: Olivia WoodsOrder No: F74908477LAAmps: 160A
000RENG654433
Rehmie.com.ng
1- Pole + n Mcb 63a Dc Circuit Breaker
1-Pole 63A DC circuit breaker: Delivered physically through rehmie.com.ng.
A circuit breaker MCB is an automatically operated electrical switch intended to prevent damage to an electrical circuit due to excess current. they are designed to trip during an overload or short circuit to protect against electrical faults and equipment failure.The circuit breaker here provides overload protection, short circuit protection, and isolation. It is widely used in building power distribution, industrial power distribution, as well as control and security for a variety of equipment
PROPERTIES:Rated current: 10A. 20A. 32A. 63A.Type: MCBCurrent Range 1-63ANumber of Pole: 1Warranty: 1-YearHigh-speed trippingFor any amperages lower than your order,
Example:
Name: Olivia WoodsOrder No: F74908477LAAmps: 25A
000RENG650276
Rehmie.com.ng
2-pole + N Mcb 125a Dc Circuit Breaker Chint
2-pole + N Mcb 125A Dc Circuit Breaker delivered physically through rehmie.com.ng.
A circuit breaker MCB is an automatically operated electrical switch intended to prevent damage to an electrical circuit due to excess current. they are designed to trip during an overload or short circuit to protect against electrical faults and equipment failure.The circuit breaker here provides overload protection, short circuit protection, and isolation. It is widely used in building power distribution, industrial power distribution, as well as control and security for a variety of equipment
PROPERTIES:Rated current: 10A. 20A. 32A. 63A. 80A. 100A.Type: MCBCurrent Range 1-125ANumber of Pole: 1Warranty: 1-YearHigh-speed trippingFor any amperages lower than your order,
Example:
Name: Olivia WoodsOrder No: F74908477LAAmps: 25A
000RENG645956
Rehmie.com.ng
Feeo Surge Protector Device 3p Dc
FSP-D40 Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system). These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.High energy Mo Vs equipped with specific thermal dis connectors and related failure indicators.Surge Protector Device Features:1. Indicator window is obvious (green is OK, red indicates failure)2. Fully enclosed terminal3. The shell is made of PC flame retardant material, fire insulation4. Replaceable module
Item
Surge Arrester
Code
FSP-D40
Pole
3P
Voltage
1000VDC
In(8/20)us(KA)
20KA
Imax(8/20)us(KA)
40KA
Standard
IEC/EN50539-11
Type
II
Characteristic Curve
B,C,D
Working Temperature
-5 to +40
Protection Degree
IP20
Electrical life
More than 8000times
Mechanical life
More than 2000times
Dimension(W)X(H)X(D)
35x90x49
000RENG645953
Rehmie.com.ng
Feeo - Surge Protector Devicee - 40kva - 4p
Fsp-a series ac surge protection device (spd) is suitable for tn-s, tn-c-s, tt, it etc, power supply system of ac 50/60hz, & lt;380v, installed on the joint of lpz1 or lpz2 and lpz3. it's designed according to iec61643-1, gb18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device, when the spd fails in breakdown for over heat and over-current, the failure release will help electric equipment separate from the power supply system and give the indication signal, green means normal, red means abnormal.
FSP-A 4P AC SPD series surge protection device (in short SPD,alias:surge suppressor surge arrester)is suitable for TN-S, TN-C-S, TT, IT etc, power supply system of AC 50/60Hz, & lt;380V, installed on the joint of LPZ1 or LPZ2 and LPZ3. It's designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device, When the SPD fails in breakdown for over heat and over-current, the failure rlease will help electric equipments separate from the power supply system and give the indication signal, green means normal, red means abnormal, it also could be replaced for the module when has operating voltage
000RENG645948
Rehmie.com.ng
Knife Change Over Switch - 200a
Knife Change Over Switch: 100% CopperAdoption of open with pull clasp type terminal, easy to use and very strong.The handle use the nylon material, using the screw connect.The contact with pure materials, point of contact is planar contact, electrical conductivity is always efficient.Floor adopts electrical fiber reinforced polyester DMC, drop resistance, pressure resistance, high temperature resistance performance.The rivet is made of stainless steel materials.Model: 2P200ARated Voltage: 380/220VRated Current: 200AFrequency: 50HZ
000RENG645942
Rehmie.com.ng
4p 160a Mccb Dc Circuit Breakers
DC MCCB Parameters:FEEO FPVM series of DC Moulded Case Circuit Breaker(DC MCCB) is designed for solar system with bigger current and higher breaking capacity. Rated current of 4Poles contains 125A,250A,400A,630A,800A. Rated voltage of 4Poles is 1000VDC,even can be customized to 1200VDC
Model
FPVM-125
FPVM-250
FPVM-400
FPVM-630
FPVM-800
FPVM-1250
Rated Current ln (A)
16, 20, 25, 32, 40, 50, 63, 80, 100, 125
100, 125, 140, 160, 180, 200, 225, 250
250, 315, 350, 400
400, 500, 630
630, 700, 800
800, 1000, 1250
Rated Operating Voltage Ue (V) DC
500V, 550V, 750V, 1000V
Rated Insulation Voltage Ui (V)
1000V
1000V
1500V
1500V
1500V
1500V
Uimp (kV)
8kV
Breaking Capacity (kA) Icu (1cs=75% Icu)
250V
35
50
50
50
65
65
500V
25
35
35
35
50
50
750V
15
25
25
25
35
35
1000V
10
15
15
15
20
20
Mechanical Life
Times
7000
7000
4000
4000
2500
2000
Breaking Times (ms)
20
000RENG598439
Rehmie.com.ng
Himel Miniature Circuit Breaker - 18mm Ac - C - 2p - 6ka - 63A|| HDB3WHN2C63
Product Description:
The Himel HDB3wH series Miniature Circuit Breaker (MCB) is an advanced and reliable electrical safety device designed to provide effective isolation control. This compact 18mm AC MCB is engineered for both commercial and residential applications, ensuring protection against electrical hazards such as short circuits and overload faults. With its thermal-magnetic trip unit technology, this device guarantees robust performance and high durability.
Product Features:
Main Characteristics:
Range of Product: HDB3wH
Product or Component Type: Miniature Circuit Breaker (MCB)
Device Application: Isolation Control
Trip Unit Technology: Thermal-magnetic
Suitability for Isolation: Yes
Mechanical Durability: 20,000 cycles
Electrical Durability: 7,000 cycles
Complementary Characteristics:
Poles Description: 2P (Two Poles)
Rated Current [In]: 63 A
Rated Operational Voltage [Ue]: 415 V AC, 50/60 Hz
Curve Code: C
Magnetic Tripping Limit: 5 to 10 times the rated current
Breaking Capacity: 6.0 kA
Rated Insulation Voltage [Ui]:
250.0 V between phase and ground
500.0 V between phases
Rated Impulse Withstand Voltage [Uimp]: 4.0 kV
Cable Entry: Top and Bottom
Mounting Support: 35 mm DIN rail
Protection Type: Overload protection, Short-circuit protection
Overvoltage Category: II
Connections & ndash; Terminals: Forked type tag connectors
Clamping Connection Capacity: Up to 25 mm & sup2;
Tightening Torque: 2.5 N.m
Dimensions:
Height: 80 mm
Width: 35.4 mm
Depth: 78.5 mm
Embedding Depth: 69.0 mm
Environmental Characteristics:
Dielectric Test Voltage: 2.0 kV, 50/60 Hz for 1 minute
Shock Resistance: 30 gn (duration of 11.0 ms) for 3 shocks
Standards Compliance: EN/IEC 60898-1
IP Degree of Protection: IP20
Pollution Degree: 2
This Himel Miniature Circuit Breaker is built with high-quality materials and precision engineering to ensure reliable performance and long-term durability. It is ideal for use in diverse settings, providing essential protection and control for electrical systems.
Himel Miniature Circuit Breaker - 18mm Ac - C - 2p - 6ka - 63A|| HDB3WHN2C63
₦ 6,260.00
₦ 6,323.00
-1%
customer
000RENG598430
Rehmie.com.ng
Himel Miniature Circuit Breaker Hdb9 - 18mm Ac 10ka - 1p C Curve - 40 A|| HDB9H63A1C40
Product Description:
The Himel HDB9 Miniature Circuit Breaker (MCB) is a compact and reliable solution designed to protect electrical circuits from overloads and short circuits. With a power rating of 40A and a breaking capacity of 10kA, this single-pole (1P) MCB features a C Curve tripping characteristic, making it ideal for residential, commercial, and industrial applications. Its slim 18mm width ensures easy installation in any electrical distribution board, providing effective circuit protection without occupying excessive space.
Product Features:
Product Type & ndash; The HDB9 is a single-pole (1P) miniature circuit breaker with an 18mm width from the Himel range, designed for robust circuit protection.
Power Characteristics & ndash; This MCB supports a 40A current rating and offers a high breaking capacity of 10kA, ensuring reliable protection against overloads and short circuits.
Tripping Curve & ndash; Features a C Curve tripping characteristic, making it suitable for general-purpose use where moderate inrush currents are expected.
Application & ndash; Ideal for a wide range of applications, including residential homes, commercial buildings, and industrial facilities, ensuring safety and protection of electrical systems.
Compact Design & ndash; The 18mm slim profile allows for efficient use of space in electrical distribution boards, making it easy to install and integrate into existing systems.
Durable & Safe & ndash; Manufactured to international standards, the HDB9 MCB ensures long-lasting performance, safety, and reliability in various environments.
Characteristics:
Main
Range of product HDB9
Product or component type Miniature circuit-breaker
Device application Isolation
Control
Poles description 1P
Limitation class 3 conforming to EN 60898-1
Screw type M5
Complementary:
[In] rated current 40 A
[Ue] rated operational voltage 230 V AC
Curve code C
Magnetic tripping limit 5...10 x In
Breaking capacity 10.0 kA
[Ui] rated insulation voltage 500 V
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Protection type Overload protection
Short-circuit protection
Mounting support 35 mm DIN rail
9 mm pitches 2.0
Clamping connection capacity = 25 mm & sup2;
Tightening torque 2 & hellip;2.5 N.m
Height 86 mm
Width 18.0 mm
Depth 73.5 mm
Environment:
Standards EN/IEC 60898-1
Product certifications KEMA
CB
CE
Pollution degree 2
Ambient air temperature for operation -30 & hellip;70 & deg;C
Himel Miniature Circuit Breaker Hdb9 - 18mm Ac 10ka - 1p C Curve - 40 A|| HDB9H63A1C40
₦ 4,807.00
₦ 4,856.00
-1%
customer
000RENG598427
Rehmie.com.ng
Himel Miniature circuit breaker, HDB3w-125, 27mm, AC, 10kA, 2P, C curve, 125 A|| HDB3W125H2C125
Product Description:
The Himel HDB3W-125 is a 27mm AC Miniature Circuit Breaker (MCB) with a 2-pole design, offering a breaking capacity of 10kA and a C curve tripping characteristic. Built for both commercial and residential use, this high-performance circuit breaker provides reliable protection against overloads and short circuits, ensuring safety and durability. With a rated current of 125A and operational voltage of 230V AC, it is designed for superior isolation and enhanced electrical safety.
Product Features:
Main Characteristics:
Range of Product: HDB3W-125
Product or Component Type: Miniature Circuit Breaker
Device Application: Isolation
Trip Unit Technology: Thermal-magnetic
Suitability for Isolation: Yes
Mechanical Durability: 8,500 cycles
Electrical Durability: 1,500 cycles
Complementary Characteristics:
Poles Description: 2P
Rated Current ([In]): 125A
Rated Operational Voltage ([Ue]): 230V AC 50/60 Hz
Curve Code: C
Magnetic Tripping Limit: 8.5 x In
Breaking Capacity: 10kA
Rated Insulation Voltage ([Ui]): 250V between phase and ground
Rated Impulse Withstand Voltage ([Uimp]): 4kV
Cable Entry: Top and Bottom
Mounting Support: 35mm DIN rail
Protection Type: Overload and Short-circuit protection
Connections - Terminals: Forked type tag connectors
Clamping Connection Capacity: 50mm & sup2;
Tightening Torque: 3.5 N.m
Dimensions: Height - 86.4mm, Width - 27.0mm, Depth - 74.5mm, Embedding Depth - 44.0mm
Environmental Characteristics:
Dielectric Test Voltage: 2kV 50/60 Hz for 1 min
Shock Resistance: 30g (duration = 11ms) for 3 shocks
Standards: IEC 60947-2
IP Degree of Protection: IP20
Pollution Degree: 2
Ambient Air Temperature for Operation: -20 to 60 & deg;C
Ambient Air Temperature for Storage: -40 to 70 & deg;C
Himel Miniature circuit breaker, HDB3w-125, 27mm, AC, 10kA, 2P, C curve, 125 A|| HDB3W125H2C125
₦ 19,420.00
₦ 19,616.00
-1%
customer
