Model |
BTZ-7000 |
Production Country |
India |
Size (L x W x H cm) |
47 x 51 x 18.5 |
Weight (kg) |
39 |
Color |
Black |
Main Material |
N/A |
POWER AMPLIFIERS2 ZONE PA POWER AMPLIFIERS

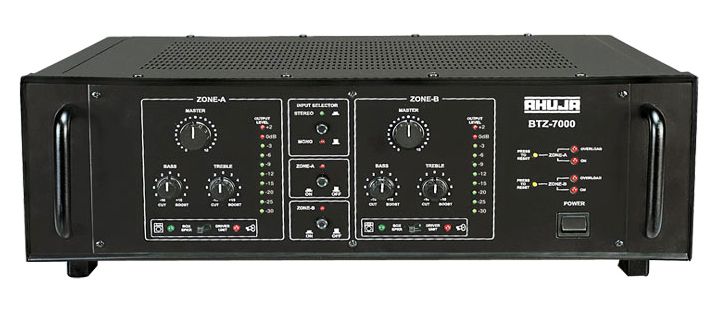

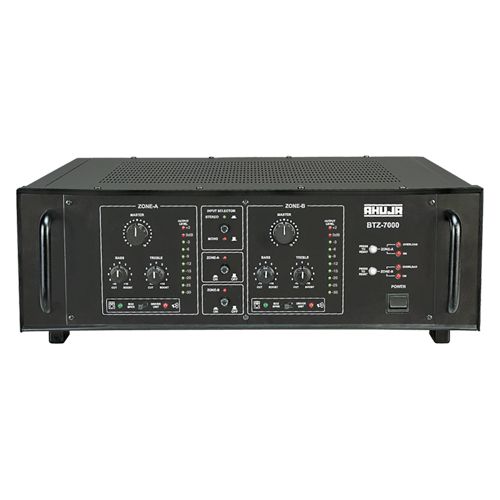

AHUJA BTZ-7000700 WATTS2 ZONE PA POWER AMPLIFIER
- Stereo Music Operation for DJ programmes.
- Facilitates connection and operation of two separate groups of speakers simultaneously on ‘Mono' mode. Ideal for places of worship.
- Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units.
- Resettable circuit breaker for protection against overload and short circuit.
- Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Bar Graph Signal Display.
Power Output: 500W + 500W Max., 350W + 350W RMS at 10% THD, 300W + 300W RMS at 5% THD, 280W + 280W RMS at 2% THD
Output Regulation: ≤ 2 dB, no load to full load at 1kHz
Input Channels: Mono 2 × 200mV/100kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ
Frequency Response: 50-15,000Hz ±3dB
Signal to Noise Ratio: 60dB
Tone Controls: Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs: Line L/R 1V/1kΩ
Speaker Outputs: 4Ω, 8Ω, 70V& 100V for each zone
Power Supply: AC: 220-240V 50/60 Hz DC: 36V (3×12V Car Battery)
Power Consumption: AC: 1100VA DC: 13A
Dimensions: W510 × H185 × D470 mm
Weight: 39.0kg
Key Features
AHUJA BTZ-7000
700 WATTS
2 ZONE PA POWER AMPLIFIER
Power Output: 500W + 500W Max.,
350W + 350W RMS at 10% THD,
300W + 300W RMS at 5% THD,
280W + 280W RMS at 2% THD
Speaker Outputs: 4Ω, 8Ω, 70V& 100V for each zone
Dimensions: W510 × H185 × D470 mm
