| Model |
Protection board |
| Production Country |
China |

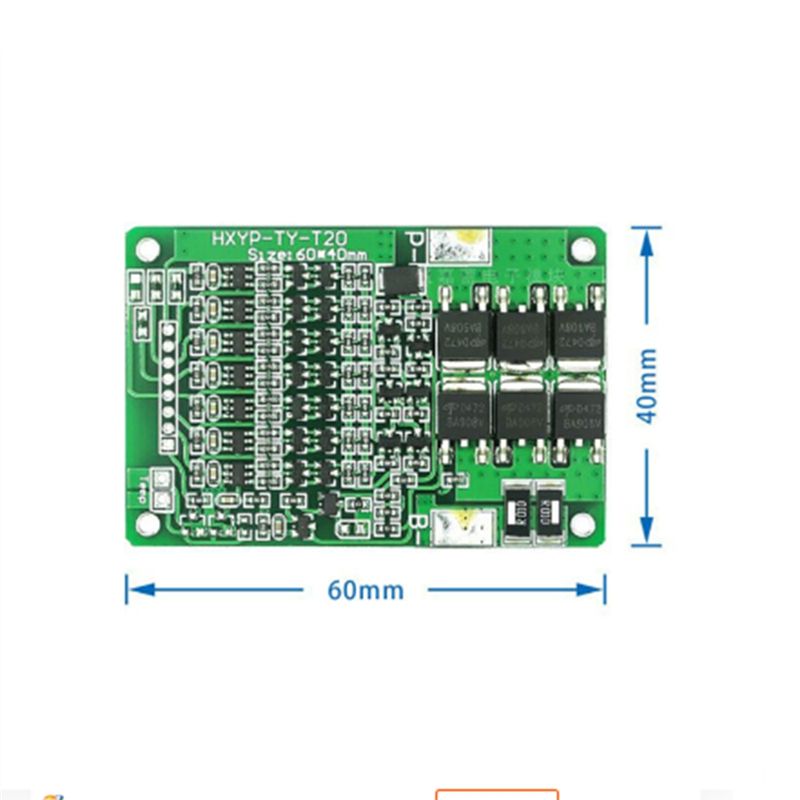

| Size (L x W x H cm) |
8x6x1 |
| Weight (kg) |
0.022 |
| Color |
multicolor |
| Main Material |
PC+Metal |

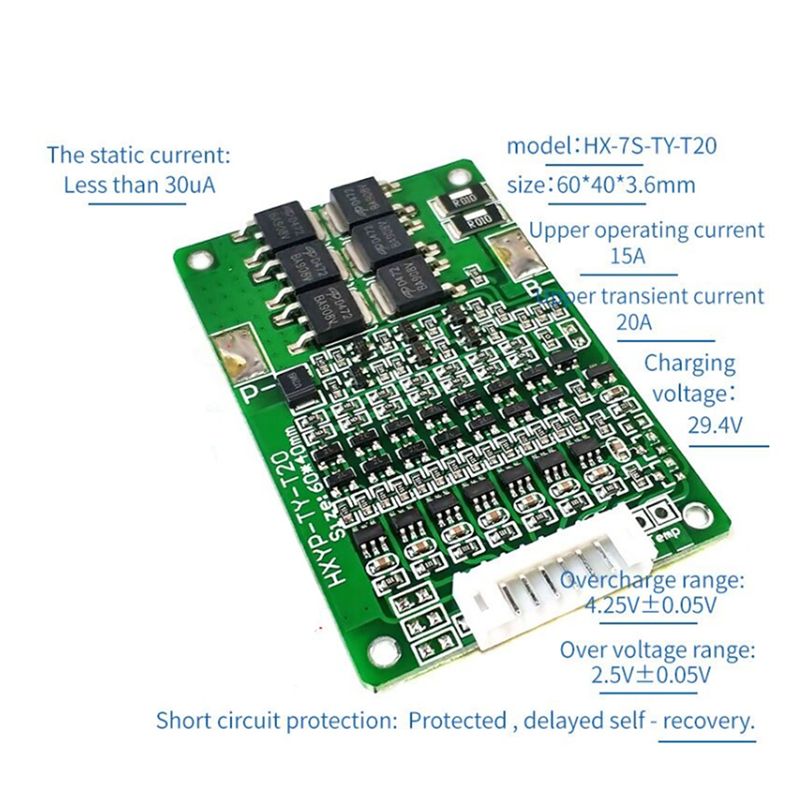

Upper limit working current: 15A
Upper limit instantaneous current: 20A
Overcharge voltage range: 4.25±0.05V
Over-discharge voltage range: 2.5±0.05V
Charging voltage: 3S 12.6V/4S 16.8V/5S 21V/6S 25.2V/7S 29.4V Quiescent current: Less than 30uA
Short circuit protection: protection, delay -
Material: PC+Metal
colour: As shown Package Contents:

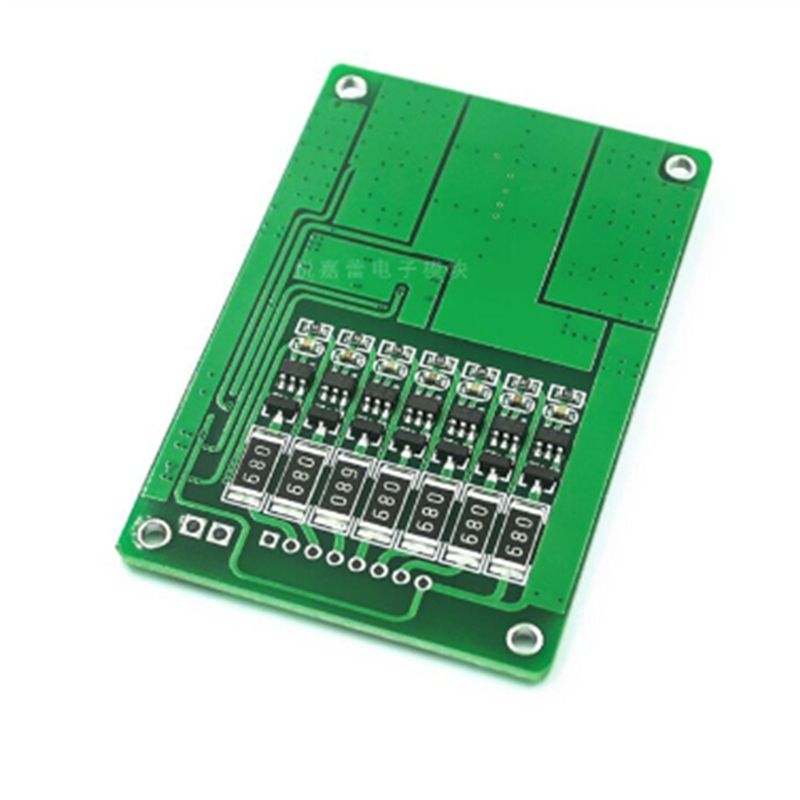

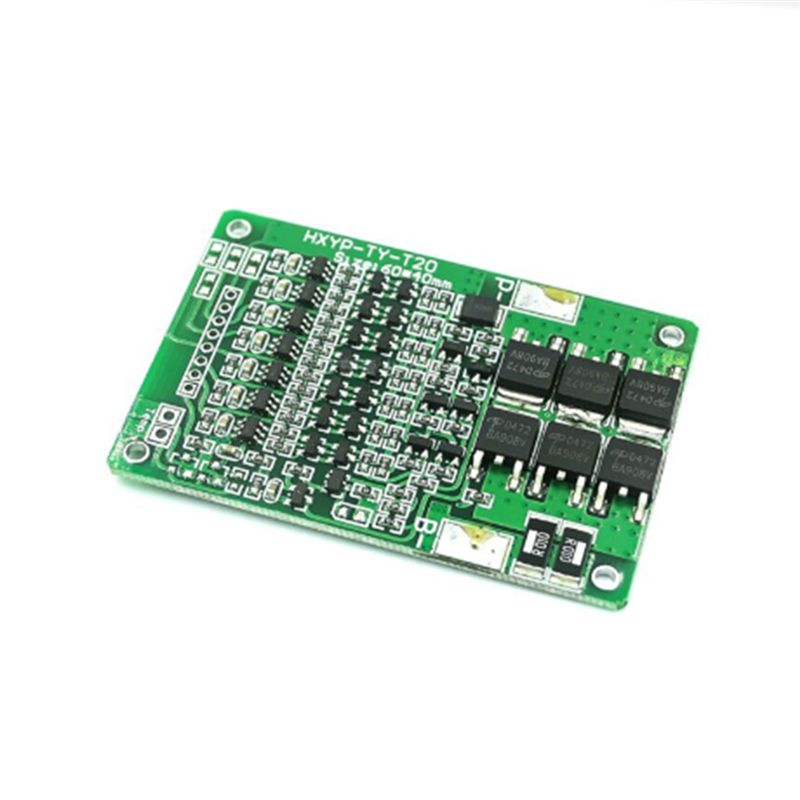

1 x protection board Only the above package content, other are not included.
Note: Light and different displays may cause the color of the item in the a little different from the real . The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
7s bms
18650 charger module
18650 cells
lithium 18650 protection board
18650 protection board
The details are as described above
What's In the Box
1 x protection board
