Overcharge and discharge protection to prevent overcharge and discharge of the battery. Overcurrent protection to prevent abnormal high current of battery
Balance protection, battery voltage balance, make battery life Stable heat dissipation, stable heat dissipation of the aluminum substrate, safety protection absorbs anti-high voltage, reduces MOS tube breakdown, ultra-low internal resistance MOS
Suitable for most electric tools on the market, electric , electric bicycles, electric tricycles, electric motorcycles, electric vehicles, electric tools, etc. Product name: lithium battery protection board
Model: 7 series 25A, same port, with equalizing protection
Product type: 7S 25A same port
Discharge current: 25A
Discharge overcurrent protection value: 3-5 of continuous current
Internal resistance of main circuit conduction:Less than 20m ohm
Charging current [same port]: 25A
Charging voltage: string number of ternary battery pack X4.2V
Overcharge protection: ternary 4.25 ± 0.03V
Equalizing voltage: ternary 4.18V
Over discharge voltage protection: ternary 2.8 ± 0.1V
Overdischarge current protection: ternary 150mV
Working power consumption:Less than 40uA
Short circuit protection detection delay: 200us
Applicable product: ternary polymer solar street lamp

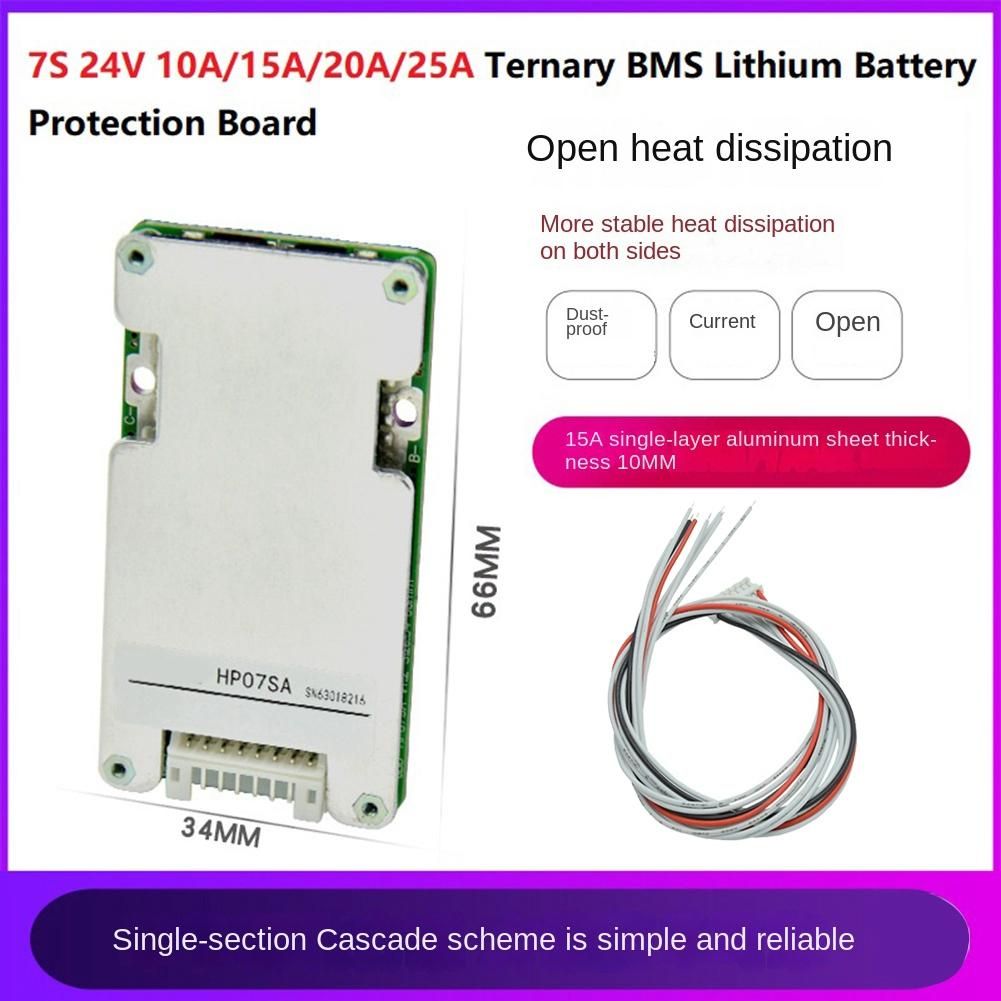

Product size: 65 x 33 x 10mm
Colour:silver
Material:PCB+Metal Package Contents:
1 x Battery protection board
1 x flat cable Only the above package content, other are not included.
Note: Light reflection and different displays may cause the color of the item in the a little different from the real . The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
battery protection board
7S 24V
BMS
Ternary battery protection
Lithium Battery Protection Board
The details are as described above
What's In the Box
1 x Battery protection board
1 x flat cable
