Features:【Recovery&Reset Function】When the single-phase circuit has an undervoltage, when the current is faulty, the line is cut off, and when it returns to normal,temporary consumption can be reset.
【Clear Display】This Electric Meter Single Phase Energy KWh Meter has voltage,current ,, frequency and factor display to offer convenient use.
【High Accuracy】Electricity energy meter adopts microelectronics and digital processing technology to measure electric energy, accurate and reliable.
【Multi-field Application】This ac meter is built in transformer which can meet the load maximum current 80A. It can be used in school, market, home, industry, laboratory and other fields. Attention: This energy meter can only use to measure 50/60HZ AC city electricity.

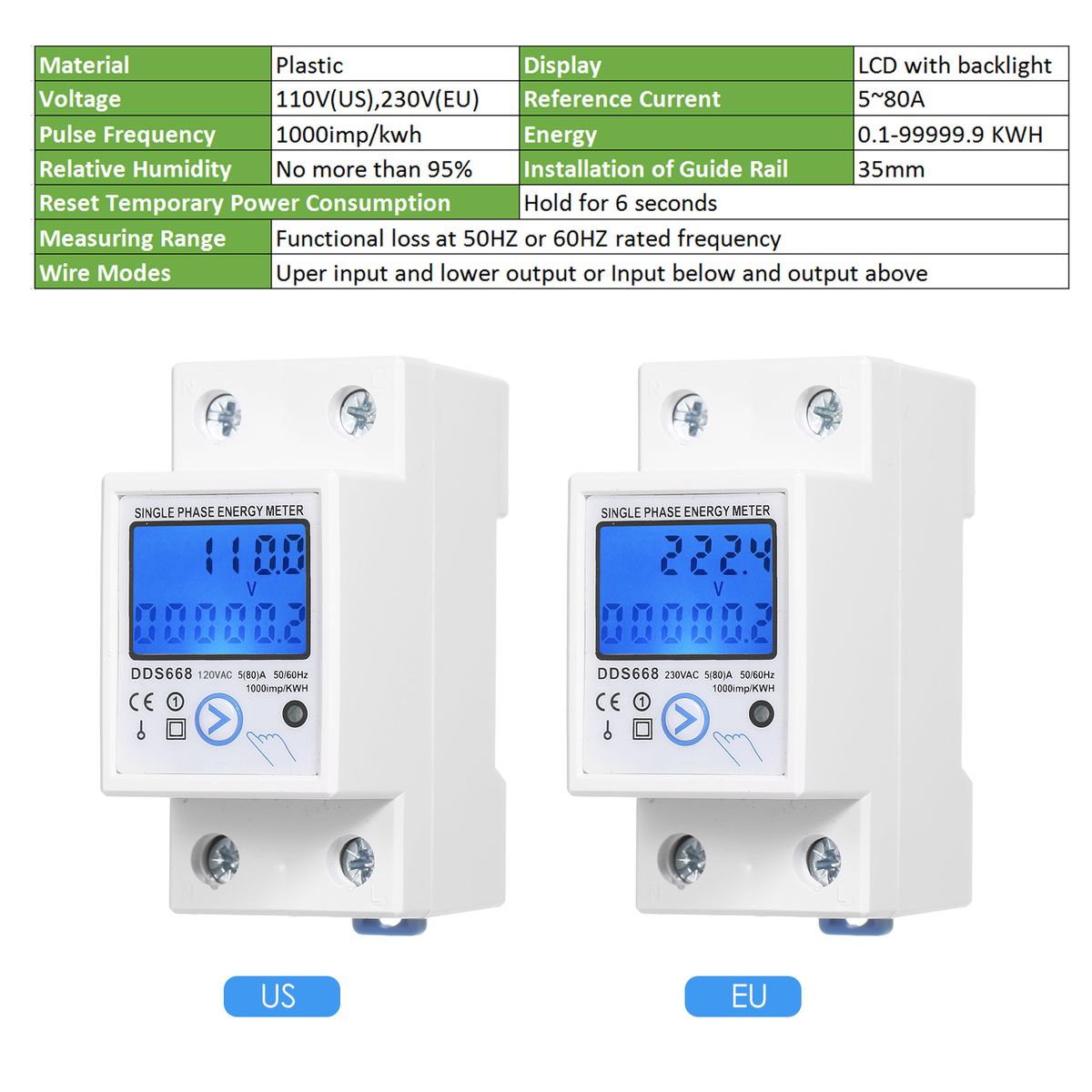

Specifications:Voltage: AC 120V / AC230V (Optional)
Display: With Backlight
Material: Plastic
Model: DDS668
Reference Current: 5~80A
Energy: 0.1-99999.9 KWH
Environment Temperature: -20~+50℃ / -68~+122℉

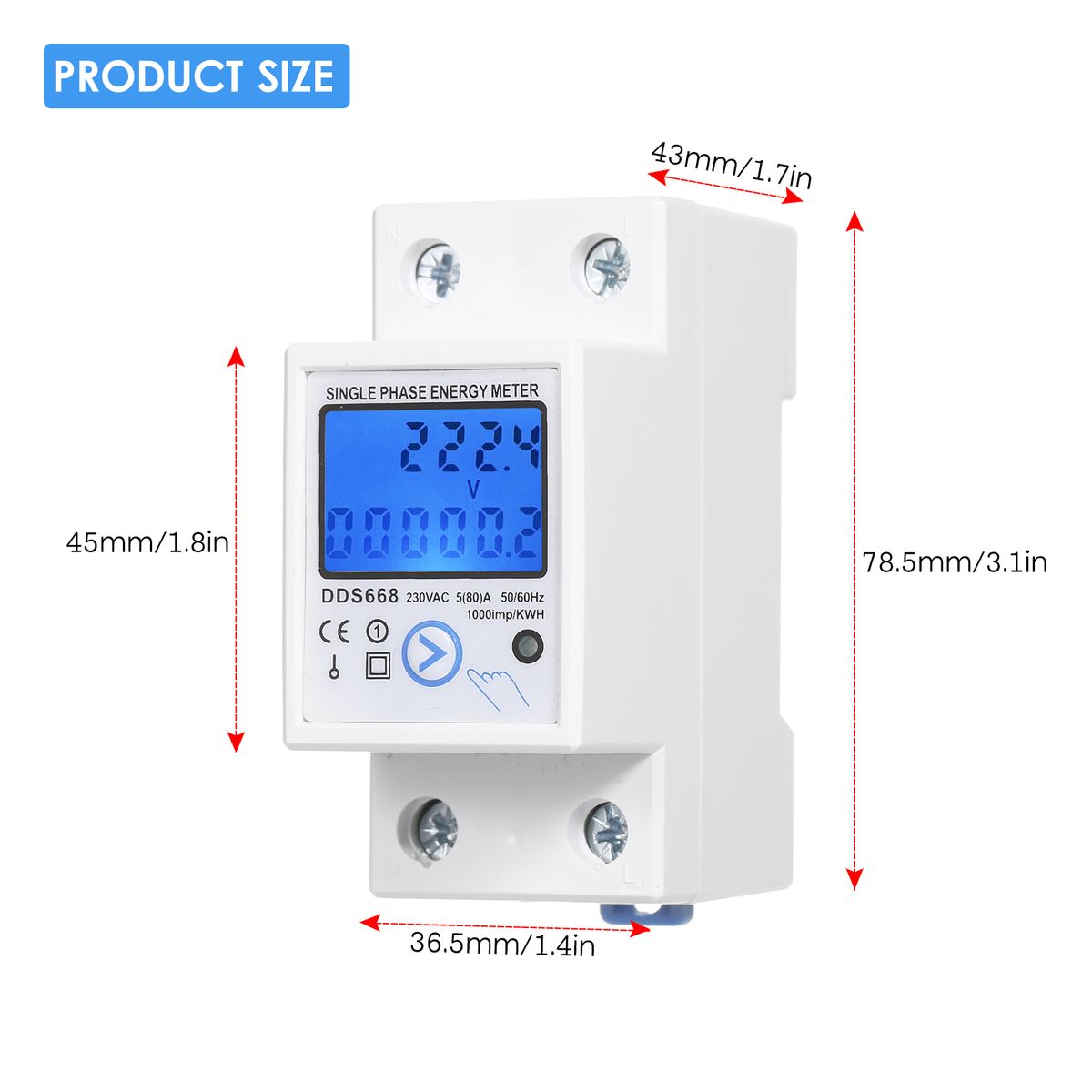

Pole Width: 17.5mm/0.69in
Package Size:9*7.2*4.3cm / 3.54*2.83*1.69in
Package Weight: 128g / 4.5oz
Package List:1 * Energy Meter
4 * Seal Cap
1* User manual
Key Features
【Recovery&Reset Function】When the single-phase circuit has an undervoltage, when the current is faulty, the line is cut off, and when it returns to normal,temporary consumption can be reset.
【Clear Display】This Electric Meter Single Phase Energy KWh Meter has voltage,current ,, frequency and factor display to offer convenient use.
【High Accuracy】Electricity energy meter adopts microelectronics and digital processing technology to measure electric energy, accurate and reliable.
【Multi-field Application】This ac meter is built in transformer which can meet the load maximum current 80A. It can be used in school, market, home, industry, laboratory and other fields. Attention: This energy meter can only use to measure 50/60HZ AC city electricity.
【Recovery&Reset Function】When the single-phase circuit has an undervoltage, when the current is faulty, the line is cut off, and when it returns to normal,temporary consumption can be reset.
【Clear Display】This Electric Meter Single Phase Energy KWh Meter has voltage,current ,, frequency and factor display to offer convenient use.

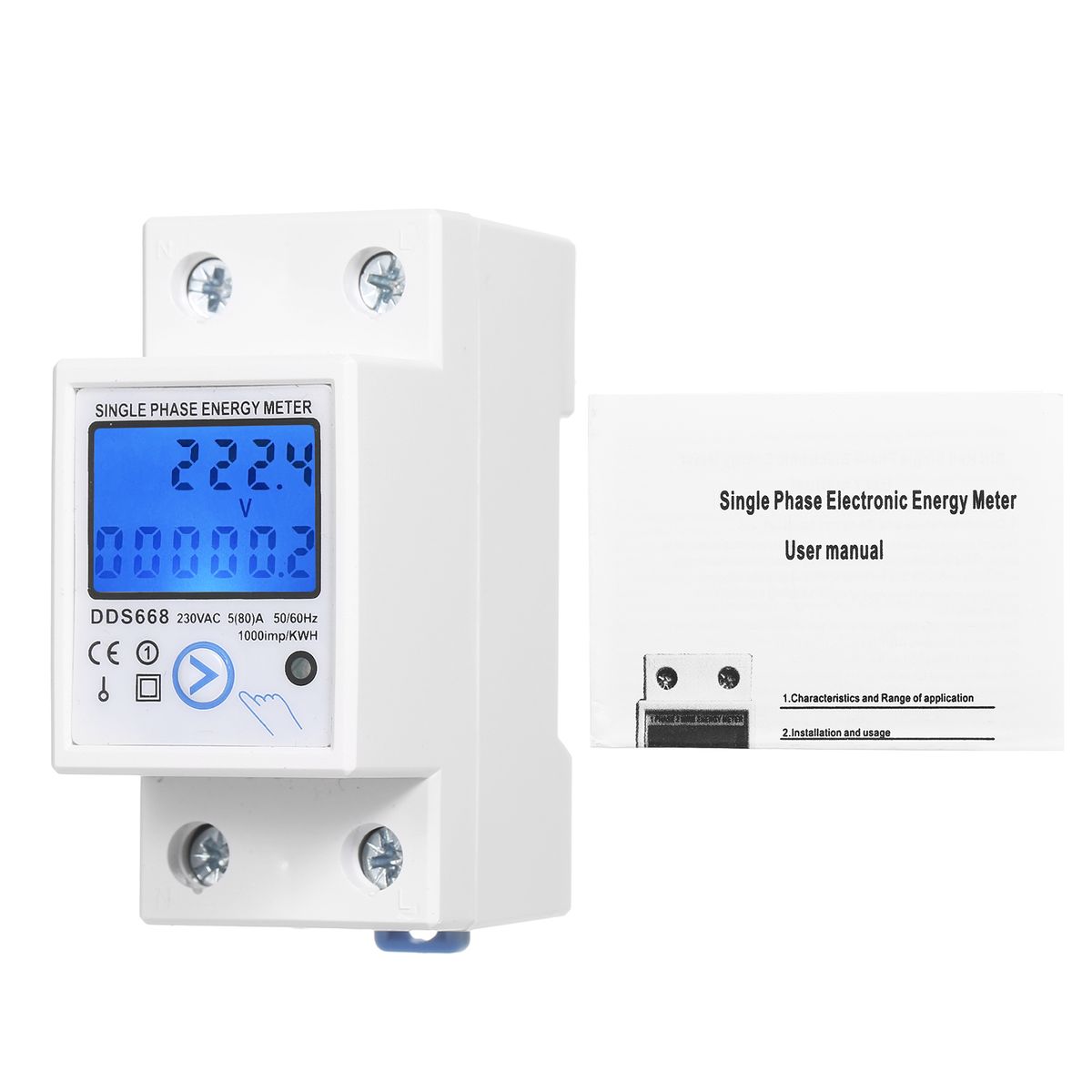

What's In the Box
1 x Energy Meter,4 x Seal Cap,1x User manual
