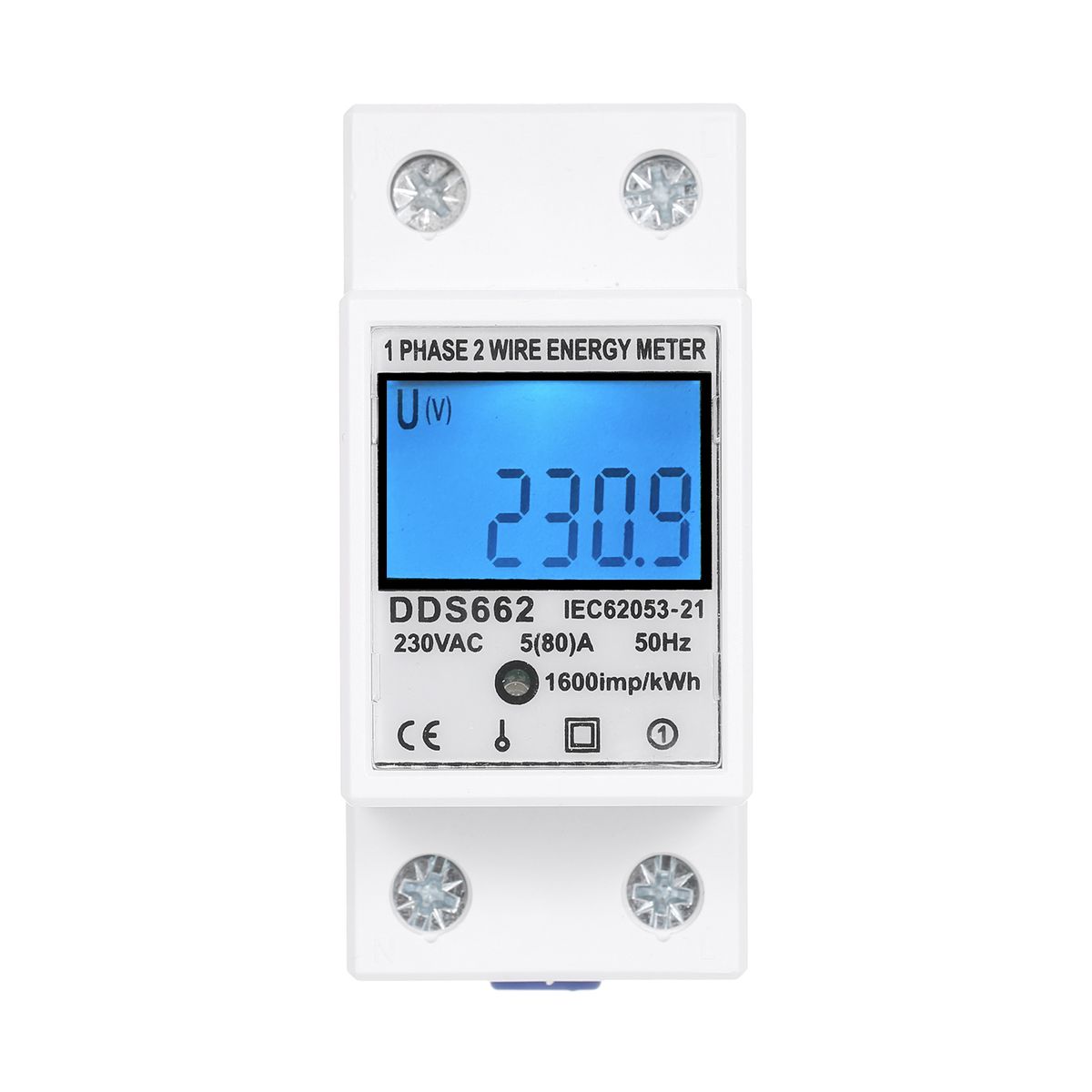

The single phase electronic energy meter is a kind of new style single phase whole electronic type meter, and adopt up to date micro-electronics technique and special large scale intergrate circult.
Features:【LCD Display】The energy meter can measure the positive active energy in the energy measurement, which can be clearly displayed through the LCD screen.
【Stable Performance】The internal integrated circuit is manufactured by precision SMT technology and has strong anti-electromagnetic interference capability.
【Multi-Function】It displays electricity, voltage, current, frequency, factors.
【High Quality】It is made of high-quality materials，with the features of good reliability, small size, light weight, beautiful appearance and easy installation.
Tips: This product has no reset button.

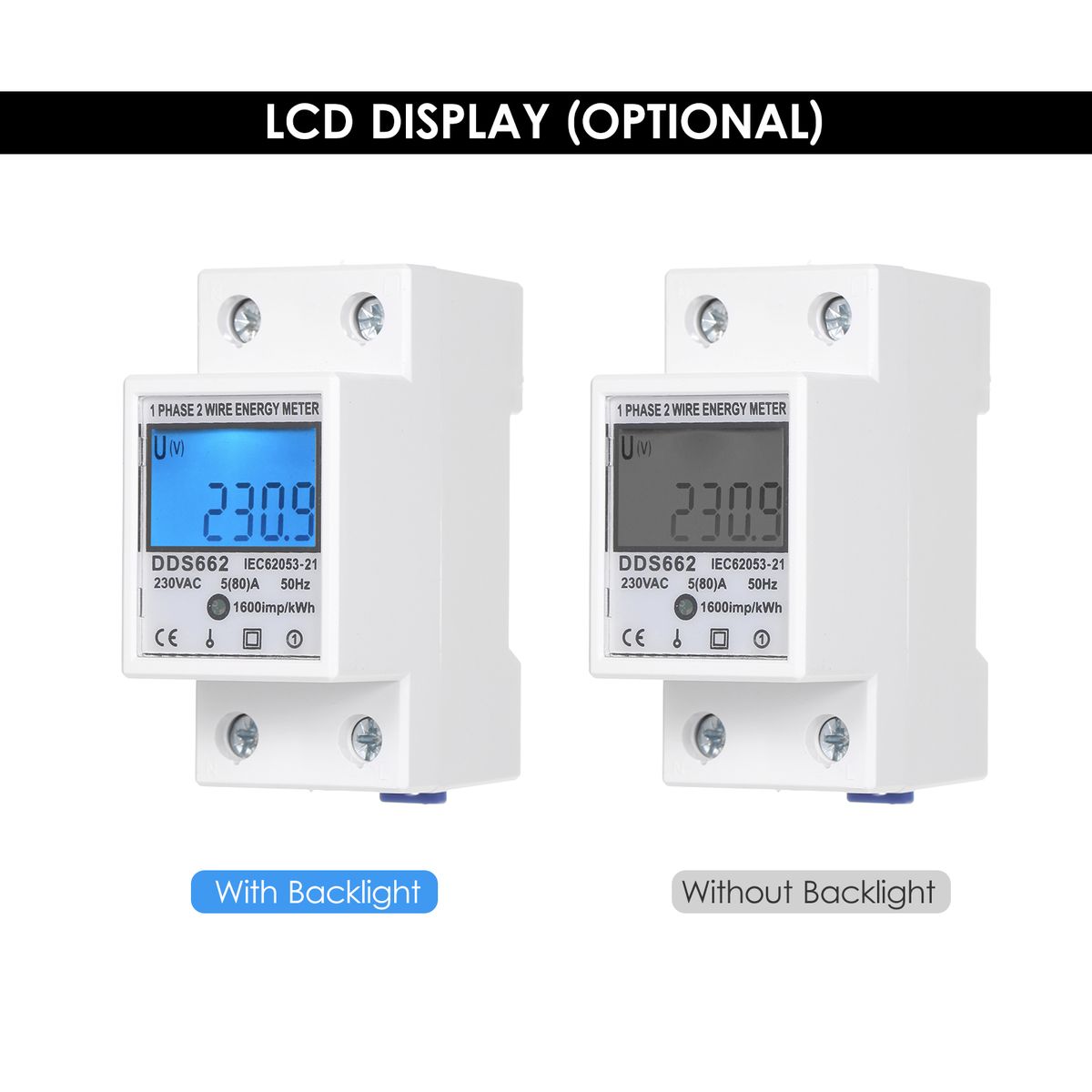

Specifications:Type: With backlight / Without backlight (Optional)
Material: Plastic
Model: DDS662
Voltage: AC 230V
Reference Current: 5~80A
Energy: 0.1-99999.9 KWH
: 0.1-17000W
Insulating Property: 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage

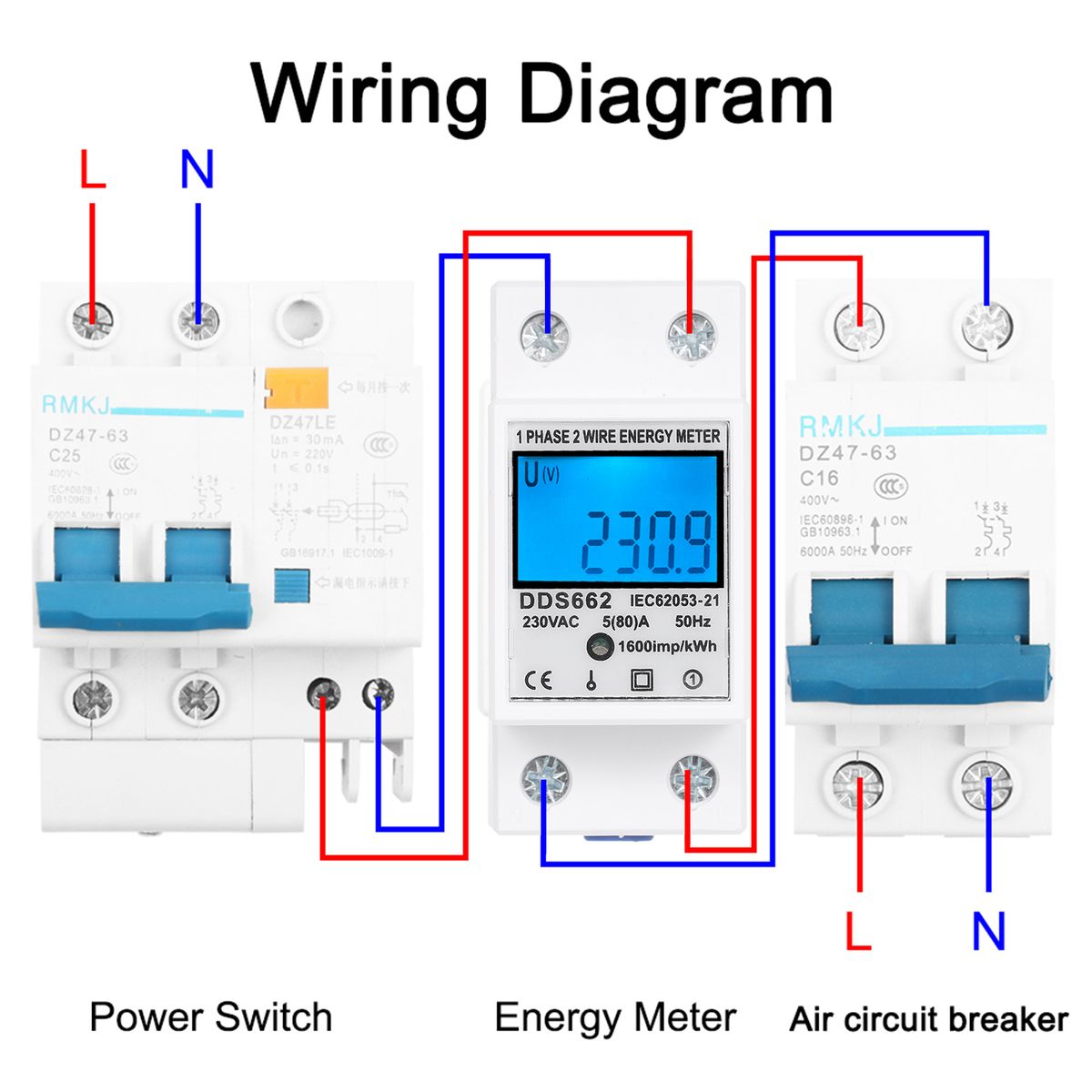

Wiring Method: Up-out and down-in/up-in and down-out
Environment Temperature: -20~+50℃ / -68~+122℉
Pole Width: 17.5mm/0.69in
Package Size:9*7.2*4.3cm / 3.54*2.83*1.69in
Package Weight: 128g / 4.5oz

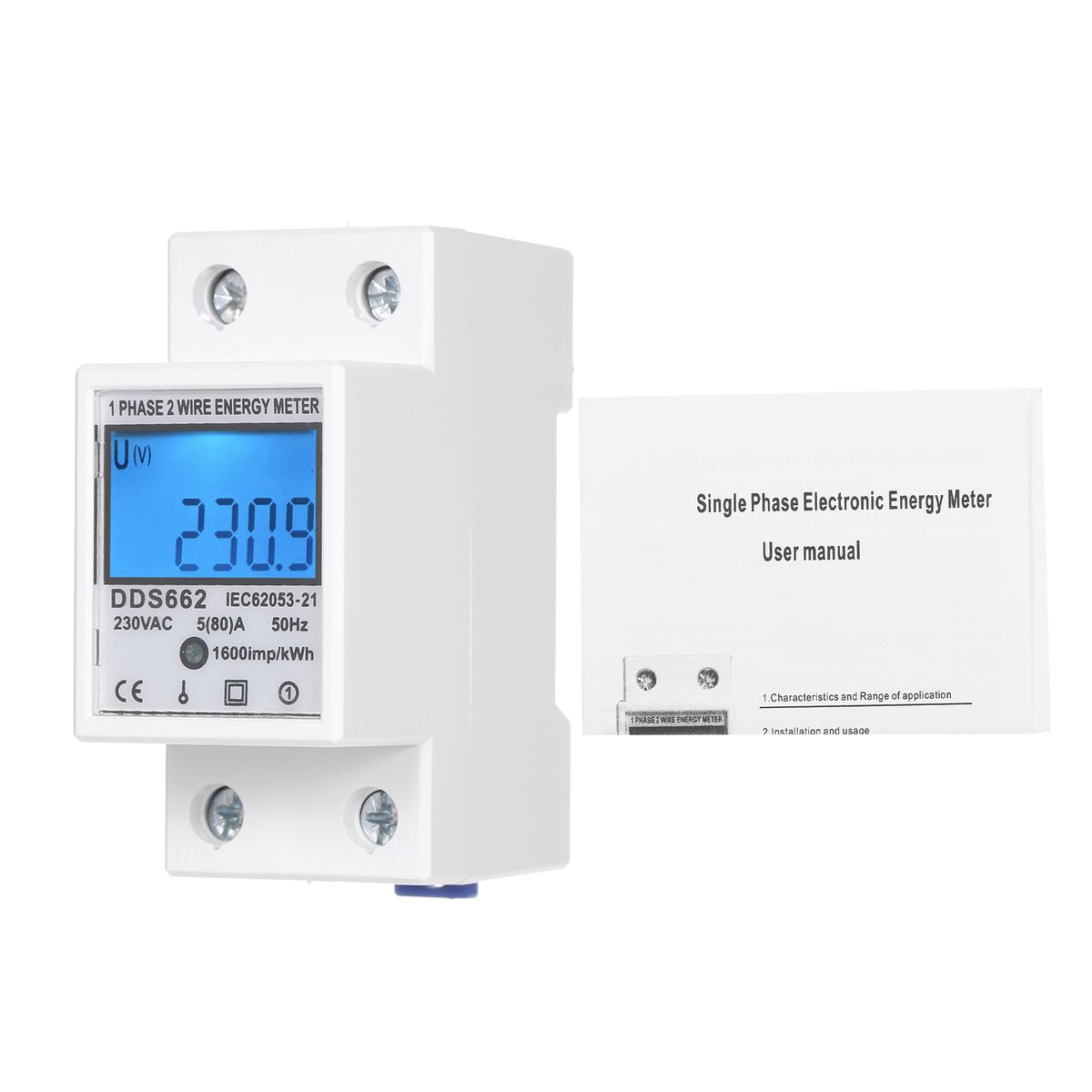

Package List:1 * Energy Meter
4 * Seal Cap
1* User manual
Key Features
【LCD Display】The energy meter can measure the positive active energy in the energy measurement, which can be clearly displayed through the LCD screen.
【Stable Performance】The internal integrated circuit is manufactured by precision SMT technology and has strong anti-electromagnetic interference capability.
【Multi-Function】It displays electricity, voltage, current, frequency, factors.
【High Quality】It is made of high-quality materials，with the features of good reliability, small size, light weight, beautiful appearance and easy installation.
【LCD Display】The energy meter can measure the positive active energy in the energy measurement, which can be clearly displayed through the LCD screen.
【Stable Performance】The internal integrated circuit is manufactured by precision SMT technology and has strong anti-electromagnetic interference capability.
What's In the Box
1 x Energy Meter,4 x Seal Cap,1x User manual,
