A2212 2200KV Brushless Motor 30A ESC XT60 Plug SG90 9G30A Brushless speed controller ESC MultiCopter Quad-rotor X-copter

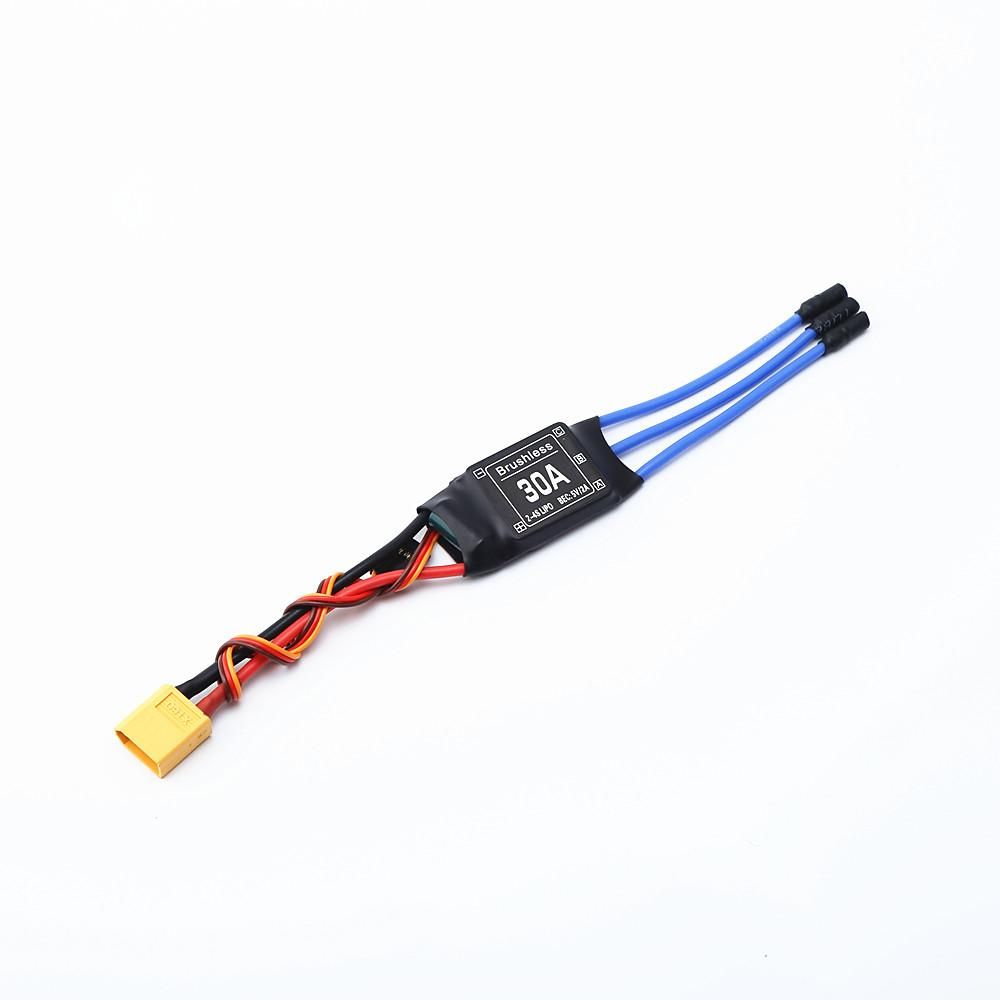

Specification: Compatible with: 400-450 helicopters / Aircraft or Quad-Rotor Multi RC Helicopter
Output: Continuous 30A, Burst 40A up to 10 Secs.
Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery. BEC: 2A / 5V (Linear mode). Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
With T plug and 3.5mm banana connectors. Note: This ESC is not able to flash the firmware.
Color: Multicolor
Material: plastic+metal

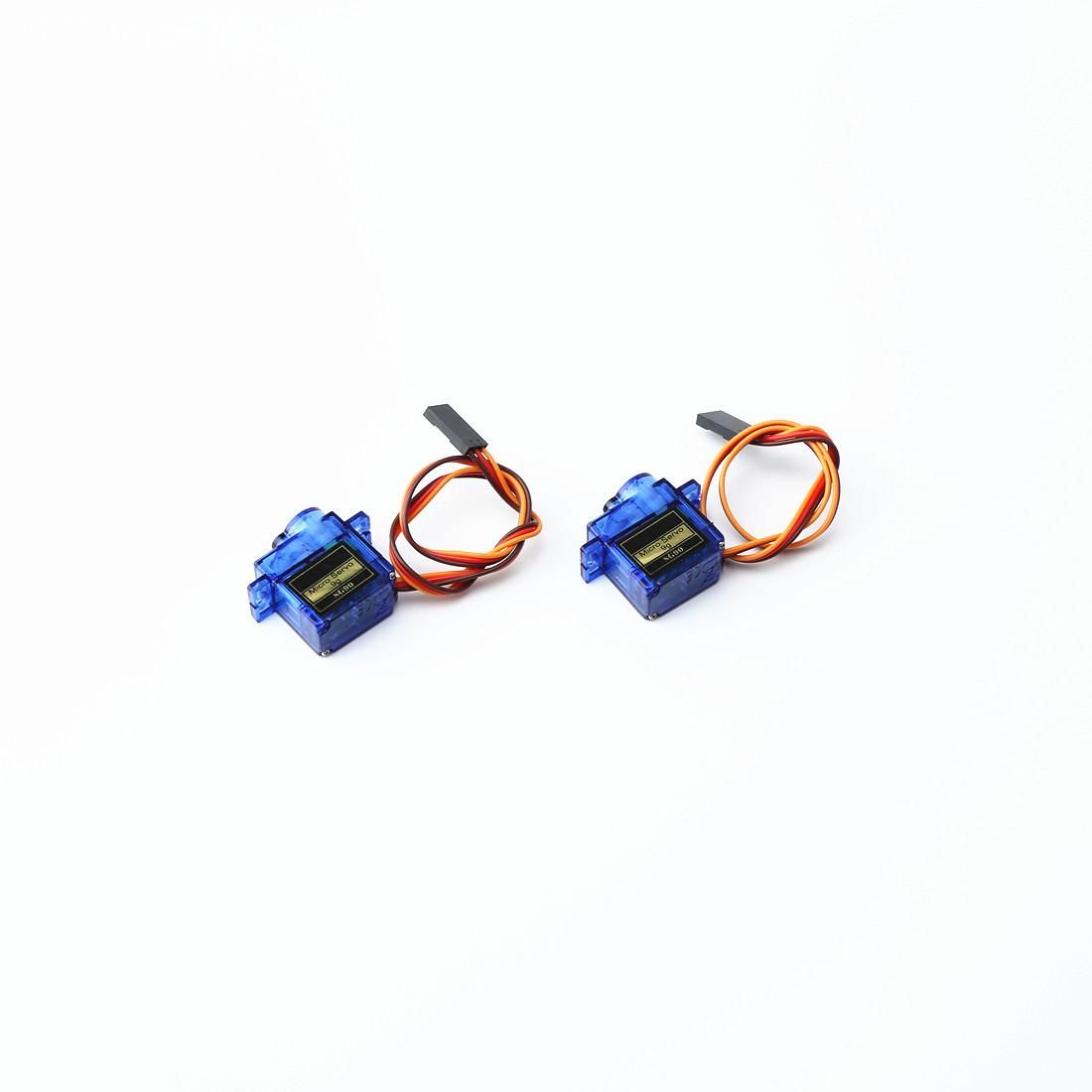

SG90 9G Micro-Servo:
This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.
Key features:
Translucent body
Lightweight
Less noise
SG90A 9G servo parameters:
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V

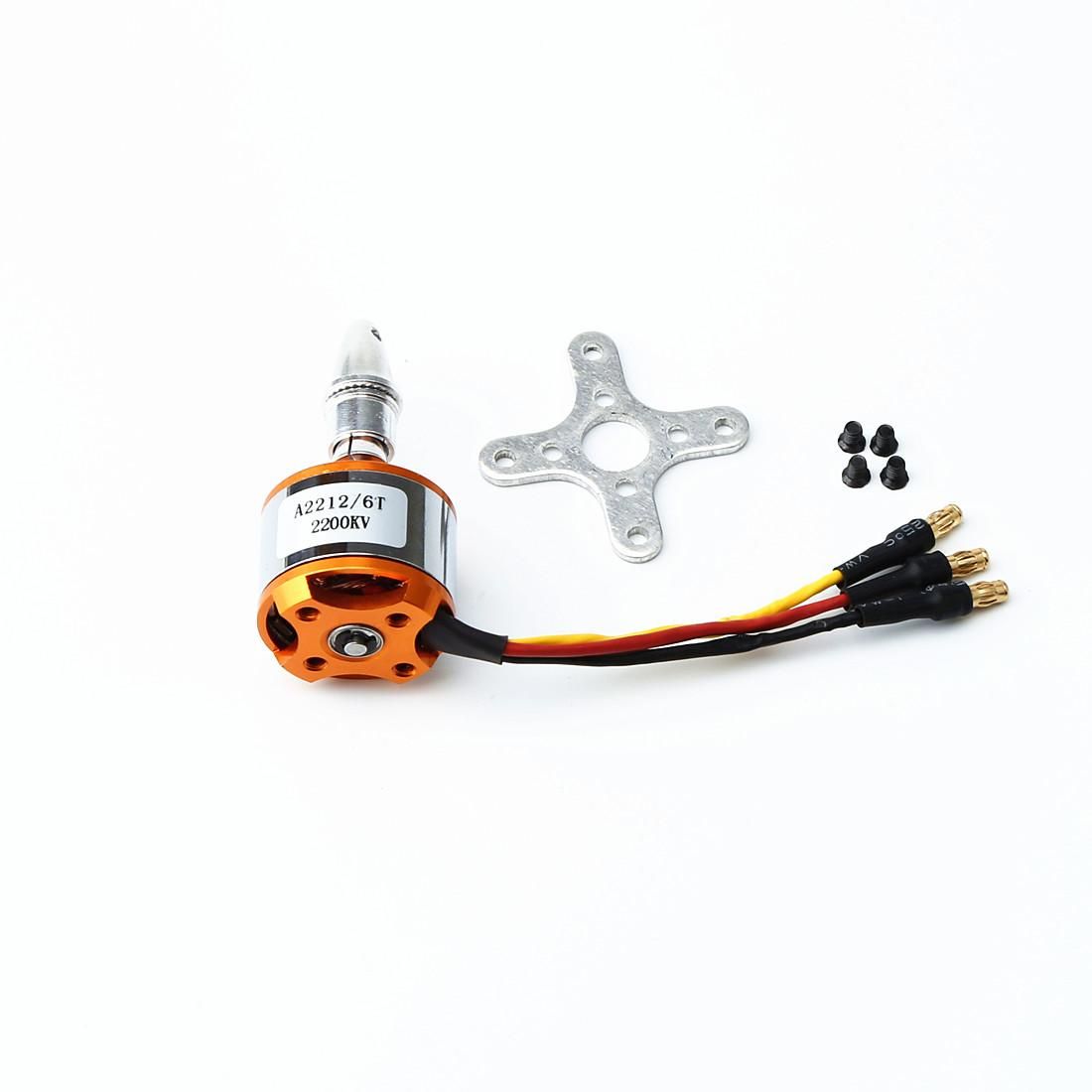

A2212 2200kv Motor Specification:
KV: 2200
Ri(M Ω): 0.033
Battery: 2-3Li-Po
Max Power: 342W
Test Prop: 7x3/7x4
Motor Size: 27.5x38mm/1.08 inchx1.5 inch
Shaft Diameter: 3.17mm/0.12 inch

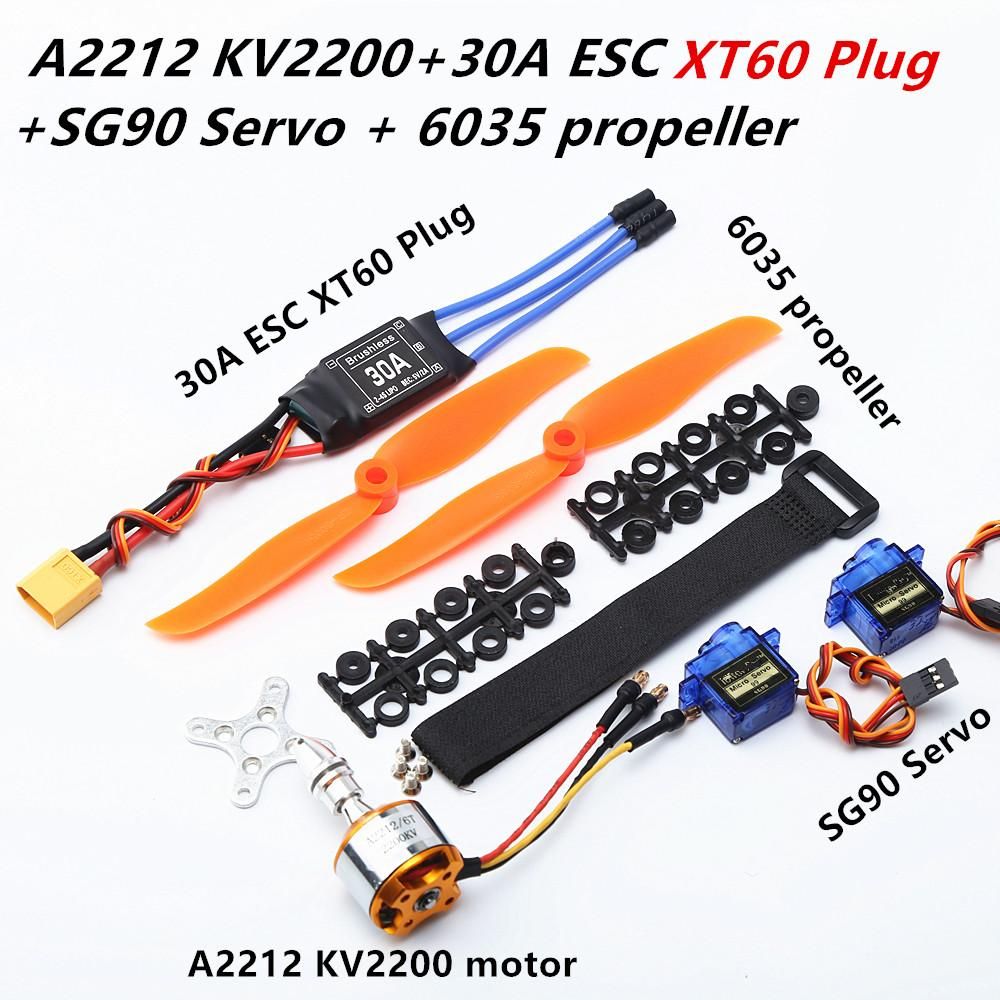

Package Contents:
1 x 30A Brushless ESC
1 x A2212 2200kv Motor
2 x SG90A 9G servo
1 x Accessories Set
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
