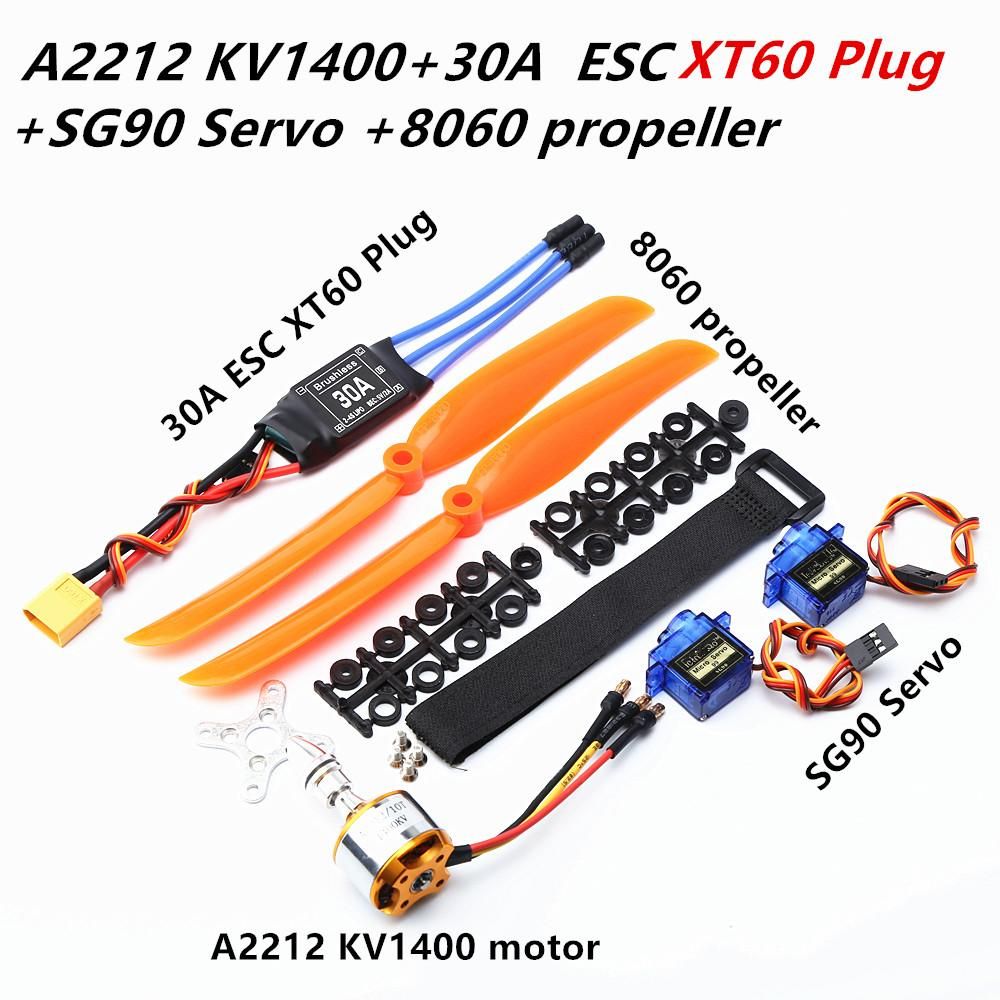

A2212 1400KV Brushless Motor 30A ESC XT60 Plug SG90 9G30A Brushless speed controller ESC MultiCopter Quad-rotor X-copter

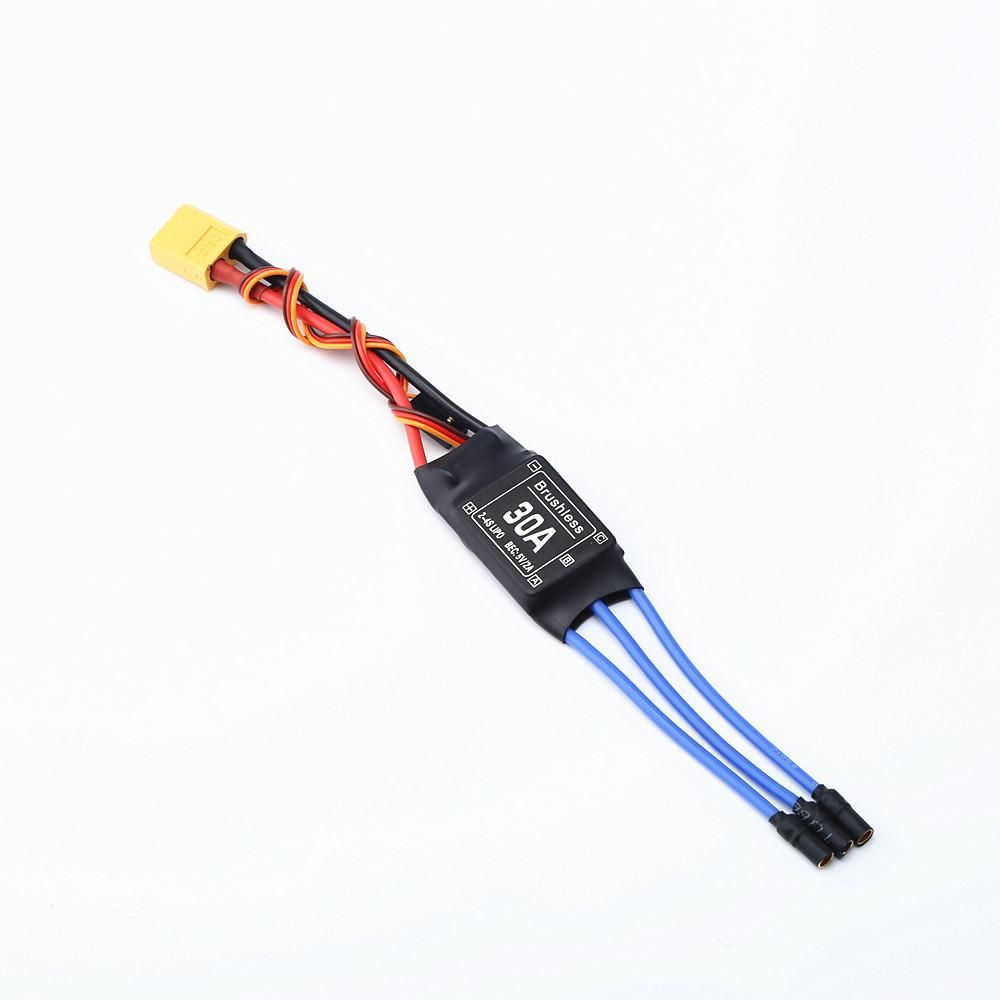

Compatible with: 400-450 helicopters / Aircraft or Quad-Rotor Multi RC Helicopter. Output: Continuous 30A, Burst 40A up to 10 Secs.
Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
BEC: 2A / 5V (Linear mode). Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor) With XT60 Plug and 3.5mm banana connectors
SG90A 9G Mini Servo : This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.
Key features:
Translucent body
Lightweight
Less noise
SG90A 9G servo parameters:
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V

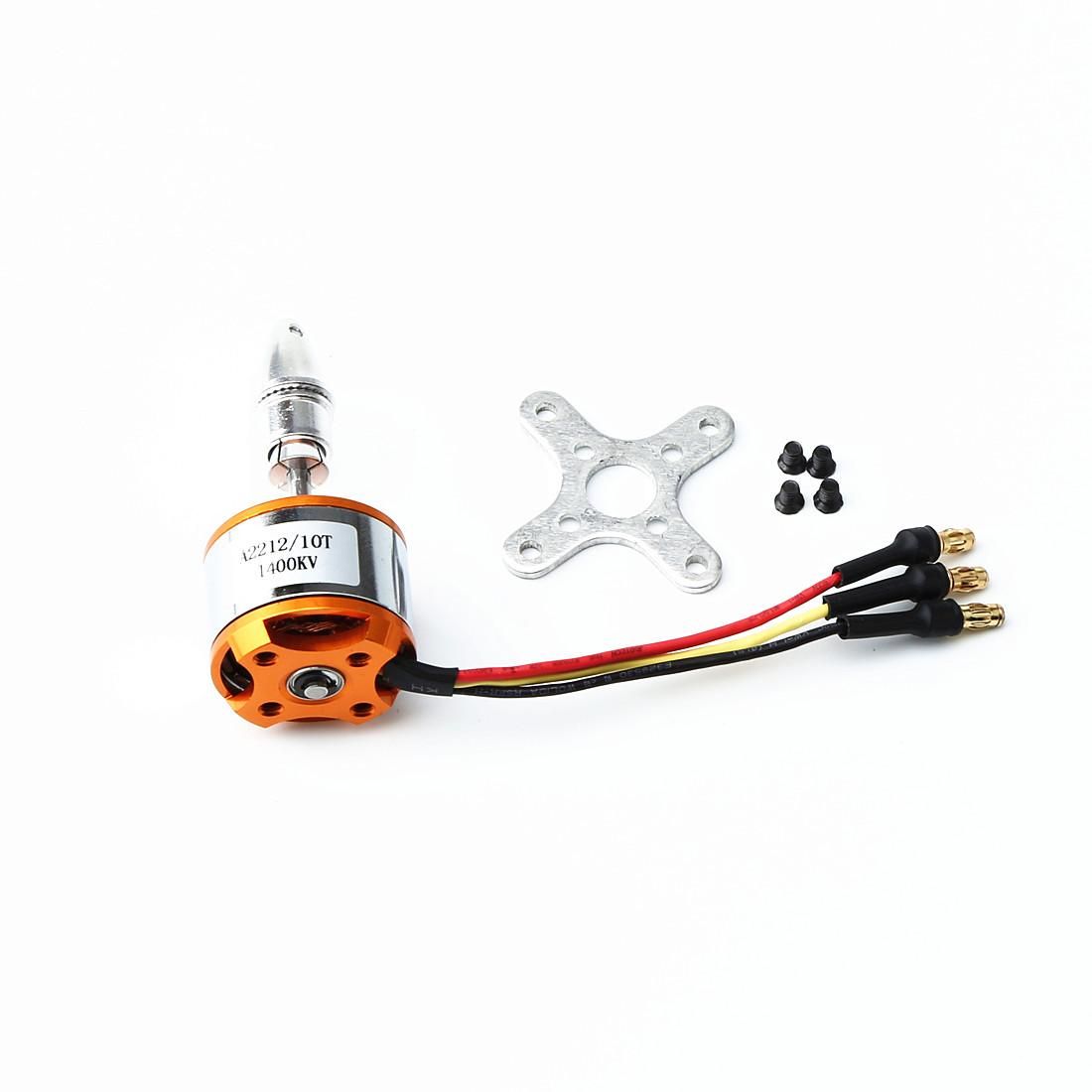

A2212 1400kv Motor Specification:
KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A ( Greater than 75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm
Weight: 47g
size:about 5x3.6x1.5cm
Material:Plastic + Metal
colour:Multicolor

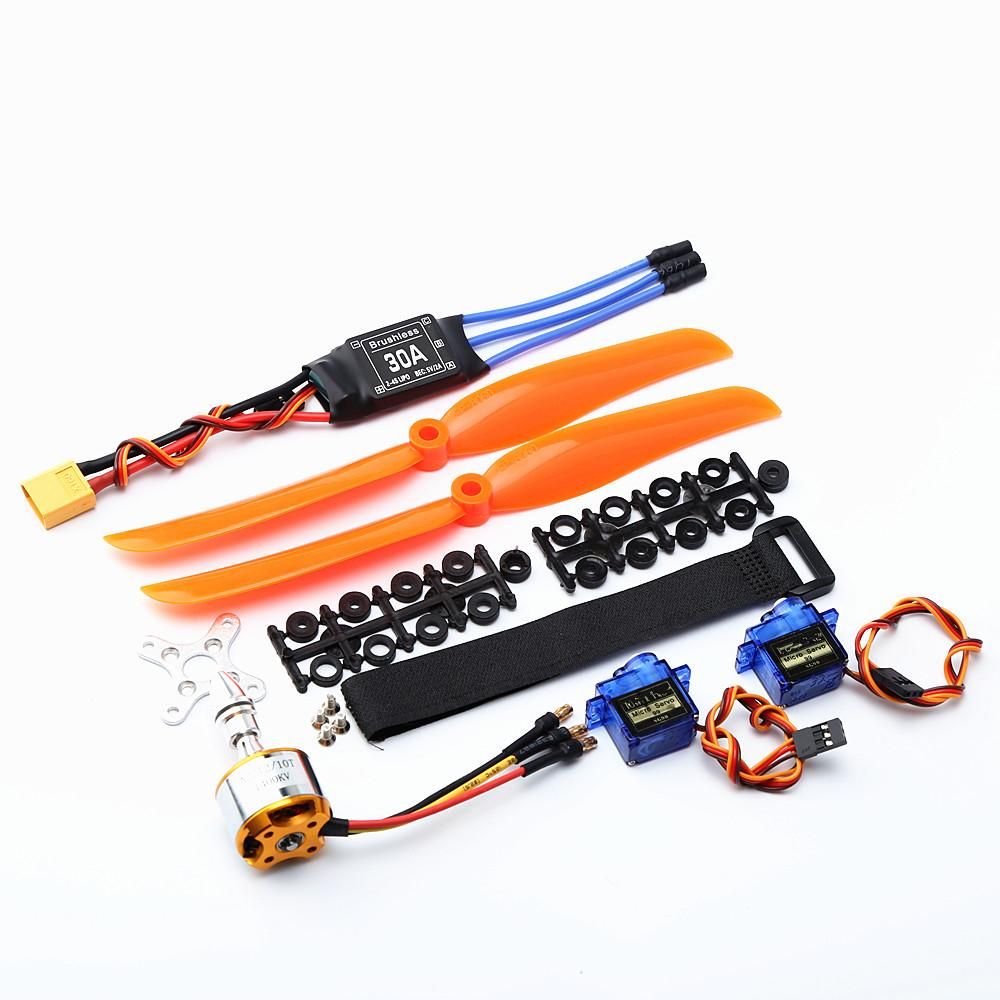

Package Contents:
1 x Motor
1 x ESC
2 x Servo
2 x paddle
1 x Magic Belt
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
About Us
We provide the good product with the best price,we support Wholesale/Drop Shipping Order
1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it.
2. For Wholesale/Drop Shipping orders, if you have any ideas about the price or package,please contact us in advance,we will give you the best service to satisfy your demands.
About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
3. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! !
Key Features
A2212 Motor 40A ESC
SG90 9G Mini Serv
2212 Motor 40A ESC Servo
Brushless Motor&ESC

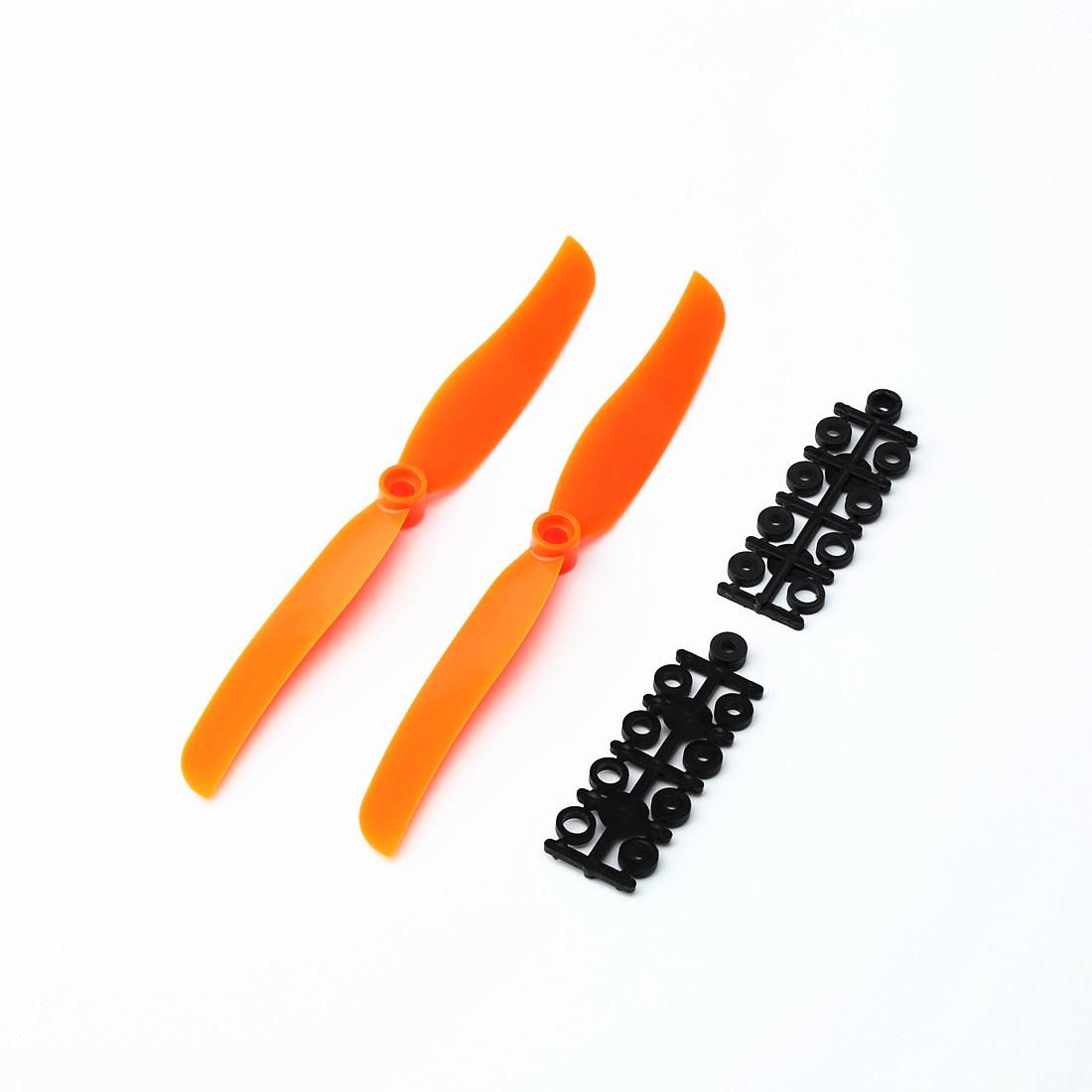

8060 Propeller SG90 9G Mini Servo
What's In the Box
1 x Motor
1 x ESC
2 x Servo
2 x paddle
1 x Magic Belt
