Buy 80W High Pressure Mini Diaphragm Water Pump 12v 24v Self

80W High Pressure Mini Diaphragm Water Pump 12v 24v Self Priming 5.5LPM 130psi

₦ 49,563.18 ₦ 52,171.77 -5%

0 No Reviews

Product SKU: RENG416855

Brand: Generic

Variants

12v pressure switch type 12v return valve type 24v pressure switch type 24v return valve type

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	NL0142YD-12-80
Production Country	China
Size (L x W x H cm)	19x10x13
Weight (kg)	0.7
Color	black
Main Material	TPV, PA66. PPS, POM,SUS,metal
Care Label	must use matched power adaptorpump inlet port must use filter.

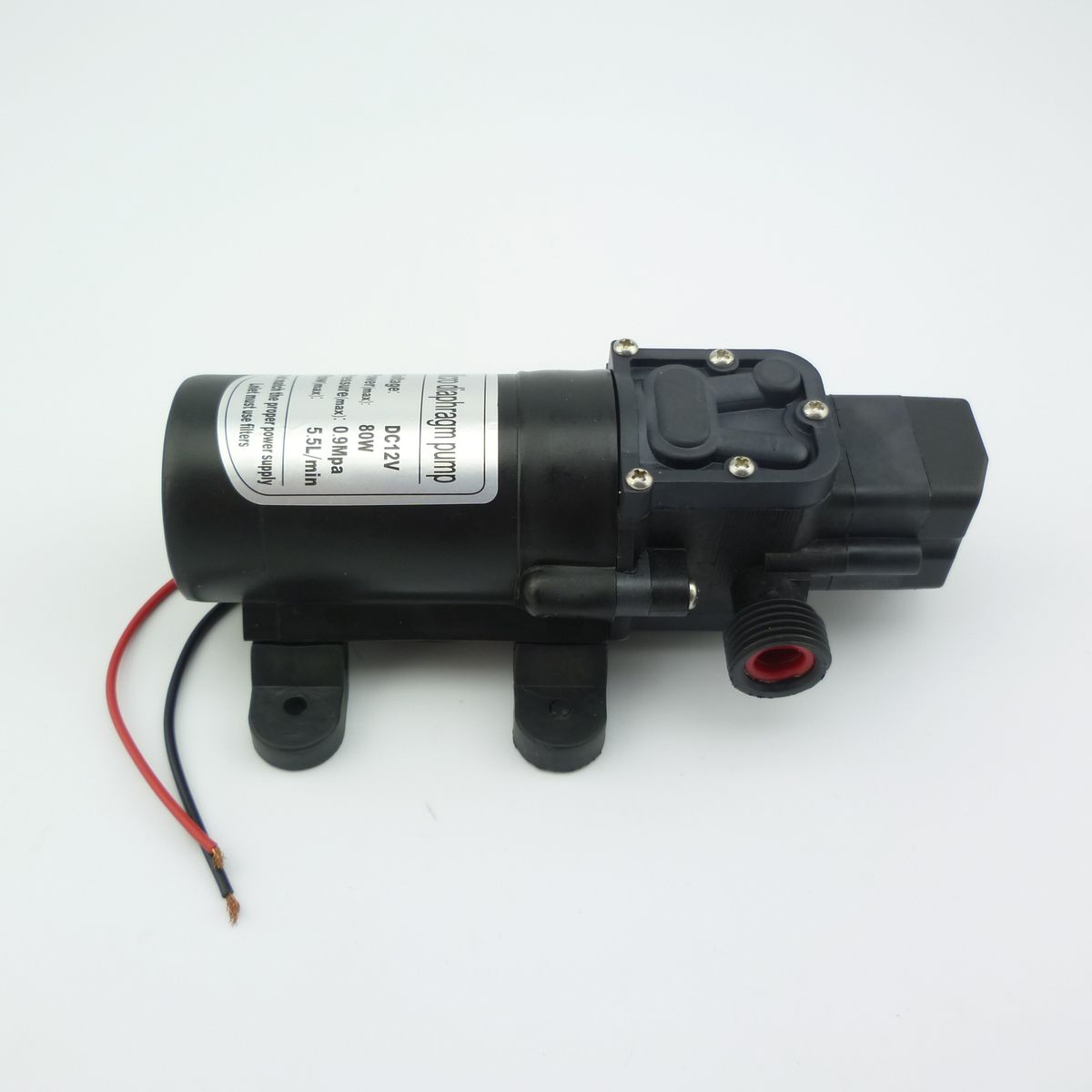

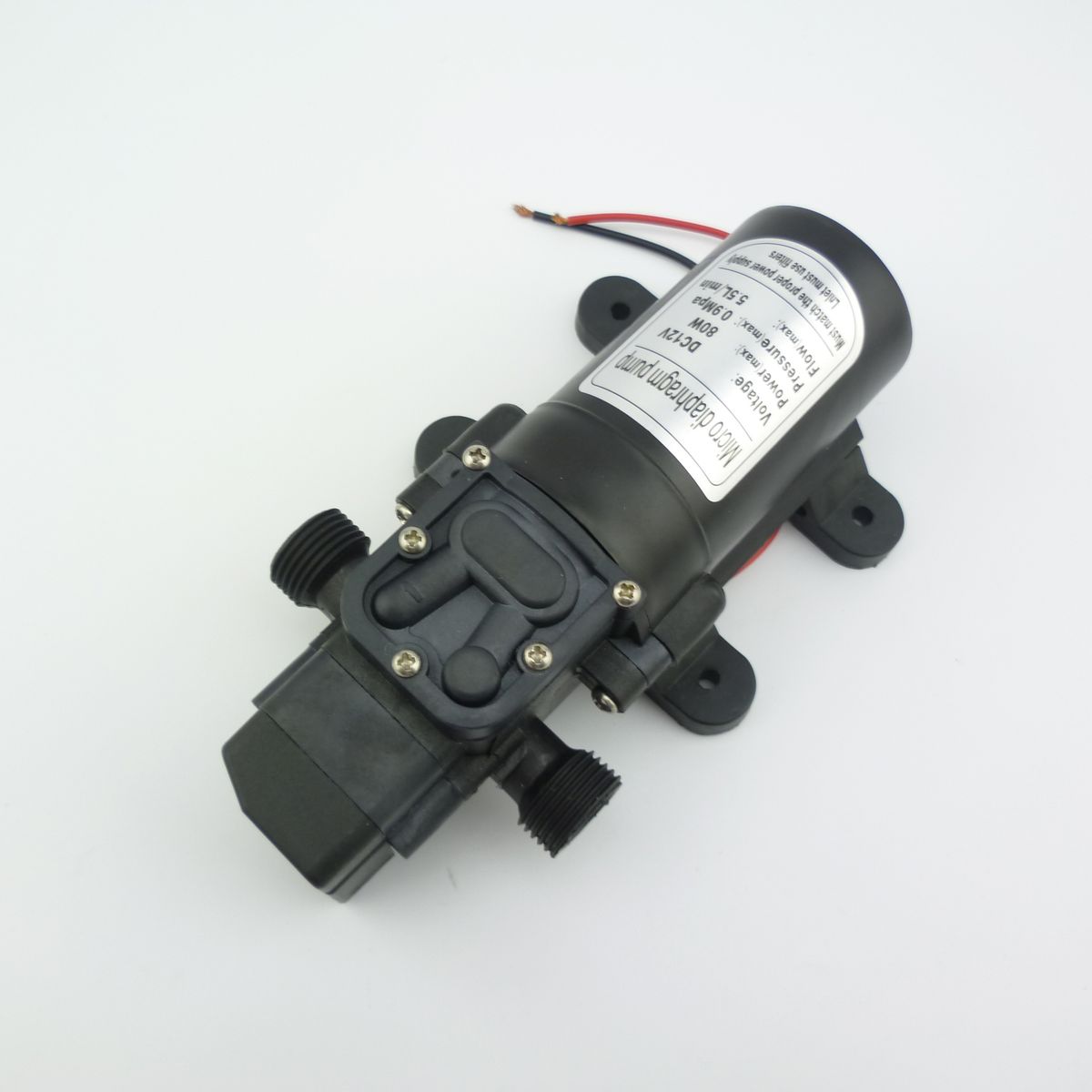

DC 80W 5.5LPM 130psi High Pressure mini water pump 12v 24v self priming diaphragm pump automatic pressure switch control
Specification
Product name: dc water pump 12v
Voltage: dc12v (24V also in stock)
power: 80w
open flow rate: 5.5L/Min
Working pressure: 79.75PSI (5.5bar)
Max pressure setting: 130.5PSI (9bar)
Allowed medium temperature:0-70 centigrade
Suction vertical height: 1.5m
Lift: 55m
Range: 8m
Color: black
Specifications: 165mm(L) X 95mm(W) X 60mm(H)
Weight:0.8kg
Corrosion resistant
protection valve: automatic pressure switch type and return valve type for choosing
Rubber bracket can absorb shock when pump working

difference of automatic pressure switch type pump and return valve type pump
Automatic pressure switch type(automatic start-stop, power saving )
When you close water pump's outlet, it will cut off the power and stop automatically.
When you open water pump's outlet, it will start working automatically.
This type has strict requirements on the size of water outlet port( advice diameter>1.5mm / 1.8mm), otherwise it can't work properly or even been damaged

Return valve type
When you close water pump's outlet, maximum pressure value be reached, the motor will not stop working, but the return valve opens, water will circulate in the pump.
This type have no strict requirement on the diameter of water pump's outlet terminal end.

Key Features

It is a self priming high pressure dc water pump
Voltage: 12V and 24v for choosing ,Power: 80W,
Suction vertical height: 1.5m ,head: 55m
Size: Approx. 165 x 95 x 60mm (L*W*H) ,Allowed medium temperature:0-70 centigrade,
cut-off Pressure: 130.5psi (0.9mpa), working pressure:79.75psi (0.55mpa), Open flow rate(MAX):5.5L/min
automatic presure switch type or return valve type
Inlet and outlet port: G1/2 external thread

What's In the Box

1 x water pump
