Model |
NL3210YB-12-100FSK |
Production Country |
China |
Size (L x W x H cm) |
23x 13 x 10 |
Weight (kg) |
1.3 |
Color |
black |
Main Material |
TPV, PA66. PPS, POM,SUS,metal |
Care Label |
must use matched power adaptorpump inlet port must use filter. |

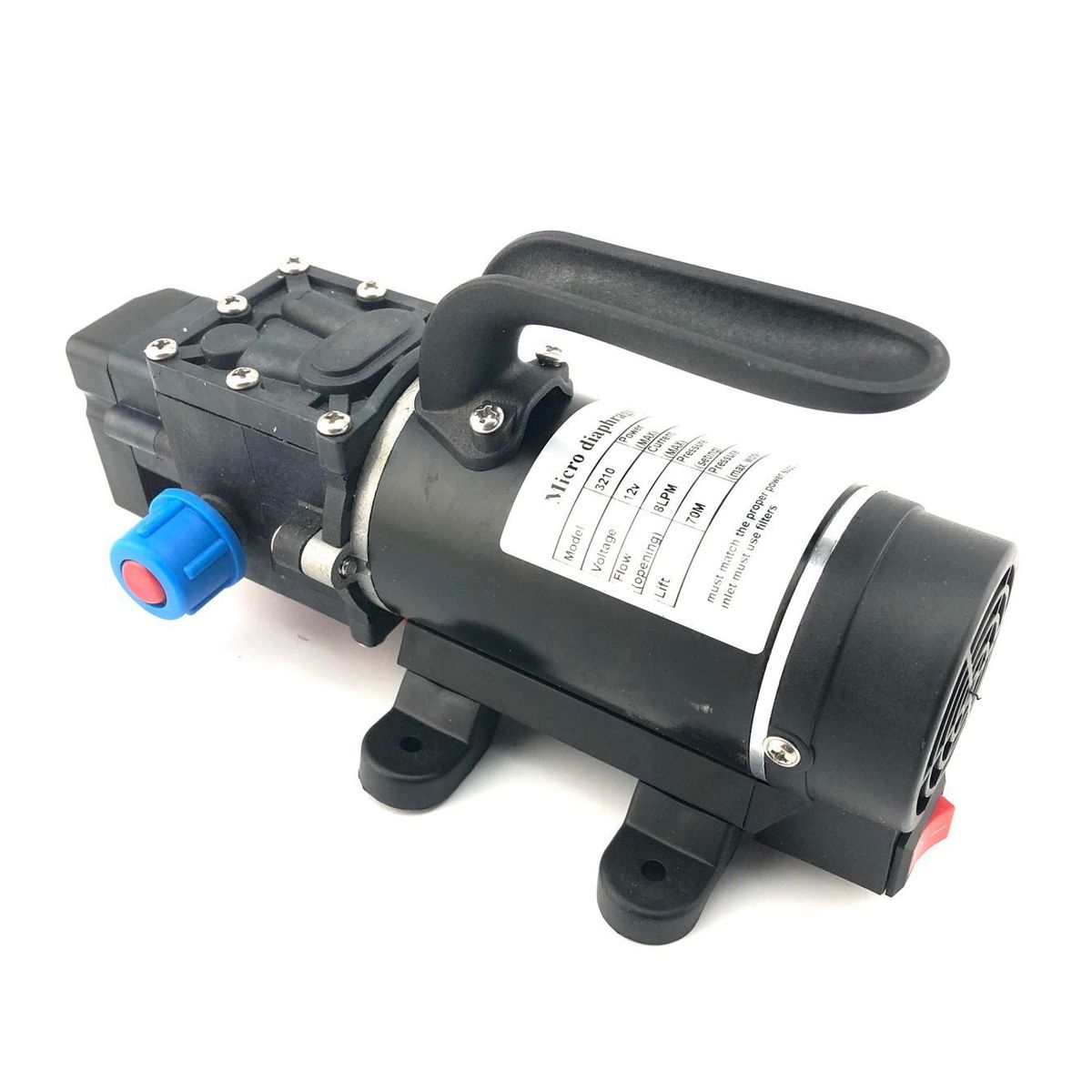

100w 8L/min 12v 24V water pump automatic pressure control electric high pressure mini dc self priming pumpProduct name: 12v electric high pressure mini dc self priming water pump 100w Voltage: dc12v (24v is also in stock) power: 100w flow rate: 8L/M Working pressure: 101.5PSI (7bar) Max pressure: 160PSI (11bar) Allowed medium temperature: 0-70 centigrade Suction distance: 1.5m Lift: 70m Range: 9m Color: black Protective valve type:automatic pressure switch control Specifications: 18.3cm(L) X 10cm(W) X7.5cm(H) Weight:1.3kg Corrosion resistant Rubber bracket can absorb shock when pump working Package Content
1 x Water Pump Applications(Multi-purpose)
Clean floor, carpet, car, air conditioner Home use for garden sprinklers, shower Agricultural purposes: spray for farm chemical, pesticide Water taps in the boat, caravan or motor home Increase piping pressure Automatic switch typeWhen you turn off water outlet, it will cut off the power and stop automatically.When you turn on water outlet, it will connect the power and run automatically.This type has strict requirements on the size of water gun outlet( advice 1.5mm / 1.8mm), otherwise it can't work properly or even been damaged.
Return valve type This type have no strict requirement on the size of water outlet. When the water outlet hole is too small or blocked, the motor won't stop running. The return valve will open and the water will cycle in the pump. Warm prompt: Pump must be used in dry condition, it can't be submerged in water. In winter, in case of forst crack, the water in the pump and pipe must be drained after using.
Key Features
It is a self priming high pressure dc water pump
Voltage: 12V and 24v for choosing ,Power: 100W,
Suction vertical height: 1.5m ,head: 70m
Allowed medium temperature:0-70 centigrade,
cut-off Pressure: 160PSI (11bar) , working pressure:101.5PSI (7bar) , Open flow rate(MAX):8L/min
automatic presure switch type or return valve type
What's In the Box
1 x water pump
