8 Port SATA 3 PCI Expre Expansion Card PCI-E SATA Controller PCIE 1X to SATA Card SATA3.0 6Gb Adapter Add On Cards for HDD SSD
About Description:
Specification: Marvell 88SE9215 set Ports: 8 SATA 6GB/s Ports Compliant with PCI-E Specification V2.0 and backward compatible with PCI-E 1.X Supports Native Command Queuing (NCQ) Compatible with SATA 6G, 3G and 1.5G Hard drives Compliant with PCI-E Specification v2.0 and backward compatible with PCI-E v1.x PCI Expre x1 Interface, and Compatible with PCI Expre x1, x2, x4, x8 and x16 Slots Marvell 88SE9215+JMicron JMB5xx set Supports 10TBhard diskdrives Non-RAID standard SATA controller
Special features
System Requirements : Windows 10/8.1/8/7(32/64bit)/XP/Linux
Interface : PCI Expre x1 interface. Compatible with PCI-E X1,X4,X8,X16 Slots
Installation instructions
1 : PleasecleanthegoldfingerofSATA3.0cardbyeraser, Plug the SATA cable of the chais into the card.
then connect all the hard disks.
2 : Turn off the power of the computer and open the back cover of the PC; Remove the bars corresponding to the free slot on the chais.
3 : Insert the expansion card into the corresponding PCI-E expansion slot of the host
4 : Secure the strip of the expansion card to the chais with a screwdriver.
5 : Close the chais and plug in the power cord to boot. Ar entering the system, install the driver
Driver Installation
1. Insert the companion drive CD into the CD drive;
2. Open "My Computer", find the location of the disc, open the disc;
3. Locate the "CD:\ SATA CARD\Marvell\9215\drvsetup inside the .exe driver file;
4. Then follow the instructions of the computer to complete the installation, then restart the computer
Check the installation
Suitable for PCI-E card with Marvell 88SE9215+JMicron JMB5xx set :
Open the "Device Manager", expand the "Universal Serial Bus Controller" option, if there is "Marvell 92xx SATA 6G Controller", the hardware and driver are installed succefully; if there is "unknown device" or other information, the hardware or The driver did not install succefully.
If there is "Standard SATA AHCI Controller" hardware information under "Device Manager" or
"IDE ATA/ATAPI Controller", that means the driver didn't installed under windows10. Card layout

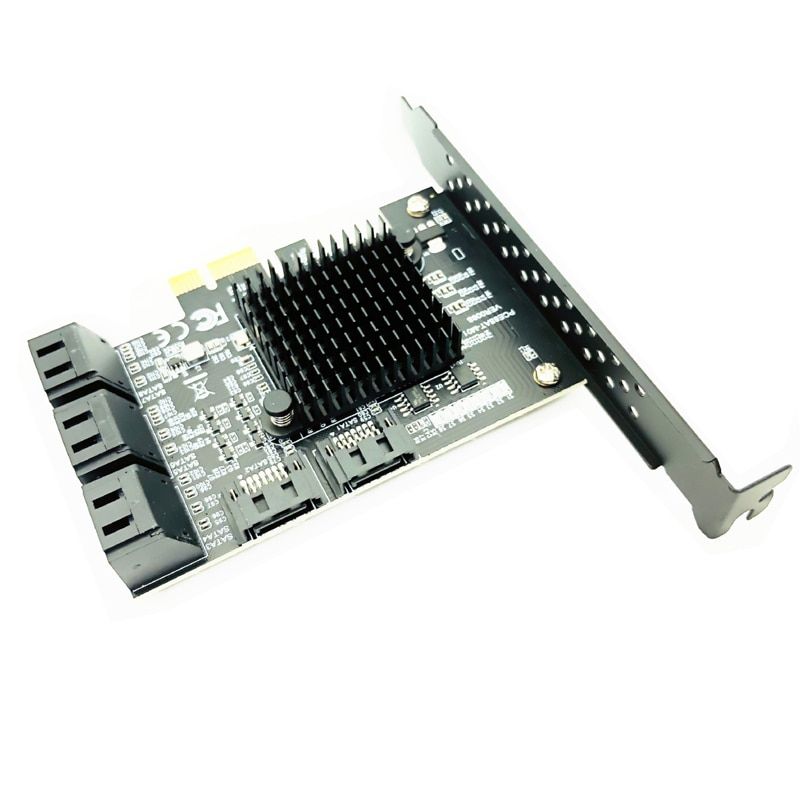

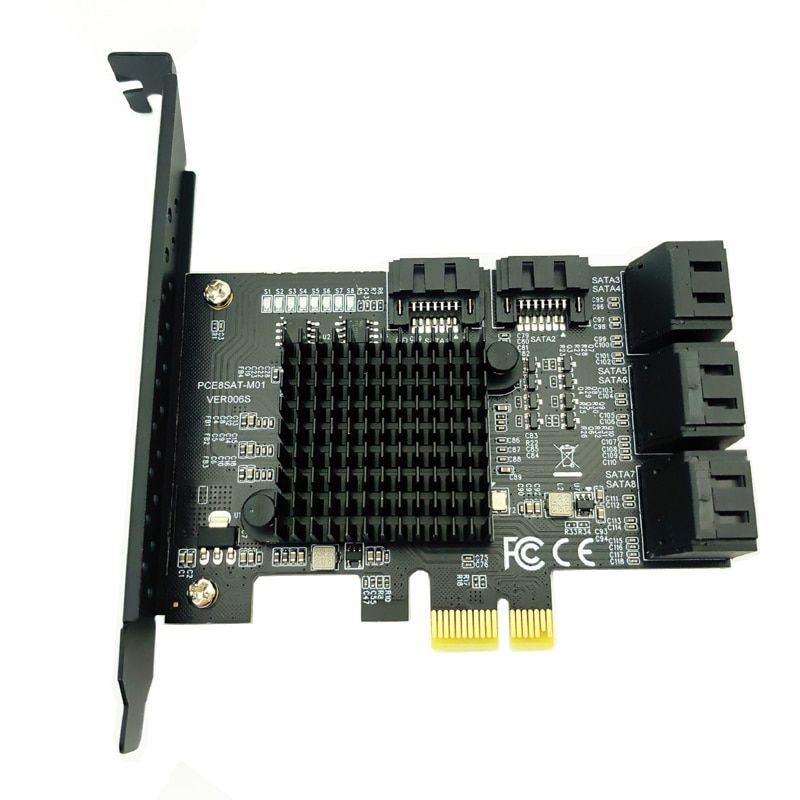

The illustration below shows the major components of the SATA3.08 PORT expansion card.
Note:
l The SATA3.0 PCI-E card must be installed in the PCI-E slot of the motherboard, and can not be inserted into the PCI slot.
l The fastest speed is 380-450m/s in PCI-E 2.0 . If it is plued into PCI-E1.0, the speed only runs 200-300m/s. Different computer configurations and sata d have different speeds. If all ports are used at the same time, the speed will slow down.
l We recommend to use this SATA 3.0 Card in PCIE2.0 or 3.0 slot, so as to get the fastest speed.
l SATA Port Multiplier is not supported if the driver is not installed.
l We must install the driver to recognize all the hard disks.
l Be sure to turn off the power of the computer before inserting or removing the card, and then insert the card to avoid damage to the motherboard or expansion card.
l If there is no CD-ROM or driver disc can not be read, you can contact retailer to send driver for you.
You'll receive:

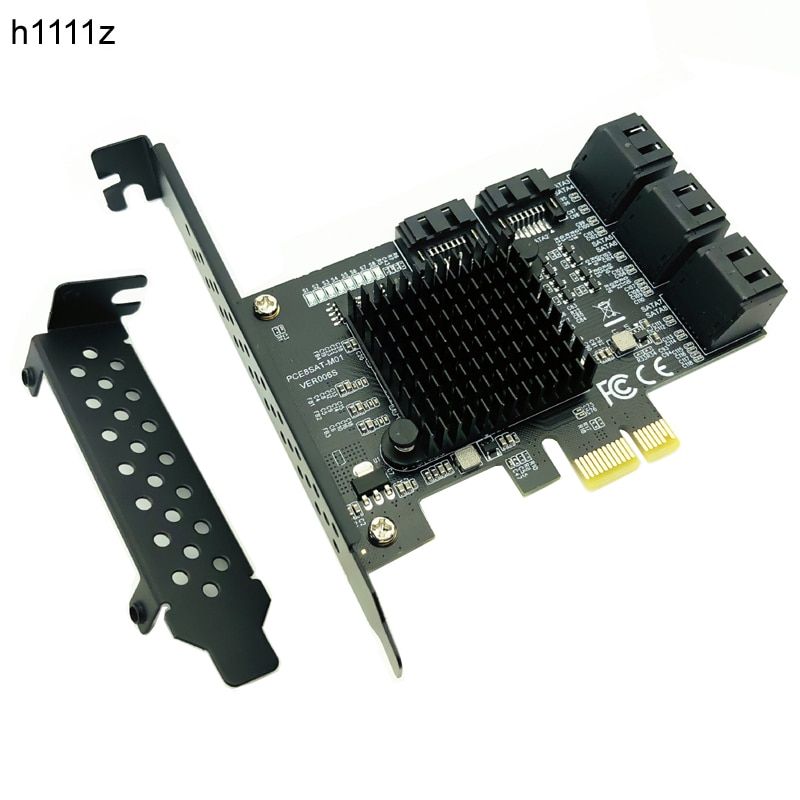

1 x SATA 3.0 Expansion Card 1 x Low Profile Bracket 1 xDriver CD
Please check pictures for more details.
