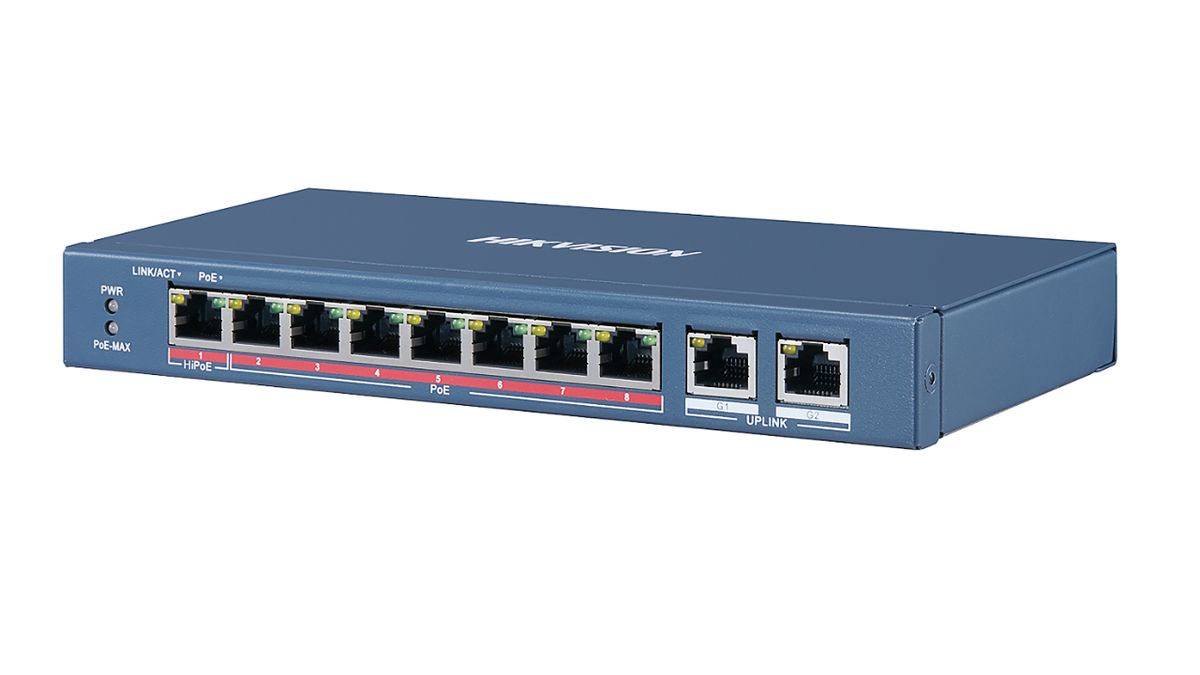

Model |
DS-3E0310HP-E |
Production Country |
China |
Size (L x W x H cm) |
217.6 mm × 27.8 mm × 103.35 mm (8.6” × 1.1” × 4.1”) |
Weight (kg) |
0.55 |
Color |
GRAY |
Main Material |
N/A |
- Network Parameters
- Ports1 × 10/100 Mbps Hi-PoE port, 7 × 10/100 Mbps PoE ports, and 2 × Gigabit RJ45 ports
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- Working ModeStandard mode (default); Extend mode
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
- Forwarding ModeStore-and-forward switching
- MAC Address Table16 K
- Switching Capacity5.6 Gbps
- Packet Forwarding Rate4.166 Mpps
- Internal Cache4 Mbits
- Ports For Long-Distance TransmissionPorts 1 to 8
- PoE Power Supply
- PoE StandardPort 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3btPorts 2 to 8: IEEE 802.3af, IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)Mid-span: 4/5(+), 7/8(-)8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PortPorts 1 to 8
- Max. Port PowerPort 1: 90 WPorts 2 to 8: 30 W
- PoE Power Budget110 W
- Dialing Function
- Long RangePorts 1 to 8: up to 300 m; and the speed rate of the port is 10 Mbps.
- General
- Dimensions (W × H × D)217.6 mm × 27.8 mm × 103.35 mm (8.6” × 1.1” × 4.1”)
- ShellMetal material, fan-free design
- Gross Weight1.22 kg (2.69 lb)
- Net Weight0.55 kg (1.21 lb)
- Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Operating Humidity5% to 95% (no condensation)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Storage Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 2.5 A
- Power Consumption In Idle10 W
- Max. Power Consumption120 W
- Approval
- EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 19)
- SafetyUL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2029)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)
Key Features
Intelligent PoE Management
Up to 300 m Long Range PoE Transmission
IEEE 802.3bt Standard Hi-PoE, Max. 90 W for One Port
4/8-Core Adaptive Power Supply with Less Power Loss
6KV Surge Protection to Improve Reliability in Harsh Environment
