1. Comply with IEEE 802. Power over Ethernet (10/100/1000M Supported). Extender the range of PoE an additional 100 meters
2. Automatically detects and protects PoE equipment from being damaged by incorrect installation

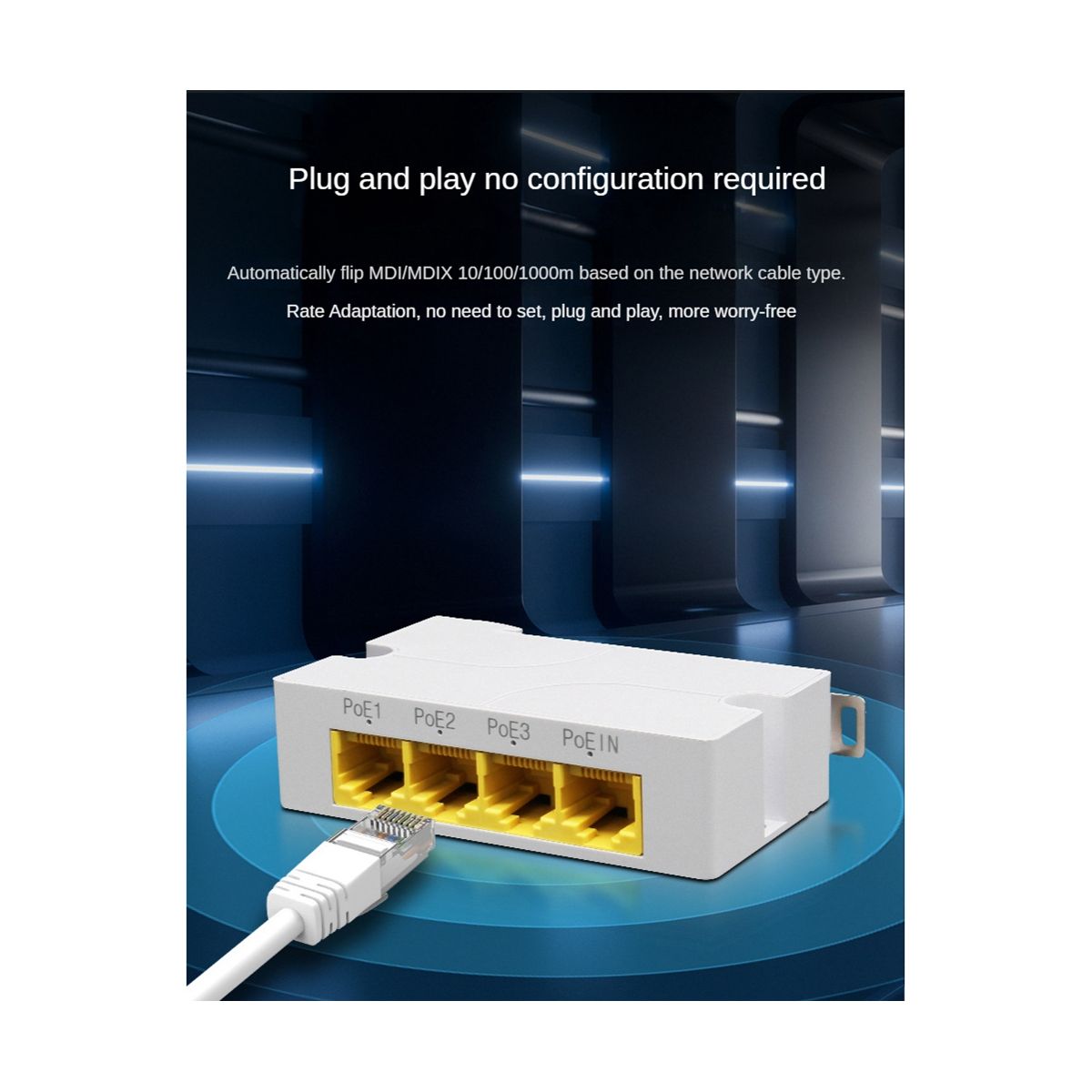

3. Plug-and Play no configuration required

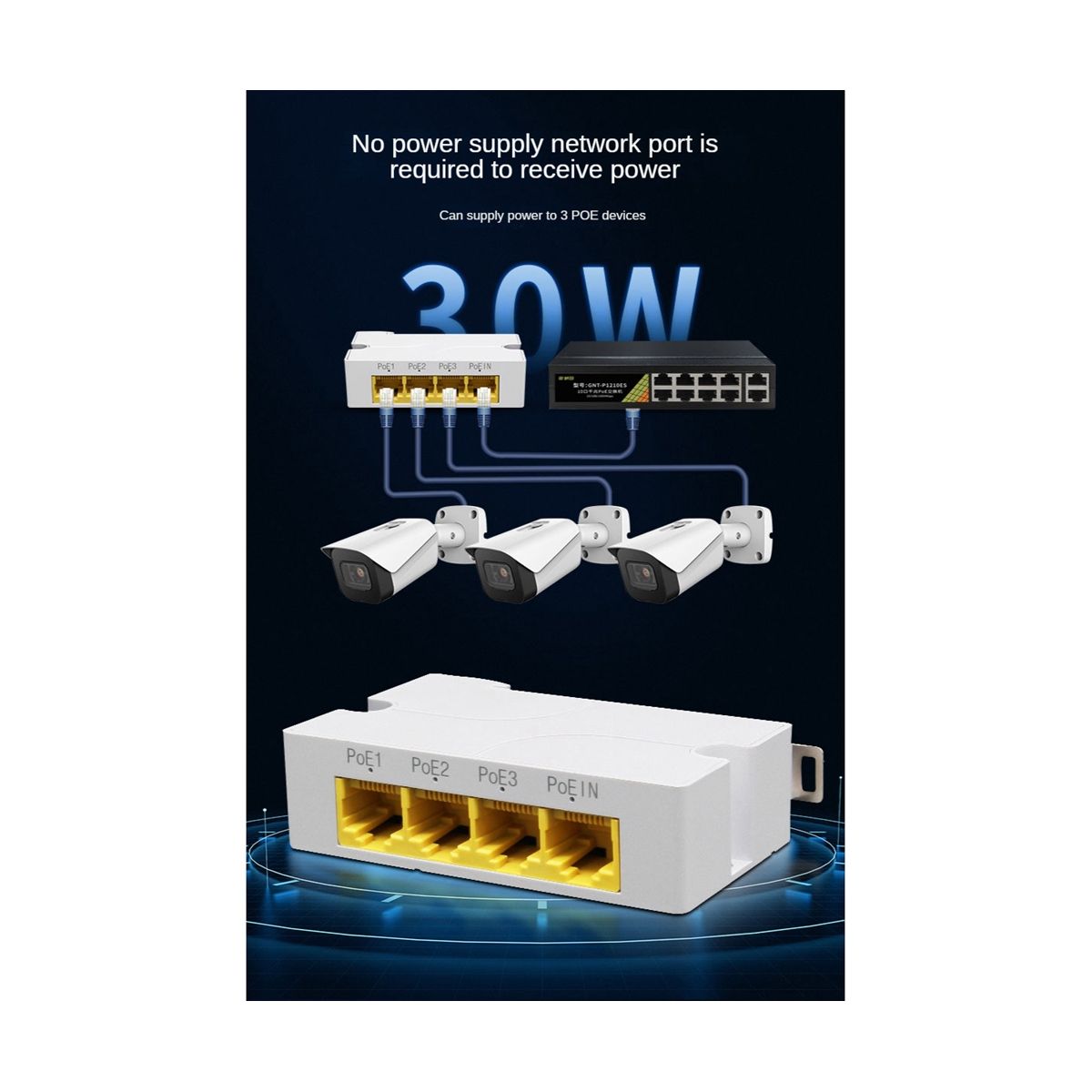

4. 3-Port PoE extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 ,Cat5e,Cat6,Cat6e,UTP cable.
5. 3-Port PoE Extender has 3 10/100/1000M Lan ports, among , one for power input, the other three for power output. Comply with 10/100/1000 BASE-TX,IEEE 802.3 -PoE.
6. Used with AP, IP camera, IP telephone and the other network equipment in the situation of the of power line or from the power outlets
7. Installed at hotels, schools, buildings, villages, etc.
Specification:
Network standard: IEEE802.3, IEEE802.3u, IEEE802.3x
PoE connection standard: IEEE 802.3af/at
PoE port input power: input maximum 30W
PoE port output power: output maximum 24W/average 8W per port
PoE power receiving input transmission core: 1/2+, 3/6-, 4/5+, 7/8-
PoE power output transmission core: 1/2+, 3/6-
POE power supply transmission distance: ≤100 meters
Power supply transmission medium: 10/100/1000BASE-TX: Category 5 and above non-screen shielded pair
Packet Buffer Memory: 48
Switching Capacity: 1.0Gbps
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;
Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU, Low Voltage Directive 2014/35/EU,EMC Directive 2004/108/EC;
Working temperature: -10°c to 55°c
Working Humidity: 10%~90%, No Condensation;
Weight: 55g
type: POE Extender
color:White
Material:ABS
size:82 x 52 x 23mm
Package Contents:
1 x POE Extender
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
