Detailed Information About The Product:Name: protection board
Charging voltage: 25 V
Charge MOS pressure value: 35 V
Discharge MOS pressure value: 35 V
Charging current: 5-6 A
Continuous discharge current: 20 A
Over current protection: 50/55/60 A
Over current protection delay: 20/25/30mS
Single section since the power consumption: 30uA
Single section between the power consumption: 3uA
Single section over charge detection voltage: 4.18- /4.22V
Over charge recovery voltage 4.05- 4.15 V
Over charge detection delay: 0.5/1.0/2.0S
Single section over discharge detection voltage: 2.75-2.85 V
Over discharge recovery voltage: 2.90-3.20 V
Over discharge detection delay: 0.5-2.0S
Short / over / over current protection recovery short circuit / over discharge / over current protection after removal of load auto recovery
Short circuit protection delay: 200/500/600uS
The normal working state of B- to P- resistance: 5m ohm
Continuous 20A current maximum temperature rise: 25 ℃
Working environment (humidity) relative humidity: greater or equal to 98% (long-term stability under the humidity)
Working environment (temperature) -30 ~ 80℃(in the lower temperature range of long-term stability)
colour: green
Material: plastic
Package Contents:

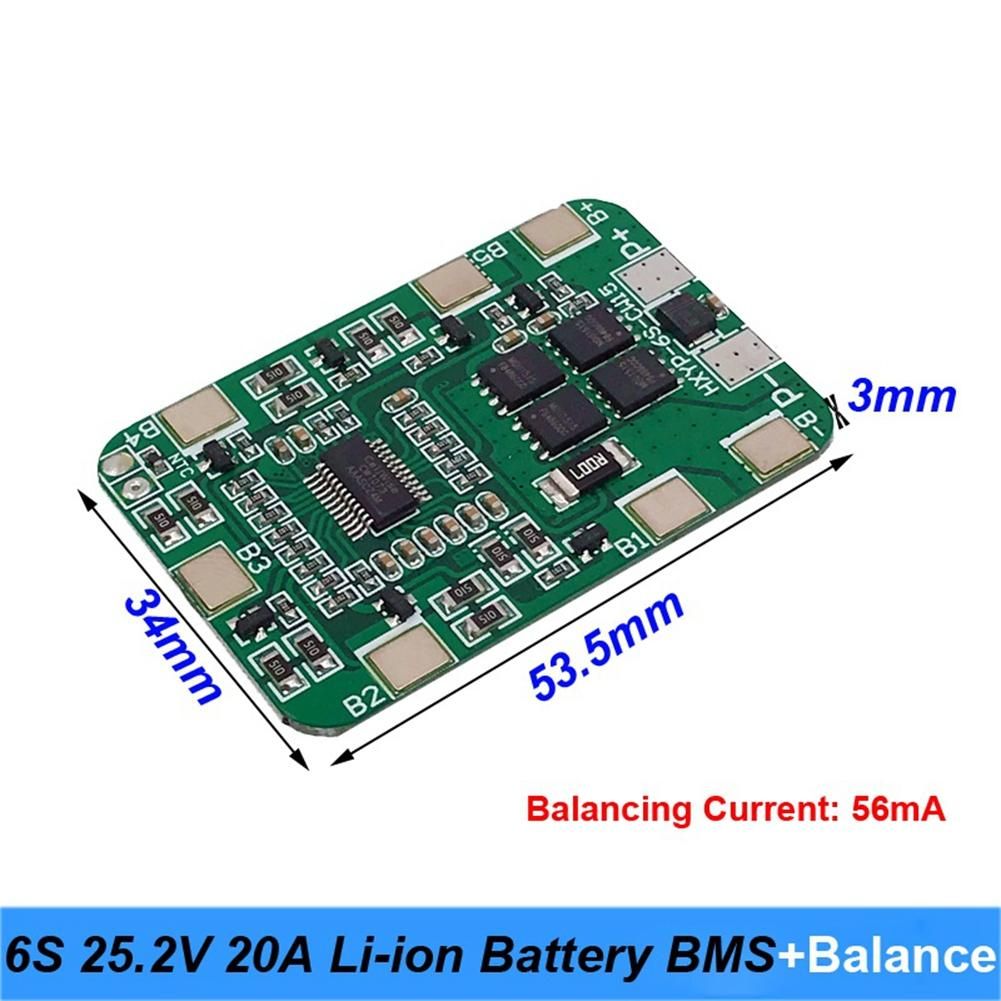

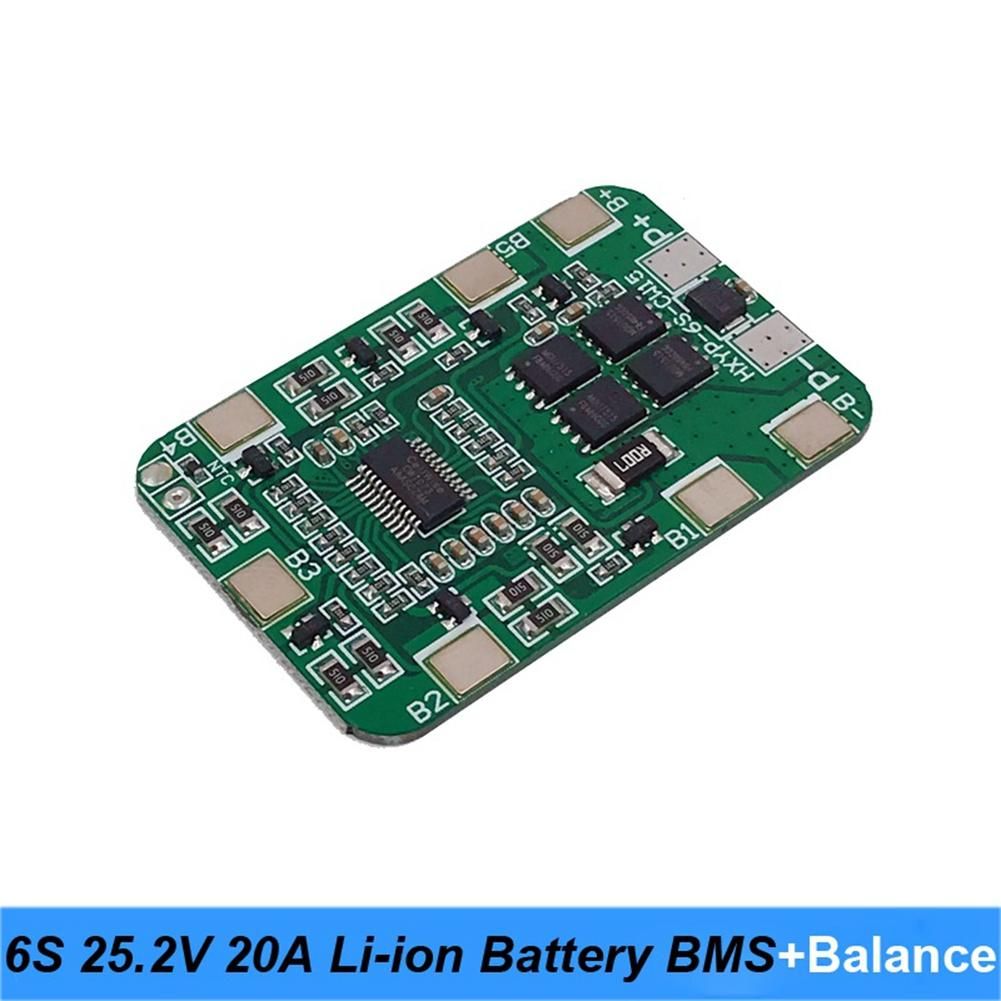

1 x 6S 25.2V 20A BMS Lithium Battery Board
Only the above package content, other products are not included.
